MikroTik RBLHG-5HPnD-XL 27dBi 5GHz Network Antenna 4-pack

MikroTik RBLHG-5HPnD-XL 27dBi 5GHz Network Antenna 4-pack

Dual chain eXtra Large High Power 27dBi 5GHz CPE/Point-to-Point Integrated Antenna

Features

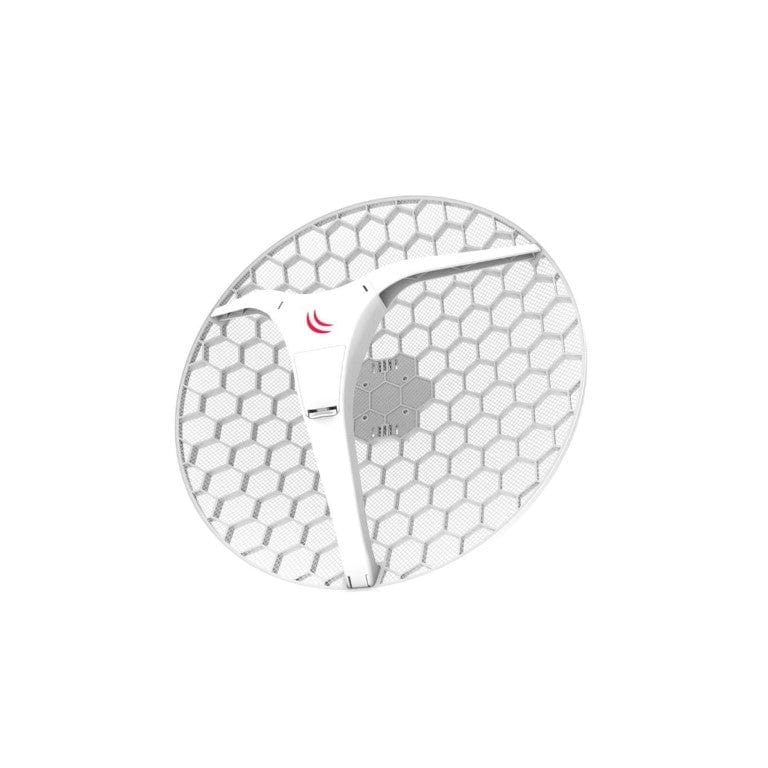

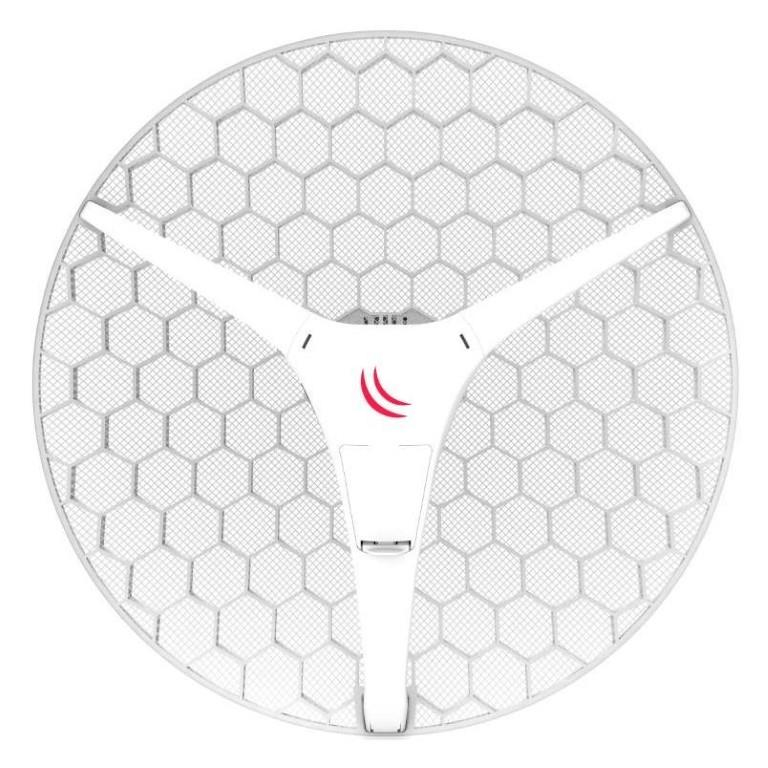

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

Shipped as a kit of 4 units (RBLHG-5HPnD-XL4pack) - 4 antennas in a single box

Technical Specification

Product: Mikrotik RBLHG-5HPnD-XL 27dBi 5GHz 4-pack Network Antenna's
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: Ø 550 x 245 mm
RouterOS license: 3
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 7 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 10-28 V
Wireless
Wireless 5 GHz Max data rate: 300 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n
Antenna gain dBi for 5 GHz: 27
Wireless 5 GHz chip model: AR9344
Wireless 5 GHz generation: Wi-Fi 4
Ethernet
10/100 Ethernet ports: 1
