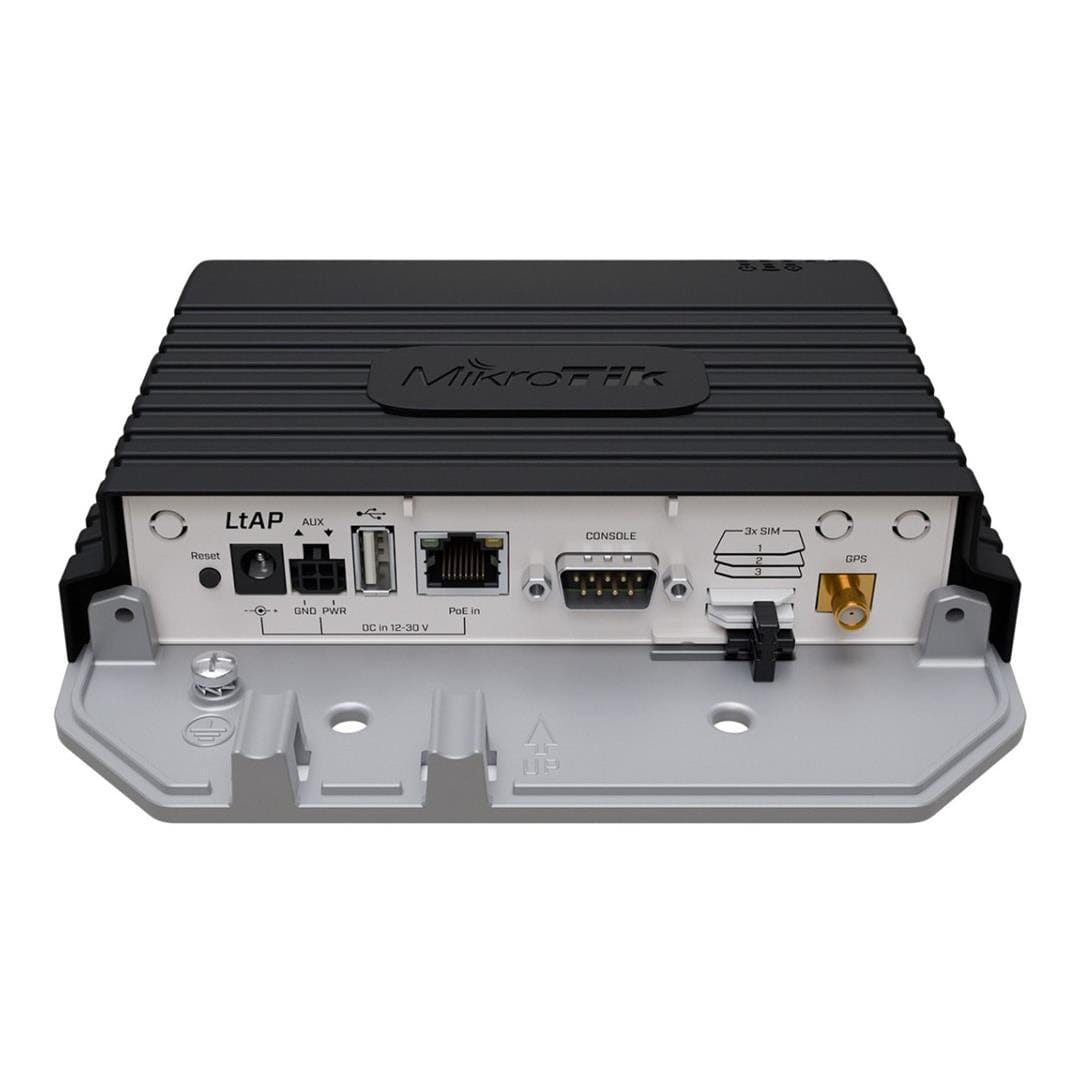

MikroTik LtAP LTE7 Kit 3 SIM 2 mPCIe and GPS Access Point LtAP-2HnD&R11e-LTE7

MikroTik LtAP LTE7 Kit 3 SIM 2 mPCIe and GPS Access Point LtAP-2HnD&R11e-LTE7

A compact, heavy-duty LTE access point with built-in GPS – now upgraded with a faster, smarter, more affordable LTE Category 7 modem. Add extensive networking and tracking options to your vehicle without breaking the bank!

Features:

• Automotive
• GPS
• IP 54
• LTE Cat7
• Mini PCI-e
• Outdoors
• PoE
• ROS v7

The new LtAP LTE7 kit takes everything people loveabout LtAP – the rugged weatherproof case, built-in GPS, extreme power flexibility, and miniPCI-e expansion options… and adds our latest LTE Category 7 modem for ahuge real-world improvement! Higher speed, stability and throughput is not the onlybenefit of the new modem. It comes with expandedfrequency support including Band 32 for betterperformance in congested areas and during roaming.Same trusted LtAP form factor – no changes to installationor configuration. Just faster uploads, stronger ruralperformance, and a noticeably better price.

Perfect for logistics, transport & tracking

Just like in the previous model, you get 3 MiniSIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.

Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attention- grabbing than traditional routers.

The virtue of versatility

LtAP is designed to run in nearly any environment. It supports: DC jack, Passive PoE-in, and Automotive power connector!

Users have even run the device from power banks in the field. And because LtAP includes two miniPCIe slots, you can expand it with a second LTE modem, a 5 GHz interface, or other add-ons – building exactly the setup you need.

Powered by RouterOS v7 – automate, adapt, and configure anything to your liking!

Firewalling, VPNs, VLANs, DHCP, routing policies, advanced notifications, GPS data processing, custom scripts – RouterOS v7 gives you full control. No paywalls, no subscriptions, only pure functionality… forever! We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job.

Technical Specifications:

Product Code
LtAP-2HnD&R11e-LTE7

Architecture
MMIPS

CPU
Model: MT7621AT
Core Count: 2
Nominal Frequency: 880 MHz
Threads Count: 4

RouterOS License
Level 4

Operating System
RouterOS v7

Memory
RAM Size: 128 MB
Storage Size: 16 MB
Storage Type: FLASH

Reliability
MTBF: Approximately 200,000 hours at 25°C
Tested Ambient Temperature: -40°C to 70°C

Powering
Number of DC Inputs: 3 (DC jack, PoE-IN, Automotive)
DC Jack Input Voltage: 12–30 V
Automotive Input Voltage: 12–27 V
Max Power Consumption: 24 W
Max Power Consumption Without Attachments: 12 W

PoE In
Type: Passive PoE
Input Voltage: 12–30 V

Cooling
Type: Passive

Mobile
3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD Bands: 1, 3, 5, 7, 8, 20, 28, 32
LTE TDD Bands: 38, 40, 41
TAC: 35312597

Wireless Specifications
2.4 GHz Max Data Rate: 300 Mbit/s
2.4 GHz Number of Chains: 2
2.4 GHz Standards: 802.11b/g/n
2.4 GHz Antenna Gain: 2.5 dBi
2.4 GHz Chip Model: AR9382
2.4 GHz Generation: Wi-Fi 4

Ethernet
10/100/1000 Ethernet Ports: 1

Peripherals
Number of SIM Slots: 3 (Mini SIM)
MiniPCI-e Slots: 2
Serial Console Port: RS232
Number of USB Ports: 1
USB Power Reset: Yes
USB Slot Type: USB Type-A
Max USB Current: 1 A

Other Features
PCB Temperature Monitor: Yes
Voltage Monitor: Yes
GNSS Standards: GPS

Certification & Approvals
Certification: CE, EAC, ROHS
Ingress Protection: IP54
