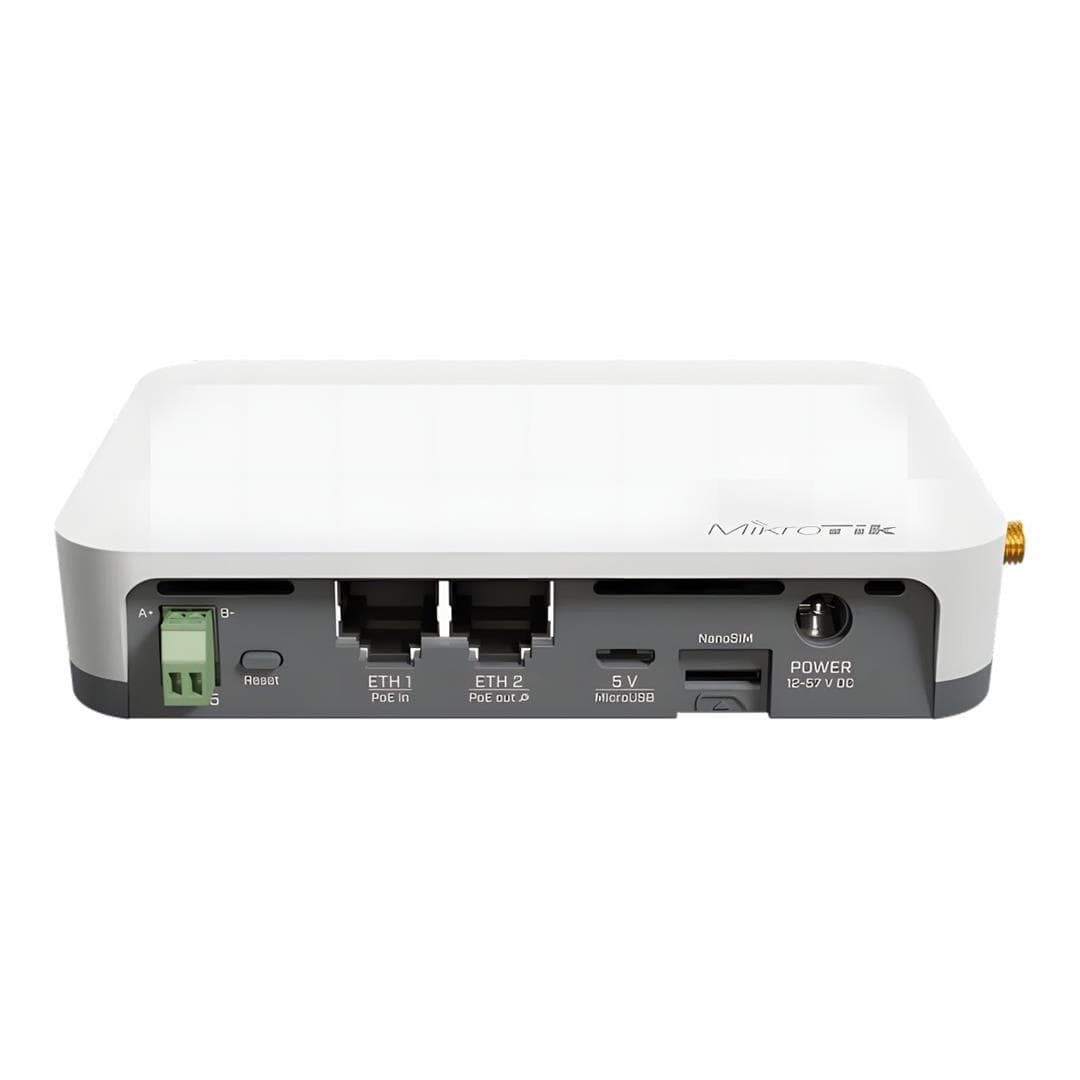

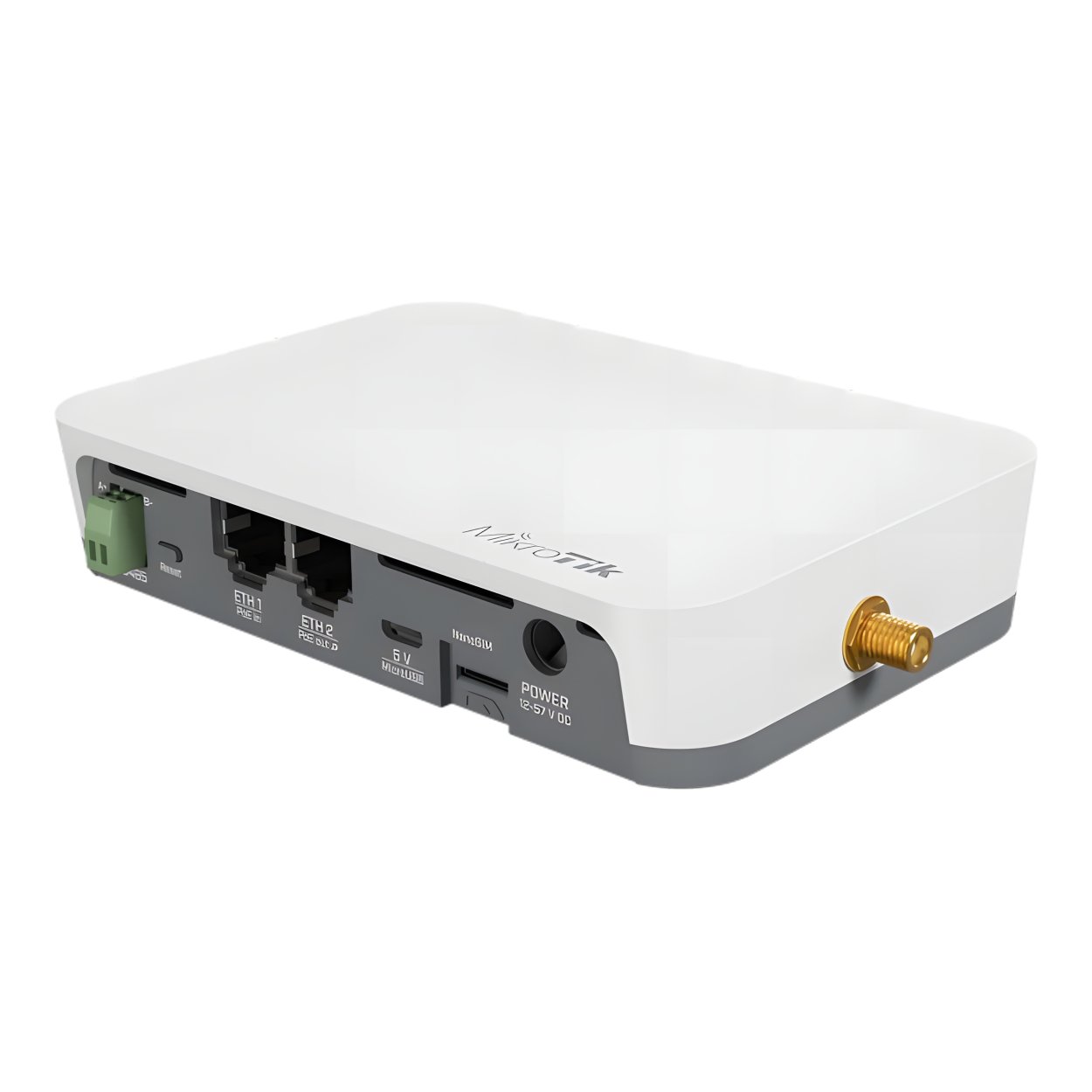

MikroTik LoRaWAN IoT Gateway KNOT LR8G Kit RB924IR-2ND-BT5&BG770A&R11E-LR8G

MikroTik LoRaWAN IoT Gateway KNOT LR8G Kit RB924IR-2ND-BT5&BG770A&R11E-LR8G

An industrial-grade IoT gateway for smart asset tracking, remote monitoring, and efficient automation – now with enhanced LoRa® reception, concurrent GPS + LTE CAT-M, and a lower price. This is the 868 MHz version.

Features:

• LoRa® 915MHz
• CAT-M/NB technology
• 2.4 GHz wireless
• RS485/Modbus
• 2x 100 Mbps Ethernet ports
• PoE-in & PoE-out
• GNSS
• GPIO
• Bluetooth

Smart IoT Connectivity That Just Works

The KNOT LR8G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment.

CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.

Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR8G ties everything together and keeps everything connected.

Concurrent GPS and LTE CAT-M

Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment

Improved 915 MHz LoRa® Reception

Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.

Versatile Powering

Choose from PoE-in, DC jack, or MicroUSB – including PoE-out on Ether2 for powering other devices

Lower Price, Same Reliability

Cost-effective for large-scale deployments without sacrificing performance.

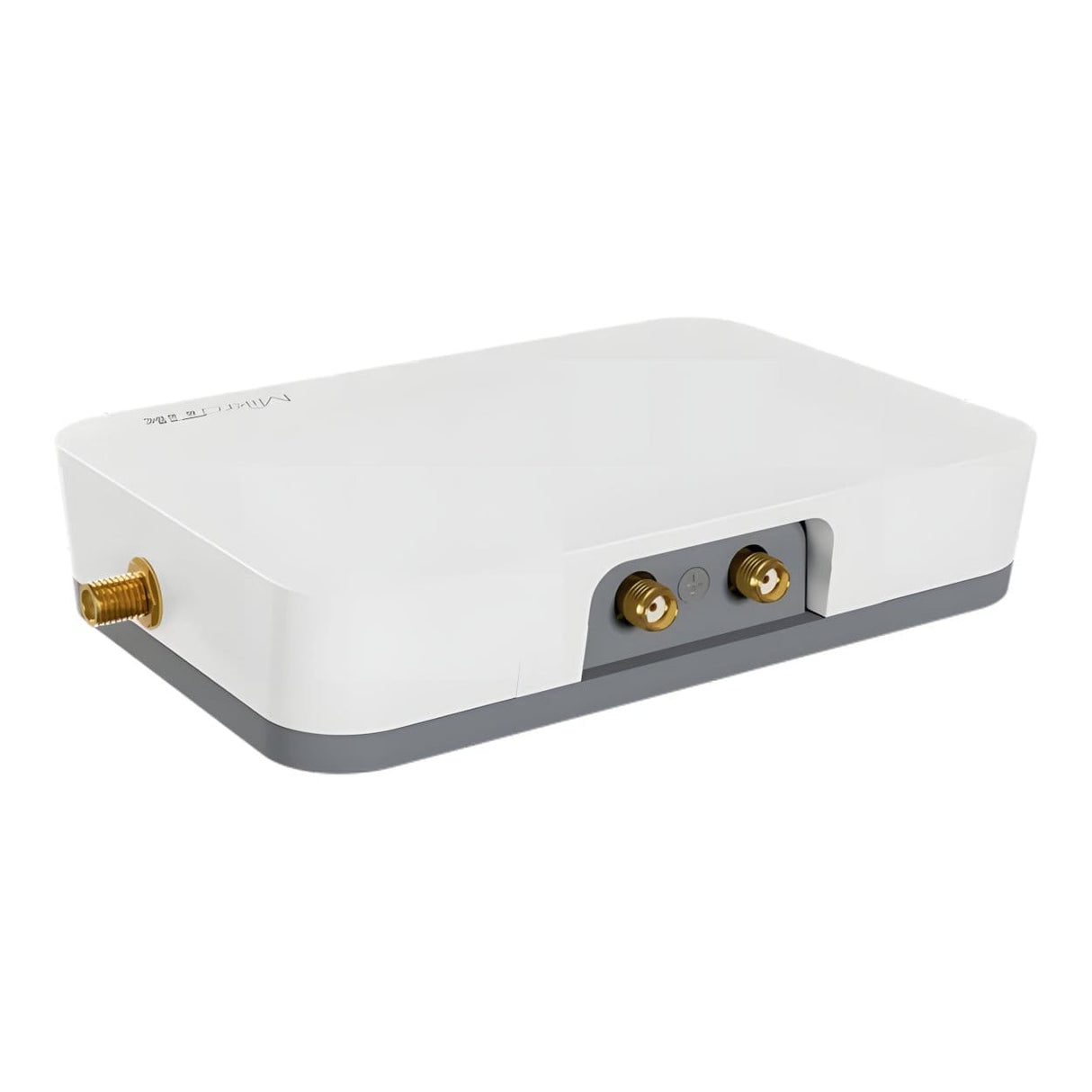

SMA Female Connectors for All Main Interfaces

Easy antenna setup for LTE, GPS, and LoRa®

Powered by RouterOS v7

Full control, custom scripting, and advanced routing features.

Hospital Asset Tracking

Attach Bluetooth beacons to critical medical equipment. Install a KNOT LR8G in each storage area. As gear moves, KNOT detects nearby tags, tracks location via GPS, and sends updates over LTE CAT-M – keeping inventory up-to-date and reducing manual audits

Cold Chain Monitoring

Use wired Modbus sensors to monitor temperature and humidity inside refrigerated containers. KNOT converts Modbus to TCP and forwards data securely via MQTT or HTTPS, using low-bandwidth LTE or NB-IoT

Agriculture & Remote Sites

Deploy KNOT to gather soil or weather sensor data in rural fields. Its wide band support, LoRa® reception, GPS compatibility make it ideal for long-range, low-power data collection.

Industrial Automation

Bridge legacy wired sensors and actuators to the cloud. With DIN rail support and GPIO monitoring, KNOT easily integrates into industrial cabinets or manufacturing environments

Lightweight, Powerful, Cost-Effective

At just 6W consumption and small footprint (122 × 87 × 26 mm), the KNOT LR8G is perfect for deployments where space, power, and budget are limited – but performance can’t be.

Technical Specifications:

General
Product Code: RB924iR-2nD-BT5&BG770A&R11e-LR8G
Architecture: MIPSBE
CPU Model: QCA9531
CPU Cores: 1
CPU Frequency: 650 MHz
Switch Chip Model: QCA9531
RouterOS License: Level 4
Operating System: RouterOS v7
RAM: 64 MB
Storage Capacity: 128 MB
Storage Type: NAND
MTBF: Approximately 200,000 Hours at 25°C
Cooling Type: Passive

Power
MicroUSB Input Voltage: 5 V
DC Inputs: 3 (DC Jack, PoE-In, MicroUSB)
DC Jack Input Voltage: 12 V – 57 V
PoE Standard: 802.3af/at
PoE Input Voltage: 18 V – 57 V
Maximum Power Consumption: 23 W
Maximum Power Consumption (Without Attachments): 6 W

PoE Output
PoE-Out Port: Ether2
PoE-Out Type: Passive PoE
Low Voltage PoE-Out Current Limit: 650 mA
High Voltage PoE-Out Current Limit: 450 mA
Total Output Power: 12 W

Wireless
Wireless Standard: Wi-Fi 4 (802.11b/g/n)
Wireless Frequency: 2.4 GHz
Maximum Data Rate: 300 Mbit/s
Number of Chains: 2
Antenna Gain: 1.5 dBi
Wireless Chipset: QCA9531

Ethernet
10/100 Ethernet Ports: 2

Peripherals
SIM Slots: 1 × Nano SIM
MiniPCI-e Slots: 1
Serial Console Port: RS485
USB Ports: 1
USB Type: MicroUSB Type AB
Maximum USB Current: 1 A

Monitoring and Connectivity
PCB Temperature Monitor: Yes
Voltage Monitor: Yes
Bluetooth Version: 5.2
Bluetooth RF Connector Type: uUFL
GPS RF Connector Type: SMA

Environmental
Tested Ambient Temperature: -40°C to 70°C
IP Rating: IP20

Certifications
Certifications:

• CE
• EAC
• RoHS

What's in the Box:

• MikroTik LoRaWAN IoT Gateway
• 24 V 1.2 A Power Adapter
• K-47 Wall Mount Set
• DIN Rail Mount Set
• USB OTG Cable
