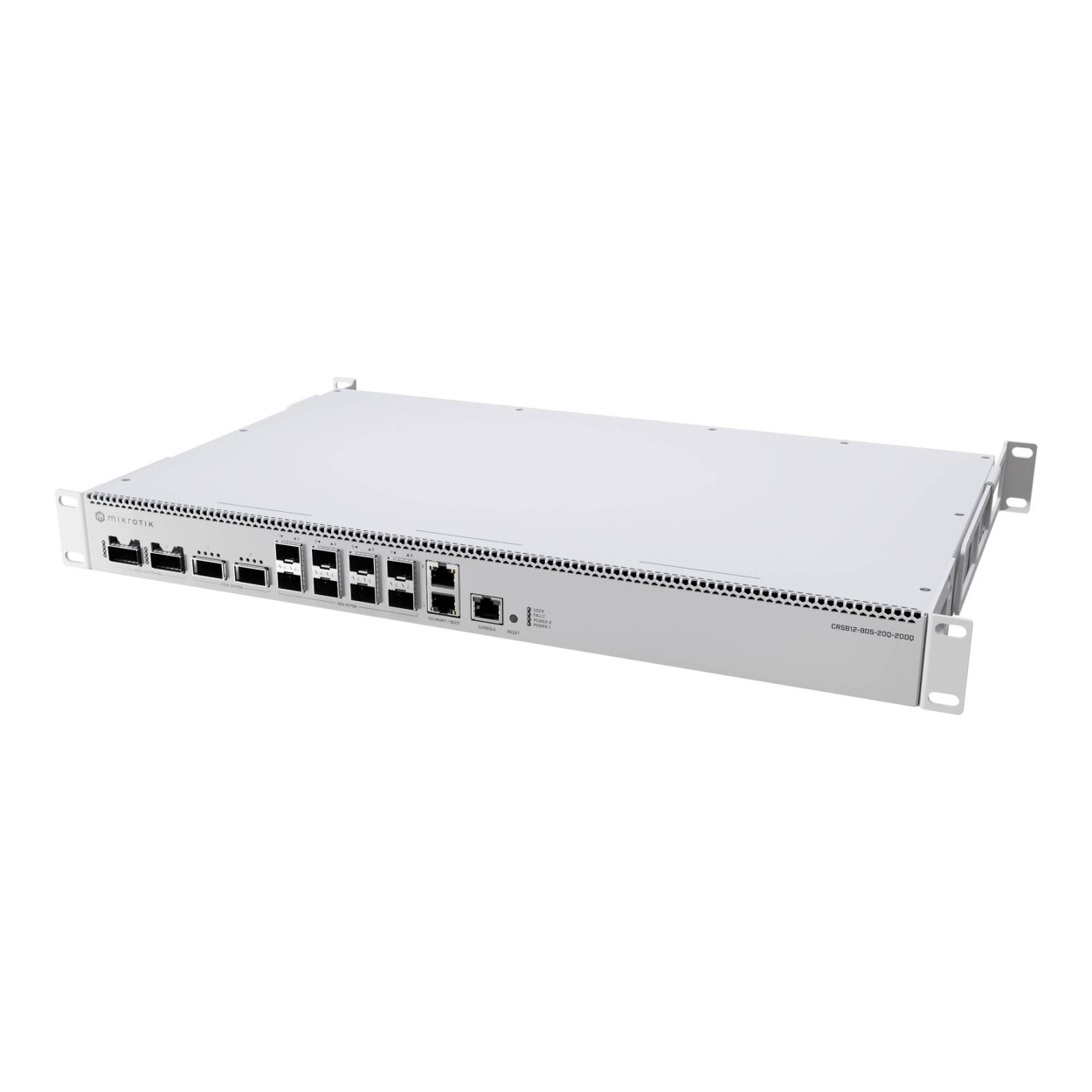

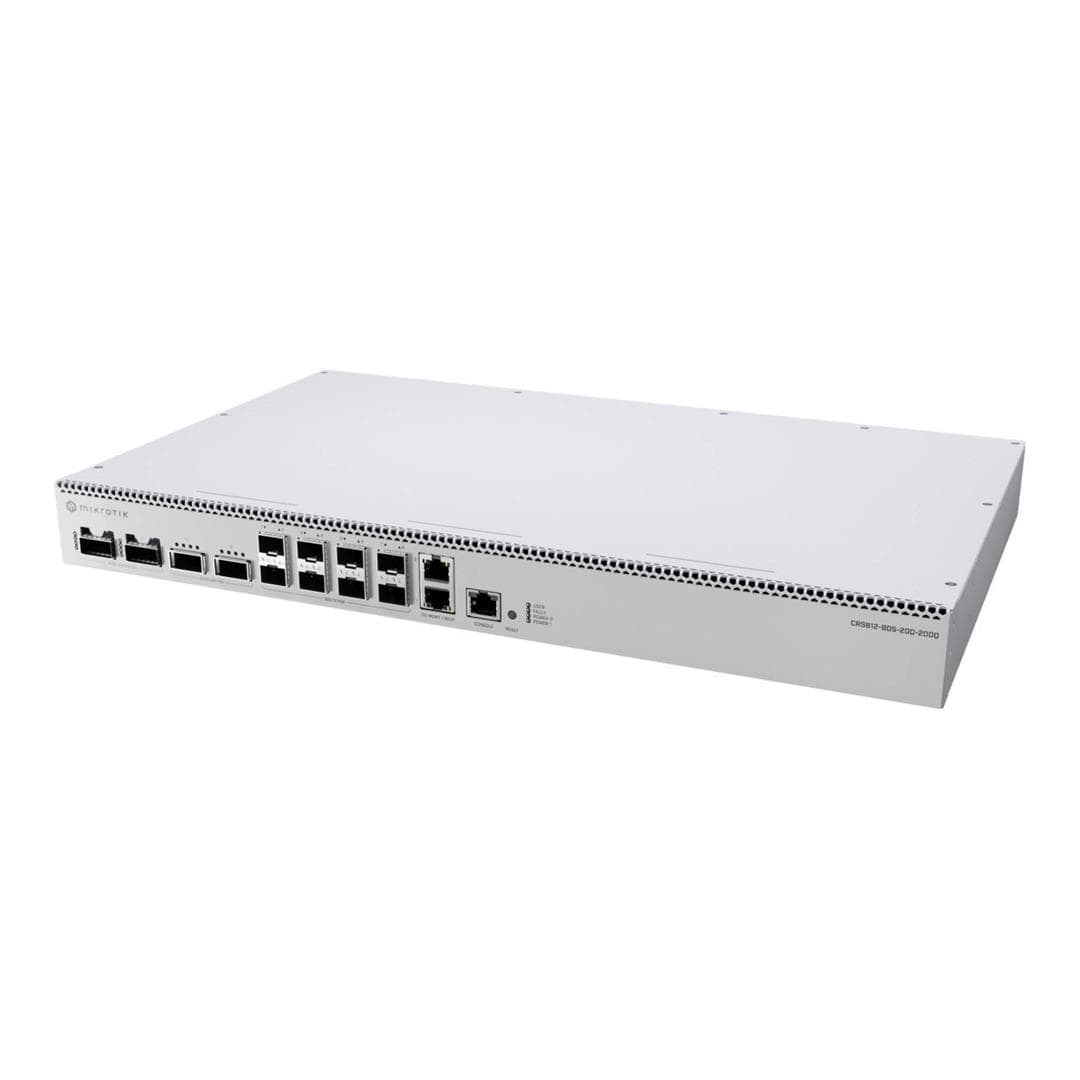

MikroTik CRS812 DDQ 14-Port Multi-Gig Managed Switch CRS812-8DS-2DQ-2DDQ-RM

MikroTik CRS812 DDQ 14-Port Multi-Gig Managed Switch CRS812-8DS-2DQ-2DDQ-RM

This switch is your next leap forward – a powerful, efficient, and cost-effective way to bring 50G, 200G, and 400G into your rack. Quad-core 2 GHz ARM CPU, dual-redundant power supplies and 4x hot-swap cooling fans, 2x 10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, and 2x 400G QSFP56-DD ports.

Features:

• 4 GB of RAM
• Quad-core 2 GHz ARM CPU

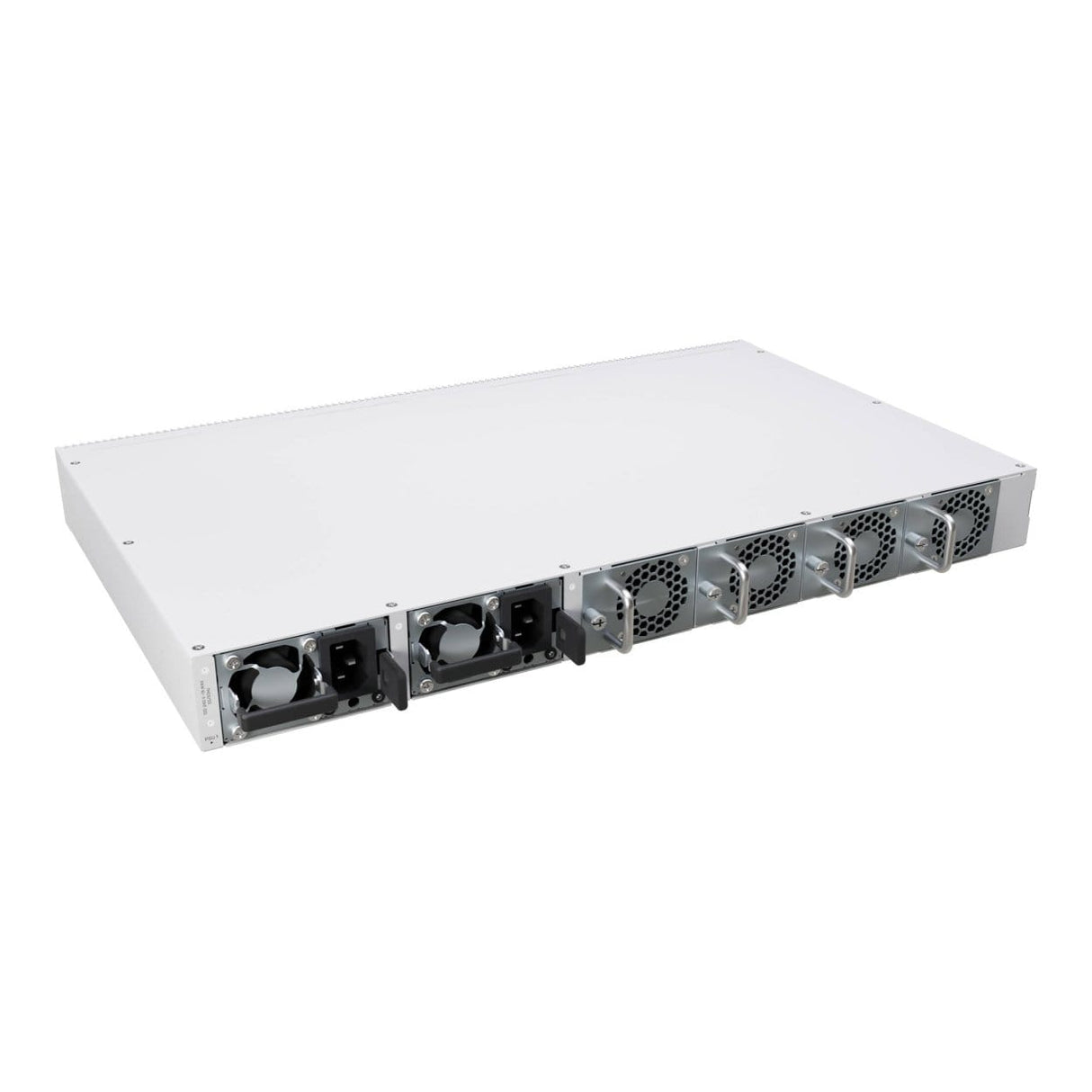

• Dual-redundanthot-swap power supplies
• 4x hot-swap cooling fans
• RouterOS v7

400G used to mean expensive, complex, and out of reach.

The CRS812 DDQ changes that!

With a modern Marvell switch chip and powerful ARM CPU, it delivers advanced routing, switching, and traffic management features trusted in millions of RouterOS deployments – now with ports up to 400 Gbps!

Technical Specifications:

General
Product Code: CRS812-8DS-2DQ-2DDQ-RM
Architecture: ARM 64-Bit
CPU Model: AL52400
CPU Cores: 4
CPU Threads: 4
CPU Frequency: 2000 MHz
Switch Chip Model: 98DX7335
RouterOS License: Level 6
Operating System: RouterOS v7
RAM: 4 GB
Storage Capacity: 512 MB
Storage Type: NAND
MTBF: Approximately 200,000 Hours at 25°C

Power
AC Inputs: 2
AC Input Range: 100 – 240 V
Input Frequency: 50 – 60 Hz
PSU Slots: 2
Maximum Power Consumption: 134 W
Maximum Power Consumption (Without Attachments): 81 W

Cooling
Cooling Type: 4 Fans

Ports and Interfaces

• 2 × 1G/2.5G/5G/10G Ethernet Ports (10 Mbps/100 Mbps/1 Gbps/10 Gbps Supported)
• 8 × 50G SFP56 Ports
• 2 × 200G QSFP56 Ports
• 2 × 400G QSFP56-DD Ports

Peripherals
Serial Console Port: RJ45

Monitoring
CPU Temperature Monitor: Yes
PCB Temperature Monitor: Yes
Voltage Monitor: Yes

Environmental
Tested Ambient Temperature: -10°C to 50°C
IP Rating: IP20

Certifications
Certifications:

• CE
• EAC
• RoHS

What's in the Box:

• MikroTik CRS812 DDQ
• 2 × IEC Power Cords
• Rackmount Rear Support Ears (2/2)
• Rackmount Ears (CRS)
• K-82 Fastening Set
