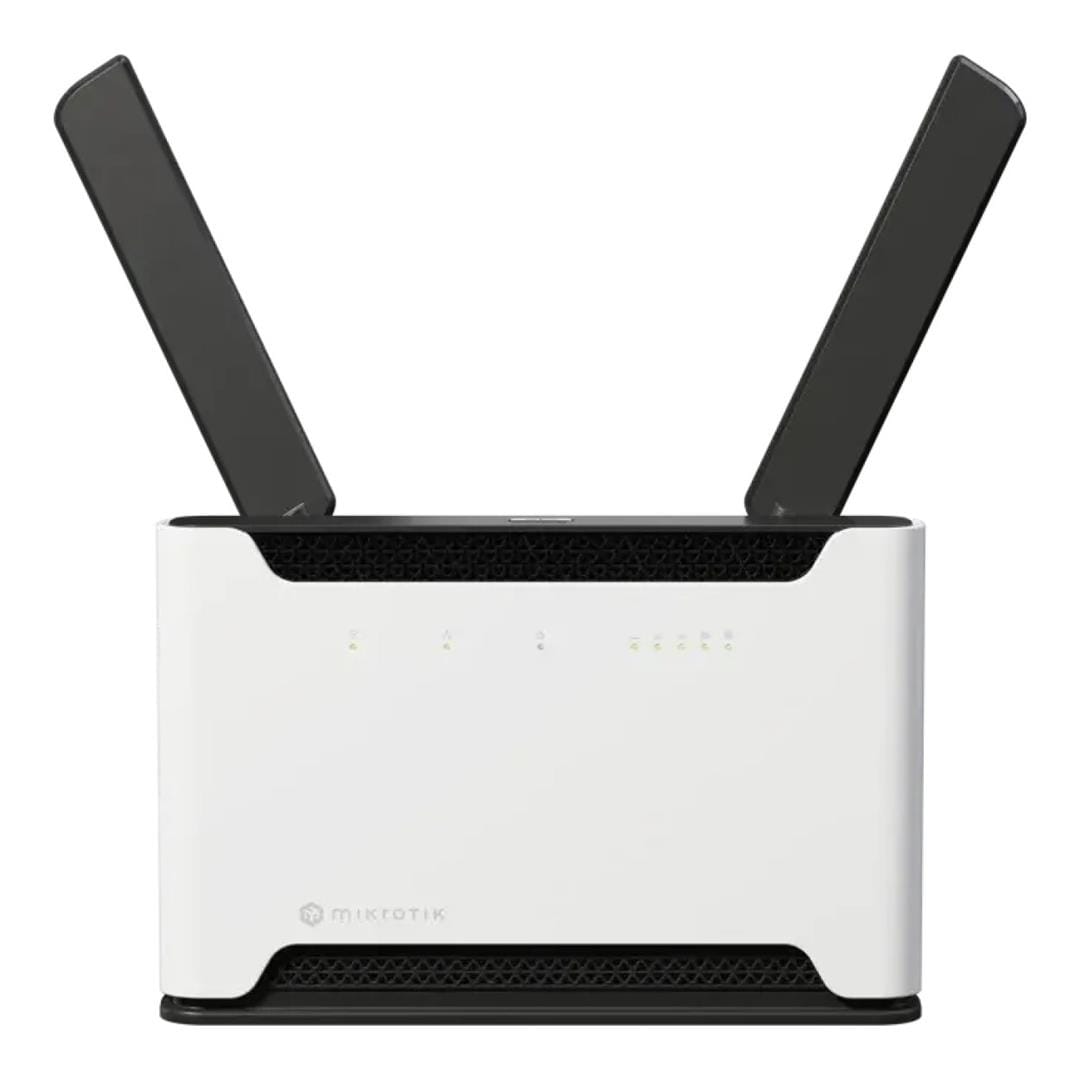

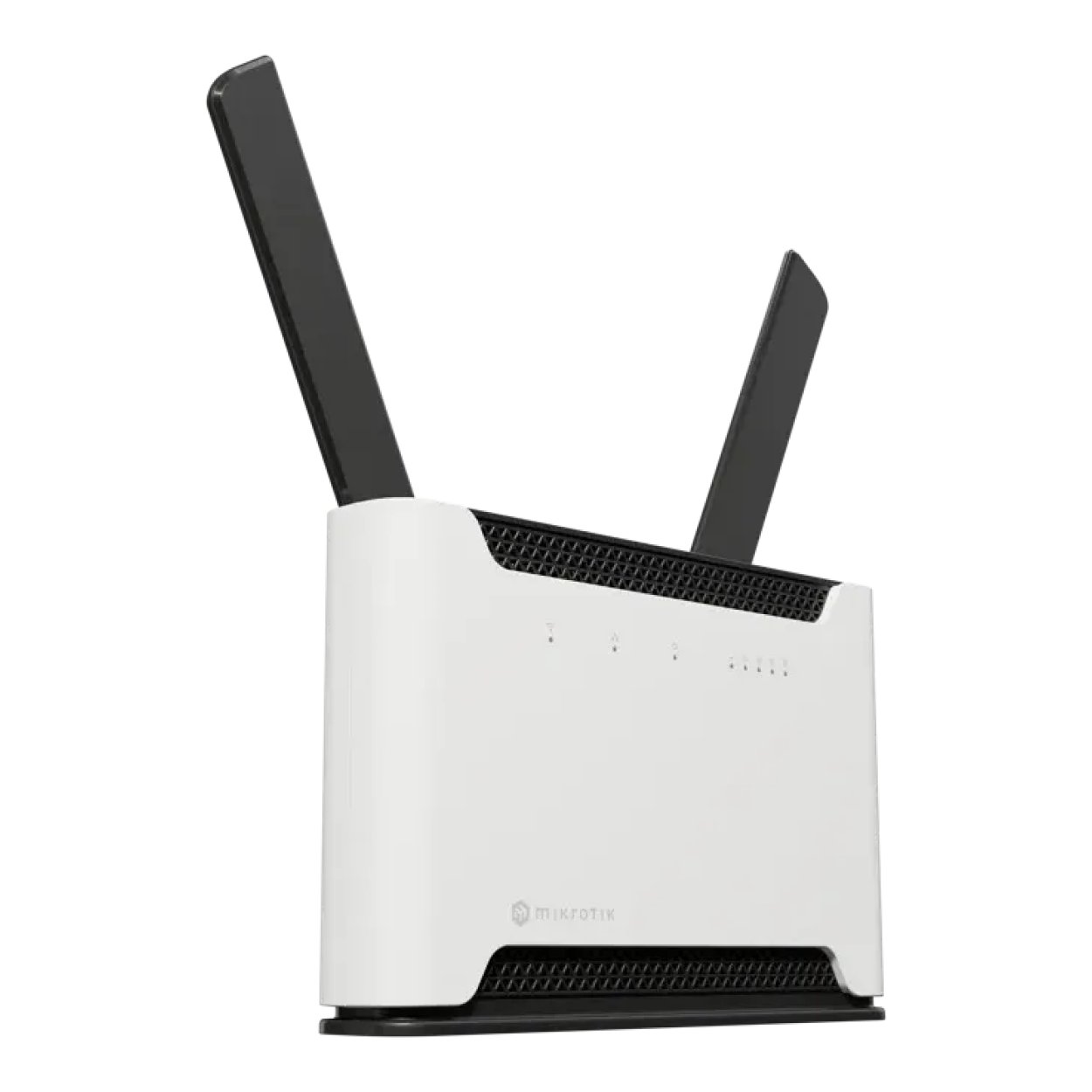

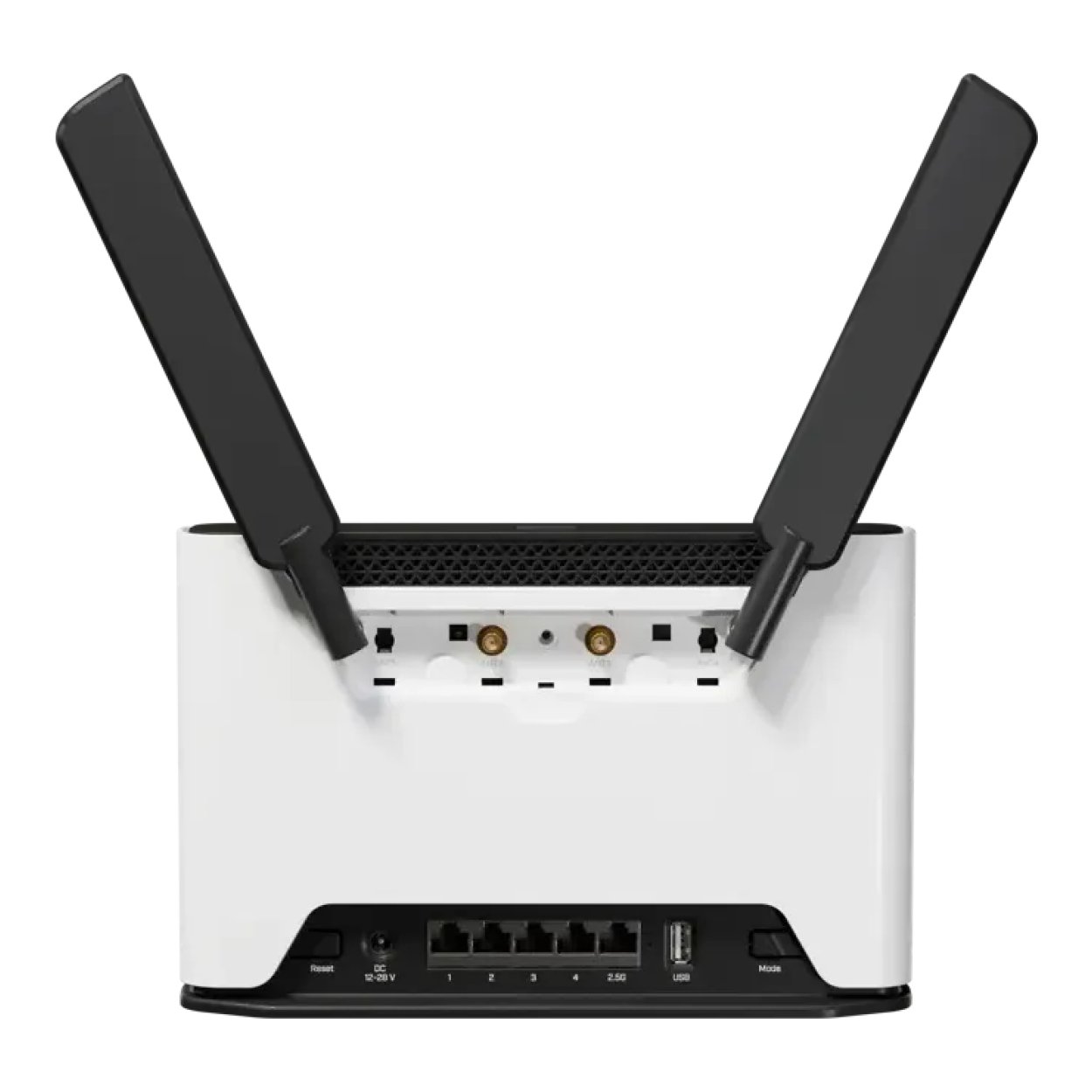

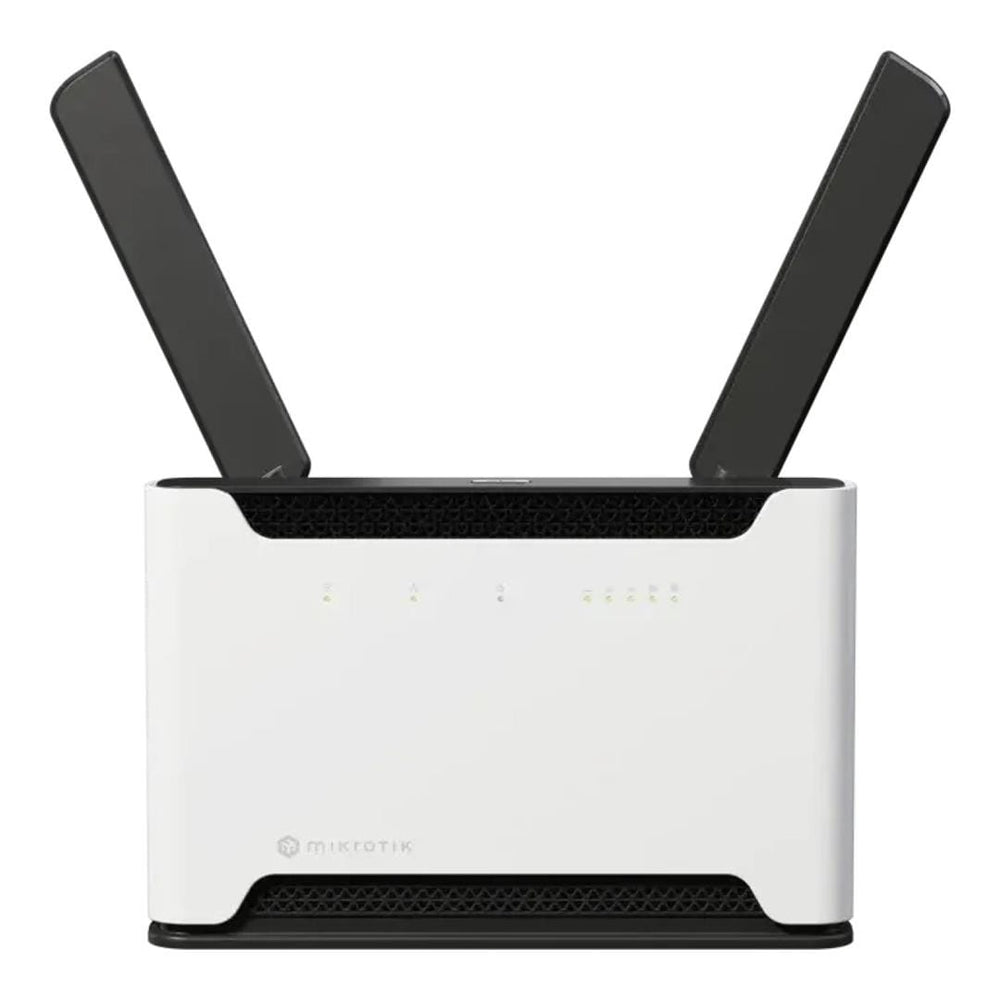

MikroTik Chateau LTE7 ax AX1800 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet S53UG+5HAXD2HAXD-TC&R11E-LTE7

MikroTik Chateau LTE7 ax AX1800 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet S53UG+5HAXD2HAXD-TC&R11E-LTE7

Your favorite high-performance home and office LTE router just got a major upgrade. Chateau LTE7 ax keeps the same powerful hardware, sleek design, and Wi-Fi 6 performance – but now features an LTE Category 7 modem, expanded frequency support, and a significantly lower price than the previous LTE6 ax version.

Features:

• Powerful 1.8 GHz Quad-core ARM CPU
• Strong Dual-band, Dual-chain radio
• Fast and respondive LTE Cat7 modem
• Container support
• 4x Gigabit ethernet ports
• 1 GB of RAM

Chateau LTE7 ax combines the new R11e-LTE7 modem with a quad-core ARM CPU, 1GB of RAM, Wi-Fi 6 (802.11ax) dual-band wireless, and a 2.5 Gigabit Ethernet port for ultra-fast local connections. Run multiple secure VPN tunnels, advanced firewall rules, advanced container setups, or complex routing scenarios – all while enjoying faster and more reliable mobile connectivity. Whether LTE is your primary connection or a rock-solid backup to fiber, Chateau LTE7 ax adapts to your setup effortlessly… and in style!

It’s equally comfortable in the hands of seasoned system administrators who need true flexibility – or users who just want to plug it in and forget it’s there.

Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill.

The freedom of LTE

Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT7 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside

Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.

Technical Specifications:

General
Architecture: ARM 64-Bit
CPU: IPQ-6010
CPU Cores: 4
CPU Threads: 4
CPU Frequency: Auto
Switch Chip Model: IPQ-6010
RouterOS License: Level 4
Operating System: RouterOS v7
RAM: 1 GB
Storage Capacity: 128 MB
Storage Type: NAND
MTBF: Approximately 200,000 Hours at 25°C
Operating Temperature: -40°C to 70°C
IP Rating: IP20

Power
DC Inputs: 1 × DC Jack
Input Voltage: 12 to 28 V DC
Maximum Power Consumption: 21.5 W
Maximum Power Consumption (Without Attachments): 15.5 W
Cooling Type: Passive

Mobile Connectivity
3G Category: R8 (Download: 42.2 Mbps, Upload: 5.76 Mbps)
3G Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz)
LTE Category: 7 (Download: 300 Mbps, Upload: 100 Mbps)
LTE MIMO Download: 2 × 2
LTE MIMO Upload: 1 × 1
LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
TAC: 35312597

Wireless
Wireless 2.4 GHz Maximum Data Rate: 574 Mbps
Wireless 2.4 GHz Chains: 2
Wireless 2.4 GHz Standards: 802.11b/g/n/ax
Wireless 2.4 GHz Antenna Gain: 3 dBi
Wireless 2.4 GHz Chipset: QCN-5022
Wireless 2.4 GHz Generation: Wi-Fi 6

Wireless 5 GHz Maximum Data Rate: 1200 Mbps
Wireless 5 GHz Chains: 2
Wireless 5 GHz Standards: 802.11a/n/ac/ax
Wireless 5 GHz Antenna Gain: 6 dBi
Wireless 5 GHz Chipset: QCN-5052
Wireless 5 GHz Generation: Wi-Fi 6

Ethernet
Gigabit Ethernet Ports: 4 × 10/100/1000 Mbps
2.5 Gigabit Ethernet Ports: 1

Peripherals
SIM Slots: 1 × Micro SIM (Modem)
USB Ports: 1 × USB Type-A
Maximum USB Current: 1 A
USB Power Reset: Yes

Monitoring and Controls
CPU Temperature Monitor: Yes
PCB Temperature Monitor: Yes
Voltage Monitor: Yes
Mode Button: Yes

Certifications
Certifications: CE, EAC, RoHS

What's in the Box:

• MikroTik Chateau LTE7 ax AX1800 Wireless Router
• 24 V 1.2 A Power Adapter
• 1.5 m UTP Flat Cable
