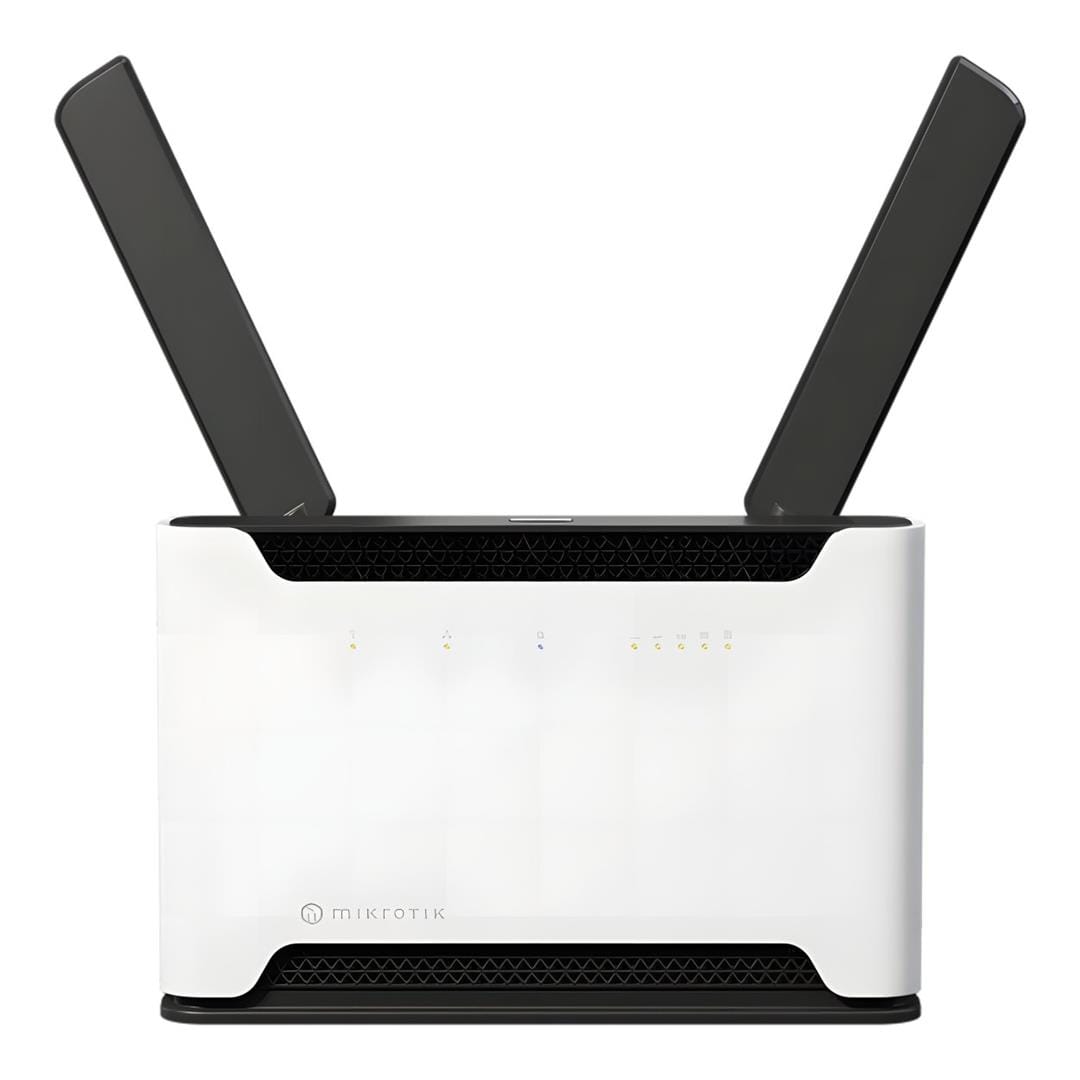

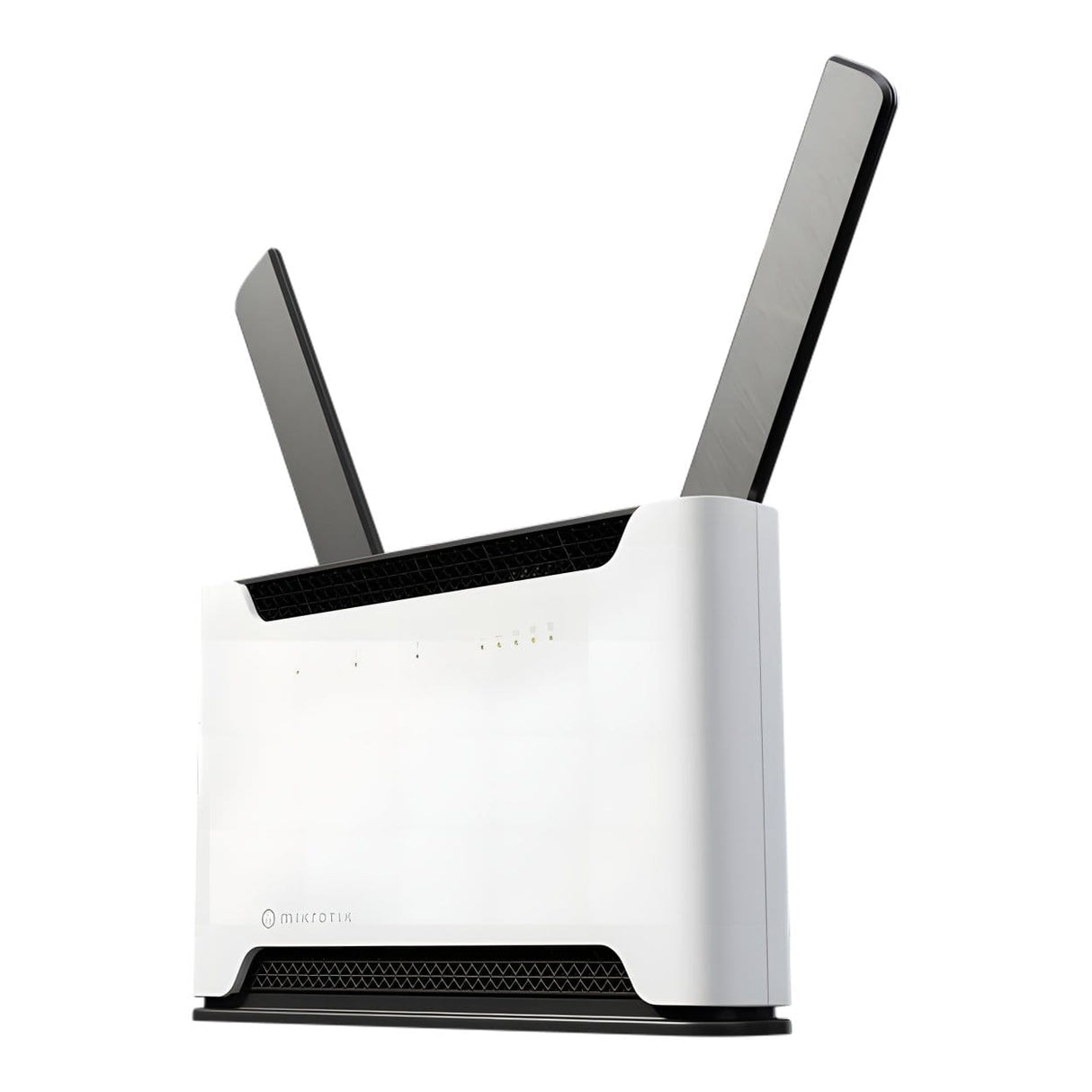

Mikrotik Chateau 5G R17 ax Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet S53UG+5HaxD2HaxD-TC&RG650E-EU

Mikrotik Chateau 5G R17 ax Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet S53UG+5HaxD2HaxD-TC&RG650E-EU

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

Features:

• 4x Gbit ethernet ports
• Quad-core 1.8 GHz ARM CPU
• 1x 2.5 Gbit ethernet
• MicroSIM & eSIM
• Blazing fast Release 17 5G modem
• 4x4 MIMO

Your network, your rules: eSIM or microSIM

Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:

• MikroTik Connectivity (pre-activated data plans)
• Third-party eSIMs (Mobile operator eSIM profiles)
• Multiple eSIM profiles (easily added, switched, or stored)

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:

• Smart aggregation with wide regional FDD + TDD band support;
• Extra strong signal pickup thanks to 4x4 MIMO;
• Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.

More speed. More bands. More flexibility.

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

Wireless that actually delivers

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment.

For secure remote work, play, and everything in between

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.

Technical Specifications:

System

Product Code
S53UG+5HaxD2HaxD-TC&RG650E-EU

Architecture
ARM 64-Bit

CPU
IPQ-6010

CPU Core Count
4

CPU Threads
4

CPU Frequency
864 MHz To 1800 MHz

Switch Chip Model
IPQ-6010

Operating System
RouterOS v7

RouterOS License Level
Level 4

Memory

RAM
1 GB

Storage
128 MB NAND

Mean Time Between Failures (MTBF)
Approximately 200,000 Hours At 25 °C

Tested Ambient Temperature
-40 °C To 70 °C

Power

Number Of DC Inputs
1 × DC Jack

DC Input Voltage
12–28 V

Maximum Power Consumption
27 W

Maximum Power Consumption (Without Attachments)
18 W

Cooling Type
Passive

Mobile Connectivity

3G Category
R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink)

3G Bands

• Band 1 (2100 MHz)
• Band 5 (850 MHz)
• Band 8 (900 MHz)

LTE Category
Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink)

MIMO

• Downlink: 4 × 4
• Uplink: 1 × 1 (5G SA MIMO UL 2 × 2)

LTE FDD Bands

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 28 (700 MHz)
• Band 32 (1500 MHz)

LTE TDD Bands

• Band 38 (2600 MHz)
• Band 41 (2500 MHz)
• Band 42 (3500 MHz)
• Band 40 (2300 MHz)
• Band 43 (3700 MHz)

5G NSA FDD Bands

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 26 (850 MHz)
• Band 28 (700 MHz)
• Band 67 (700 MHz)
• Band 75 (1500 MHz)
• Band 76 (1500 MHz)

5G NSA TDD Bands

• Band 38 (2600 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)
• Band 77 (3700 MHz)
• Band 78 (3500 MHz)

5G SA FDD Bands

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 26 (850 MHz)
• Band 28 (700 MHz)
• Band 67 (700 MHz)
• Band 75 (1500 MHz)
• Band 76 (1500 MHz)

5G SA TDD Bands

• Band 38 (2600 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)
• Band 77 (3700 MHz)
• Band 78 (3500 MHz)

SIM Support
1 × Micro SIM Slot

eSIM Support
Yes

Wireless

2.4 GHz Wireless

Standards
802.11b/g/n/ax (Wi-Fi 6)

Maximum Data Rate
574 Mbit/s

Number Of Chains
2

Antenna Gain
3 dBi

Wireless Chip Model
QCN-5022

5 GHz Wireless

Standards
802.11a/n/ac/ax (Wi-Fi 6)

Maximum Data Rate
1200 Mbit/s

Number Of Chains
2

Antenna Gain
6 dBi

Wireless Chip Model
QCN-5052

Ethernet

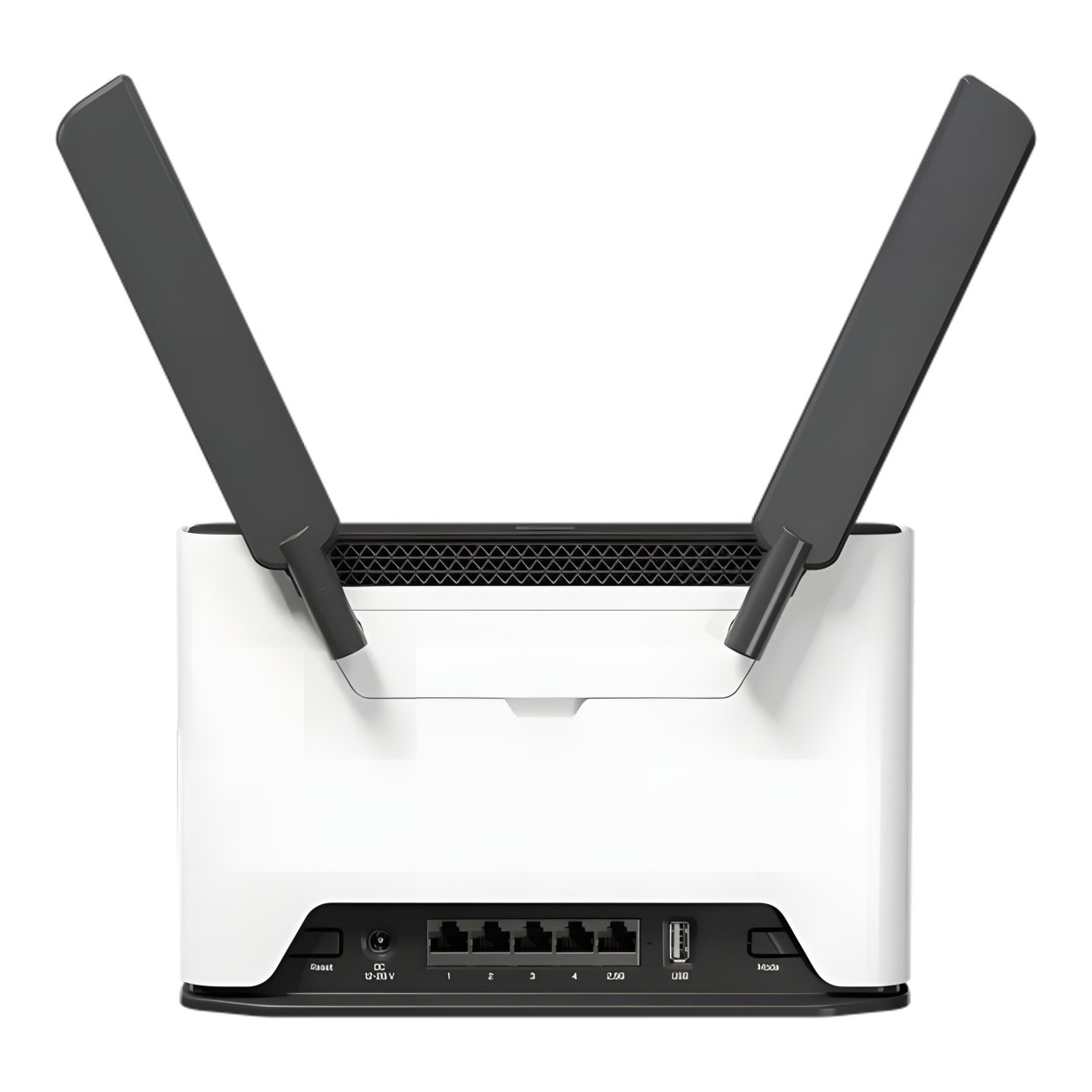

Gigabit Ethernet Ports
4 × 10/100/1000 Mbps

2.5G Ethernet Ports
1 × 2.5 Gbps

Interfaces And Peripherals

USB Ports
1 × USB Type-A

Maximum USB Current
1.5 A

USB Power Reset
Yes

Mode Button
Yes

Monitoring Features

CPU Temperature Monitor
Yes

PCB Temperature Monitor
Yes

Voltage Monitor
Yes

Environmental And Protection

IP Rating
IP20

Certifications
CE, EAC, RoHS

What's in the Box:

• 1 x Mikrotik Chateau 5G R17 ax Wireless Router

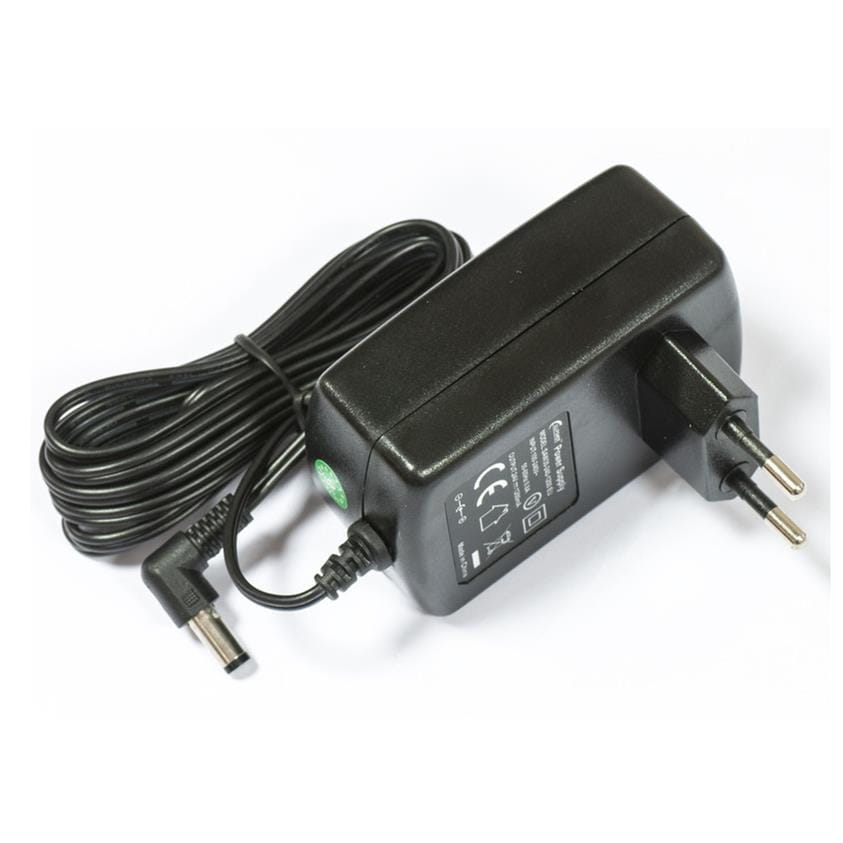

• 24 V 1.2 A Power Adapter

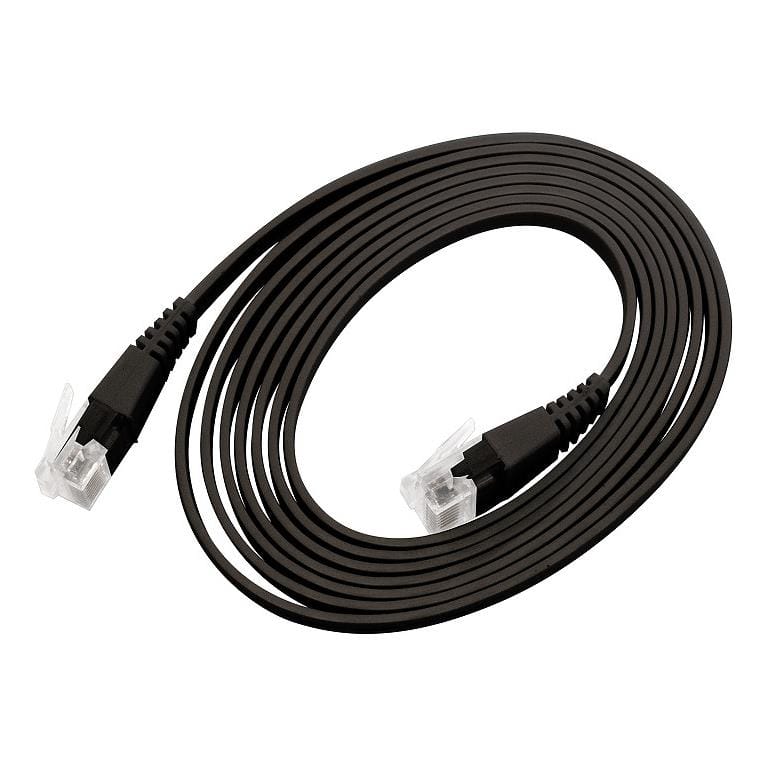

• UTP Flat Cable (1.5 m)
