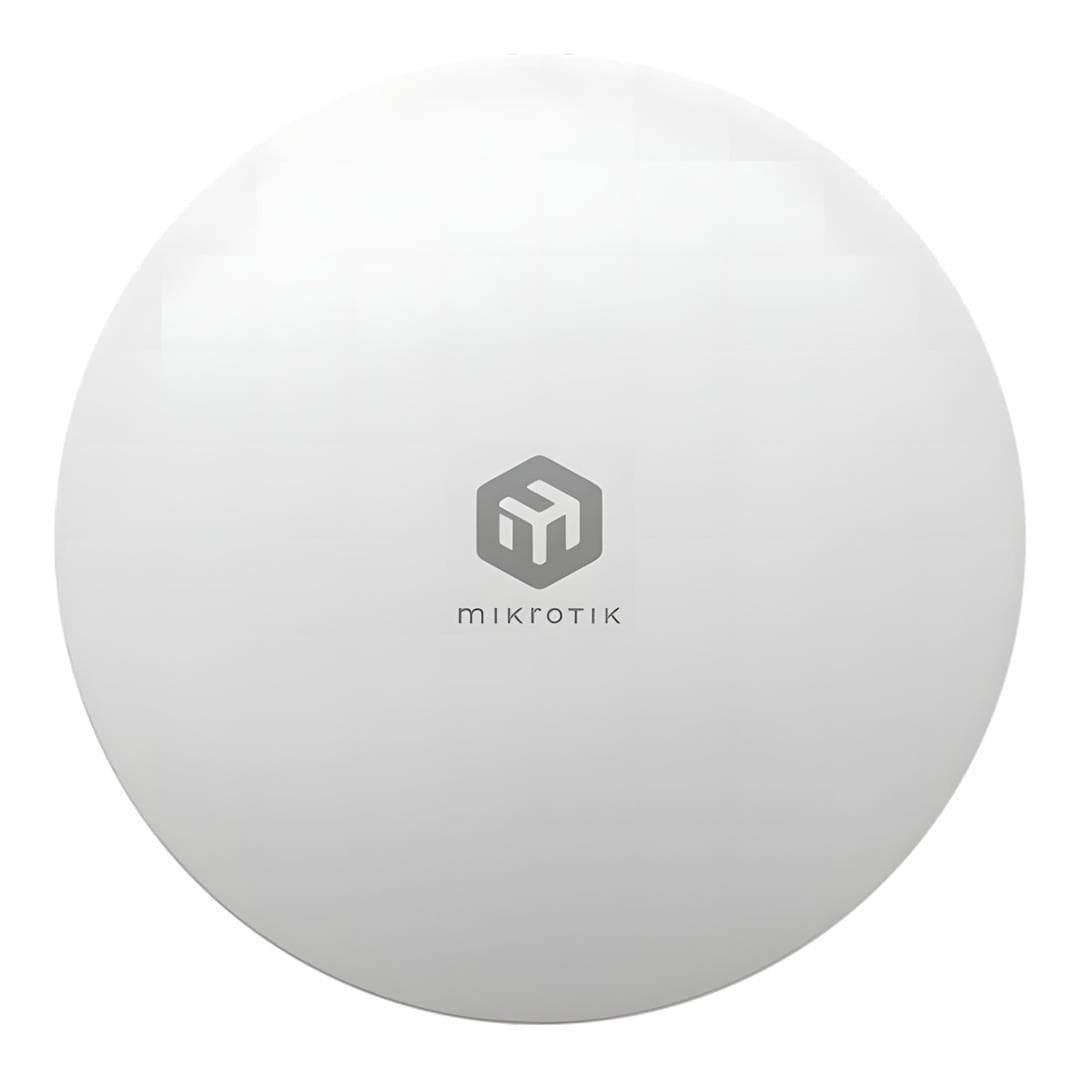

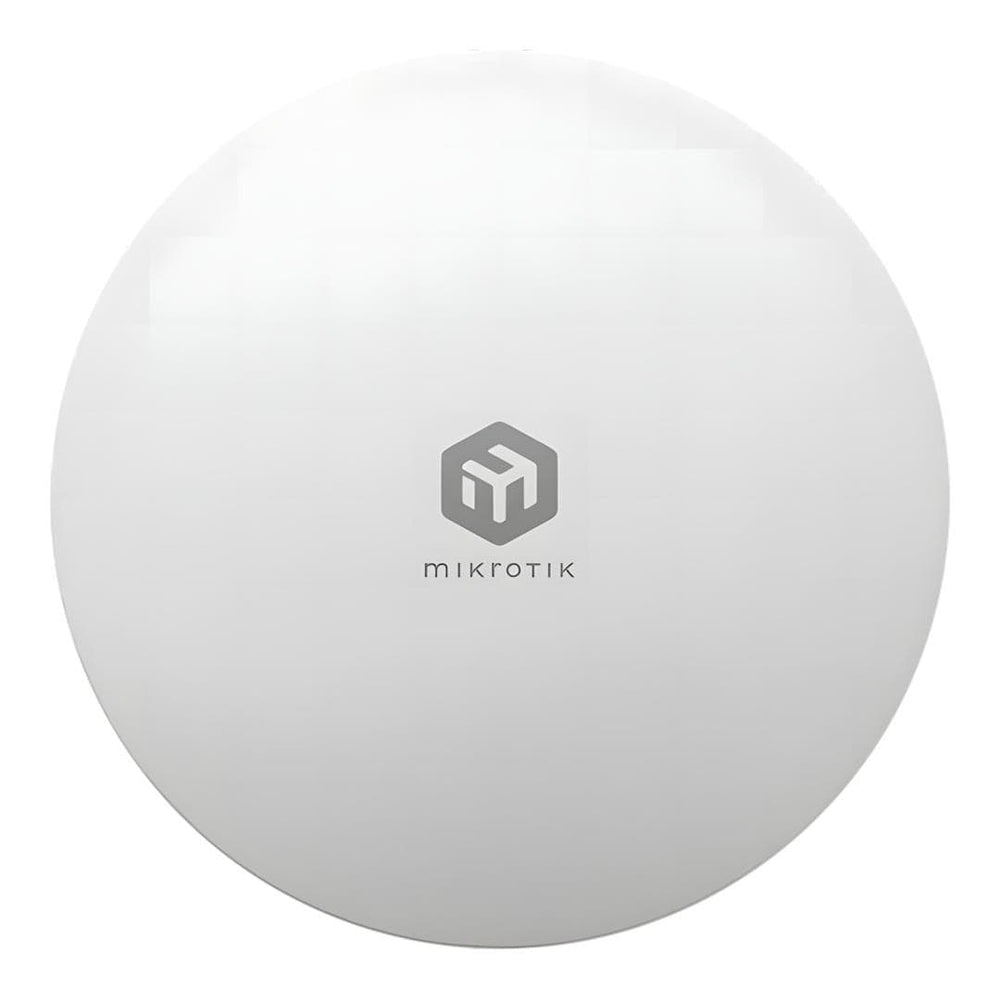

MikroTik ATL 5G R16 Outdoor 5G LTE CPE 16dBi Antenna ATLGM&RG520F-EU

MikroTik ATL 5G R16 Outdoor 5G LTE CPE 16dBi Antenna ATLGM&RG520F-EU

Our first outdoor 5G device with built-in eSIM support, powerful directional antennas, and a cutting-edge Release 16 modem – ideal for rural, urban, and IoT deployments. With Gigabit Ethernet, PoE-in, and instant MikroTik Connectivity out of the box, it’s the smart, rugged choice for fast and flexible internet anywhere. IP66 certified.

Features:

• High-gain 16 dBi antenna
• Built-in eSIM with MikroTik Connectivity
• 5G + LTE Cat20 modem
• PoE-in + Gbit ethernet
• 4x4 MIMO + Band 28 support
• Dual SIM option
• Rugged IP-66 snow-resistant design
• Flexible powering (12–56V)
• RouterOS v7 inside

Instant Connectivity, No Strings Attached

Installing an antenna on a rooftop and realizing you forgot a SIM card? Or trying to activate your eSIM, but got stuck in the mobile operator call-center queue, endlessly listening to some classical “Your call is important” melodies over the phone?

MikroTik Connectivity solves both issues! Log in to your MikroTik account, choose a data plan, and you’re online. This pre-activated, self-sufficient eSIM setup bridges the gap between “just installed” and “fully operational.” Ideal for remote locations, failover setups, or any place you need reliable internet right now — without any extra steps.

Power Meets Practicality

With a powerful 16 dBi directional antenna, 4x4 MIMO support, 512 MB of RAM, a modern dual-core ARM CPU, and a wide range of supported bands, ATL 5G is built to perform — whether you’re deep in the countryside or surrounded by signal noise in the city. And with Gigabit Ethernet and PoE-in support, installation is cleaner and simpler — just a single cable for both power and data.

ATL 5G features 4 high-gain middle-band antennas and 4 low-band antennas, including full Band 28 support for both LTE and 5G. That means exceptional coverage in all the frequencies that really matter, including from 700 MHz to 1 GHz — the sweet spot for rural reach and wall-penetrating reliability.

These low-frequency bands are some of the most widely used by mobile operators around the world, and ATL 5G is ready to squeeze every last drop of performance from them — ensuring you stay connected where others struggle to get a bar.

And when you don’t want to rely on a traditional SIM card, you can use the MikroTik eSIM as your main data plan for low-usage setups or IoT deployments like KNOTs. Or simply switch profiles and connect to your favorite mobile operator — flexibility is built in.

Ready for Harsh Conditions

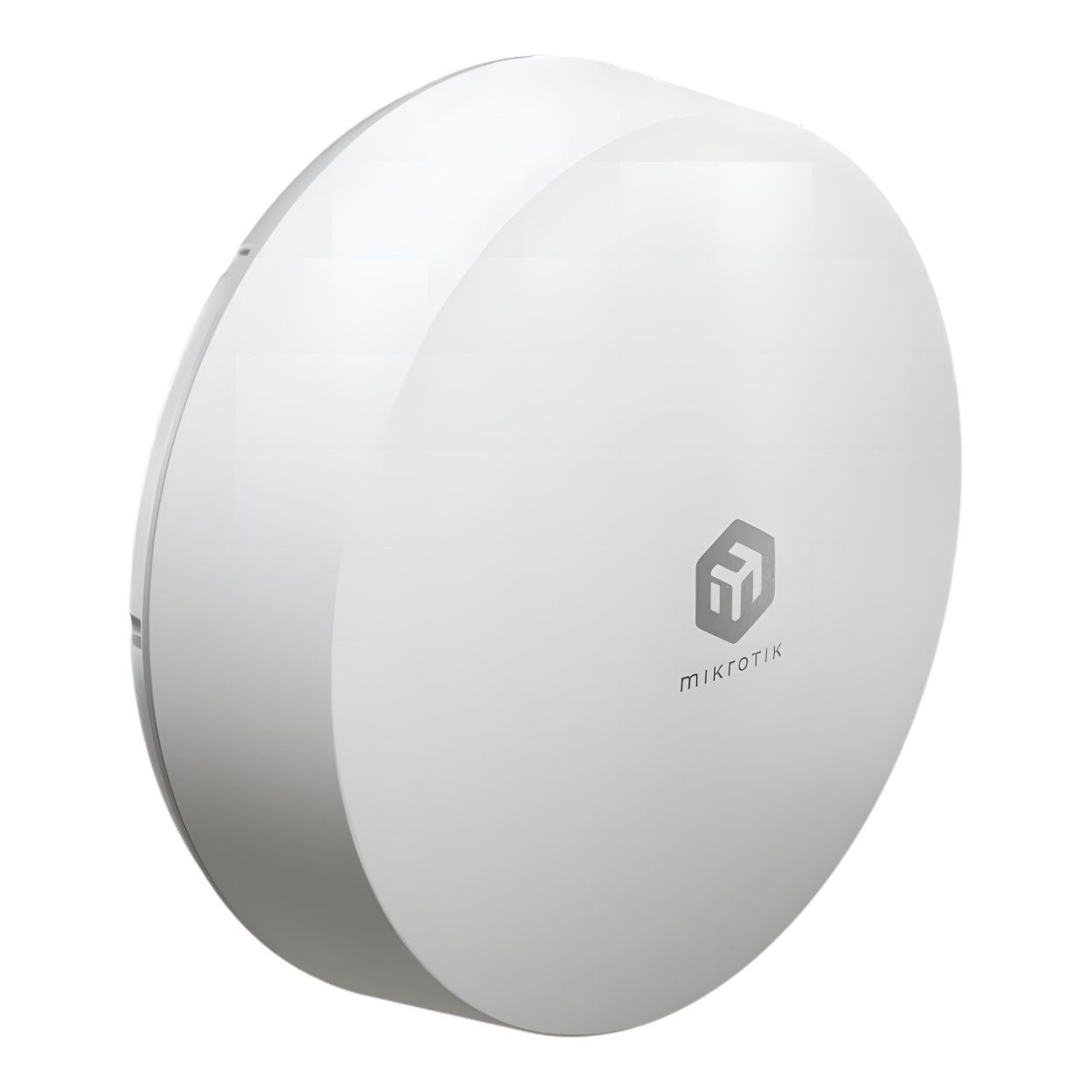

At first glance, ATL 5G looks like a spaceship — but there’s a good reason for that. This sleek form factor prevents snow and water from collecting and freezing up, making it ideal for installations in cold, wet, or windy environments. No need to climb back up and clean the antenna after every snowstorm.

The IP66-rated enclosure is fully sealed against dust and powerful water jets, so ATL 5G can handle some of the roughest weather conditions — whether it’s mounted on a snowy rooftop in the city or standing alone in the open countryside.

Technical Specifications:

General
Product Code: ATLGM&RG520F-EU
Architecture: ARM 64-Bit
CPU Model: 88F3720
CPU Cores: 2
CPU Threads: 2
CPU Frequency: 800 MHz
Operating System: RouterOS v7
RouterOS License: Level 3
RAM: 512 MB
Storage Capacity: 32 MB
Storage Type: Flash
MTBF: Approximately 200,000 Hours at 25°C
Cooling Type: Passive

Power
DC Inputs: 1 × PoE-In
PoE Standard: 802.3af/at
PoE Input Voltage: 12 V – 56 V
Maximum Power Consumption: 10 W
Maximum Power Consumption (Without Attachments): 10 W

Mobile Connectivity
3G Category: R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink)

3G Bands:

• Band 1 (2100 MHz)
• Band 5 (850 MHz)
• Band 8 (900 MHz)

LTE Category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
MIMO Downlink: 4 × 4

LTE FDD Bands:

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 28 (700 MHz)
• Band 32 (1500 MHz)

LTE TDD Bands:

• Band 38 (2600 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)
• Band 42 (3500 MHz)
• Band 43 (3700 MHz)

5G NSA FDD Bands:

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 28 (700 MHz)

5G NSA TDD Bands:

• Band 38 (2600 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)
• Band 75 (1500 MHz)
• Band 76 (1500 MHz)
• Band 77 (3700 MHz)
• Band 78 (3500 MHz)

5G SA FDD Bands:

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 28 (700 MHz)

5G SA TDD Bands:

• Band 38 (2600 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)
• Band 75 (1500 MHz)
• Band 76 (1500 MHz)
• Band 77 (3700 MHz)
• Band 78 (3500 MHz)

TAC: 86945405

Networking
Ethernet Ports: 1 × 10/100/1000 Mbps
Reverse PoE Ethernet Ports: 1 × 1 GbE with PoE-In

Peripherals
SIM Slots: 1 × Micro SIM
M.2 Slots: 1

Features
Mode Button: Yes
eSIM Support: Yes

Environmental
Tested Ambient Temperature: -40°C to 70°C
IP Rating: IP66

Certifications
Certifications:

• CE
• EAC
• RoHS

What's in the Box:

• MikroTik ATL 5G R16 Outdoor Antenna
• 24 V 0.8 A Power Adapter
• Gigabit PoE Injector
• 2 × Hose Clamps
