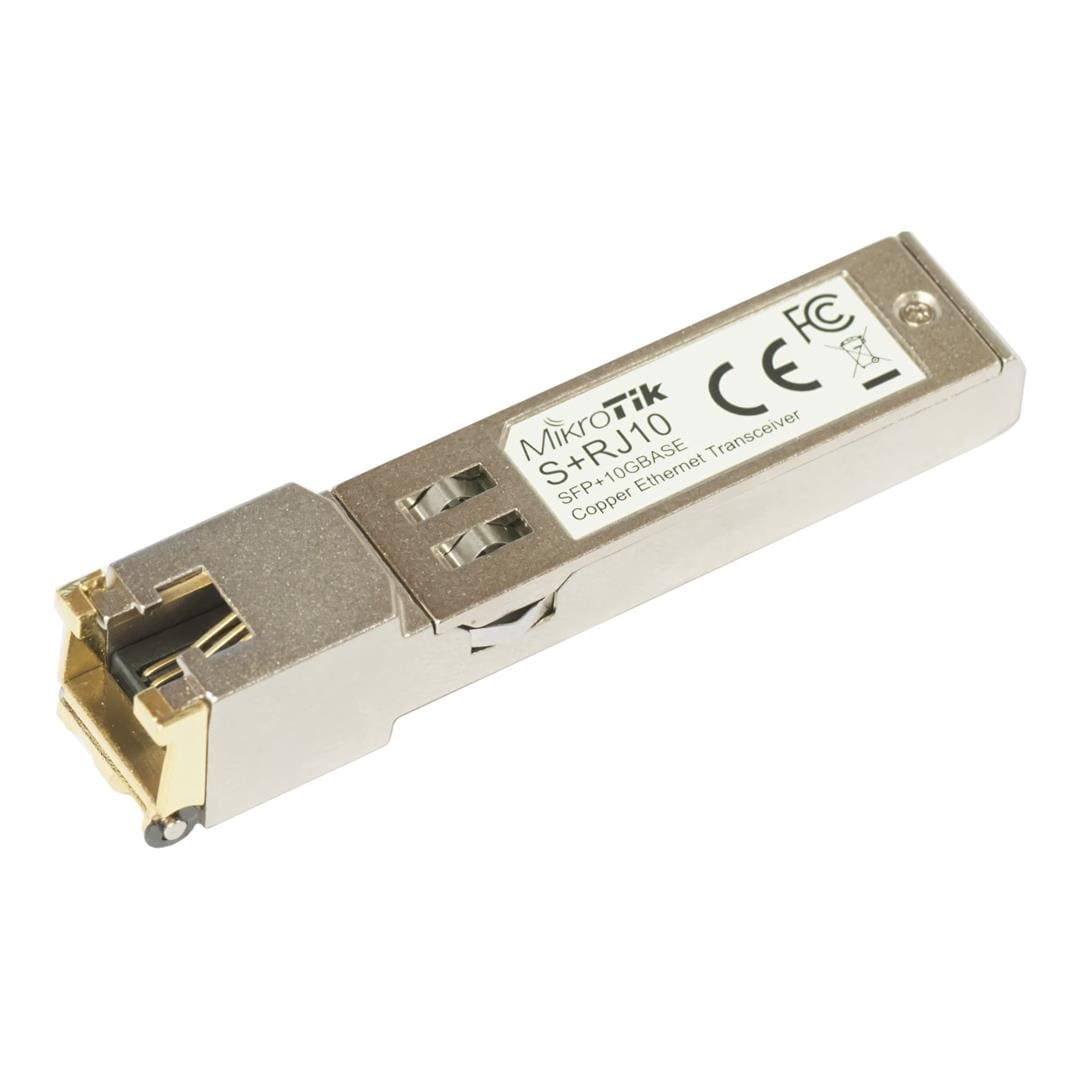

MikroTik 10Gb RJ45 SFP+ Transceiver Module S+RJ10

MikroTik 10Gb RJ45 SFP+ Transceiver Module S+RJ10

The MikroTik S+RJ10 is a versatile 6-speed RJ45 SFP+ copper module that converts a compatible 10G SFP+ interface into an RJ45 Ethernet connection supporting speeds up to 10Gbps. With automatic negotiation across 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps rates, it provides a flexible way to connect high-speed copper Ethernet equipment to MikroTik devices equipped with SFP+ ports without installing optical fibre.

Key Features

• 6-speed RJ45 SFP+ copper Ethernet module.
• Supports 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps speeds.
• Converts a compatible SFP+ port to an RJ45 copper Ethernet interface.
• Supports up to 10Gbps over Cat6/7 cable at distances up to 30m.
• Lower Ethernet speeds support longer cable distances depending on cable type and link configuration.
• Auto-negotiates to the highest available supported link rate.
• Compatible with supported MikroTik devices equipped with 10G SFP+ interfaces.
• Latest /r2 revision supports DDM voltage and temperature monitoring.
• Latest /r2 revision supports jumbo frames up to 10,218 bytes at 2.5G, 5G and 10G speeds.
• Ideal for adding multi-gigabit RJ45 connectivity to SFP+-equipped networking hardware.

Six Ethernet Speeds

The S+RJ10 supports six Ethernet link rates ranging from legacy 10Mbps connectivity through to 10Gbps. Auto-negotiation allows the module to establish the highest compatible link rate supported by the connected equipment and cabling.

10Gbps over Copper

The module enables a compatible 10G SFP+ interface to connect directly to RJ45 Ethernet equipment using conventional twisted-pair cabling. At 10Gbps, MikroTik specifies a maximum link distance of up to 30 metres using suitable Cat6 or Cat7 cable.

Multi-Gigabit Connectivity

In addition to conventional 1Gbps and 10Gbps Ethernet, the S+RJ10 supports 2.5Gbps and 5Gbps link rates. This makes it useful for connecting multi-gigabit switches, network adapters, servers, wireless access points and other compatible RJ45 equipment.

Latest /r2 Enhancements

The latest hardware revision, identified by “/r2” at the end of the serial number, adds Digital Diagnostic Monitoring for supply voltage and module temperature, improved link-speed reporting and jumbo frame support up to 10,218 bytes when operating at 2.5Gbps, 5Gbps or 10Gbps.

Cooling Considerations

10GBASE-T copper transceivers generate considerably more heat than typical optical SFP+ modules. MikroTik supports the S+RJ10 in compatible actively cooled SFP+ devices, while passively cooled equipment may require additional cooling depending on the installation and operating environment.

Technical Specifications

What’s in the Box:

• MikroTik S+RJ10 6-Speed RJ45 SFP+ Copper Module

The MikroTik S+RJ10 provides a flexible way to add RJ45 multi-gigabit connectivity to compatible SFP+-equipped networking hardware. With six supported Ethernet speeds up to 10Gbps, automatic negotiation and support for conventional twisted-pair cabling, it is particularly useful for connecting modern 2.5G, 5G and 10G copper Ethernet equipment to MikroTik network infrastructure.
