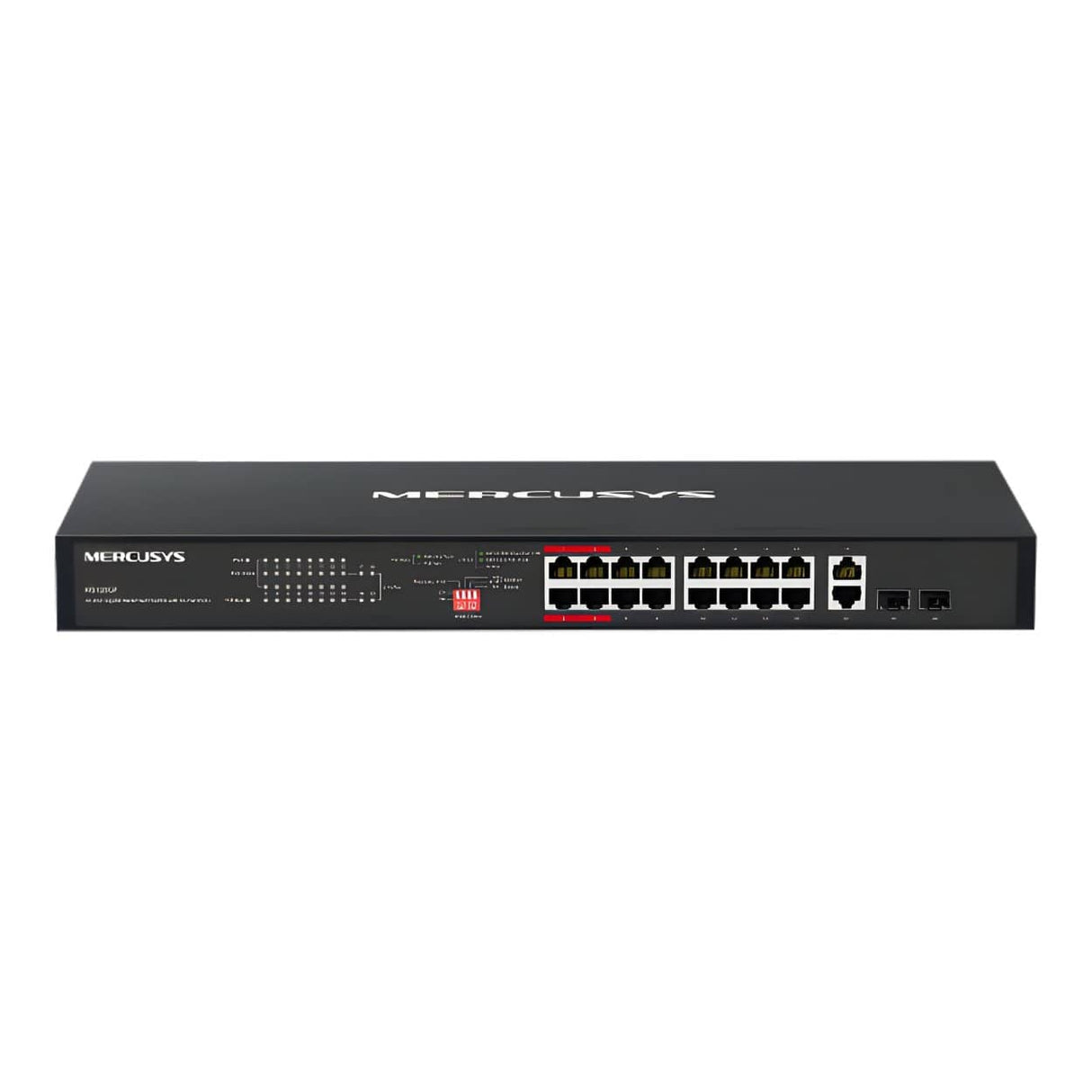

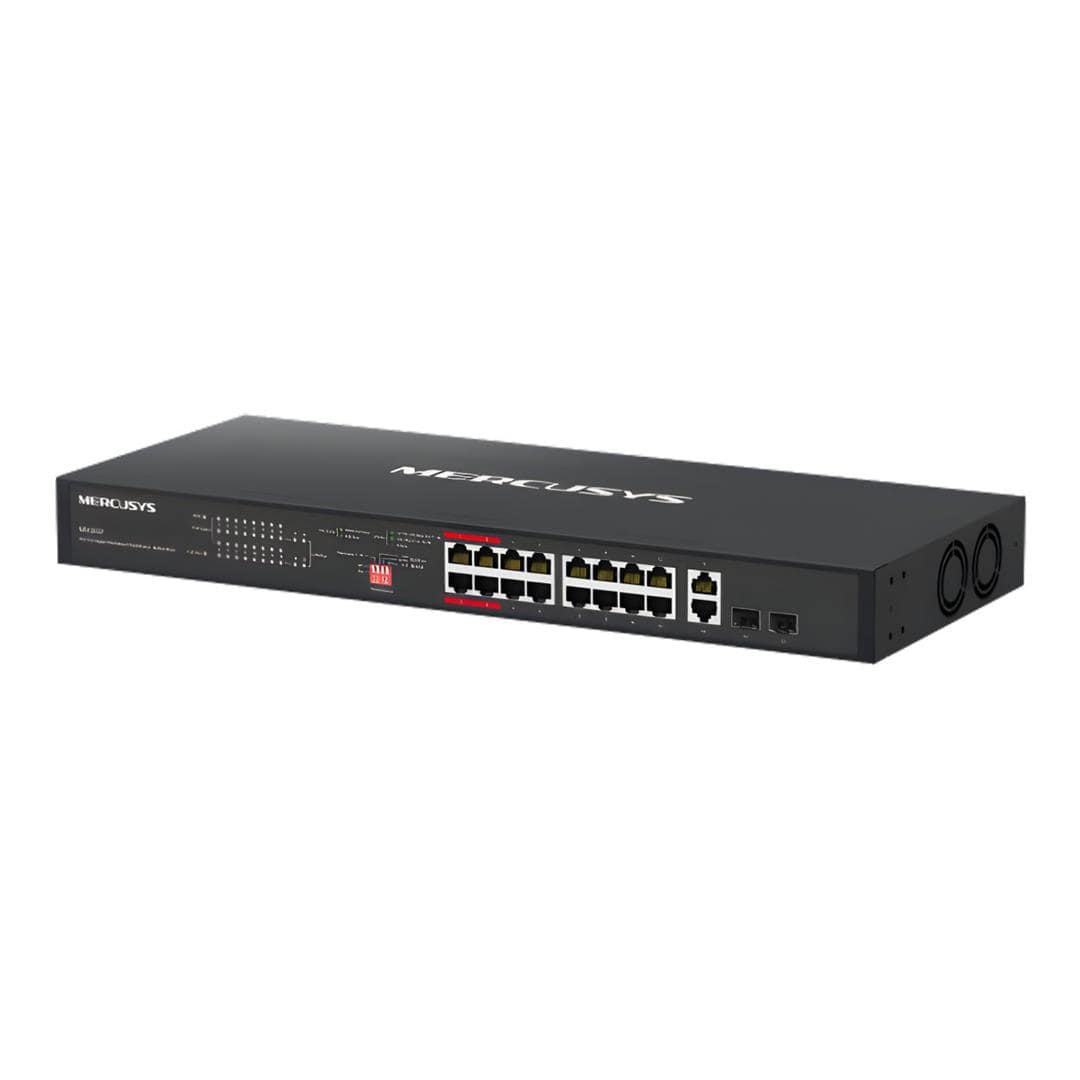

Mercusys MS120GP 20-Port Gigabit 16-Port PoE+ Rackmount Switch

Mercusys MS120GP 20-Port Gigabit 16-Port PoE+ Rackmount Switch

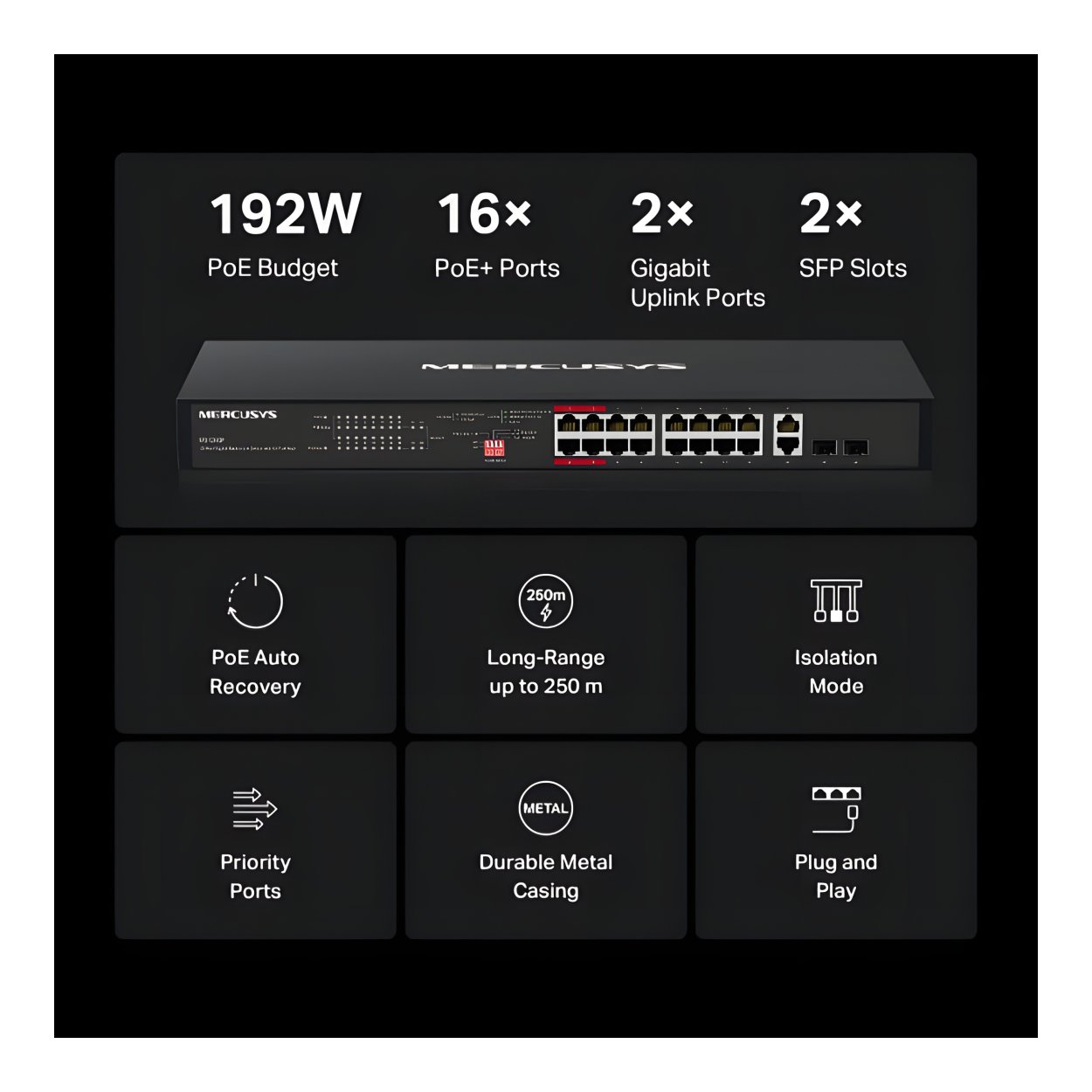

Features:

• Full Gigabit Ports: 16× Gigabit PoE+ ports, 2 × Gigabit non-PoE ports, and 2 × Gigabit SFP slots
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 192 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

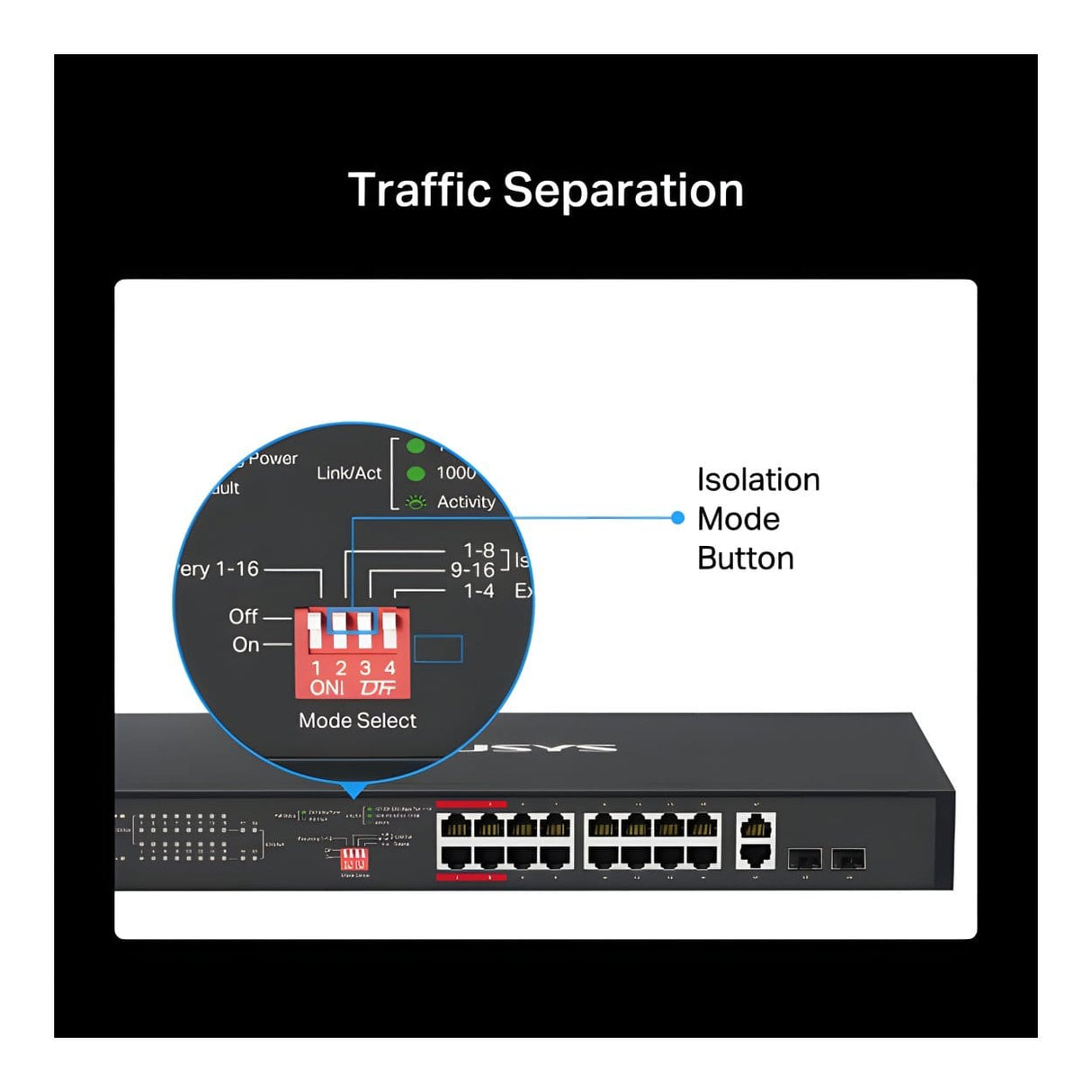

• Isolation Mode: One click to divide traffic for specific ports for stability and security

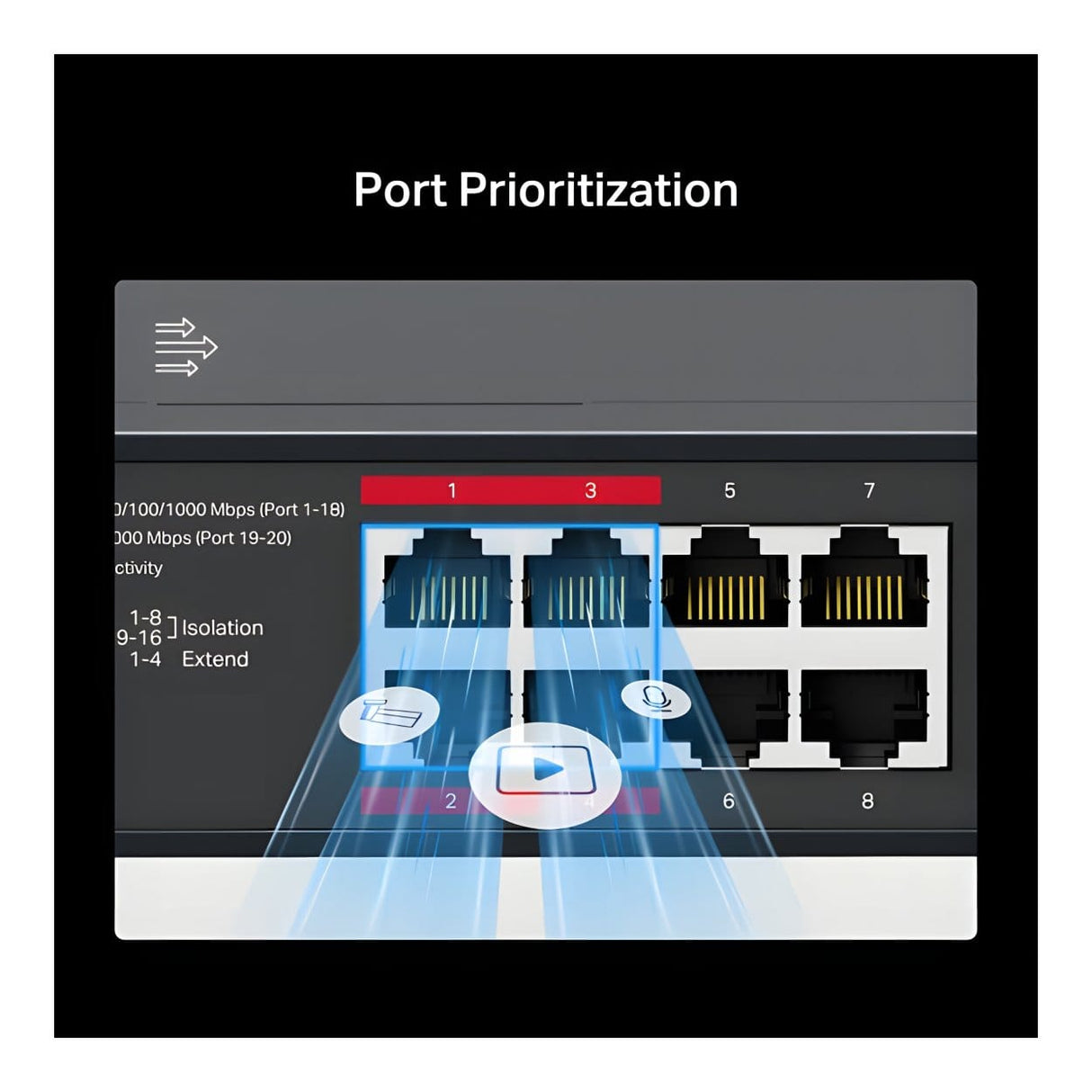

• Priority Mode: Guarantees the quality of sensitive applications like video monitor

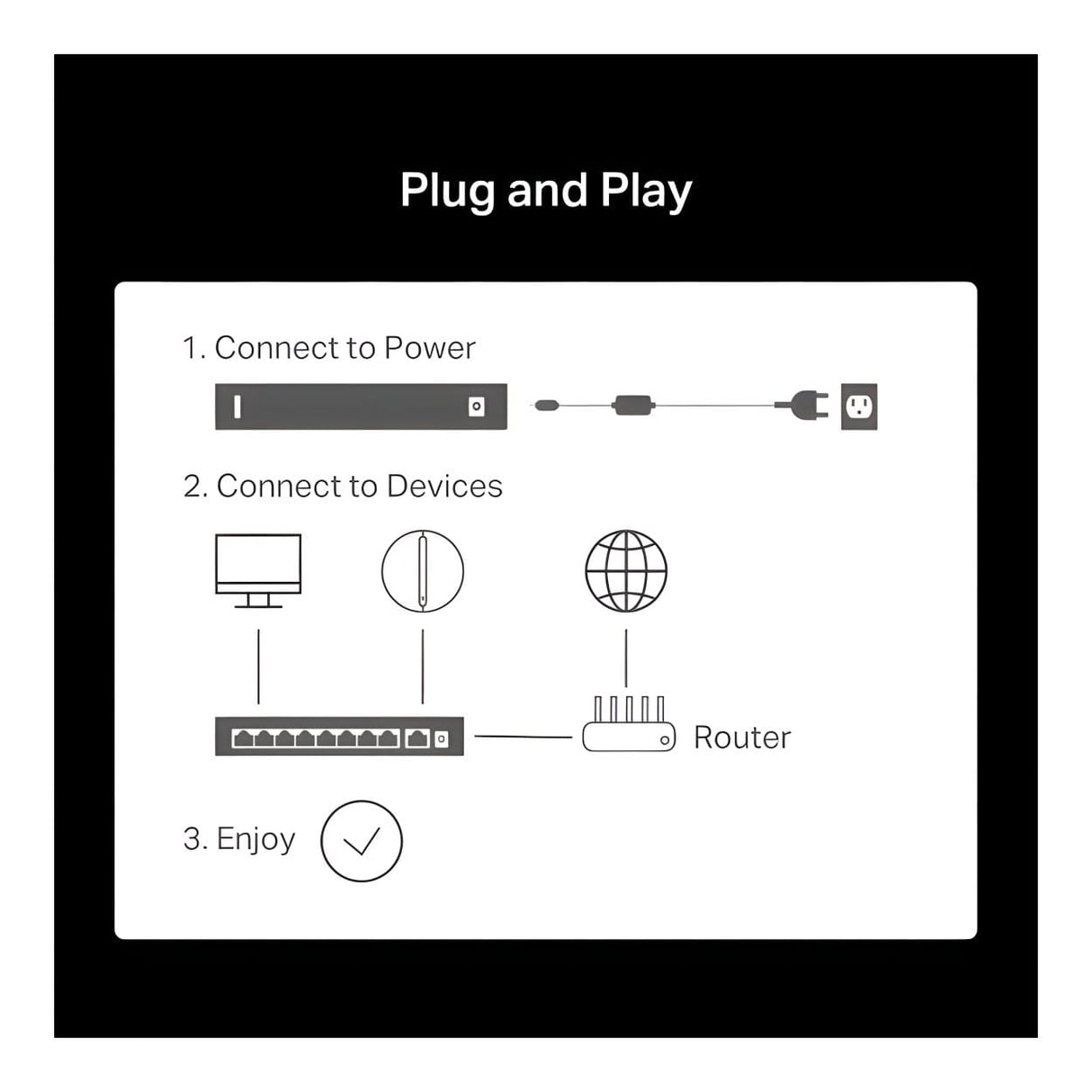

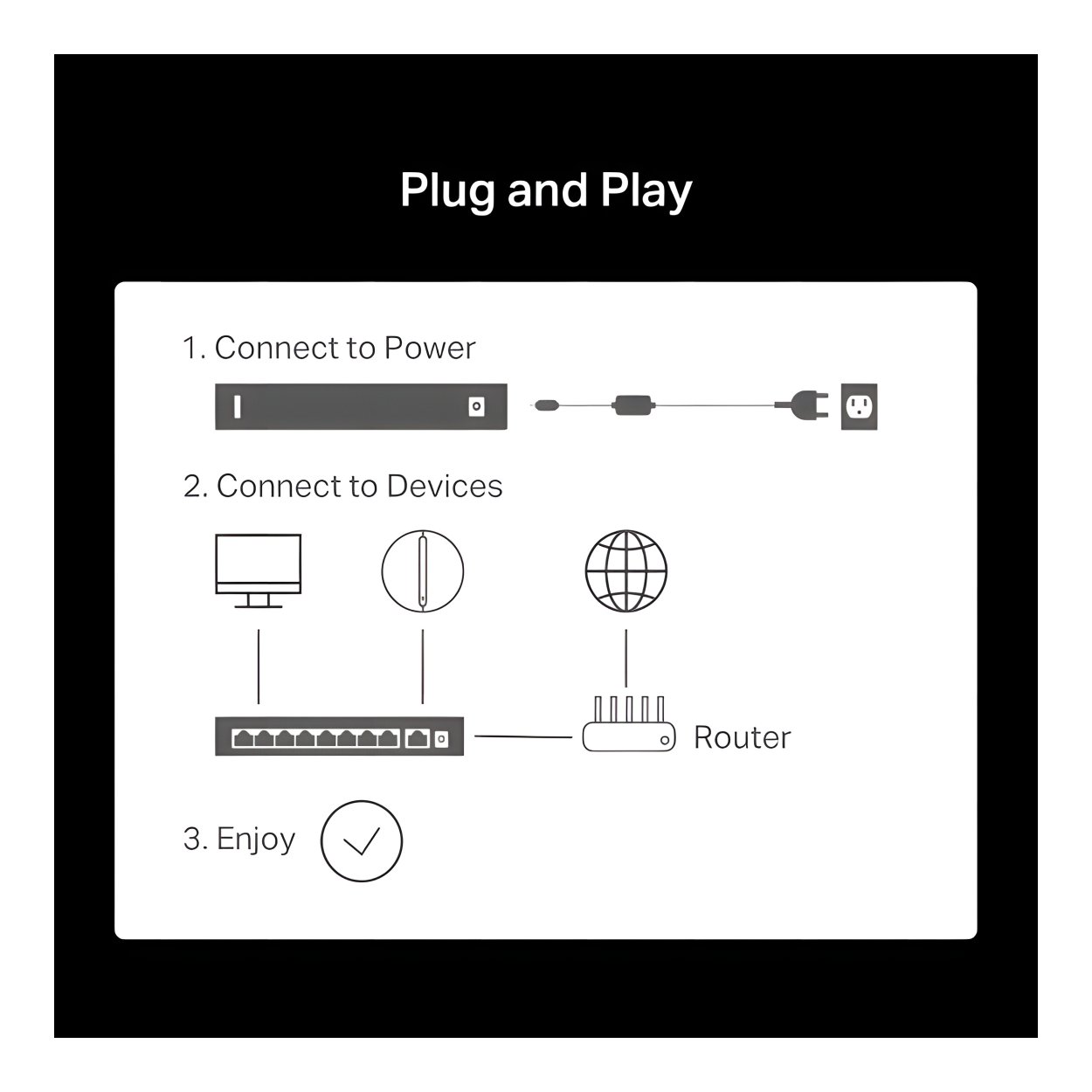

• Plug and Play: No configuration or central management required

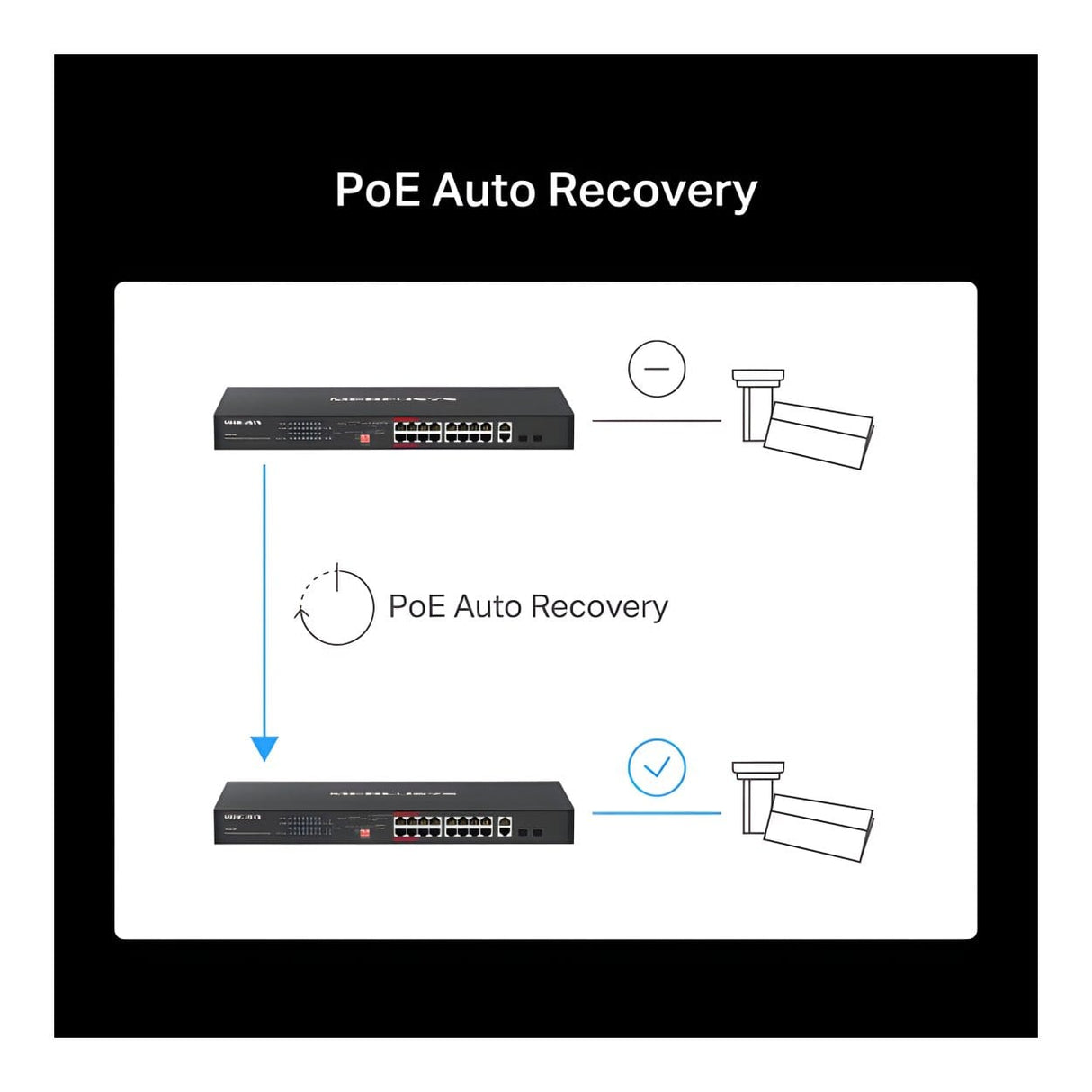

• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

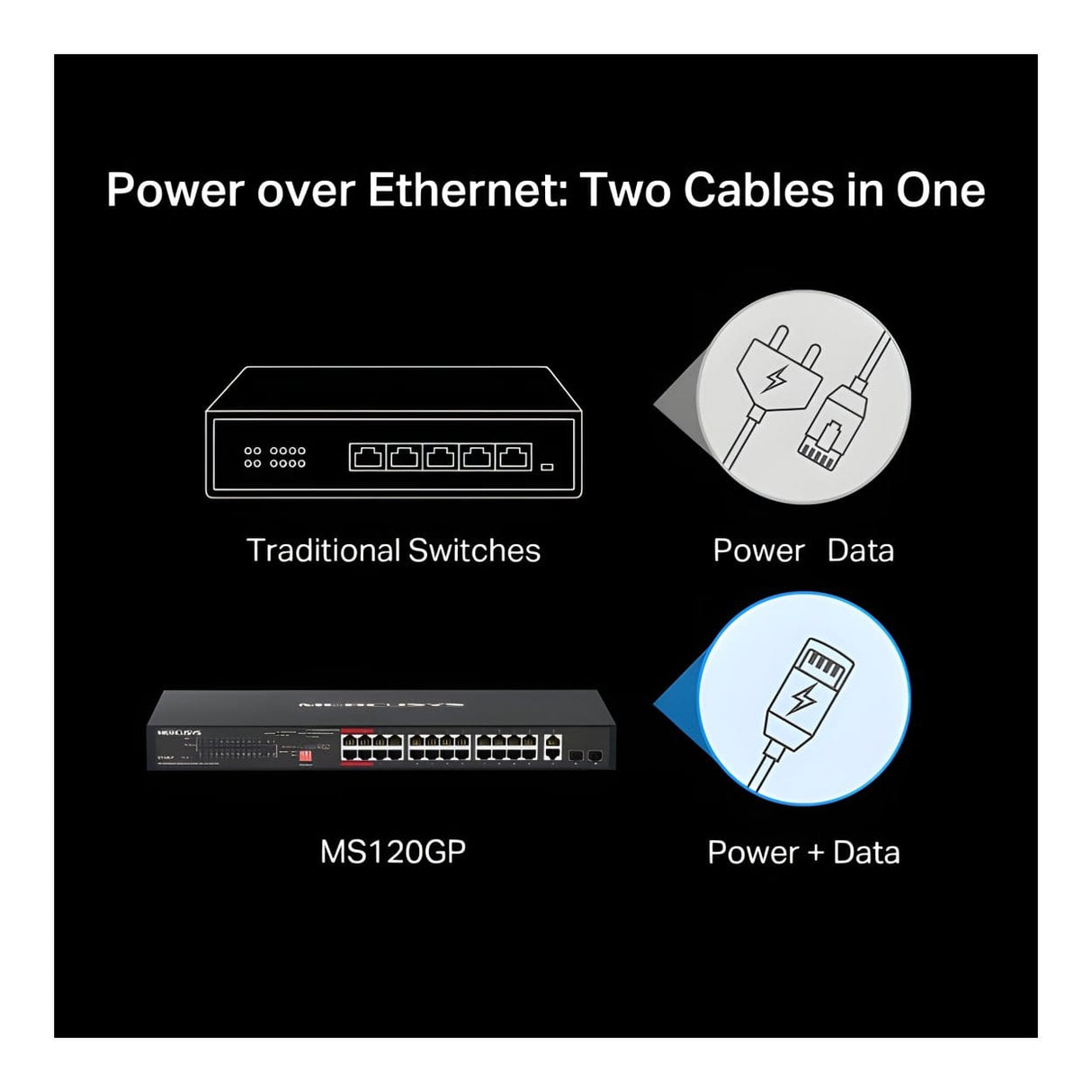

16 PoE+ Ports (192 W Budget) for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 16 PoE+ ports supports a maximum power supply of 30 W. The total 192 W PoE power budget* can be applied in various scenarios, including surveillance, offices, and small businesses, since MS120GP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

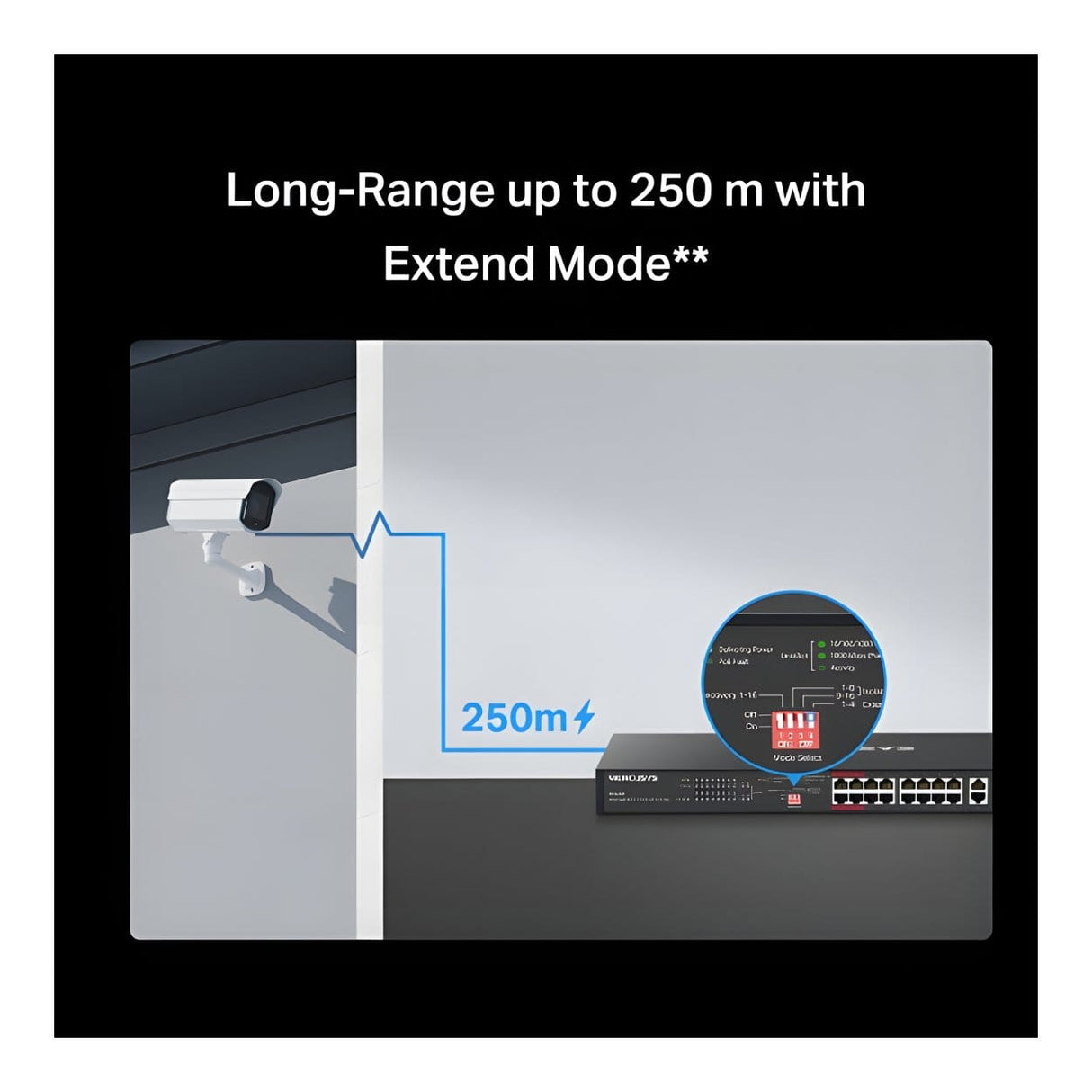

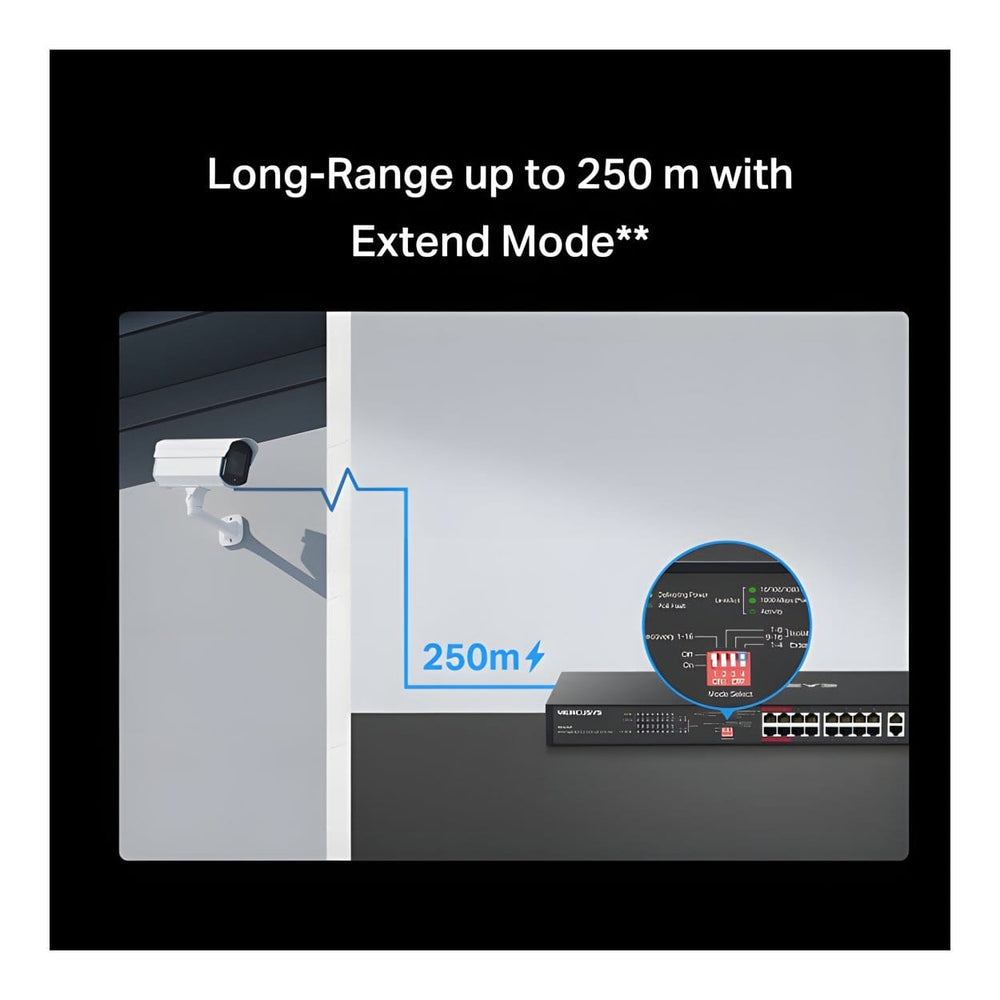

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS120GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Durable and Flexible

MS120GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

Technical Specifications:

Hardware

Standards and Protocols

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3af
• IEEE 802.3at

Dimensions: 440 × 180 × 44 mm

PoE

PoE Standard: IEEE 802.3af/at Compatible
PoE Ports: Ports 1–16
Maximum Power Per Port: Up to 30 W
Total PoE Power Budget: 192 W

Interfaces

• 16 × 10/100/1000 Mbps PoE+ RJ45 Ports
• 2 × 10/100/1000 Mbps RJ45 Ports
• 2 × Gigabit SFP Slots

Transmission Medium

• 10BASE-T: 2-Pair UTP/STP Cat. 3 or Above (≤100 m)
• 100BASE-TX: 2-Pair UTP/STP Cat. 5 or Above (≤100 m)
• 1000BASE-T: 4-Pair UTP/STP Cat. 5e or Above (≤100 m)
• 1000BASE-X: MMF, SMF

Fan Quantity: 2 Fans

Physical Security Lock: Yes

Switching Capacity: 40 Gbps

LED Indicators

• Power
• Link/Activity
• PoE Status
• PoE Max

MAC Address Table: 8K

Power Consumption

• 17.25 W (220 V / 50 Hz @ 25 °C, No PD Connected)
• 219.05 W (220 V / 50 Hz @ 25 °C, With 192 W PD Connected)

Heat Dissipation

• 744.77 BTU/hr (220 V / 50 Hz @ 25 °C, With 192 W PD Connected)
• 771.56 BTU/hr (110 V / 60 Hz @ 25 °C, With 192 W PD Connected)

Software

Transfer Method: Store and Forward

Advanced Features

• IEEE 802.3af/at Compliant PD Compatibility
• Extend Mode (Up to 250 m PoE Power Supply and Data Transmission)
• Priority Ports (Ports 1–4)
• Isolation Mode (Ports 1–8, 9–16)
• PoE Auto Recovery (Ports 1–16)
• MAC Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control

Certifications

Compliance

• CE
• RoHS

Environmental

Operating Temperature: −10°C to 50°C
Storage Temperature: −40°C to 70°C
Operating Humidity: 10%–90% RH, Non-Condensing
Storage Humidity: 5%–90% RH, Non-Condensing

What's in the Box:

• MS120GP Switch
• Power Cord
• Installation Guide
• Mounting Brackets and Fittings
