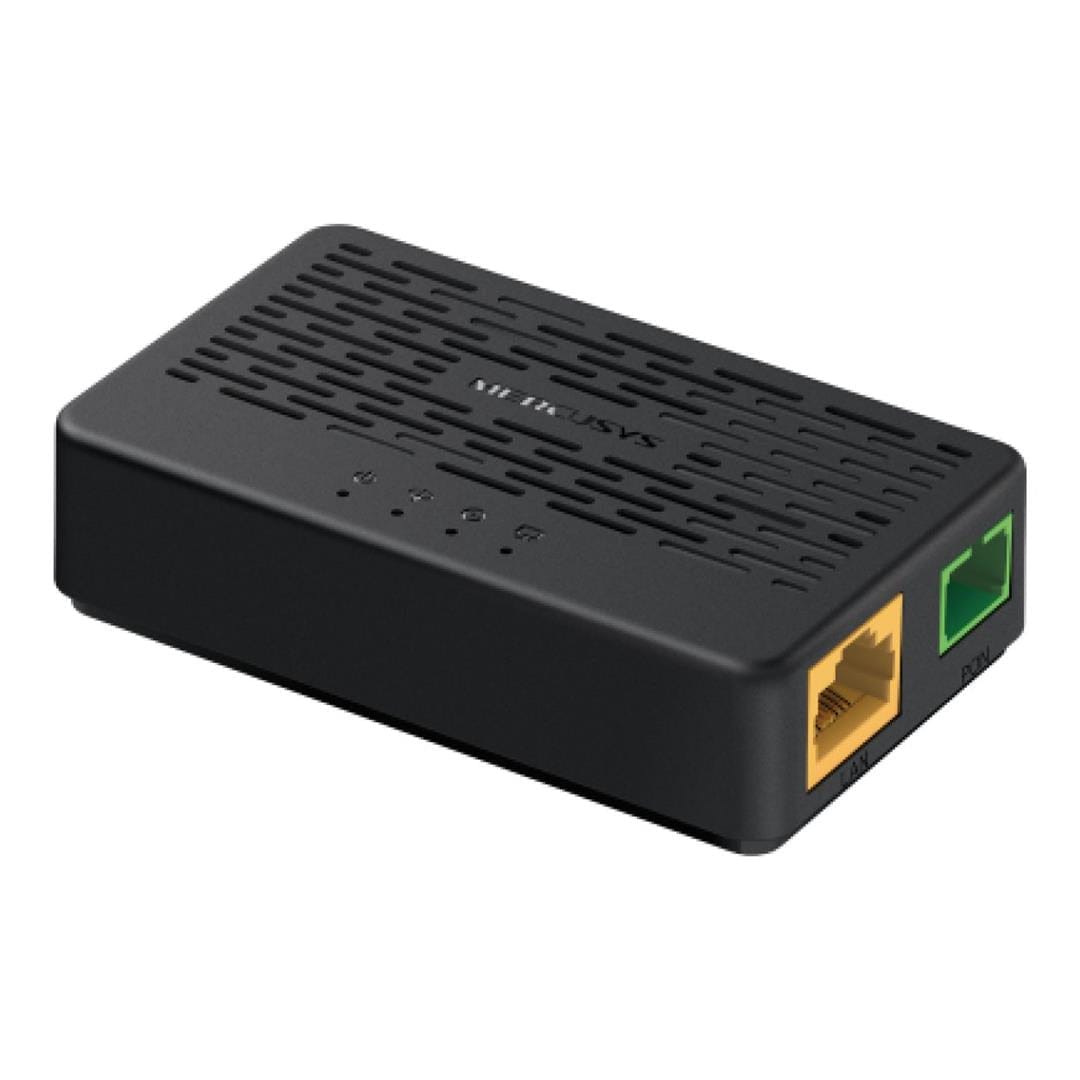

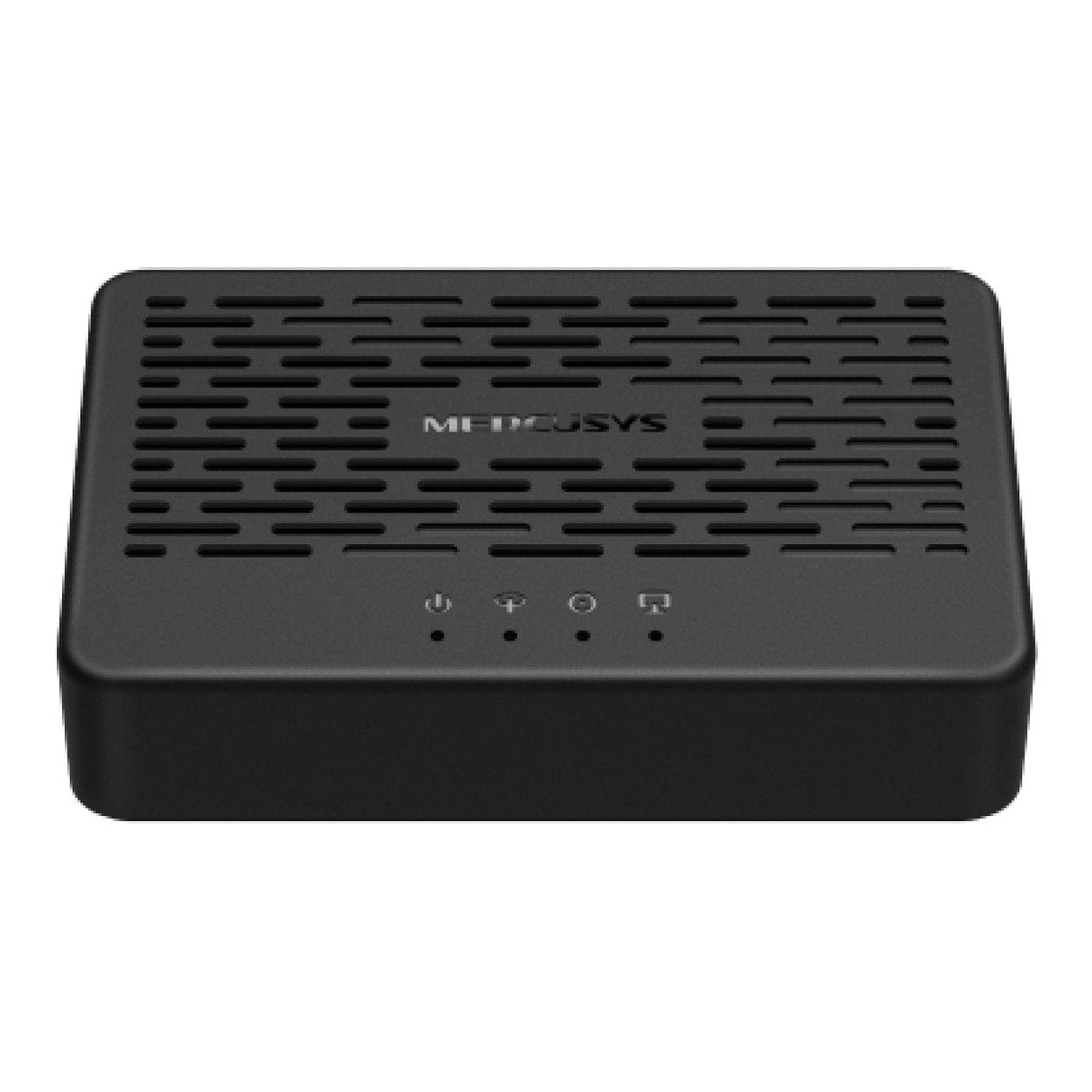

Mercusys MF01G 1-port Gigabit XPON Terminal

Mercusys MF01G 1-port Gigabit XPON Terminal

EPON + GPON Dual Modes

With dual-mode GPON and EPON, MF01G provides internet speeds up to 2.5 Gbps via GPON, meeting high-speed home networking needs.

Features:

• Gigabit Wired Connetivity: Empowers wired devices to attain optimal performance, ensuring seamless HD streaming and an unparalleled gaming experience
• Flexible Switching Mode：The EPON + GPON dual mode provides enhanced flexibility for fiber internet access
• Easy Remote Management: Supports the OMCl (ONU Management Control Interface) protocol, enabling centralized configuration and management

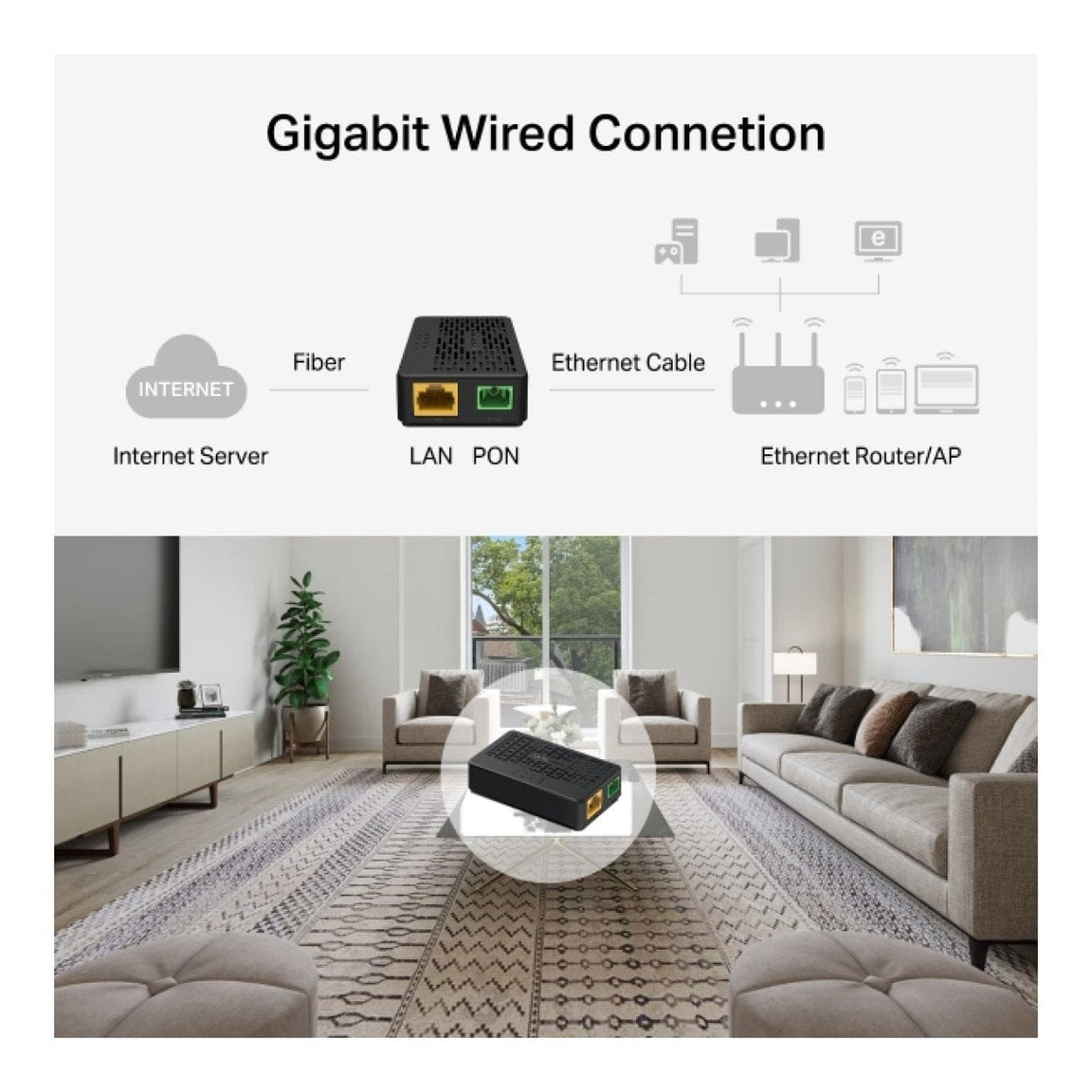

Gigabit Wired Connetivity

With 1× 10/100/1000 Mbps RJ45 port and 1× SC/APC port, MF01G delivers fast and reliable connections up to 10× faster than fast Ethernet, ideal for game consoles, smart TVs, and computers.

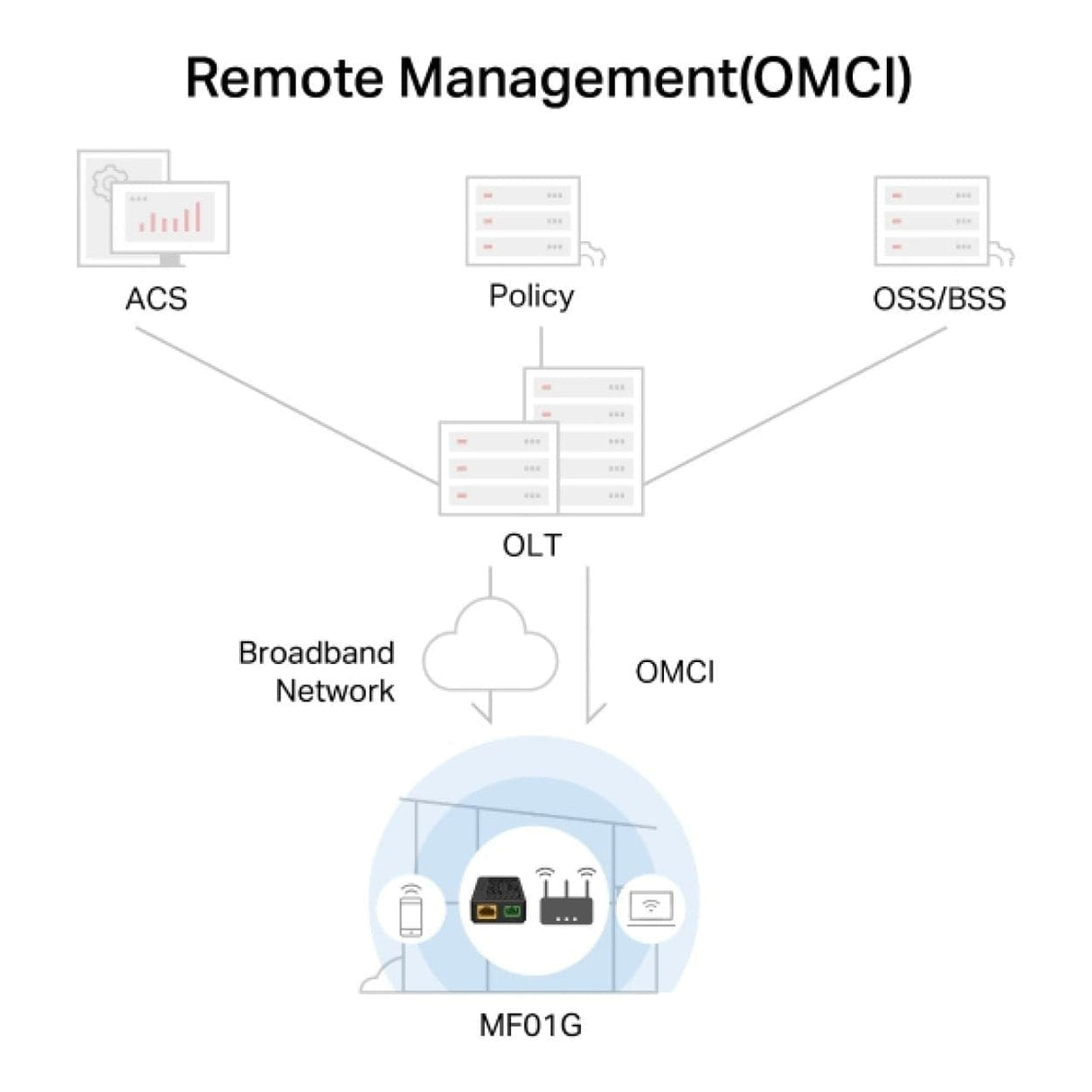

Remote Management

Supports the OMCI (ONU Management Control Interface) protocol, enabling centralized configuration and management.

Technical Specifications:

Hardware Standards and Protocols:
ITU-T G.984.1, G.984.2, G.984.3, G.984.4

Dimensions:
82 × 49 × 21 mm

Interfaces:

• 1 × Gigabit Ethernet (GE)
• 1 × SC/APC

Button:

1 × Reset

Installation:
Desktop style

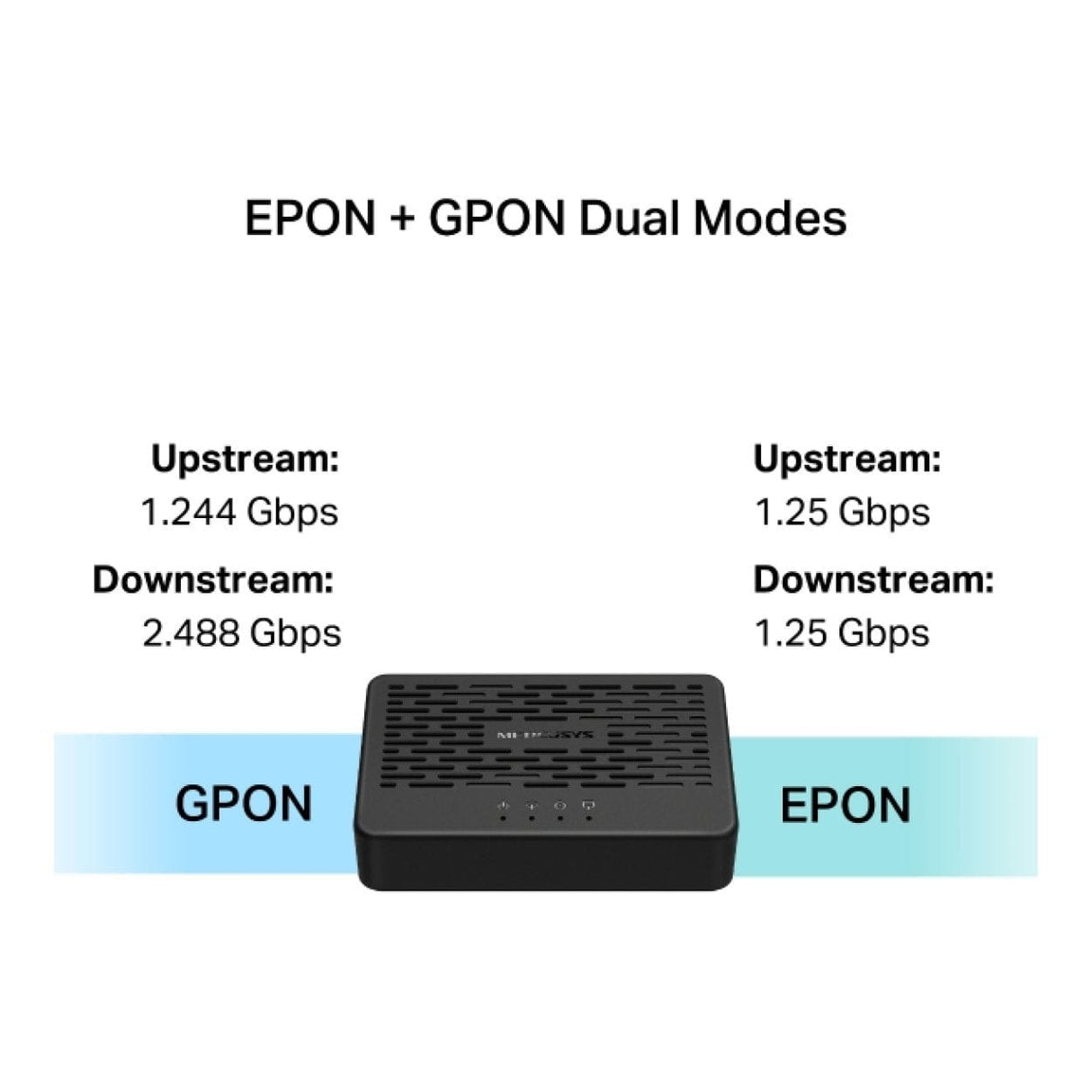

Data Rates:
Upstream: 1.244 Gbps (GPON), 1.25 Gbps (EPON)
Downstream: 2.488 Gbps (GPON), 1.25 Gbps (EPON)

LED Indicators:

• 4 LEDs
• LOS: Red
• Others: Emerald green

Retail Package Dimensions:
91 × 88 × 80 mm

Units per Carton:
36

Carton Dimensions:
375 × 275 × 250 mm

IPTV:
Supported

Power:
9 V / 0.6 A

Maximum Power Consumption:
2.7 W

Operating Mode:
Bridge

WAN Mode:
GPON / EPON

Protocols:
IPv4 / IPv6

System:
Supported

Language:
English

Environment:
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 90% (non-condensing)

What’s in the Box:

• XPON Terminal MF01G
• Power Adapter
• Quick Installation Guide
