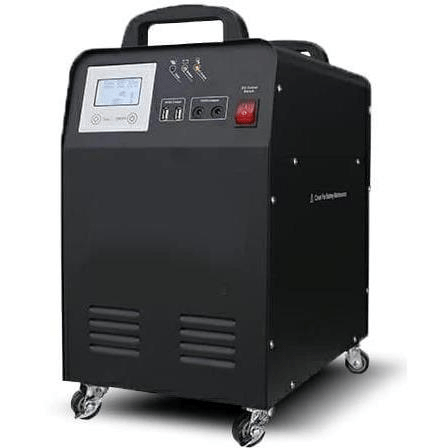

Mecer Solar Home System 1000W 100A Battery Charge Controller SOL-I-CN-1 (Opened Box)

Regular price R 4,69900
Sold out

    Delivery and Shipping

    * Fast Delivery Available - Learn more about FirstShop delivery

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    Mecer Solar Home System 1000W 100A Battery Charge Controller SOL-I-CN-1 (Opened Box)

    Special Offer Notice: This 'Opened Box' item is sold 'voetstoots' at a substantial discount. While we haven't verified the contents, we're passing on the savings to you. Please note, this purchase comes with a 30-day warranty.

    Features

    • Excellent performance because of double CPU intelligent control technology
    • A wide range of applicable loads because of pure sine wave AC output
    • The mains supply mode/energy-saving mode/battery mode can be set for flexible
    • Convenient and practical 5VDC-USB output port and 12VDC output port
    • Digital LCD and LEDs for visualization of operation status of the equipment
    • Overcharge protection and over discharge protection for a longer battery life
    • Safe and reliable with intelligent exhaust fan control
    • Overall automatic protection and alarms including AC output overload protection, short circuit protection, etc.

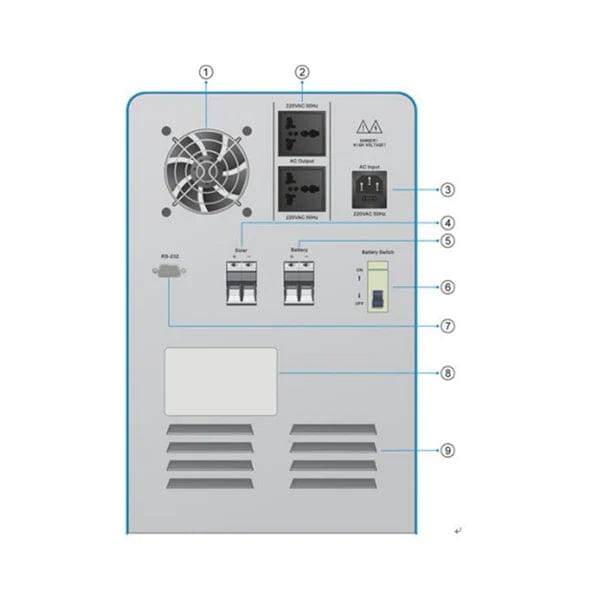

    Technical Specification

    • 1x Fan
    • AC Output (Max. 10A)
    • AC Input
    • Solar: Solar module input terminals
    • Battery: External battery input terminals(selectable)
    • Battery Switch: built-in battery switch
    • RS232 communication port
    • Model stickers
    • Heat dissipation window

    Technical Data:

    • Model: BT-1000W
    • Battery rated voltage(VDC): 12

    Inverter

    • Rated power(W): 1000W
    • Input voltage range(VAC): 160-275VAC
    • Input frequency(Hz): 45Hz-65Hz
    • Output voltage(VAC): 110VAC/220VAC
    • Output frequency(Hz): 50Hz/60Hz
    • Output wave: Pure Sine Wave
    • Specification of built-in battery: 1*100AH/12V
    • Communication: RS232

    Solar Input

    • Max. PV voltage(VDC): ≤25
    • Range of charging voltage(VDC): 10-25
    • Controller rated charge current(A): PWM 30A
    • Voltage for overcharge protection(VDC): 14.2
    • Voltage for overcharge recovery(VDC): 14.0
    • Solar input power range: 150W/180W two pcs in parallel

    DC Output

    • Voltage for high voltage protection(VDC): 16V
    • High voltage recovery voltage(VDC): 15.2V
    • Low voltage recovery voltage(VDC): 12.6V
    • Low voltage protection voltage(VDC): 11
    • 5VDC USB output 2units /MAX 2A
    • 12VDC output ports 2units/MAX 2A
    • Heat dissipation/Cooling: Temperature control by intelligent exhaust fan
    • Operating ambient temperature -20 - +50℃
    • Storage ambient temperature -25 - +55℃
    • Operating/Storage ambient 0-90% No condensation
    • External size:W*D*H(mm) 423×260×453
    • Package size:W*D*H(mm) 520×370×520

    What's in the box

    • 1 x Mecer Portable Solar System 1000W 100A Battery Charge Controller
    • Come with only SA plug system
    • *Product images are for illustration purposes only.
