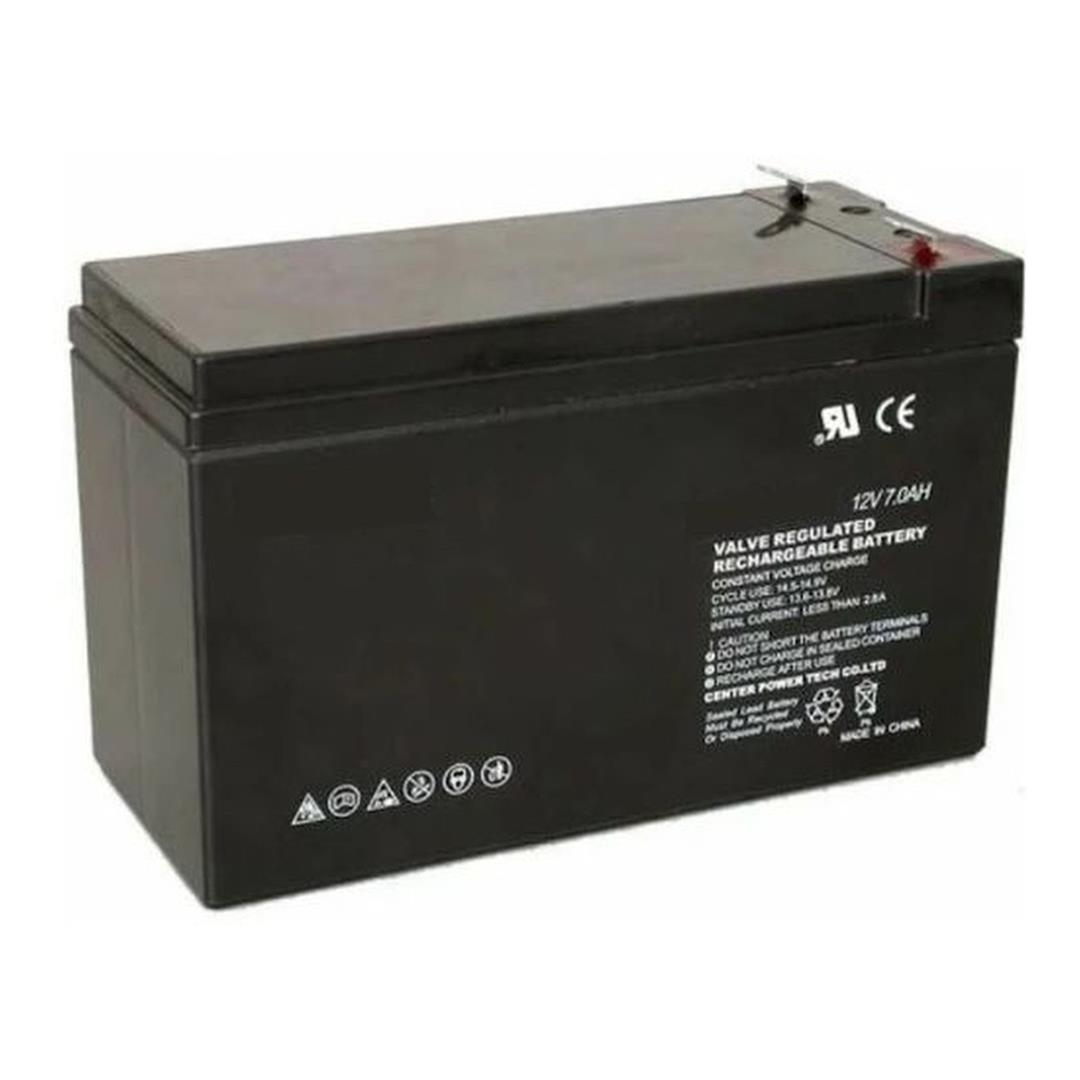

Mecer PH-TEC 12V 7Ah VRLA Lead-Acid Battery PH12-7

Mecer PH-TEC 12V 7Ah VRLA Lead-Acid Battery PH12-7

The Mecer PH-TEC PH12-7 is a compact 12V 7Ah valve-regulated lead-acid battery designed for dependable backup and standby power applications. Its sealed VRLA construction provides maintenance-free operation, making it suitable for compatible UPS systems, networking equipment, security systems and other devices requiring reliable 12V battery backup.

Key Features:

• 12V nominal voltage
• 7Ah nominal capacity
• Valve-Regulated Lead-Acid (VRLA) technology
• Sealed maintenance-free design
• T2 terminal configuration
• Low self-discharge rate
• Maximum discharge current up to 105A for 5 seconds
• Internal resistance of 26mΩ or lower
• ABS battery enclosure
• Suitable for UPS and standby power applications
• Compact 151 x 65 x 99.5mm design

Features

Reliable 12V Backup Power

The PH12-7 provides a nominal 12V output with a 7Ah capacity, making it suitable for a wide range of compatible backup-power and standby applications.

Sealed VRLA Construction

Valve-Regulated Lead-Acid technology provides sealed, maintenance-free operation without the need to routinely top up electrolyte, helping simplify installation and ongoing maintenance.

Designed for UPS and Network Equipment

The battery is suitable for compatible UPS units, networking equipment, power systems and other standby applications that require reliable DC backup power.

Low Self-Discharge

The PH12-7 has a self-discharge rate of no more than approximately 3% per month at 25°C, helping maintain stored charge during periods of non-use.

High Short-Term Discharge Capability

A maximum discharge current of up to 105A for 5 seconds allows the battery to support compatible applications that may require brief periods of higher current draw.

Compact Standard Form Factor

With dimensions of approximately 151 x 65 x 99.5mm, the battery uses a widely adopted compact VRLA format suitable for many UPS and backup-power enclosures.

• Always confirm voltage, capacity, terminal type and physical dimensions before replacing an existing battery.
• Charging must be performed using a charger suitable for 12V VRLA batteries.
• Battery life depends on charge method, temperature, discharge depth and operating conditions.
• Used lead-acid batteries should be recycled through an appropriate battery recycling facility.

Technical Specifications:

The Mecer PH-TEC PH12-7 provides dependable 12V 7Ah sealed backup power in a compact VRLA format, making it suitable for compatible UPS systems, network equipment and other standby-power applications.
