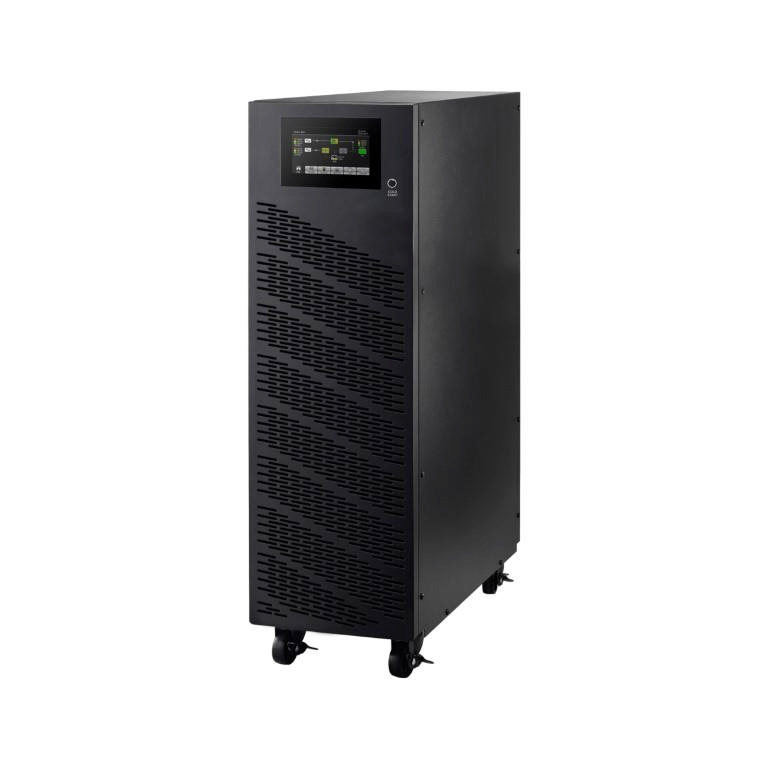

Mecer Galleon II 3-phase 10Kva 10Kw Online Tower UPS ME-10K-GA33
R 35,99900
Unit price
/
Available Now
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Mecer Galleon II 3-phase 10Kva 10Kw Online Tower UPS ME-10K-GA33
Features
- True double-conversion
- DSP technology guarantees high performance
- Output power factor 1
- Active power factor correction in all phases
- 50Hz/60Hz frequency converter mode
- ECO mode operation for energy saving (ECO)
- Emergency power off function (EPO)
- Generator compatible
- SNMP+USB+RS-232 multiple communications
- 3-stage extendable charging design for optimized battery performance
- Adjustable battery numbers for long-run model
- Maintenance bypass available
- Parallel operation with commom battery
- Power walk-in function
- *Optional parallel operation
- *Optional isolation transformer offers full isolation and complete common mode noise rejection
Technical Specifications
| Specification | Details |
|---|---|
| Product | Mecer Galleon II 3-Phase UPS |
| Phase | 3-Phase Input / 3-Phase Output |
| Capacity | 10kVA / 10kW |
| Parallel Capability | Up to 4 Units |
| Input Nominal Voltage | 3 x 400V AC (3Ph+N) / 230V AC (1Ph=N) |
| Input Voltage Range | 110-300V AC @ 50% Load 176-276V AC @ 100% Load |
| Input Frequency Range | 46-54Hz or 56-64Hz |
| Input Power Factor | 0.99 @ 100% Load |
| Input Harmonic Distortion (THDi) | <4% at Full Linear Load |
| Output Voltage | 3 x 380/400/415V AC (3Ph+N) 208/220/230/240V AC (1Ph+N) |
| AC Voltage Regulation (Battery Mode) | ±1% |
| Output Frequency Range (Synchronized) | 46-54Hz or 56-64Hz |
| Output Frequency Range (Battery Mode) | 50/60Hz ±1% or 60Hz ±0.1Hz |
| Current Crest Ratio | 3:1 (Maximum) |
| Output Harmonic Distortion (THDv) | ≤2% THD (Linear Load) ≤5% THD (Non-Linear Load) |
| Transfer Time | AC Mode to Battery Mode: Zero Inverter to Bypass: Zero |
| Waveform (Battery Mode) | Pure Sine Wave |
| Overload Capability (AC Mode) | 100%-110% for 60 Minutes 110%-125% for 10 Minutes 125%-150% for 1 Minute >150% Immediate |
| Overload Capability (Battery Mode) | 100%-110% for 60 Minutes 110%-125% for 10 Minutes 125%-150% for 1 Minute >150% Immediate |
| Bypass Nominal Voltage | 3 x 380/400/415V AC (3Ph+N) |
| Bypass Voltage Range | -30% to +20% (Adjustable) |
| Bypass Frequency Range | 46-54Hz or 56-64Hz |
| Bypass Overload Capability | >130% for 1 Minute (Default) Continuous Operation Until Breaker Protection (Optional) |
| Battery Type | 12V / 9Ah |
| Battery Quantity | 20 Batteries (10 + 10) |
| Typical Recharge Time | 4 Hours to Recover 90% Capacity |
| Charging Current (Max.) | 2A (Adjustable) |
| Charging Voltage | ±13.65V x N (N = 10) |
| LCD Panel | UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge Timer and Fault Conditions |
| Management | Smart RS-232 / USB |
| Supported Operating Systems | Windows®, Linux and Mac |
| Optional SNMP | Power Management from SNMP Manager and Web Browser |
| Dimensions (D x W x H) | 630 x 250 x 826 mm |
| Weight | 103 kg |
| Warranty | UPS: 2-year Carry-in Batteries: 6-months Carry-in |
*When output voltage is set as 3 x 360VAC, the output power of the unit will be de-rated to 90%.
**If the UPS is installed or used in a place where the altitude is higher than maximum height, the output power will be derated 1% per 100m.
