Mecer 95W LGA Socket CPU Fan EC1700A-9525EP

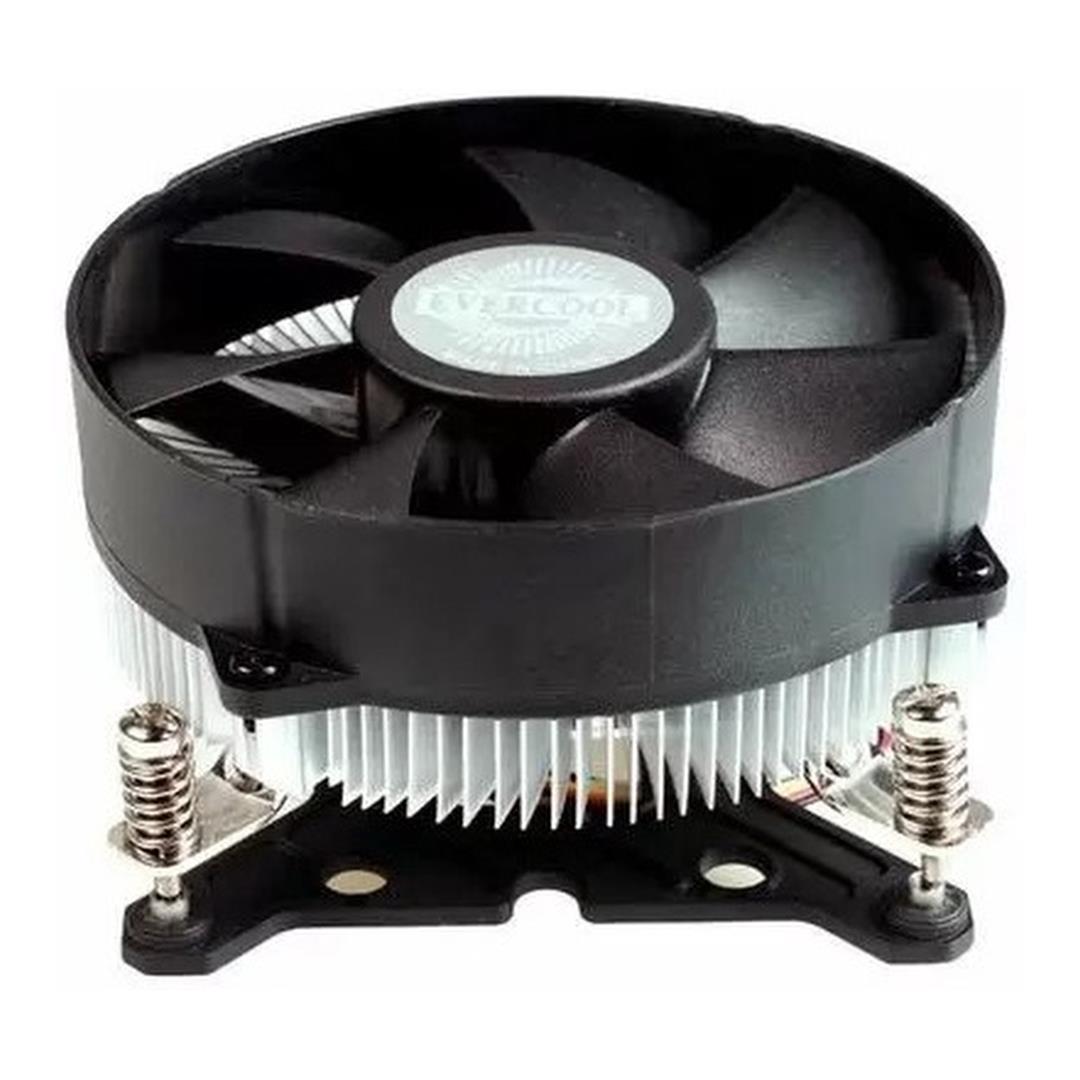

The Mecer EC1700A-9525EP is a compact CPU air cooler designed for compatible Intel processors using LGA1700 and LGA1851 sockets. Rated for CPU cooling requirements of up to 95W, it combines a 95mm PWM fan with a radial aluminium heatsink to provide efficient active cooling for desktop PC builds and replacement cooling applications.
Key Features:
- CPU air cooler for compatible Intel processors
- Supports Intel LGA1700 and LGA1851 sockets
- Cooling capacity up to 95W
- 95mm cooling fan
- 4-pin PWM fan connector
- Automatic fan-speed control through compatible motherboards
- Radial extruded aluminium heatsink
- Compact 45mm overall height
- Spring-screw mounting system
- Backplate mounting for secure installation
- Suitable for compatible Intel Core i3, Core i5 and Core i7 systems
Features
Intel LGA1700 and LGA1851 Support
The EC1700A-9525EP is designed for motherboards using Intel LGA1700 and LGA1851 CPU sockets, making it suitable for a range of compatible desktop processor platforms.
Up to 95W Cooling Capacity
The cooler is designed for processors with cooling requirements of up to 95W. Users should confirm the thermal requirements of the installed processor before installation to ensure adequate cooling performance.
95mm PWM Cooling Fan
A 95mm fan provides active airflow across the heatsink, while the 4-pin PWM connection allows a compatible motherboard to automatically adjust fan speed according to CPU temperature and system load.
Radial Aluminium Heatsink
The radial extruded aluminium heatsink provides a large surface area for efficient heat dissipation while maintaining a compact footprint suitable for space-conscious desktop systems.
Compact Low-Profile Design
With an overall height of approximately 45mm, the cooler is suitable for many compact desktop chassis where larger tower-style cooling solutions may not fit.
Secure Backplate Mounting
The cooler uses spring-loaded screws together with a backplate to provide stable mounting pressure and secure attachment to compatible motherboards.
- Confirm CPU socket and thermal requirements before purchase.
- Designed for processors requiring no more than 95W of cooling capacity.
- Motherboard must provide a compatible 4-pin CPU fan header for PWM control.
- Always confirm available chassis and motherboard clearance before installation.
Technical Specifications:
| Specification | Details |
| Brand | Mecer |
| Model / SKU | EC1700A-9525EP |
| Product Type | CPU Air Cooler |
| CPU Socket Compatibility | Intel LGA1700 / LGA1851 |
| Supported Processor Range | Compatible Intel Core i3 / i5 / i7 Processors |
| Maximum Cooling Rating | Up to 95W |
| Fan Quantity | 1 |
| Fan Size | 95mm |
| Fan Thickness | 25mm |
| Fan Connector | 4-Pin PWM |
| Heatsink Material | Aluminium |
| Heatsink Design | Radial Extruded Fins |
| Overall Height | Approx. 45mm |
| Approx. Cooler Diameter | 95mm |
| Mounting Method | Spring Screws with Backplate |
| Cooling Type | Active Air Cooling |
| Package Contents | 1 x Mecer EC1700A-9525EP CPU Cooler Mounting Hardware / Backplate |
The Mecer EC1700A-9525EP provides a compact and practical cooling solution for compatible Intel LGA1700 and LGA1851 desktop processors, combining a 95mm PWM fan, aluminium heatsink and support for cooling loads up to 95W.
