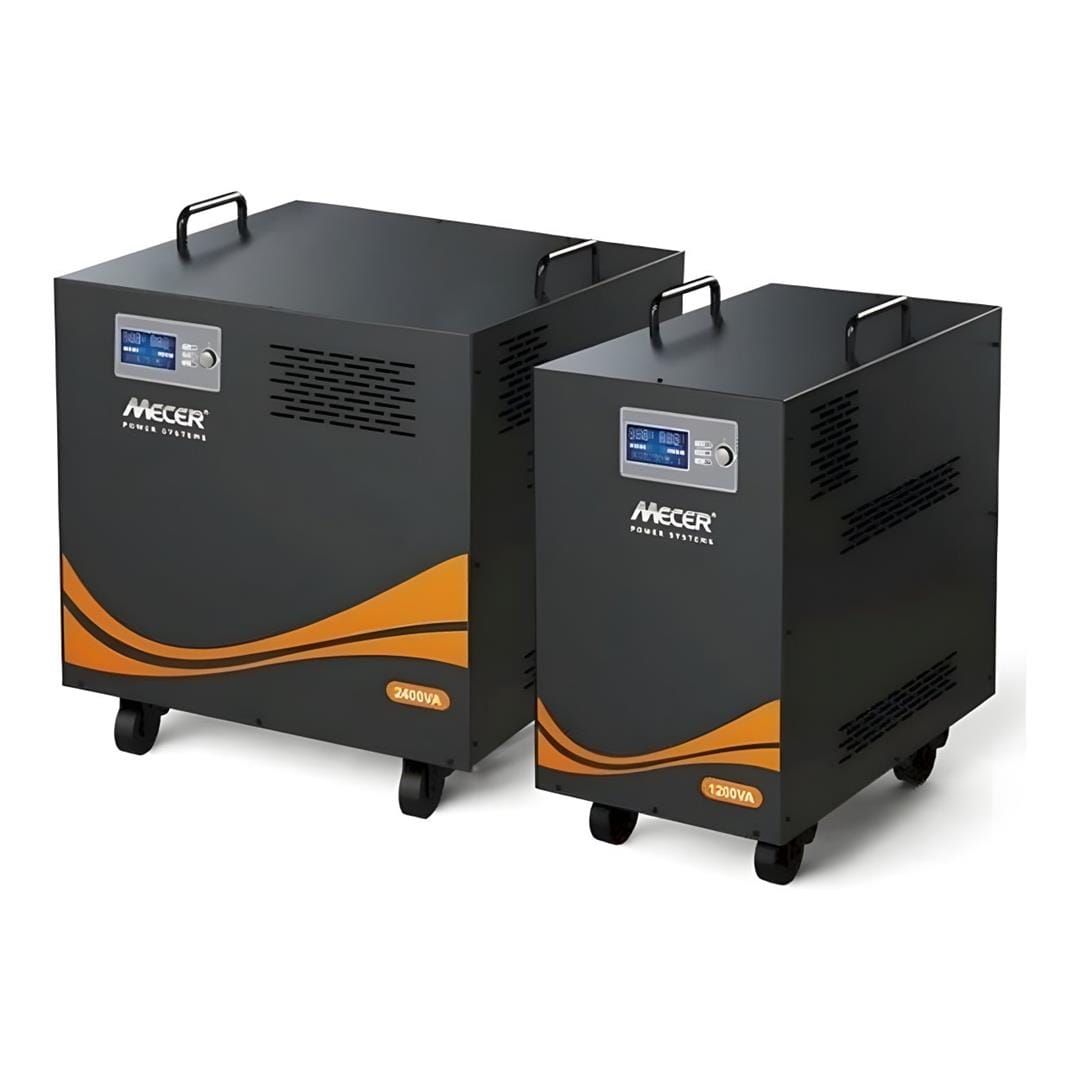

Mecer 2.4KVA 1440W Inverter BBONE-024S

Mecer 2.4KVA 1440W Inverter BBONE-024S

This simple inverter/charger is designed to power your home appliances or precious 3C electronics. With optional solar charger, it can convert solar power to battery power and provide continuous power to connected equipment during night time. Features Simulated sine wave inverter Wide input voltage range 10 A or 20 A standard AC charging current LCD display for comprehensive information Overload, short circuit and reverse polarity protection

Features:

• Simulated sine wave inverter
• Built-in 50A PWM solar charger (optional)
• Wide input voltage range
• 10 A or 20 A standard AC charging current
• LCD display for comprehension information
• Overload, short circuit and reverse polarity protection

Technical Specifications:

Model: BBONE-024S

Capacity: 2400VA/ 1440W

Input:

Voltage: 230 VAC

Acceptable Voltage Range: 90-280 VAC

Frequency: 50 Hz/60 Hz (Auto sensing)

Output:

AC Voltage Regulation (Batt. Mode): ± 10%

Efficiency (Peak): 85%

Transfer Time: 20 ms typical

Wavefor (Batt. Mode): Simulated sine wave

Battery:

Battery Type and Numbers: 12 V 100Ah x 2

Solar Charger (Optional):

Maximum PV Array Open Circuit Voltage: 60 VDC

Operating Voltage Range: 30~32 VDC

Maximum Solar Charge Current: 50 A max

Protection:

Full Protection: Overload, short circuit and polarity reserve protection

Physical:

Dimension, D x W x H: 345 x 400 x 450mm

Net Weight: 75.8kg

Operating Environment:

Humidity: 0 to 90% Relative Humidity (Non-condensing)

Operating Temperature: 0 - 40 Degree Celcius

Storage Temperature: -15 - 50 Degree Celcius
