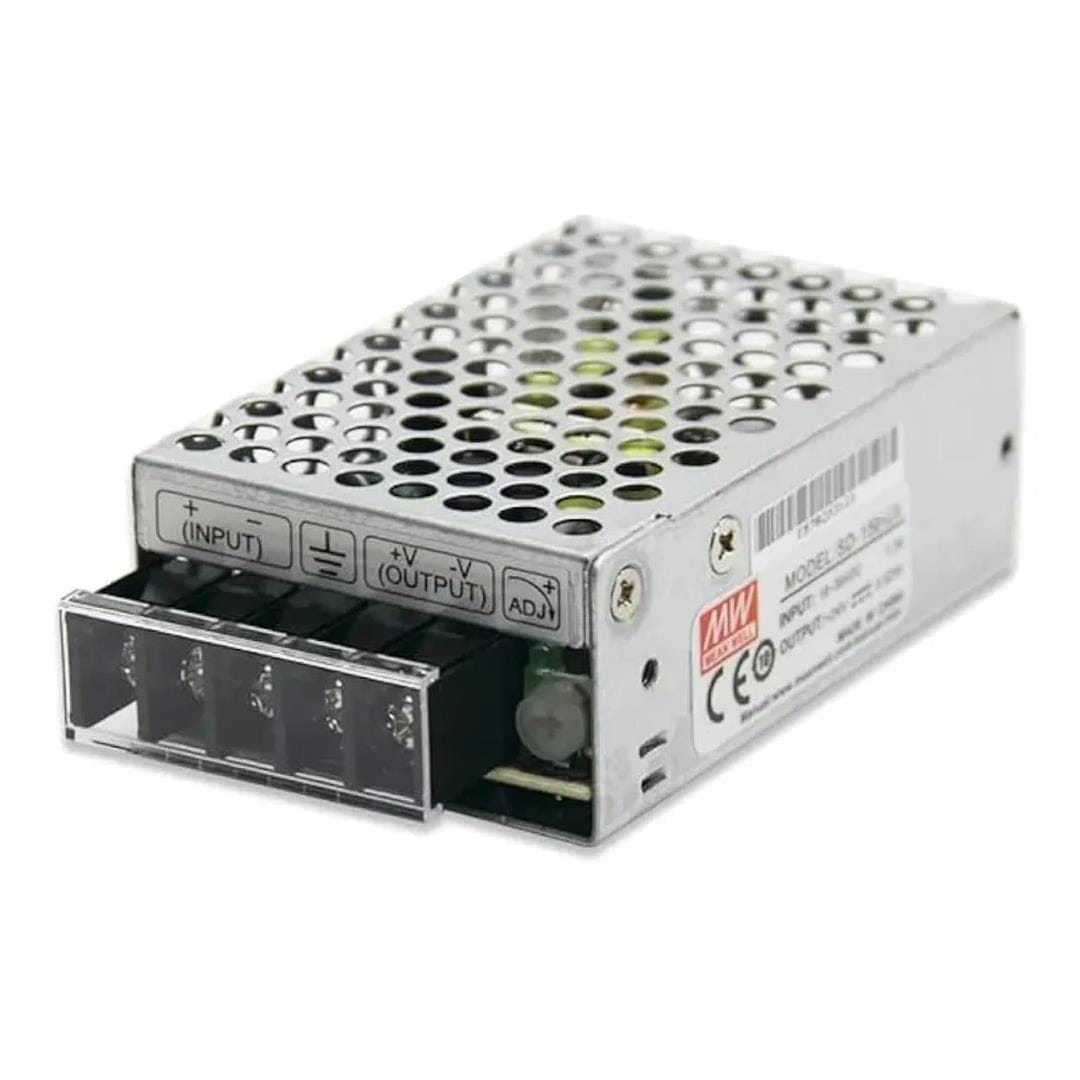

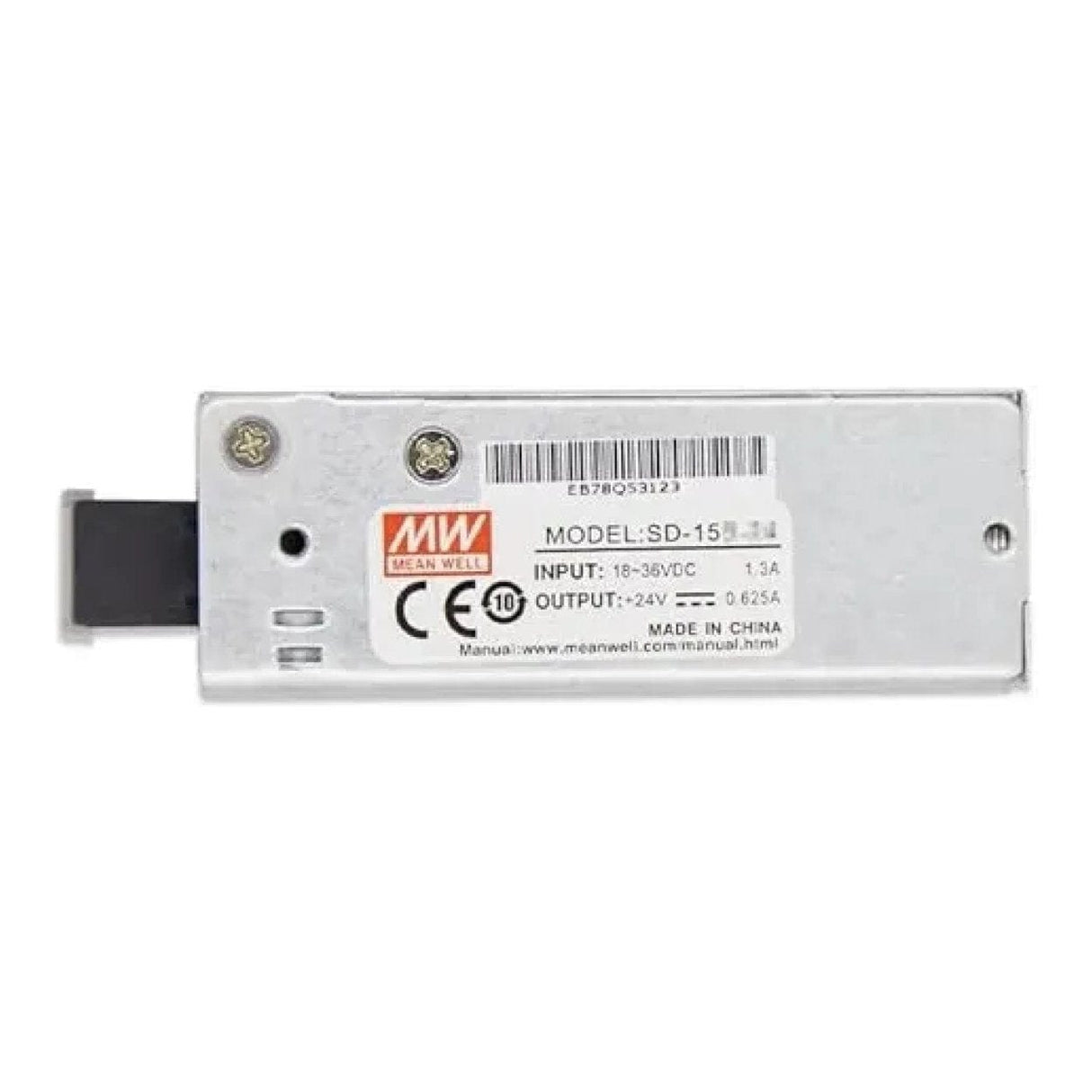

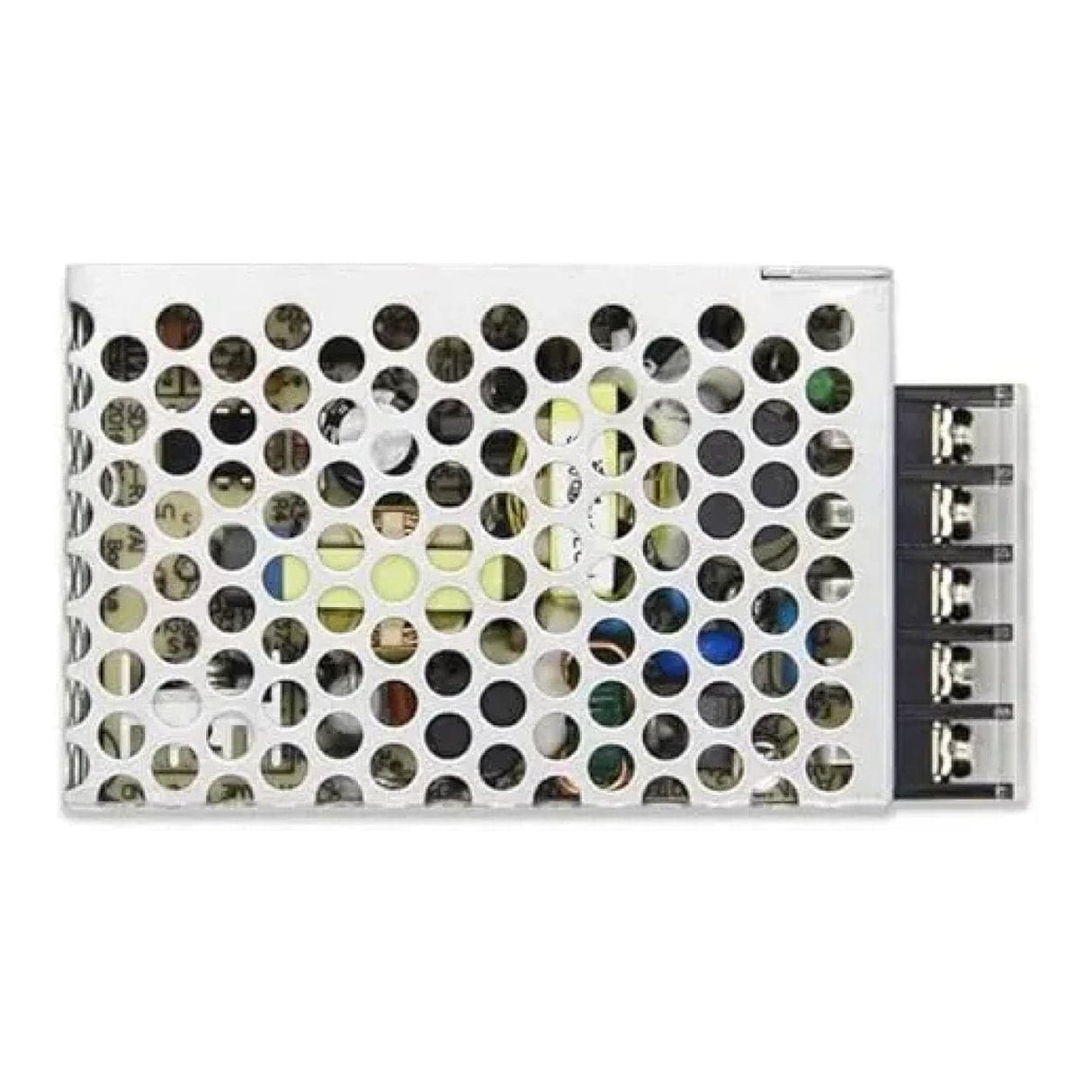

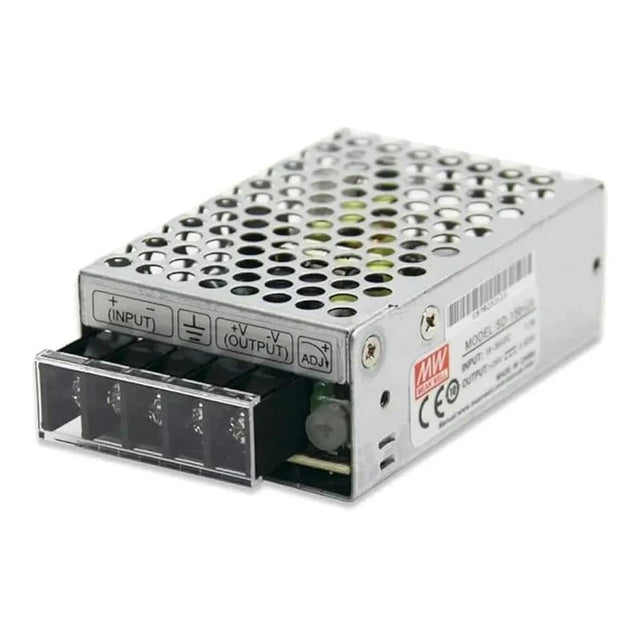

Mean Well 15W 24V Singe Output DC Converter SD-15C-24

Mean Well 15W 24V Singe Output DC Converter SD-15C-24

The Mean Well SD-15C-24 is a 15W single-output DC/DC converter designed for reliable and efficient power conversion in industrial and electronic applications. It accepts a wide DC input range and provides a stable 24VDC output, ensuring consistent performance under varying load conditions. Built with high efficiency, low ripple, and comprehensive protection features including overload, overvoltage, and short-circuit safeguards, this converter delivers long-term reliability in demanding environments. Its compact metal enclosure enhances heat dissipation and durability, making it ideal for use in control panels, communication equipment, and embedded systems.

Features:

• 15W Single Output DC-DC Converter
• Input: 36-72VDC (0.45A @ 48V)
• Output: 24VDC (0.625Amp)

Technical Specifications:

RoHS: Yes

Isolation: Isolated

Number of Outputs: 1 Output

Output Power: 15 W

Input Voltage, Nominal: 48 V
Input Voltage - Min: 36 V
Input Voltage - Max: 72 V

Output Voltage - Channel 1: 24 V
Output Current - Channel 1: 625 mA

Isolation Voltage: 1.5 kV

Physical Dimensions:
Length: 78 mm
Width: 51 mm
Height: 28 mm

Industry: Industrial
Series: SD-15
Brand: MEAN WELL
Input Voltage Range: 36 V to 72 V
Maximum Operating Temperature: +60 °C
Minimum Operating Temperature: -10 °C
Mounting Style: Chassis

Packaging: Bulk
Product Type: Isolated DC-DC Converters
Unit Weight: 180 g
