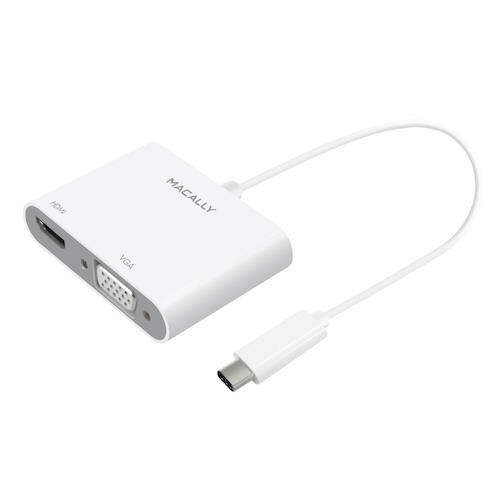

Macally USB-C to VGA and HDMI 4K Adapter UCVH4K

Macally USB-C to VGA and HDMI 4K Adapter UCVH4K

The Macally UCVH4K is a convenient 2-in-1 USB-C/Thunderbolt 3 adapter that allows you to connect your Apple  MacBook, MacBook Pro or Chromebook Pixel to a VGA or HDMI monitor. The UCVH4K supports up to 1920x1200@60Hz VGA and 4Kx2K@30Hz HDMI video resolution and digital multichannel audio for a crisp and clean sound.

Features

• Connect your Apple MacBook, MacBook Pro or Google Chromebook Pixel to any TV, monitor or projector with VGA or HDMI
• Supports USB-C and Thunderbolt 3 input, and VGA or HDMI output
• Supports HD (720P), Full HD (1080P) and Ultra HD (4K)
• USB bus-powered (No AC adapter needed)
• Plug and Play (No driver or software required)
• Compact design and built-in cable for maximum portability
• Includes UCVH4K and user guide

System requirements

• USB-C or Thunderbolt 3 port
• Mac OS 10.10.2 or later; Windows 10/10 Mobile; Chrome OS

Technical specifications

• Dimensions: 17(H) x 96(W) x 40(D) mm
• Weight: 45g
• Cable length: 120mm
• Signal Input/Output:
• Input signal: USB-C/Thunderbolt 3
• Output video: VGA/HDMI
• Input connector: USB-C/Thunderbolt 3
• Output connectors: VGA Female 15 Pin, HDMI Female Type A 19 pin
• Operating frequency:
• Vertical frequency: 50/60 Hz
• Video amplifier bandwidth: 2.25 Gbps/225 Mhz
• Resolutions:
• VGA/HDMI: 1920x1200/60 Hz / 4Kx2K/30 Hz
