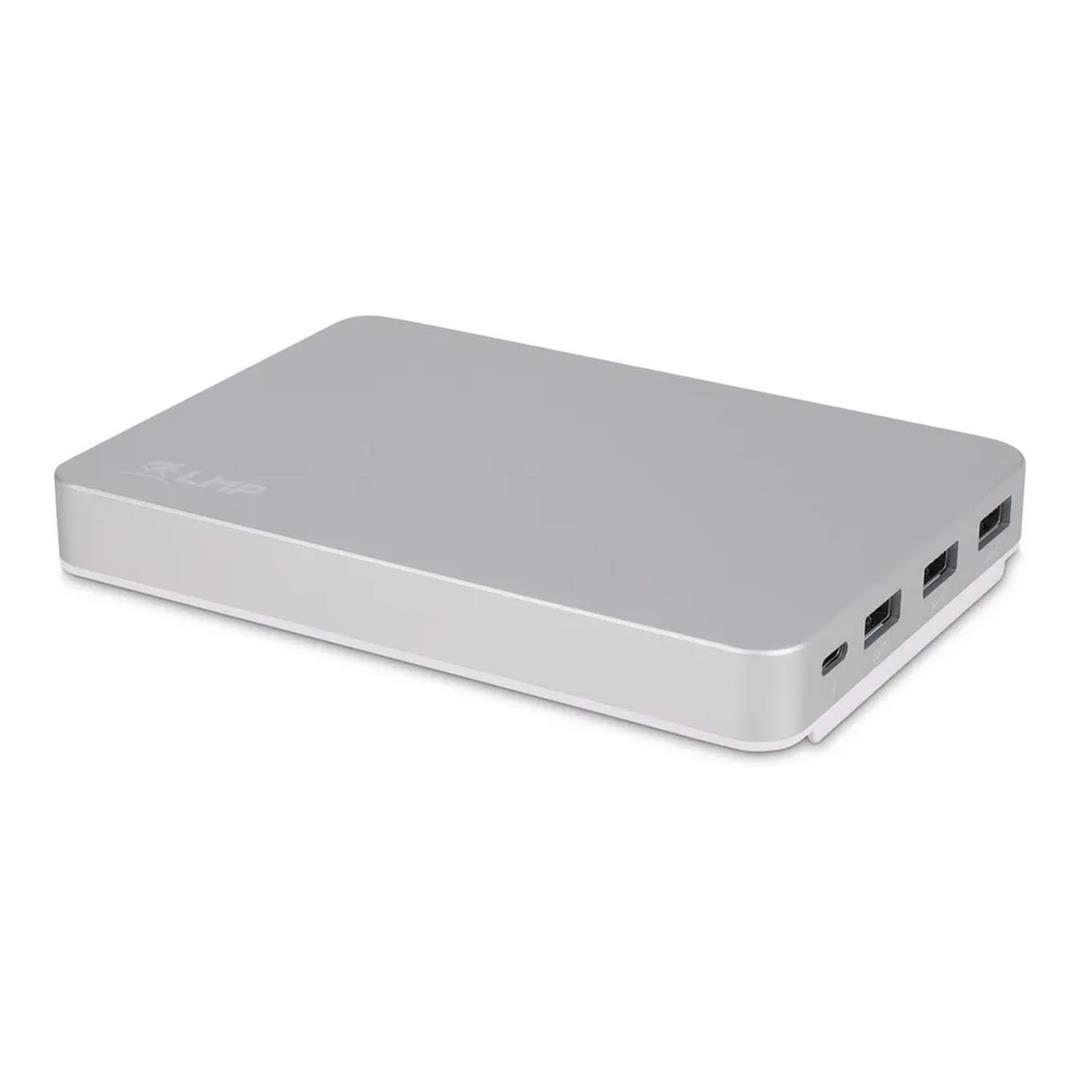

LMP DuoDock 9-port Type-C Docking Station 23790

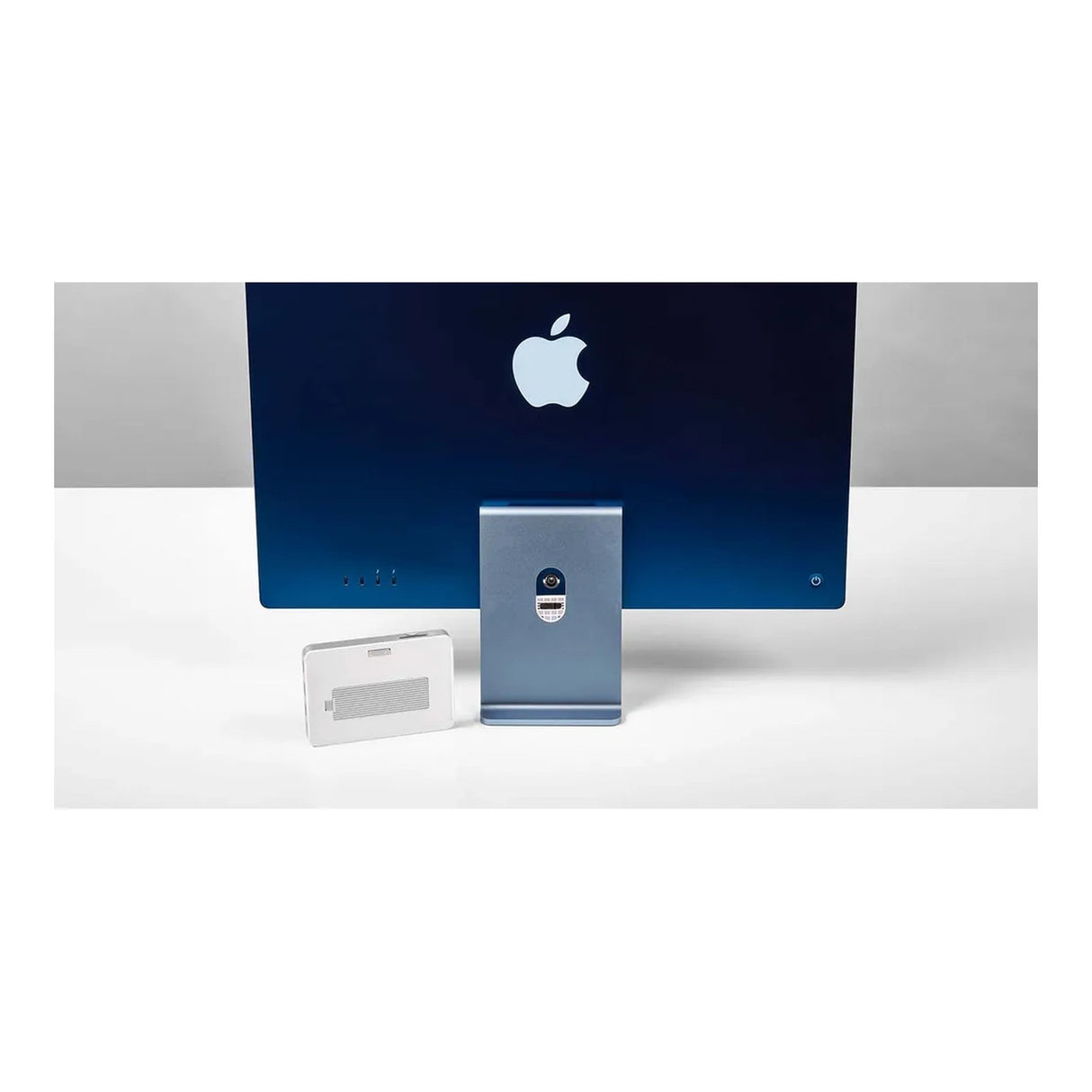

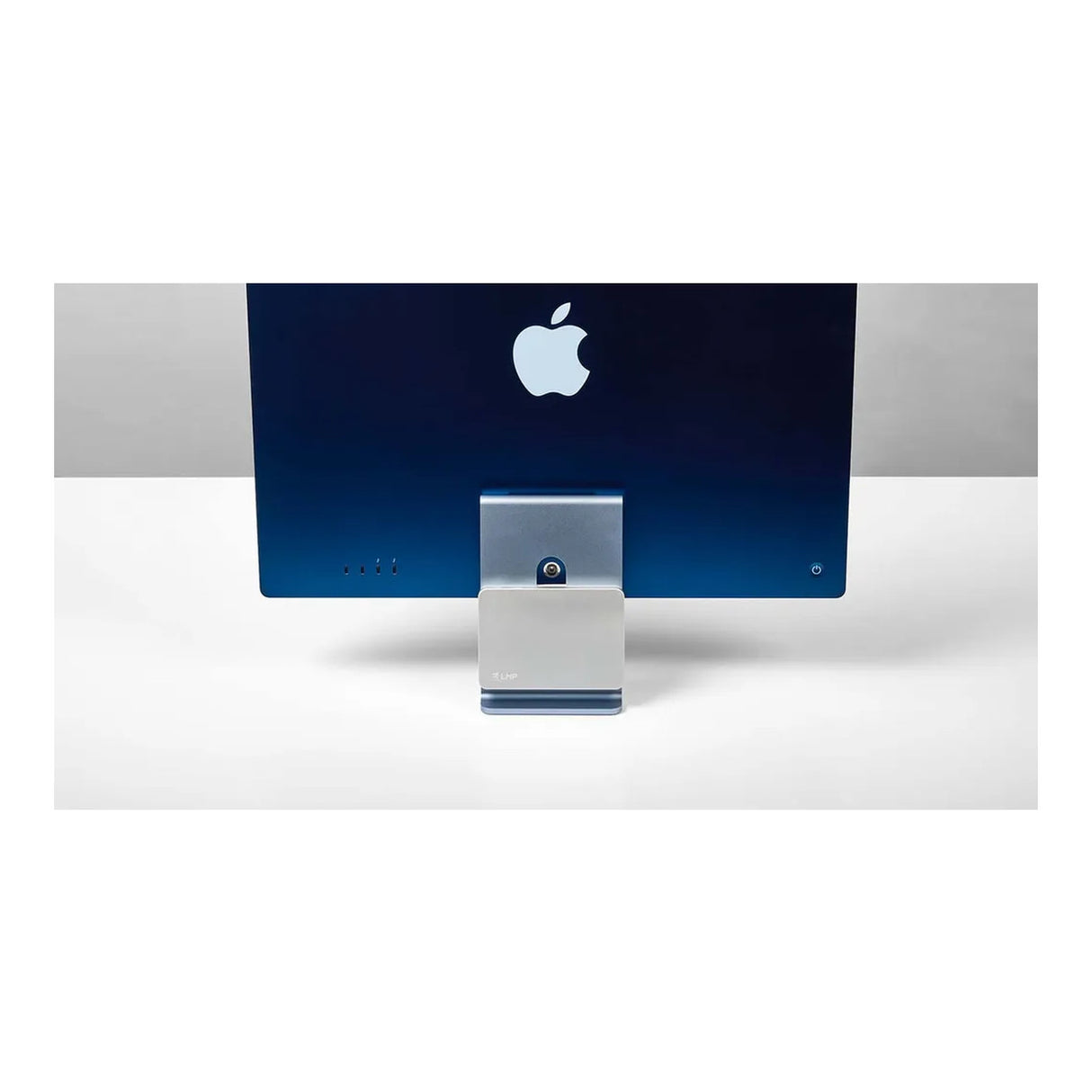

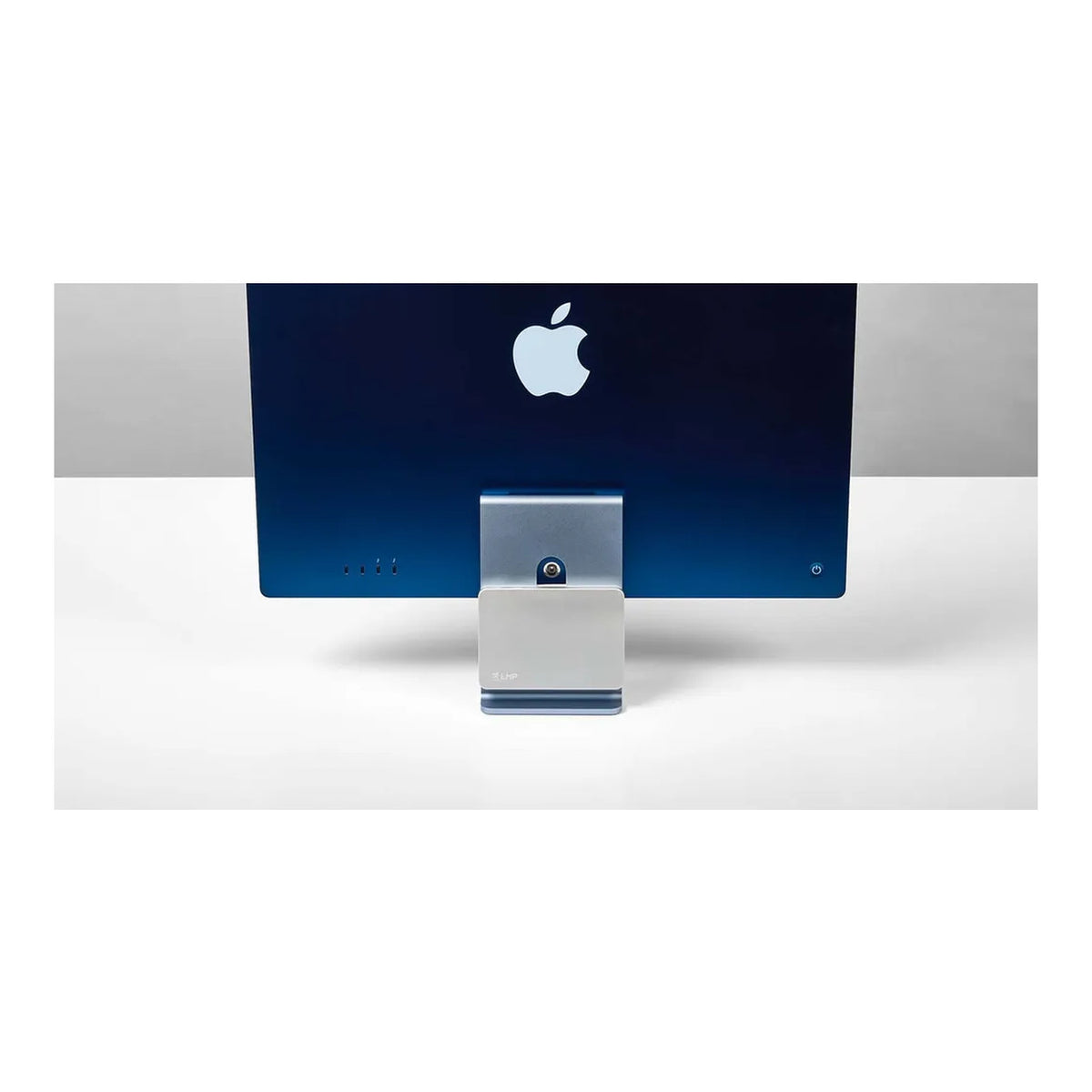

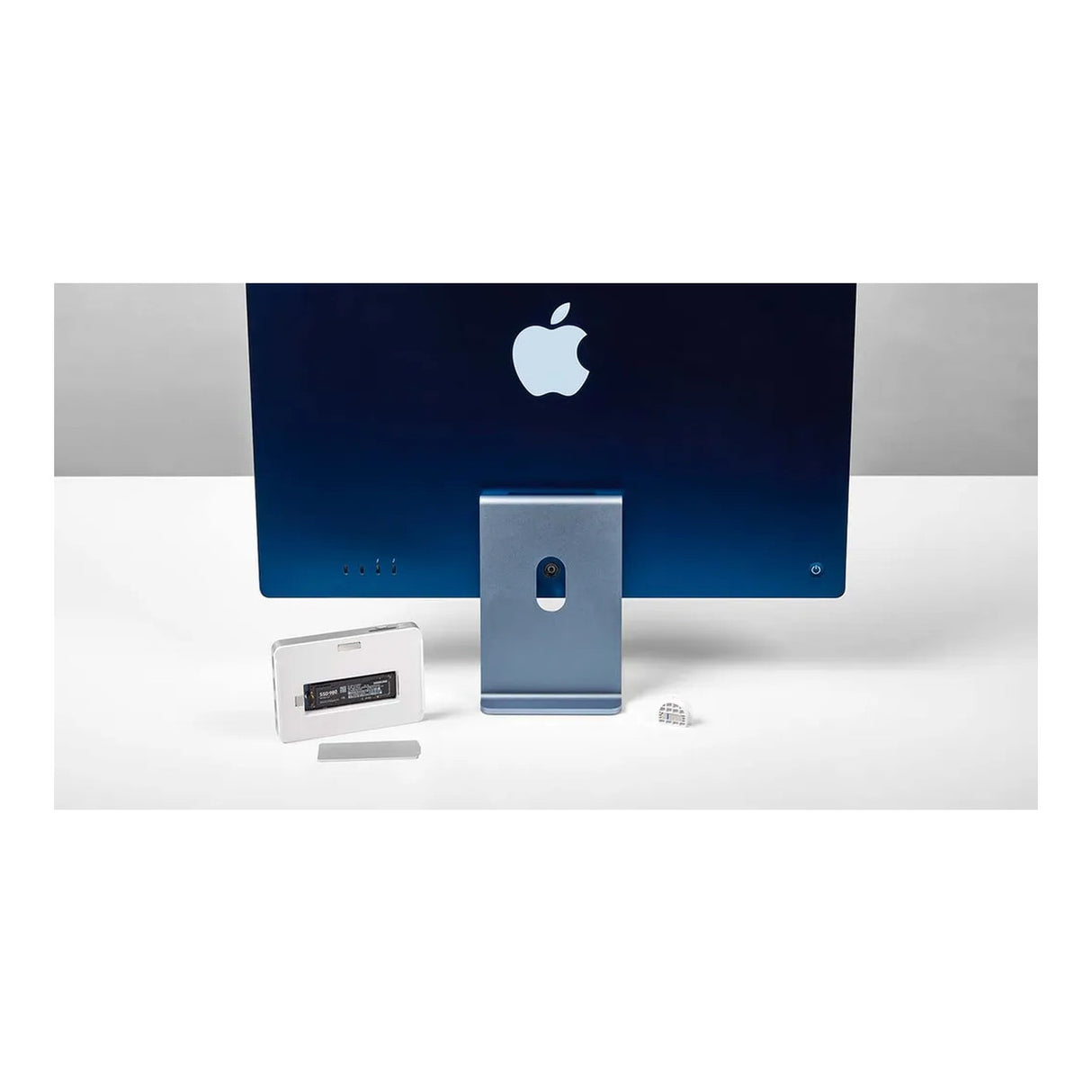

The LMP DuoDock combines a USB-C docking station and an M.2 PCIe NVMe SSD enclosure in one aluminium housing. Designed for compatible Mac setups, it brings peripheral connections and storage expansion together on your desk. Attach it magnetically to a 24-inch iMac stand or use it as a standalone dock.
Connect Your Everyday Workspace

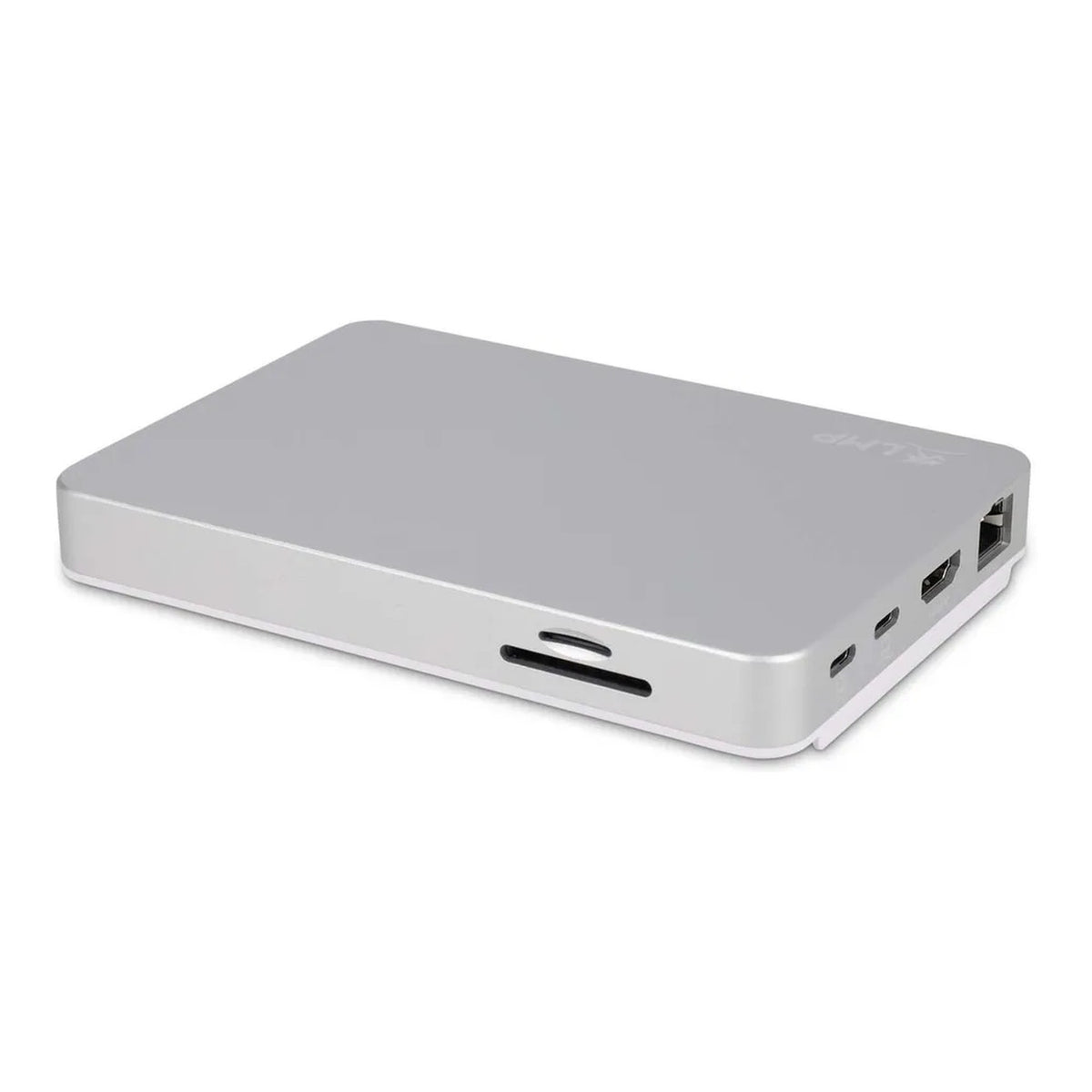

Connect USB accessories, an HDMI display and a wired network, with SD and microSD readers available for memory cards. The nine-port configuration includes the internal NVMe SSD slot.
Docking and Storage Together
Two USB-C host connections serve separate functions: one handles docking and the other connects the NVMe SSD. Connect both for simultaneous use, or use a single connection for either function. The enclosure accepts four M.2 SSD sizes, giving you flexibility when choosing compatible storage.
Key Features:
- Display connectivity: HDMI 2.0 supports output up to 4K at 60 Hz.

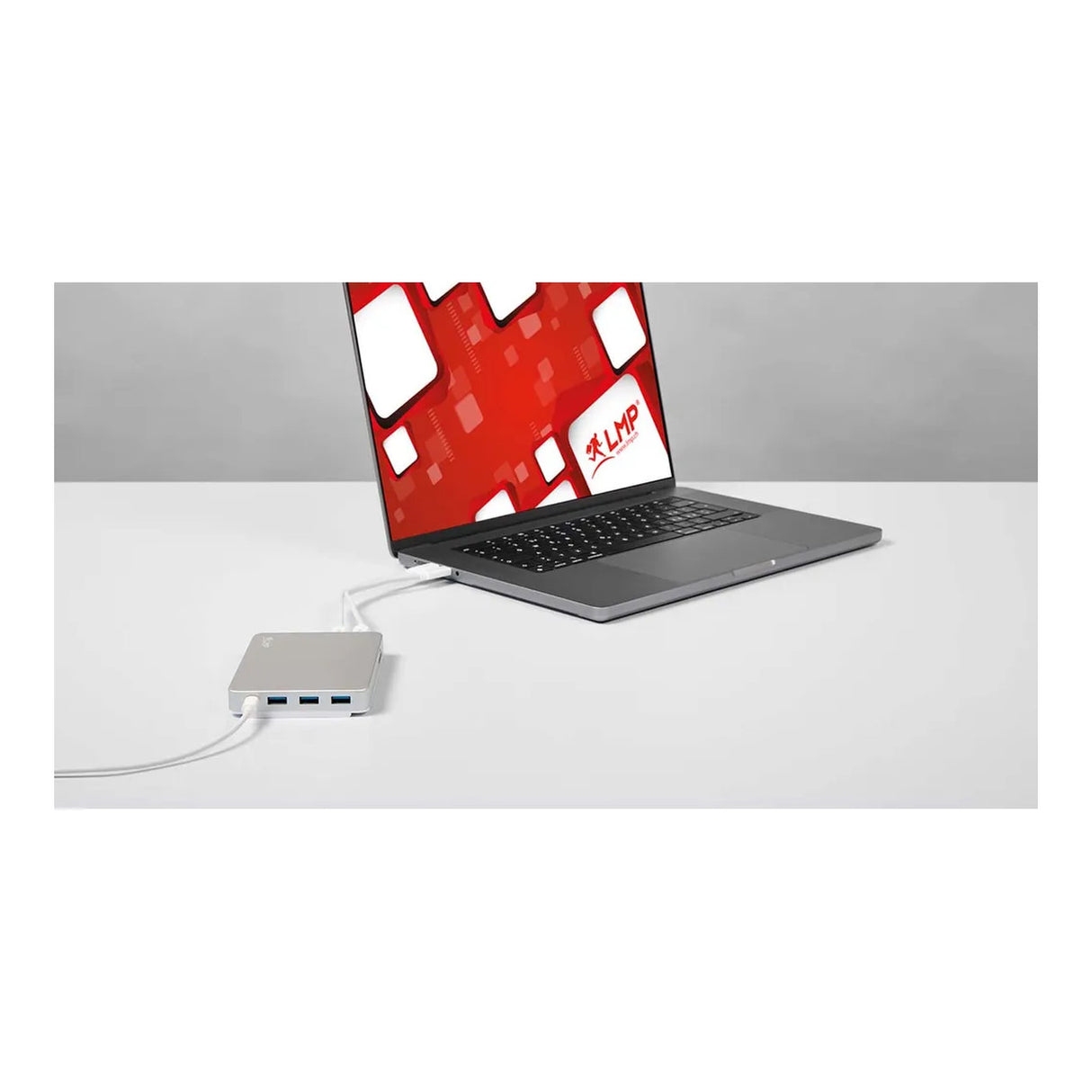

- USB expansion: Three USB-A ports and one USB-C port accommodate peripherals.
- Wired networking: Gigabit Ethernet connects your workspace to a local network.
- Memory card access: Read SD and microSD cards without a separate reader.
- Power pass-through: USB-C Power Delivery 3.0 supports up to 100 W.

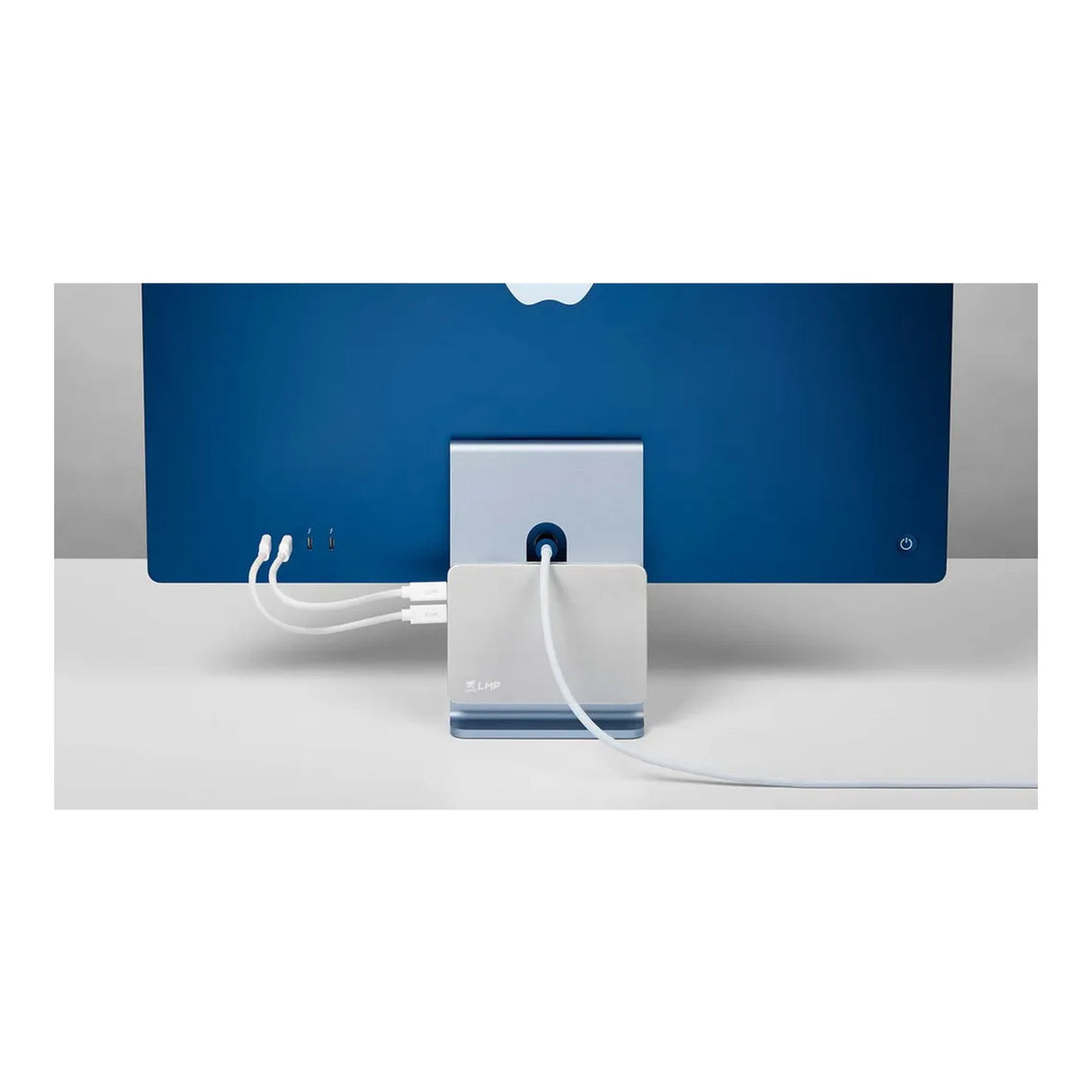

- Flexible placement: Magnetic iMac mounting keeps the dock close at hand.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LMP |
| Model / MPN | USB-C DuoDock / 23790 |
| Product Type | 9-port docking station and NVMe SSD enclosure |
| Colour / Material | Silver / Aluminium |
| Host Connections | 2 × USB-C; separate docking and storage connections |
| Storage Interface Speed | USB 3.1 Gen 2, up to 10 Gbps |
| USB Data Ports | 3 × USB-A and 1 × USB-C, up to 5 Gbps |
| Video Output | 1 × HDMI 2.0, up to 4K at 60 Hz |
| Network | 1 × Gigabit Ethernet, 10/100/1000 Mbps |
| Card Readers | 1 × SD (UHS-II); 1 × microSD |

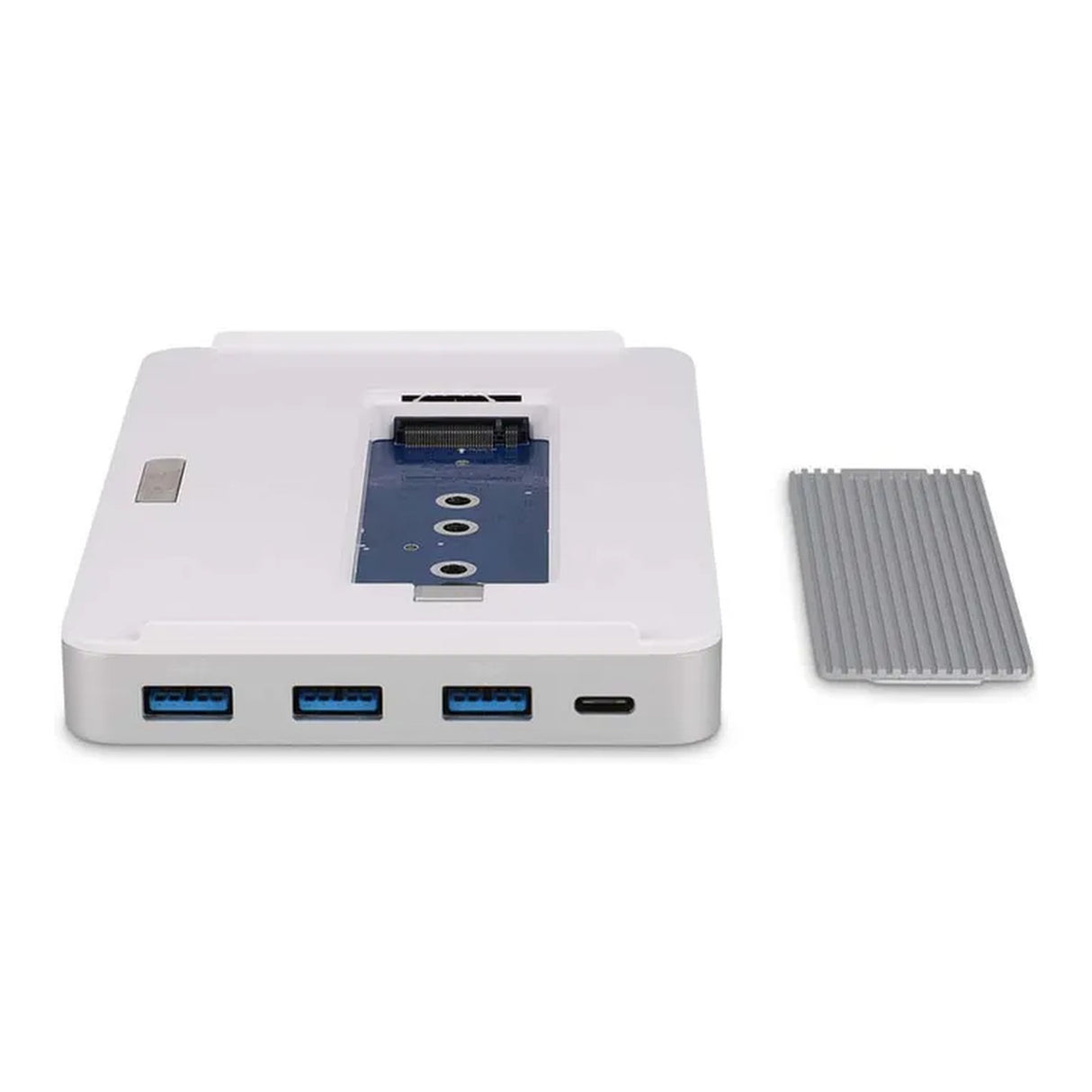

| SSD Compatibility | M.2 PCIe NVMe: 2230, 2242, 2260 and 2280 |
| Power | USB bus-powered; USB-C PD 3.0 pass-through up to 100 W |
| Dimensions (W × H × D) | 133 × 20 × 93 mm |
| Weight | 203 g |

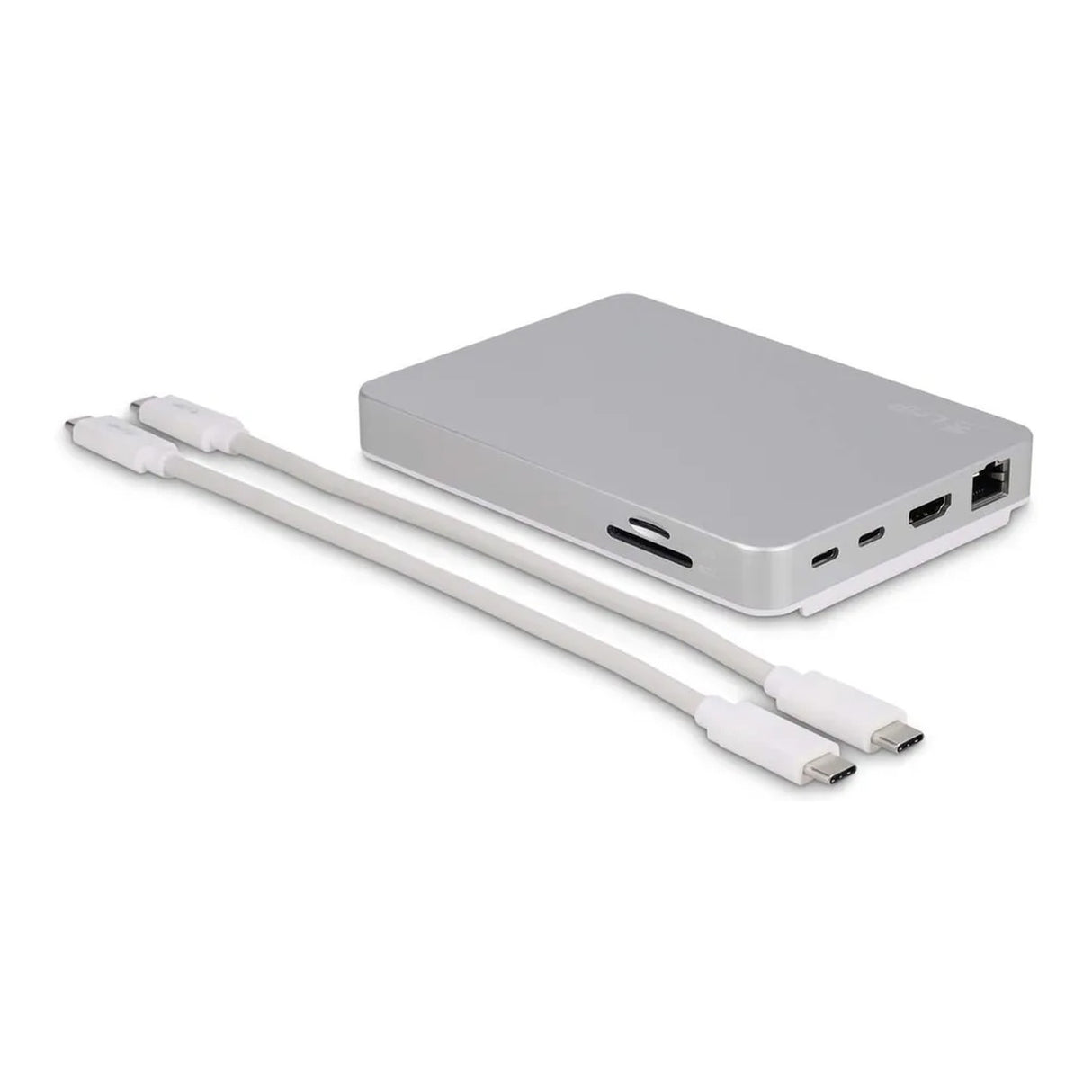

| Box Contents | LMP USB-C DuoDock; 2 × 25 cm USB-C to USB-C cables |
Add the LMP DuoDock to your cart to bring practical connectivity and storage expansion to your compatible Mac workspace.
