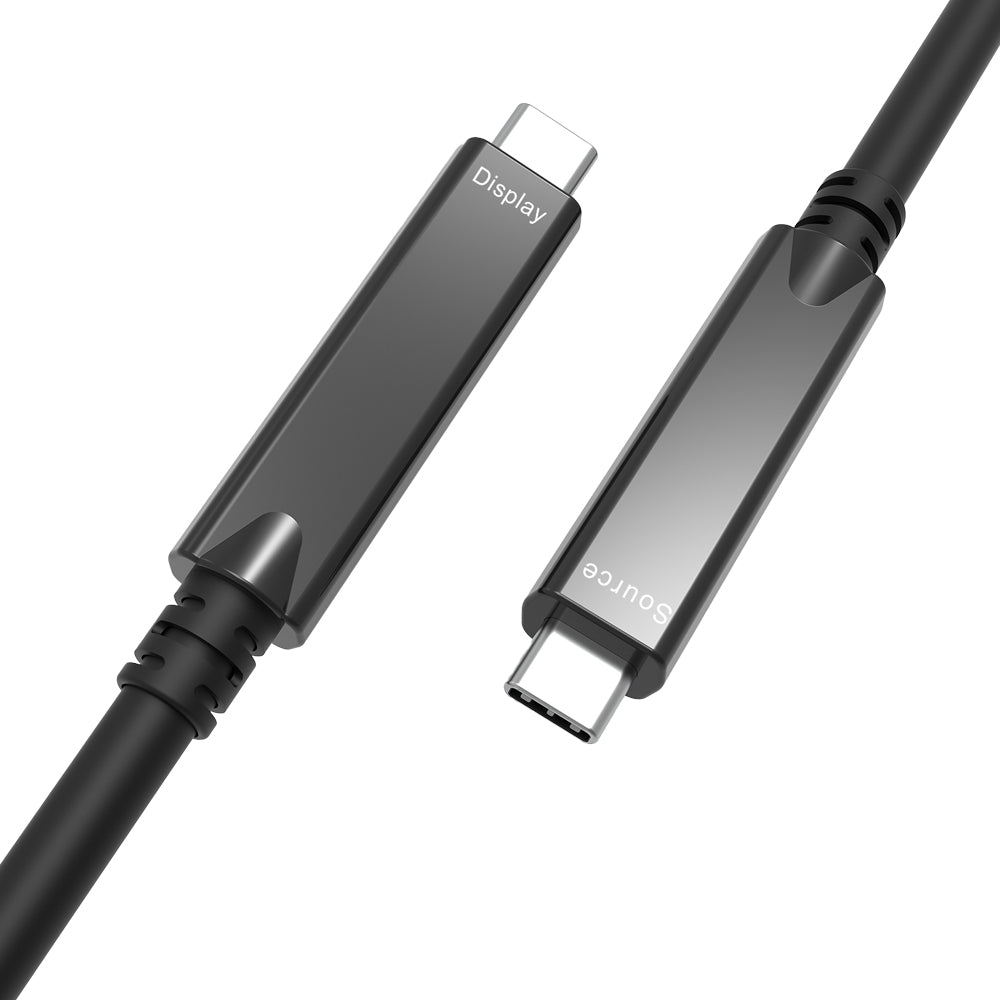

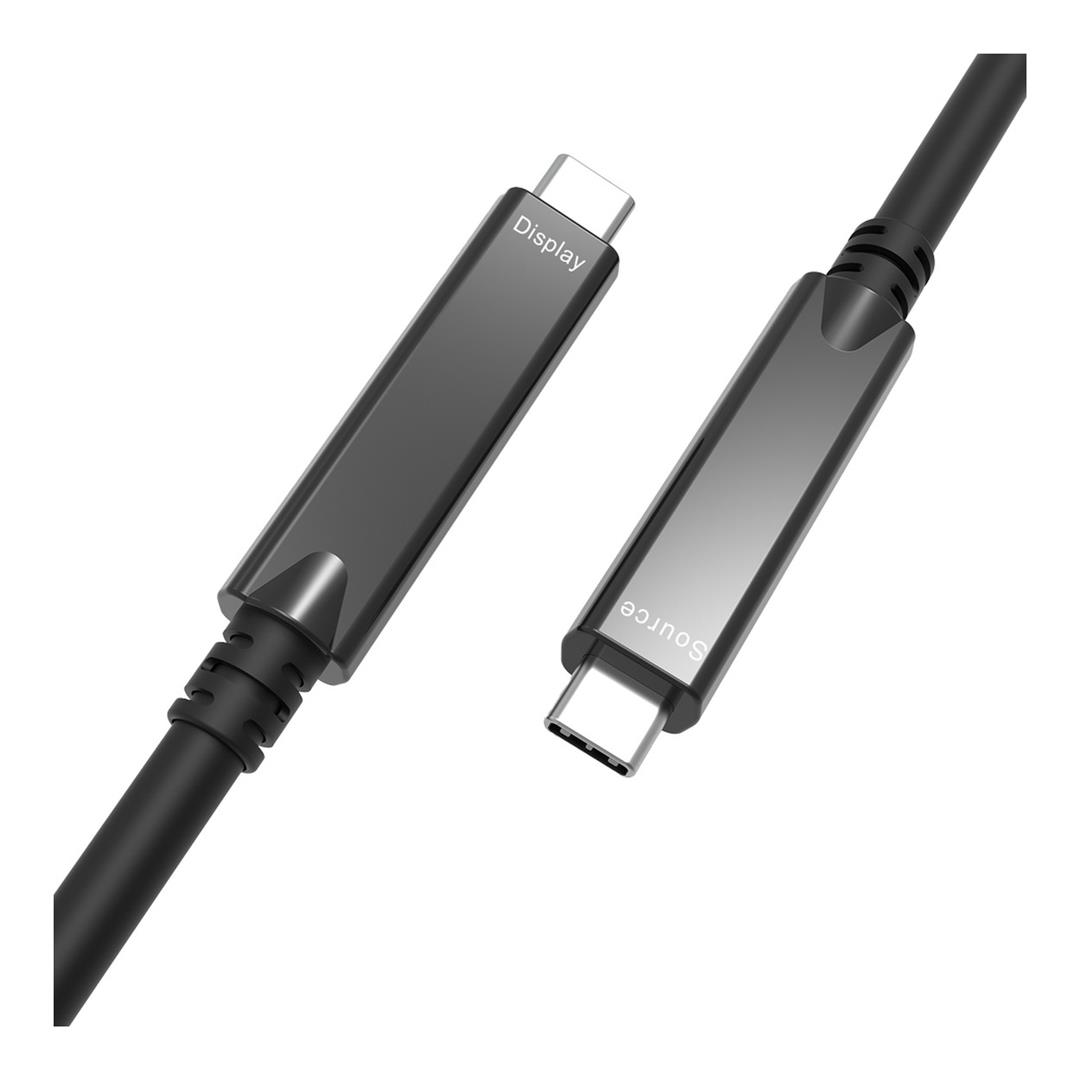

LinkQnet SCFC-3420 Type-C Male to Male Active Optical Cable 10m SCFC-3420-10

LinkQnet SCFC-3420 Type-C Male to Male Active Optical Cable 10m SCFC-3420-10

The LinkQnet SCFC-3420 is a 10-metre USB Type-C male-to-male Active Optical Cable designed to carry high-speed USB data, DisplayPort Alt Mode video and USB Power Delivery over extended distances. Using multimode optical fibre for its high-speed signal path, it provides reliable long-distance connectivity while helping resist electromagnetic and radio-frequency interference. Support for USB 3.2 Gen 2×1 data rates up to 10Gbps, high-resolution video up to 8K and up to 60W USB Power Delivery makes it suitable for professional AV installations, conference rooms, workstations, digital signage and other long-distance USB-C applications.

Key Features:

• 10-metre USB Type-C male-to-male Active Optical Cable.
• USB 3.2 Gen 2×1 support with data transfer speeds up to 10Gbps.
• Supports DisplayPort Alt Mode for high-resolution video transmission.
• Adaptive lane allocation supports DisplayPort 2.1 or DisplayPort 1.4 operation depending on the connected equipment.
• Supports up to 8K at 30Hz without DSC in four-lane DisplayPort mode.
• Supports up to 8K at 60Hz HDR with Display Stream Compression.
• Supports up to 4K at 60Hz without DSC in two-lane mode.
• Supports up to 4K at 120Hz HDR with DSC in two-lane mode.
• USB Power Delivery support up to 60W / 20V 3A.
• Multimode optical-fibre construction enables reliable high-speed transmission over 10 m.
• Optical design helps resist electromagnetic and radio-frequency interference.
• Reinforced TPE cable jacket with Kevlar filler for additional mechanical support.
• Zinc-alloy USB Type-C connector housings.
• Clearly labelled Source and Display connectors simplify correct installation.
• Plug-and-Play operation with compatible USB-C equipment.

10-Metre Active Optical USB-C Connection

The SCFC-3420 combines USB Type-C connectivity with active optical transmission to carry high-bandwidth signals over a substantially longer distance than a typical passive USB-C cable.

At 10 metres, it is suitable for installations where the source computer, media player or workstation must be positioned some distance away from a compatible display, docking system or other USB-C device.

USB 3.2 Gen 2×1 Performance

The cable supports USB 3.2 Gen 2×1 operation with a maximum USB data rate of up to 10Gbps when operating in its compatible two-lane DisplayPort configuration.

This provides sufficient bandwidth for high-speed peripherals, compatible docking solutions and other USB-C devices where long-distance data connectivity is required.

Adaptive DisplayPort Alt Mode

The SCFC-3420 uses adaptive lane allocation, allowing compatible equipment to select between two operating configurations depending on the required balance between video and USB bandwidth.

Four-lane operation supports DisplayPort 2.1 video alongside USB 2.0 data, while two-lane operation supports DisplayPort 1.4 together with USB 3.2 data up to 10Gbps.

Up to 8K Video

When operating in four-lane DisplayPort mode, the cable provides video bandwidth of up to 40Gbps and supports resolutions up to 8K at 30Hz without Display Stream Compression.

With compatible equipment supporting DSC, the cable can support up to 8K at 60Hz HDR. Actual resolution and refresh-rate capability depends on the source device, receiving display, DisplayPort Alt Mode support and DSC compatibility.

High-Refresh-Rate 4K Support

In two-lane DisplayPort 1.4 mode, the cable supports up to 4K at 60Hz without DSC while maintaining USB 3.2 data connectivity.

With compatible DSC-capable equipment, resolutions up to 4K at 120Hz HDR are supported, making the cable suitable for high-resolution professional displays and other demanding video applications.

Up to 60W USB Power Delivery

The 10-metre SCFC-3420 supports USB Power Delivery up to 60W, with a maximum supported power profile of 20V at 3A.

This allows compatible USB-C devices to receive power through the same cable used for data and video, reducing the number of separate connections required in supported installations.

Active Optical Construction

High-speed signals are carried using multimode optical fibre rather than relying entirely on traditional copper conductors. This allows the cable to maintain high data and video bandwidth over the extended 10-metre run.

Optical transmission also helps provide resistance to electromagnetic interference and radio-frequency interference, which can be beneficial in commercial AV, IT and electrically noisy installation environments.

Directional Source-to-Display Design

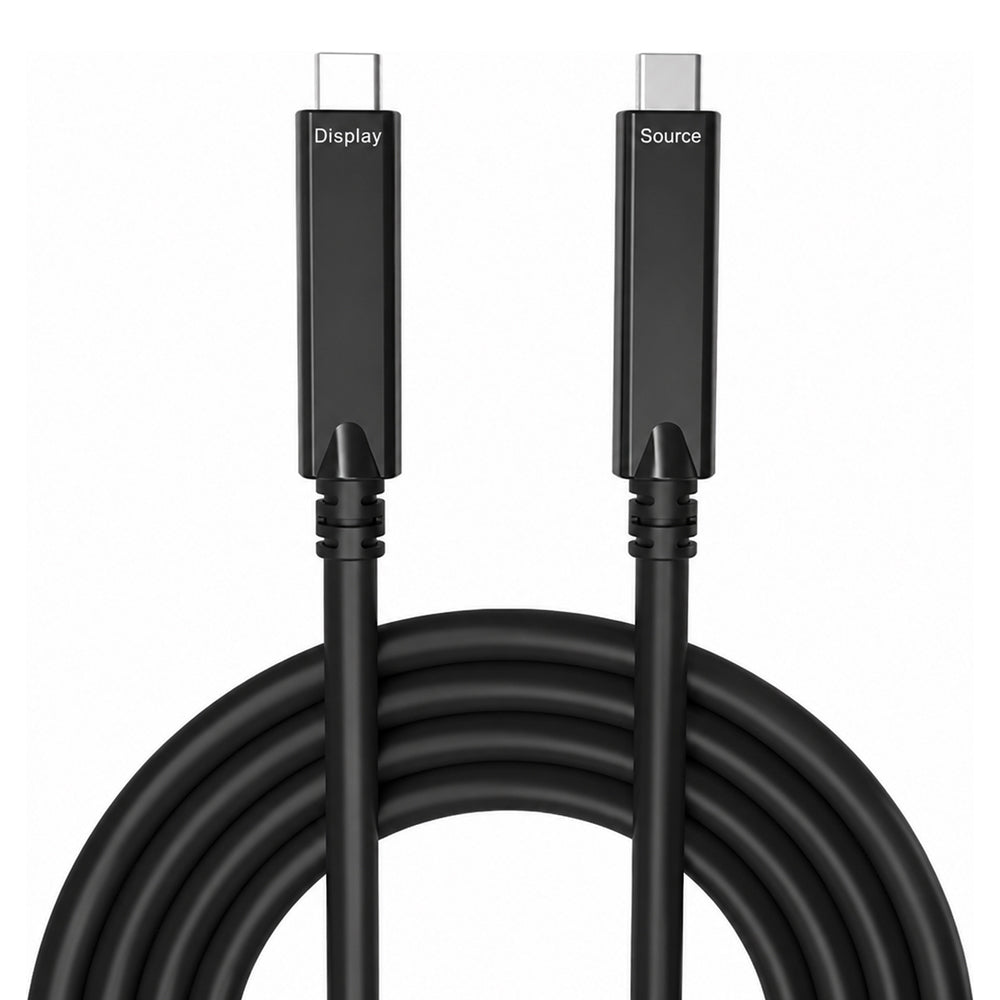

The SCFC-3420 is a unidirectional cable and must therefore be connected in the correct orientation. One connector is clearly marked Source and should be connected to the host device, while the connector marked Display connects to the receiving device.

Reversing the cable may prevent video, data or other functions from operating correctly.

Durable Reinforced Cable Construction

The cable uses a flexible TPE outer jacket with an approximate outer diameter of 6.5 mm. Kevlar filler reinforces the internal construction and provides additional mechanical support during installation and normal use.

Zinc-alloy housings protect the active electronics inside the USB Type-C connector assemblies.

Designed for Professional Installations

The extended 10-metre reach makes the SCFC-3420 suitable for boardrooms, classrooms, digital-signage installations, control rooms, professional AV systems and other environments where equipment cannot be positioned directly alongside the display.

Plug-and-Play Operation

No additional software driver is required for normal cable operation. Compatible source and destination equipment automatically negotiate the supported USB, DisplayPort and Power Delivery functions.

All advertised video, data and charging capabilities require compatible equipment at both ends of the connection.

Thunderbolt Compatibility Note

The cable can operate as a USB cable when connected to compatible Thunderbolt ports that support the required USB and DisplayPort Alt Mode functions. However, the SCFC-3420 is not a Thunderbolt cable and does not support the native Thunderbolt 40Gbps protocol.

Technical Specifications:

Specification	Details
Brand	LinkQnet
Series	SCFC-3420
SKU	SCFC-3420-10
Supplier Reference	CAB-AOC-3420-10M-LQ
Product Type	USB Type-C Active Optical Cable
Cable Length	10 m
Connector 1	USB Type-C Male - Source
Connector 2	USB Type-C Male - Display
Connector Orientation	Straight
Connection Direction	Unidirectional / Source to Display
USB Standard	USB 3.2 Gen 2×1
Maximum USB Data Rate	Up to 10Gbps
DisplayPort Alt Mode	Yes
Four-Lane Video Mode	DisplayPort 2.1 with USB 2.0
Four-Lane Video Bandwidth	Up to 40Gbps
Four-Lane Maximum Video Resolution	Up to 8K @ 30Hz without DSC; up to 8K @ 60Hz HDR with DSC
Four-Lane USB Data Rate	Up to 480Mbps
Two-Lane Video Mode	DisplayPort 1.4 with USB 3.2
Two-Lane Video Bandwidth	Up to 16.2Gbps
Two-Lane Maximum Video Resolution	Up to 4K @ 60Hz without DSC; up to 4K @ 120Hz HDR with DSC
Two-Lane USB Data Rate	Up to 10Gbps
Display Stream Compression	Supported with compatible equipment
USB Power Delivery	Up to 60W
Maximum Power Profile	20V / 3A
Typical Cable Power Consumption	Approximately 1.2W at 5V input
Optical Fibre Type	Multimode fibre
Cable Outer Diameter	Approximately 6.5 mm
Jacket Material	TPE
Cable Reinforcement	Kevlar filler
Connector Housing	Zinc alloy
Minimum Dynamic Bend Radius	20 mm
Minimum Static Bend Radius	10 mm
Long-Term Tensile Strength	200 N
Short-Term Tensile Strength	400 N
EMI / RFI Resistance	Yes - optical transmission helps resist electromagnetic and radio-frequency interference
Plug-and-Play	Yes
Thunderbolt Protocol Support	No - may operate in USB mode through compatible Thunderbolt ports but does not support native Thunderbolt 40Gbps operation
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Operating Relative Humidity	10% to 80% RH
Colour	Black

What’s in the Box?

• 1 × LinkQnet SCFC-3420 10m USB Type-C Male to Male Active Optical Cable

Extend high-speed USB data, DisplayPort video and USB-C power over longer distances with the LinkQnet SCFC-3420 10m Active Optical Cable.
