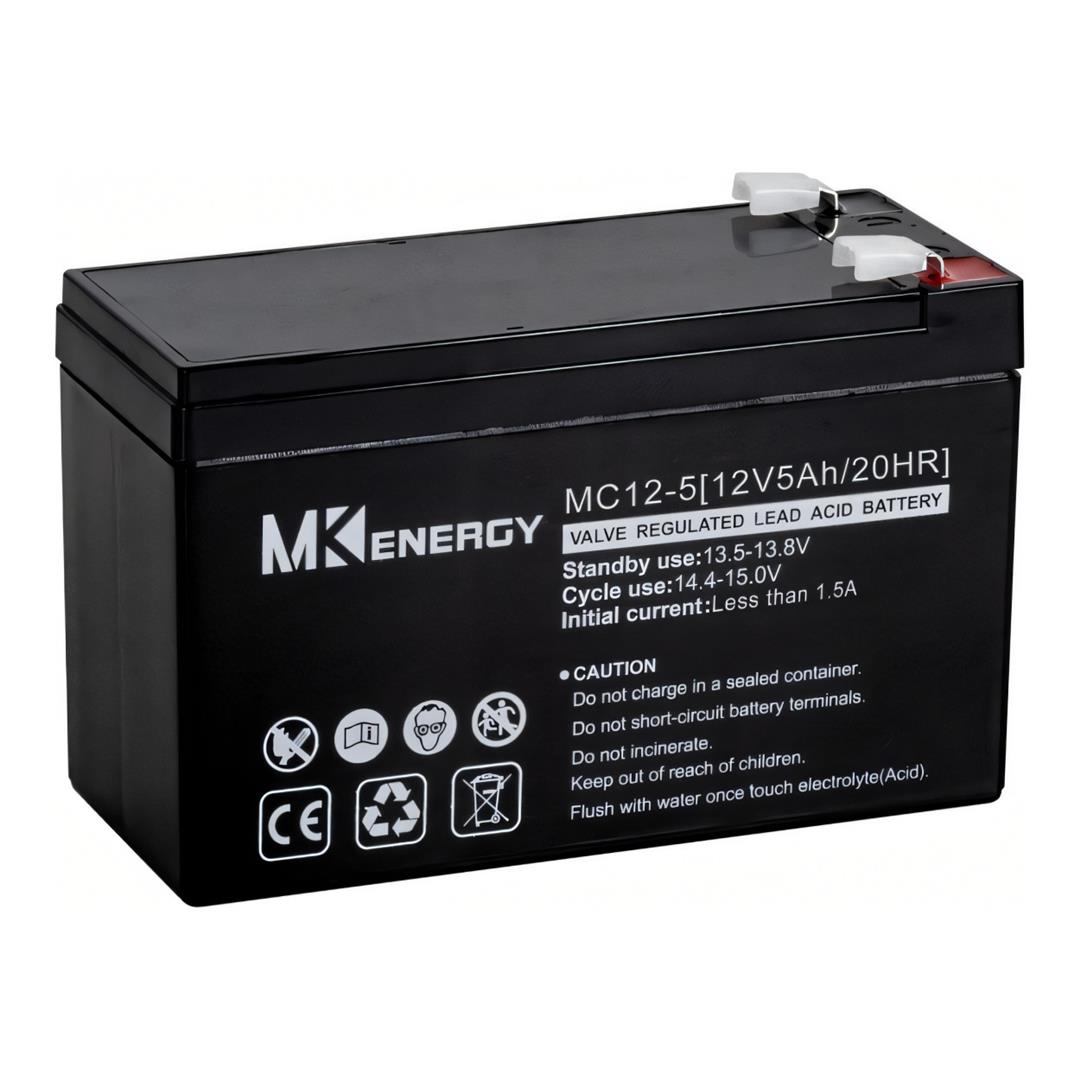

LinkQnet MC12-5 12V 5Ah Lead Acid Battery BAT-12V5-LQ-MK

LinkQnet MC12-5 12V 5Ah Lead Acid Battery BAT-12V5-LQ-MK

The LinkQnet MC12-5 12V 5Ah Sealed Lead Acid Battery (BAT-12V5-LQ-MK) is a compact rechargeable backup battery designed for standby and cyclic power applications. Featuring a sealed VRLA lead-acid construction, it provides a maintenance-free and leak-resistant power solution suitable for UPS systems, security equipment, alarm systems, access control and other compatible backup-power applications. Its compact and robust construction makes it particularly suitable for equipment and enclosures where installation space is limited.

Key Features

• 12V Rated Voltage: Designed for compatible 12V backup and standby power systems.
• 5Ah Capacity: Provides a nominal battery capacity of 5 amp-hours.
• Sealed Lead Acid Technology: Uses sealed lead-acid battery technology for reliable rechargeable power.
• VRLA Construction: Valve-regulated design provides maintenance-free operation during normal use.
• Maintenance-Free: Does not require routine electrolyte topping-up.
• Leak-Resistant Sealed Design: Enclosed construction makes the battery suitable for compatible equipment and enclosures.
• Standby & Cycle Applications: Suitable for both standby backup-power and compatible cyclic-use applications.
• 13.5-13.8V Standby Charging: Specified standby-use charging voltage range.
• 14.4-15V Cycle Charging: Specified charging voltage range for cyclic applications.
• Less Than 1.5A Initial Charging Current: Manufacturer/distributor specification limits initial charging current to below 1.5A.
• Compact Construction: Designed for convenient installation in space-constrained equipment and battery compartments.
• Multiple Applications: Suitable for compatible UPS units, security systems, alarms and access-control installations.

Electrical Specifications

Battery Applications

Technical Specifications

Typical Applications

• Uninterruptible Power Supplies (UPS)
• Security and CCTV backup systems
• Alarm systems
• Access-control systems
• Standby power equipment
• Compatible emergency and backup-power systems

What's Included:

• 1 × LinkQnet MC12-5 12V 5Ah Sealed Lead Acid Battery

Please Note: Before replacing an existing battery, confirm the required 12V voltage, 5Ah capacity, physical dimensions, terminal type and charging requirements of the equipment. The supplier specifies a standby-use voltage of 13.5-13.8V, cycle-use voltage of 14.4-15V and initial charging current below 1.5A. Do not substitute this battery solely on voltage and capacity if the equipment requires a different physical size or terminal configuration.

The LinkQnet MC12-5 12V 5Ah Sealed Lead Acid Battery (BAT-12V5-LQ-MK) provides a compact, maintenance-free rechargeable power solution for compatible UPS, security, alarm, access-control and general standby-power applications.
