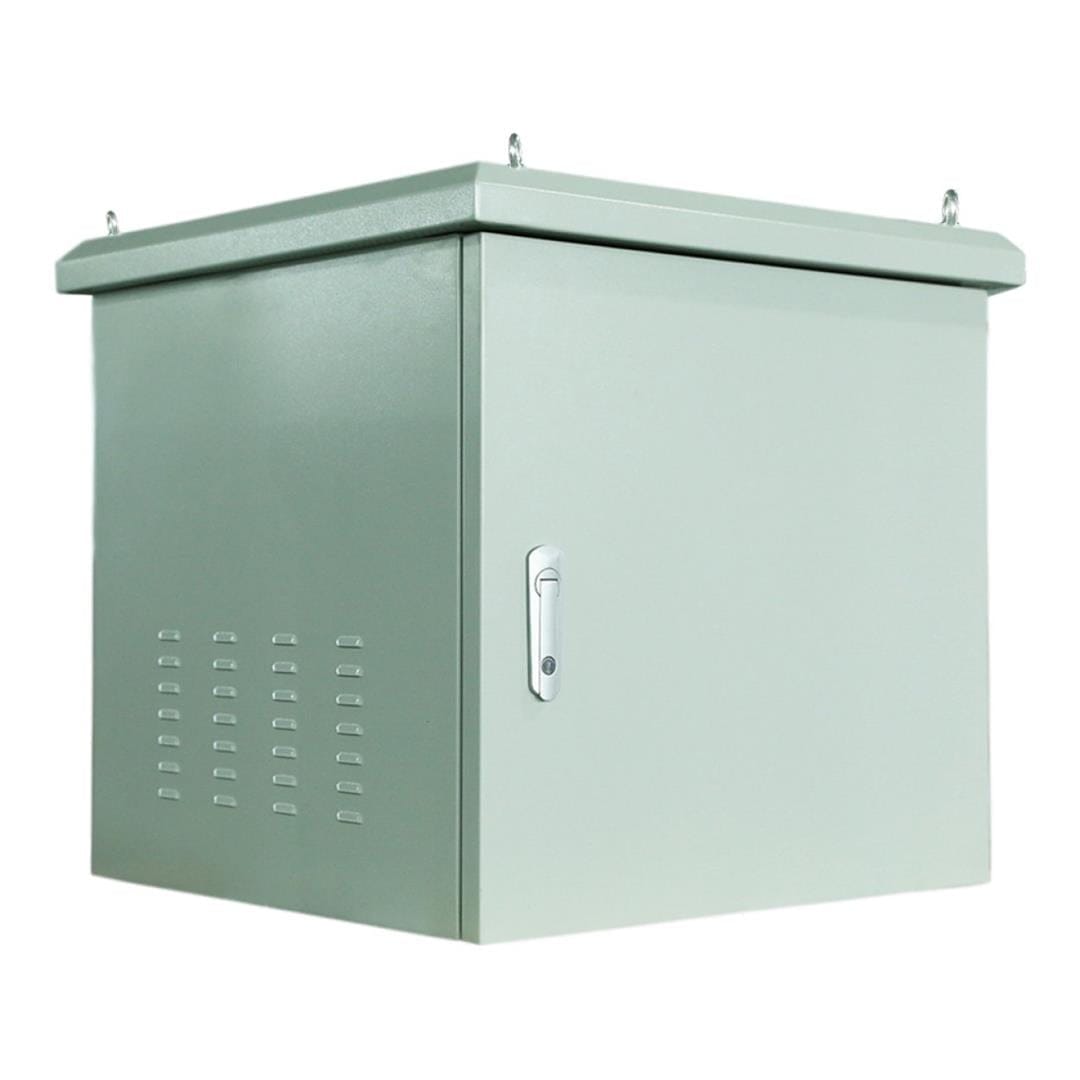

LinkQnet 9U 600x450mm Wallmount Outdoor Cabinet IP65-6409

LinkQnet 9U 600x450mm Wallmount Outdoor Cabinet IP65-6409

Features:

• Strong and stable framework of cabinet,which has the mounting holes
• The side panel and rear panel are the double-panel designed the panels are fixed by the bolt from the inner
• Between the inside and outside side panel has the inter space (spacing 25mm),which provides the channel to ventilate and support the enclosure internal heat exchange ,and also can reduce the influence of the sunlight illumination
• The roof panel has the awning all around stretches out 25mm and high 75mm to keep from the rain,the awning have the integrity well ventilated,which guarantees the air exchange
• Luxury lock with three points bolted on the front door,side panels and rear panels are fixed by screws
• The bottom can sealed with 3 sectional panels or one sectional panel
• The enclosure is the 19”structure,also can install the mounting panel
• The top loaded with fans to ventilate,two sides panels have the blind holes to output heat

Specifications:

Material: SPCC quality cold rolled steel

Thickness: mounting Profile:2.0mm,Others:1.0mm

Degree of protection: IP65

Surface finish: Degreasing,Pickling,Phosphating,Powder Coated

Product specification: 9U

Width: 600mm

Depth: 450mm

Colour: RAL7035
