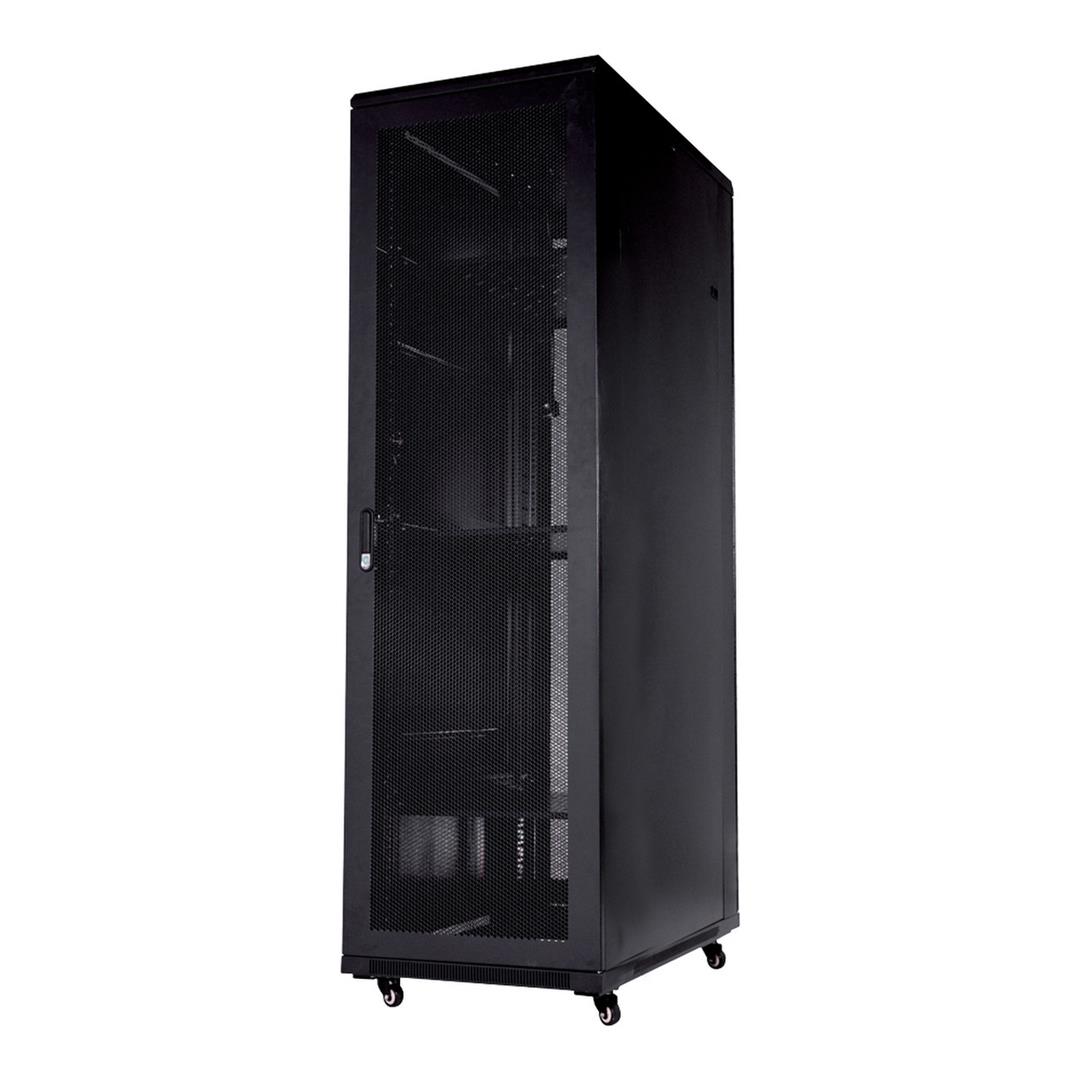

LinkQnet 42U 800x1000mm Cabinet with Mesh Door SH-05A
The LinkQnet SH-05A is a 42U floor-standing cabinet designed to house network, server and structured cabling equipment in professional IT environments. Its generous 800mm width and 1000mm depth provide room for equipment and cable organisation, while the ventilated mesh door configuration and four supplied cooling fans help air move through the enclosure.
Designed for Professional Installations
Manufactured from SPCC cold-rolled steel, the cabinet provides a strong enclosure for compatible rack equipment. Its adjustable mounting profiles, removable lockable side panels and clearly marked rack units help simplify equipment positioning, installation and maintenance.
Airflow and Equipment Access
Ventilated mesh doors allow air to pass through the cabinet, while the four included cooling fans support airflow around installed equipment. The doors can be hinged on either the left or right, making it easier to adapt access to the available server-room or communications-room layout.
Practical Cable and Equipment Organisation
Top and bottom cable entry points provide flexible routing options for power and network cabling. Three fixed shelves accommodate suitable non-rackmount equipment, while the supplied cage nuts and castors support installation and cabinet positioning.
Key Features:
- 42U capacity provides substantial mounting space for networking and server equipment.
- 800mm width and 1000mm depth support larger installations and organised cable routing.
- Ventilated mesh door configuration supports airflow through the cabinet.
- Four supplied cooling fans assist with air movement around installed equipment.
- Three fixed shelves provide space for suitable non-rackmount devices and accessories.
- Lockable removable side panels provide convenient access during installation and maintenance.
- Adjustable mounting profiles and top and bottom cable entries support flexible deployment.
Built for Standard Rack Equipment
The SH-05A is compatible with 19-inch international rack equipment as well as metric and ETSI mounting standards. Rack-unit markings on the front and rear mounting rails make it easier to plan and position equipment accurately.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LinkQnet |
| Model | SH-05A |
| Current Item Code | RCK-SH-05A-42U-MESH |
| Product Type | Floor-standing network and server cabinet |
| Rack Capacity | 42U |
| Width | 800mm |
| Depth | 1000mm |
| Equipment Compatibility | 19-inch international, metric and ETSI rack standards |
| Door Configuration | Ventilated mesh doors |
| Side Panels | Lockable and removable |
| Mounting Profiles | Adjustable, with rack-unit markings |
| Cable Entry | Top and bottom |
| Cooling Fans | 4 included |
| Shelves | 3 fixed shelves included |
| Static Load Capacity | Up to 800kg |
| Material | SPCC cold-rolled steel |
| Material Thickness | 2.0mm square-hole mounting strips; 1.2mm other structural sections |
| Finish | Black powder-coated finish |
| Applicable Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 Part 1, DIN 41494 Part 7 and GB/T 3047.2-92 |
| Supplied Accessories | 4 cooling fans, 3 fixed shelves, 50 cage nut screws and 4 castors |
Organise and protect your network or server equipment with this spacious 42U cabinet, and buy online today.
