LinkQnet 2000VA 1200W Line Interactive Tower UPS

LinkQnet 2000VA 1800W Line Interactive Tower UPS

Featuring a smart microprocessor control design, AVR Boost and Buck, Smart RS232/USB Interface and Cold Start Function. A cost-effective solution to your mission-critical PC and valuable peripherals.

Features

Cold Start Function

Aids users in turning the UPS on without connecting the utility.

Smart RS232/USB Interface for Power Management

Supports real-time power and UPS status monitoring. Automatic shut-down, scheduling and many other advance power management functions.

Built-in Self-diagnostic Function

May execute automatically upon power on or software control.

Compatible with Generator Set

The LinkQnet Line Interactive UPS Series supports a wide range voltage input to accomodate various generator sets.

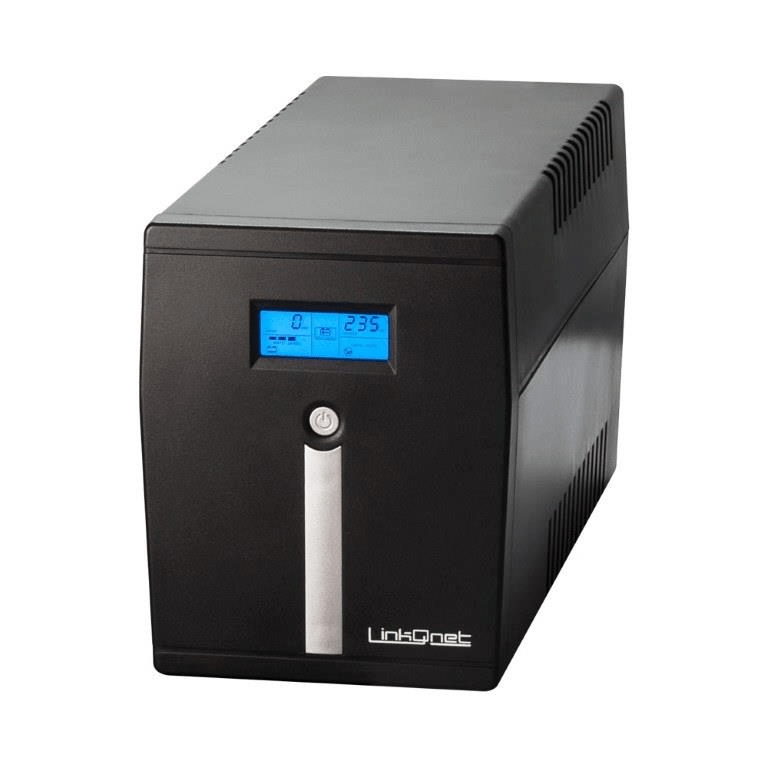

LCD Displays (2KVA & 3KVA models)

A comprehensive graphic display provides an easy-to-read status report, such as input and output voltage, load level, battery level, etc.

Fastest Charging Capacity

With a powerful built-in charge, the UPS can be fully charged back to 90% within 6-8 hours.

Auto Charging in Off Mode

The battery can be charged continuously even while the UPS is in off mode.

Modem/LAN Internet Protection

Protects the Modem/LAN against spike or surge coming through network or telephone wires.

Features

• Simulated Sinewave Output

• Excellent Microprocessor Control Guarantees High Reliability

• Boost and Buck AVR for Voltage Stabilisation

• Auto Restart while AC is Recovering

• Off-Mode Charging

• Cold-Start Function

• Includes 2x 12V 9Ah Batteries (216WH)

Technical Specification

Product: LinkQnet 2000VA 1200W Line Interactive Tower UPS

UPS Type: Line Interactive

Average Power: 2000VA

RMS Power: 1200W

Input Frequency: 50Hz

Rated Input Voltage: 230V AC

Rated Output Voltage: 230V AC

Voltage Regulation (On Battery): +10% to -10%

Frequency Range (On Battery): 49Hz to 51Hz

Mains to Battery Transfer Time: 2ms to 6ms

Output Waveform (On Battery): Simulated Sinewave

Battery Type: 12V 9Ah

Battery Quantity: 2

Battery String Voltage: 24V

Storage Capacity (Watt Hours): 216Wh

Battery Recharge Time: 6 to 8 Hours

Standard Protection: Overload, Battery Discarge and Battery overcharge protection

Surge/Lightening Protection: >400V for 2-seconds (Live to Neutral, Live to Earth and Neutral to Earth)

AVR Buck and Boost Control: Double Boost to Correct Low input voltage and single buck to protect high input voltage conditions

Cold Start Function: Yes, Unit will power up without mains voltage on the input

LAN /Telephone Protection: Yes - Two RJ45 ports provided surge and spike protection for LAN cable

Generator Compatibility: Yes - Wide input range to cater for AVR controlled Generators

Monitoring Interfaces: USB, DB9-F Serial
