LinkQnet 12V 8800mAh PoE Mini DC UPS PWR-DC-UPS-POE-532P

LinkQnet 12V 8800mAh PoE Mini DC UPS PWR-DC-UPS-POE-532P

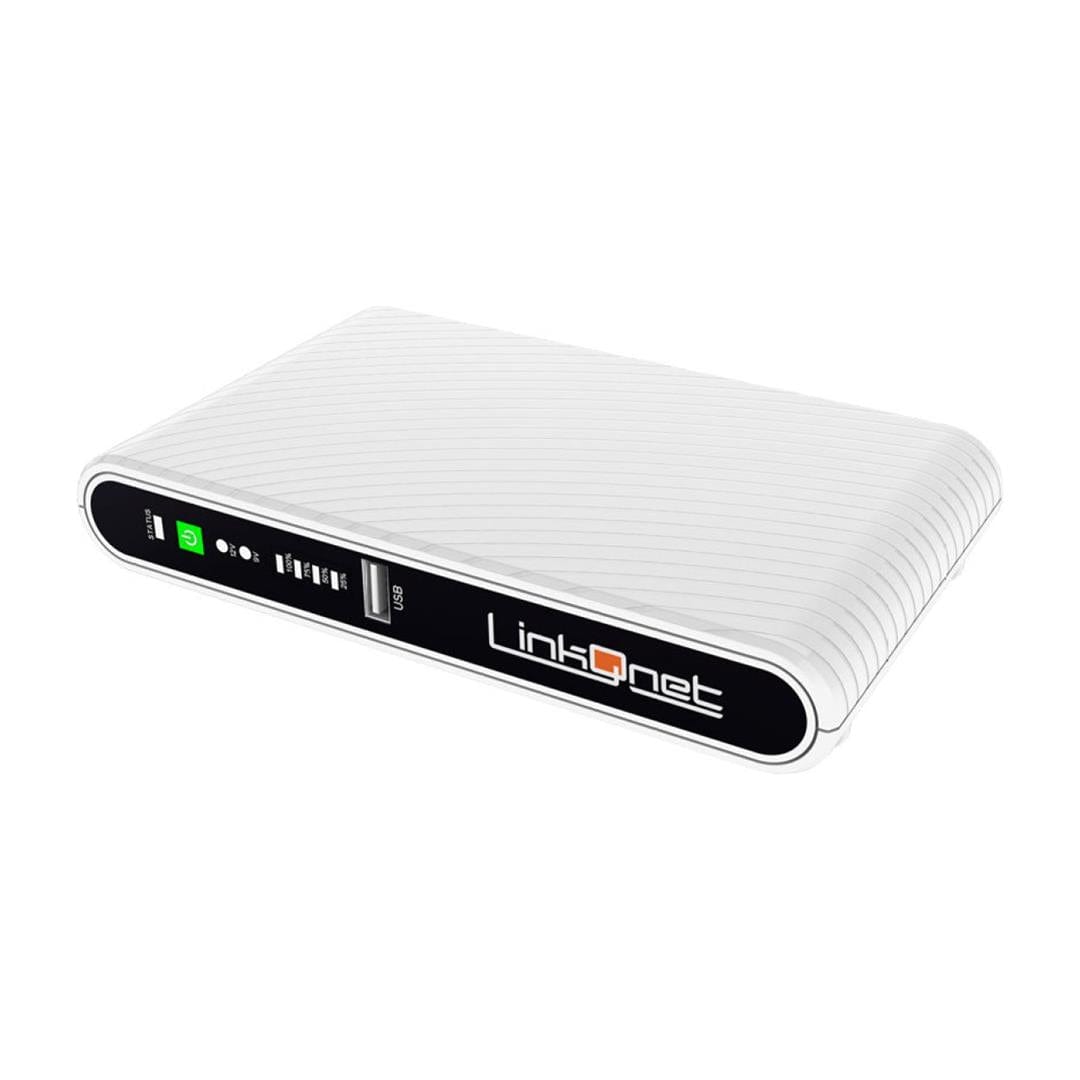

The LinkQnet 12V 8800mAh PoE Mini DC UPS (PWR-DC-UPS-POE-532P) is a compact and versatile uninterruptible power supply designed to provide reliable backup power to devices such as routers, modems, IP cameras, and other network equipment. Featuring Power over Ethernet (PoE) capability, it ensures continuous operation of connected devices during power outages, making it ideal for both residential and professional setups.

Purpose

Designed to deliver uninterrupted power to devices requiring 12V DC or PoE input, maintaining network stability and device functionality during power disruptions.

Capacity

Equipped with an 8800mAh battery, it offers extended backup time for critical equipment.

PoE Support

Provides Power over Ethernet functionality, allowing simultaneous transmission of data and power to PoE-enabled devices like IP cameras and access points.

High-Capacity Battery

Built-in 8800mAh rechargeable battery ensures a stable power supply for extended periods during outages.

Multiple Output Options

Supports 12V DC output for non-PoE devices alongside PoE output, enhancing versatility for various equipment.

Compact and Lightweight

The mini design makes it portable and suitable for desktop or wall-mounted installations.

Intelligent Protection

Features built-in safeguards such as overload protection, overcharge protection, and short-circuit protection, ensuring safe and reliable operation.

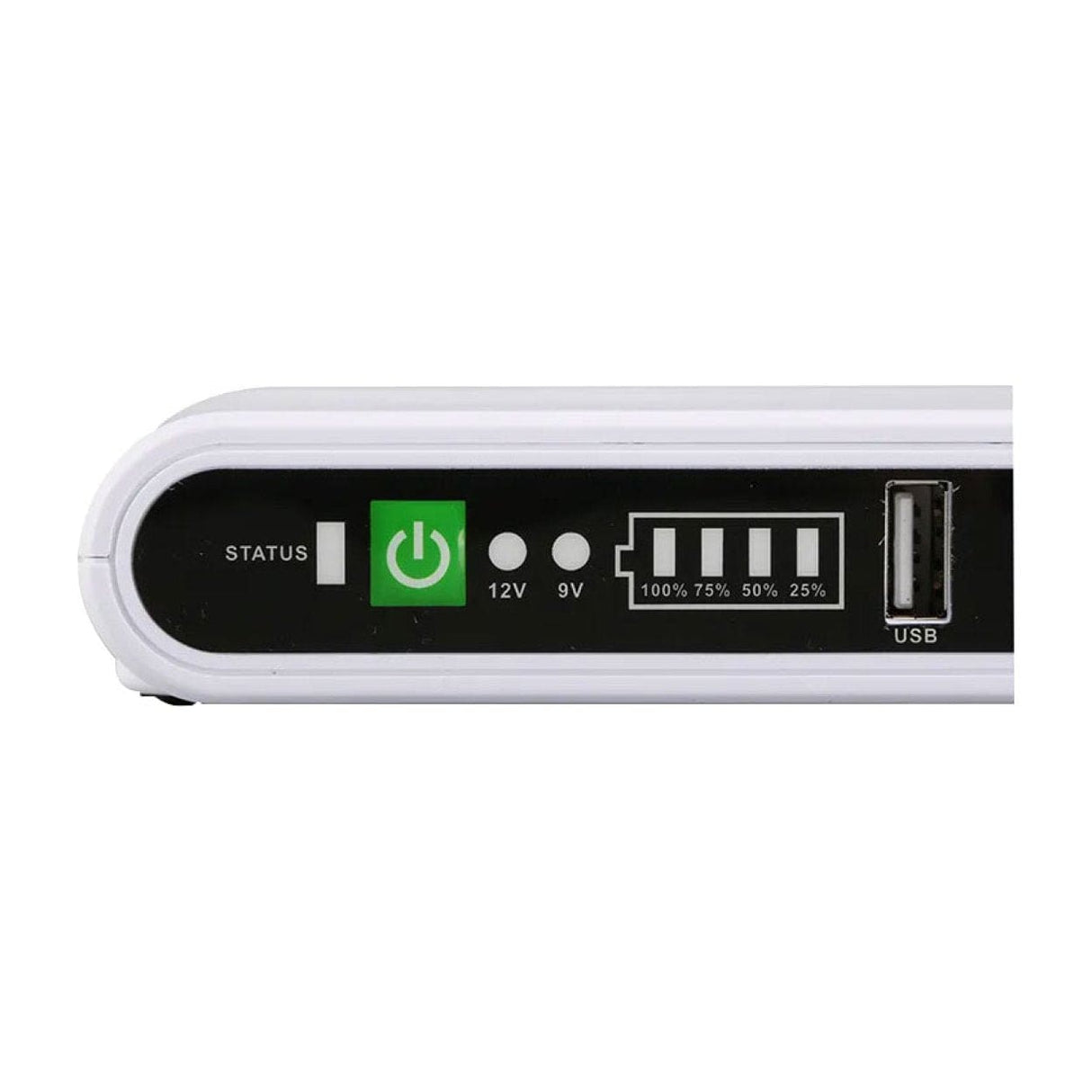

LED Indicators

Provides clear status indicators for power, charging, and battery status, enabling easy monitoring.

Wide Application Compatibility

Compatible with a variety of devices, including wireless routers, VoIP phones, modems, CCTV cameras, and more.

Features

• Output Voltages: 5V, 9V, 12V
• PoE Output Voltages: 15V, 24V - Selectable
• Output Power: 25W
• 1× USB 5V Charging Port

Specifications

Output

• DC1/USB: Output Voltage (Selectable): 5Vdc; Output Power and Current (In Common): 5V 2.5A
• DC2: Output Voltage (Selectable): 9Vdc; Output Power and Current (In Common): 9V 2.5A
• DC3: Output Voltage (Selectable): 12Vdc; Output Power and Current (In Common): 12V 2A​​​​​​​
• PoE: Output Voltage (Selectable): 15Vdc/24Vdc; Output Power and Current (In Common): 15V 1.5A / 24V 1A
