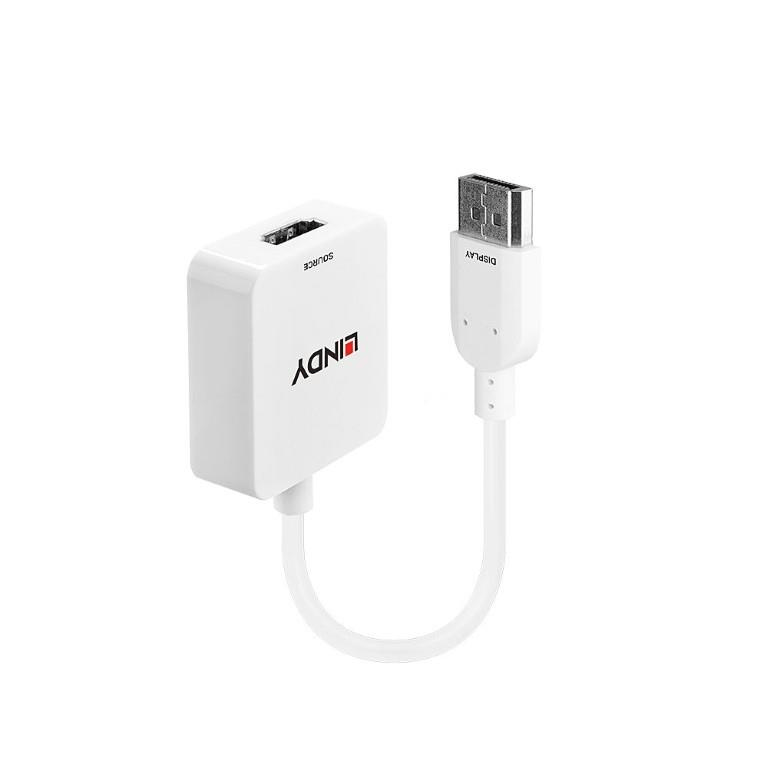

Lindy HDMI to DisplayPort Converter 38146

Description

• Converts an HDMI input into a DisplayPort signal
• Supports resolutions up to 3840x2160@30Hz
• Supports 7.1 channel surround audio
• Compact dimensions for easy installation and use
• 2 year warranty

The Lindy HDMI to DisplayPort Converter is ideal for connecting an HDMI equipped source such as a PC, laptop or Blu-ray player to a DisplayPort monitor or projector. It supports video resolutions up to Ultra HD 4K as well as 7.1 channel surround audio.

This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.

Technical details

Specifications

• AV Interface: HDMI to DisplayPort
• Interface Standard: HDMI 1.4 / DisplayPort 1.1
• Supported Bandwidth: 10.2Gbps
• Maximum Input Resolution: 3840x2160@30Hz 4:4:4 8bit
• Maximum  Output Resolution: 3840x2160@30Hz 4:4:4 8bit
• Chipset: STDP2600
• HDCP Support: HDCP 1.3
• Supported Audio: Supports 7.1 LPCM digital audio up to 192kHz 24bit
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: HDMI Type A Female
• Output: DisplayPort Male

Physical properties

• Dimensions (approx.) WxDxH:
  • 40x45x15mm (1.57x1.77x0.59in)
  • 20.5x16.5x3.5mm (0.81x0.65x0.14in) / DP
• Cable Length: 150mm (5.91in)
• Housing Material: PVC
• Jacket Material: PVC
• Jacket Diameter: 5mm (0.2in)
• Minimum Bend Radius: 50mm (1.97in)
• Net Weight: 0.028kg (0.06lb)
• Operating Temperature: -20°C - 85°C (-4°F - 185°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 20 - 95% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.032kg (0.07lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• HDMI to DisplayPort Converter

Purchasing Information

• No.: 38146
• EAN: 4002888381468
