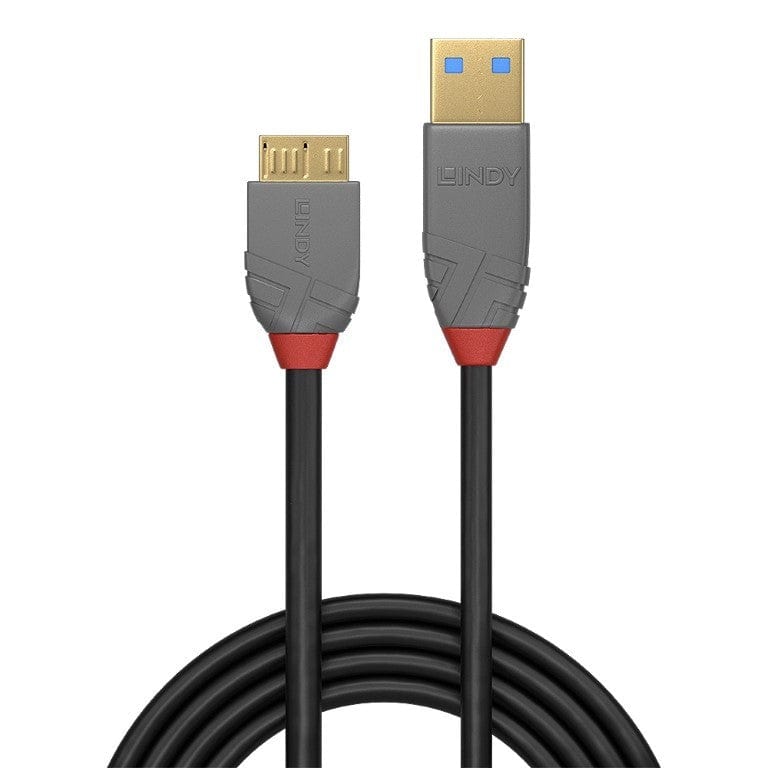

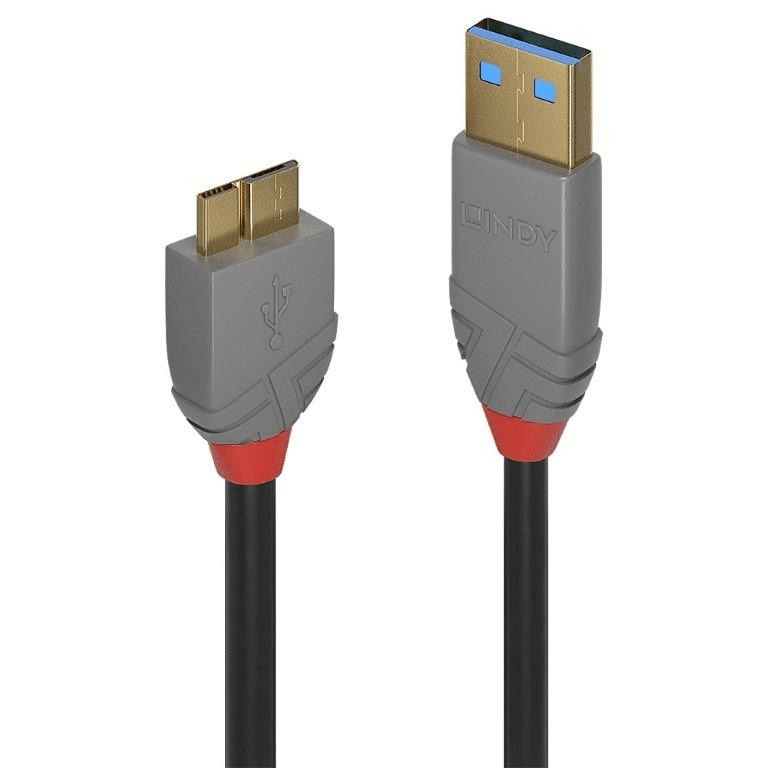

Lindy 36768 Anthra Line USB 3.2 Type A to Micro-B Cable 3m

Lindy 36768 Anthra Line USB 3.2 Type A to Micro-B Cable 3m

The Anthra Line USB 3.2 Type A to Micro-B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes. We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps

USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps, USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

Features:

• Professional choice USB 3.2 Gen 1 Type A to Micro-B cable for commercial and high performance AV and IT installations
• SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
• Robust PVC housing, gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper conductors

Specifications:

• Supported Bandwidth: 5Gbps
• Nominal Attenuation: 0.5-5m: 0.5MHz-7.5GHz
• Minimum Bend Radius: 48mm (1.89in)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)

Connectors

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Micro-B Male
• Housing Material: PVC
• Connector Plating: Gold Plated
• Pin Construction: Copper
• Pin Plating: Gold Plated
• Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
• Dimensions, USB Micro-B (approx.) WxDxH: 15.8x26.0x7.8mm (0.62x1.02x0.31in)

Cable Construction

• Length: 3m
• Standard: USB 3.2 Gen 1
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 24AWG
• Conductor Gauge Data: 28AWG
• Shielding: Aluminium Braid 85%
