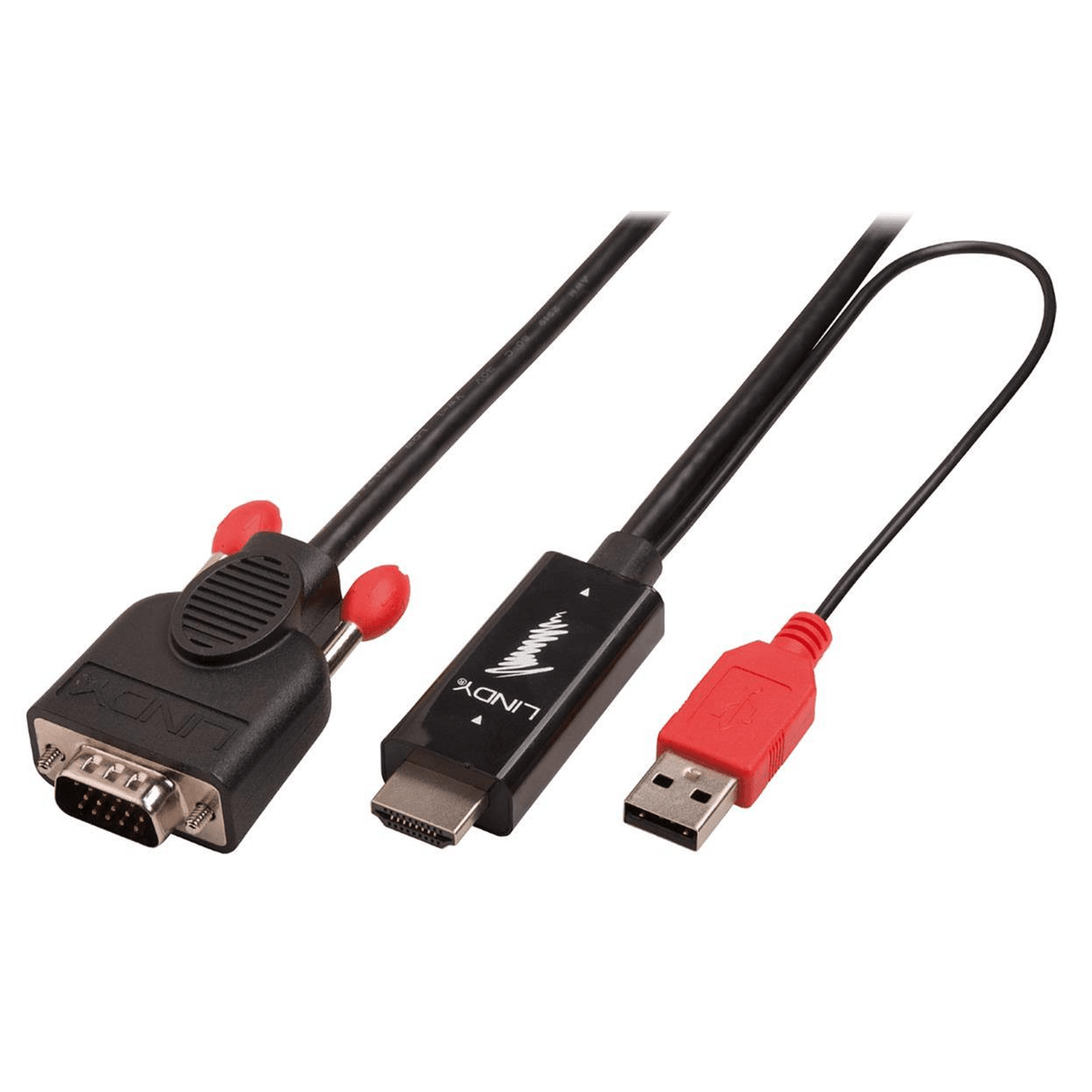

Lindy 1m HDMI to VGA Cable 41455

Description

• Connects an HDMI equipped device to a VGA display or projector
• Supports resolutions up to 1920x1200@60Hz
• Supports video mirroring and extended desktop modes
• Integrated USB Power Cable
• 2 year warranty

Technical details

Connectors

• Connector A: HDMI Type A Male
• Connector B: VGA Male
• Housing Material:
  • HDMI: ABS
  • VGA:PVC
  • USB: PVC
• Connector Plating: Nickel plated
• Pin Construction: Copper
• Pin Plating: Nickel plated
• Dimensions (approx.) WxDxH:
  • HDMI: 54.4x25x10.1mm (2.14x0.98x0.4in)
  • VGA:46x34x20mm (1.81x1.34x0.79in)
  • USB: 37x16x7mm (1.46x0.63x0.28in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: HDMI 1.3
• Colour: Black, red USB connector
• Type: Round
• Jacket Diameter: 6mm
• Jacket Material: PVC
• Conductor Material: TC
• Conductor Gauge: 28AWG
• Shielding: Aluminum BRAID

Specifications

• Supported Bandwidth: 4.95Gbps
• Maximum Resolution: 1920x1200@60Hz
• Nominal Attenuation:
  • 100MHz~450MHz  -2.44--5.099dB
  • 450MHz~8100MHz  -5.094~32.906dB
• Minimum Bend Radius: 60mm
• Operating Temperature: 0°C - 75°C (32°F - 167°F)
• Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65

Purchasing Information

• No.: 41455
• EAN: 4002888414555

This product is also available in other lengths

• 41455 - 1m (3.28ft)
• 41456 - 2m (6.56ft)
• 41457 - 3m (9.84ft)
• 41458 - 5m (16.40ft)

The Lindy HDMI to VGA Cable is ideal for connecting an HDMI equipped source such as a PC or laptop to a legacy VGA display or projector. It converts the digital signal from the HDMI connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz.

This cable can also be used to add another display to extend available desktop workspace and increase productivity.

Please note that HDCP signals are not supported.
