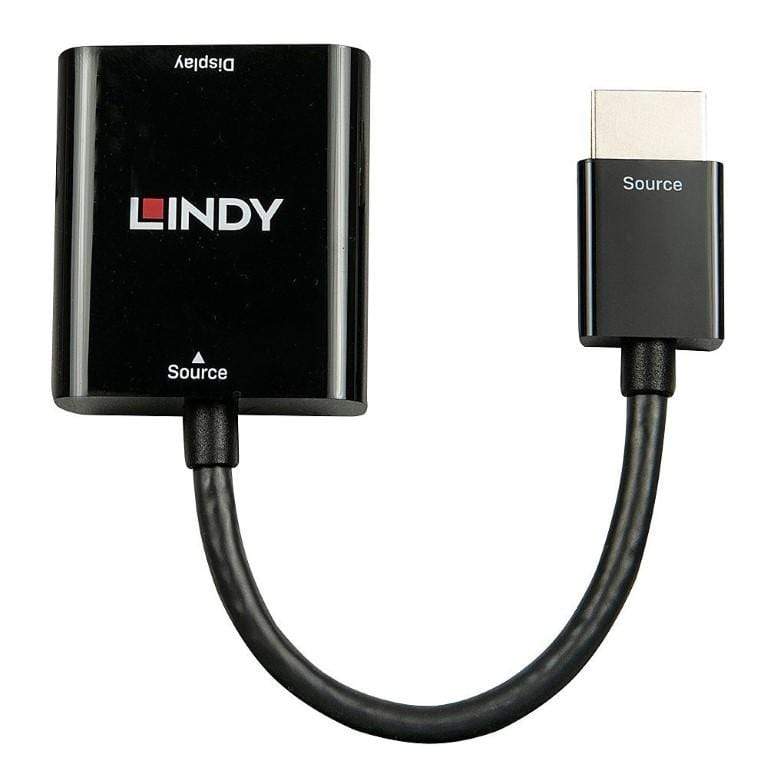

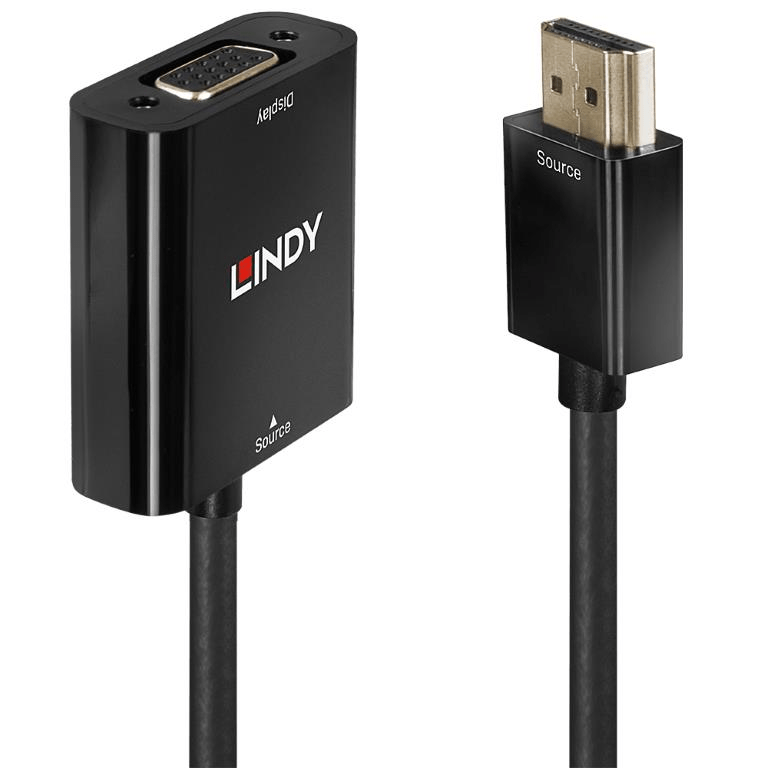

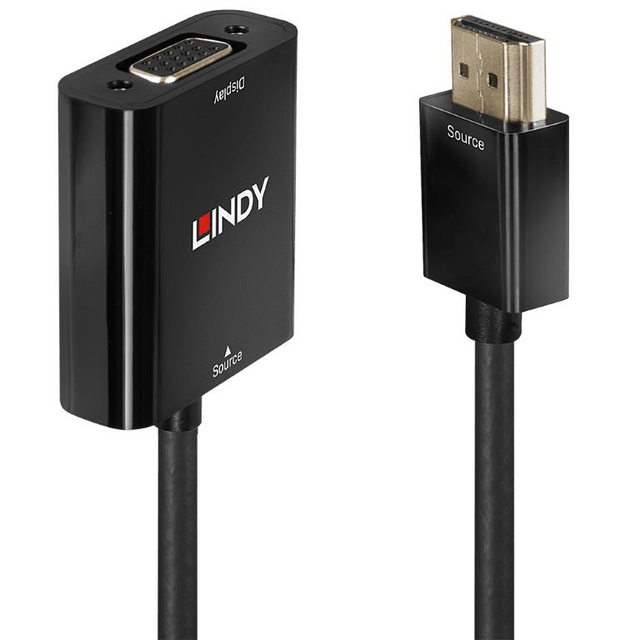

Lindy 10cm HDMI to VGA Converter 38291

Description

• Connects an HDMI equipped device to a VGA display
• Supports resolutions up to 1920x1200 including 1080p
• Direct signal conversion, without scaling
• Compact dimensions for easy installation and use
• 2 year warranty

The Lindy HDMI to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920x1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC’s, notebooks and ultrabooks, to an older VGA display or projector.

The compact dimensions mean it can be easily installed in restricted spaces, allowing for tidy installation behind PCs or for use with laptop workstations. The converter provides connectivity without the expense of having to replace legacy displays and cabling when upgrading to modern PCs or laptops.

Technical details

Specifications

• AV Interface: HDMI to VGA
• Interface Standard: HDMI 1.3, VGA
• Supported Bandwidth: 180MHz
• Maximum Input Resolution: 1920x1200
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: Algoltek AG6200A
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: HDMI Type A Male
• Output: VGA Female

Physical properties

• Dimensions (approx.) WxDxH:
  • 37x42x14.5mm (1.46x1.65x0.57in)
  • 21x17.4x9.6mm (0.83x0.69x0.38in) / HDMI
• Cable Length: 100mm (3.94in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm (0.19in)
• Minimum Bend Radius: -
• Net Weight: 0.027kg (0.06lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 95% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.037kg (0.08lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• HDMI to VGA Converter

Purchasing Information

• No.: 38291
• EAN: 4002888382915
