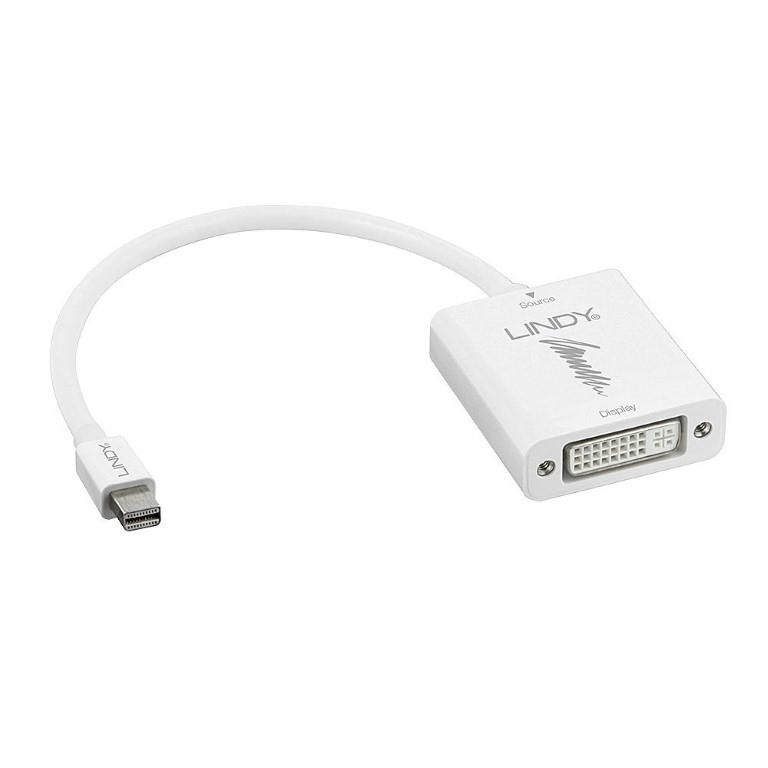

Lindy 0.2m Mini DisplayPort to DVI-D Female Adapter Male to Female White 41013

Lindy 0.2m Mini DisplayPort to DVI-D Female Adapter Male to Female White 41013

Description

• Converts a DisplayPort signal into DVI
• Supports resolutions up to 1920x1200@60Hz
•  Can be used to add a secondary monitor for extended or mirrored desktop
• Quick and simple Plug & Play installation
• 2 year warranty

The Lindy Mini DisplayPort to DVI Converter is ideal for connecting a Mini DisplayPort equipped source such as a PC or laptop to a DVI monitor. It supports high definition video resolutions up to 1920x1200@60Hz. The converter is ideal for connecting modern laptops, notebooks and ultrabooks to older DVI displays or projectors.

This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.

Technical details

Specifications

• AV Interface: DisplayPort to DVI
• Interface Standard: DisplayPort 1.1, DVI-D
• Supported Bandwidth: 4.45Gbps
• Maximum Input Resolution: 1920x1200@60Hz
• Maximum  Output Resolution: 1920x1200@60Hz
• Chipset: PTN3361B
• HDCP Support: HDCP 1.4
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: Mini DisplayPort Male
• Output: DVI-D Female

Physical properties

• Dimensions (approx.) WxDxH:
  • 42x53x14.6mm (1.65x2.09x0.57in) / Housing
  • 10.9x24.5x8mm (0.43x0.96x0.31in)
• Cable Length: 200mm (7.87in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5mm (0.2in)
• Minimum Bend Radius: 50mm (1.97in)
• Net Weight: 0.026kg (0.06lb)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 90% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.039kg (0.09lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• Mini DisplayPort to DVI Converter

Purchasing Information

• No.: 41013
• EAN: 4002888410137
