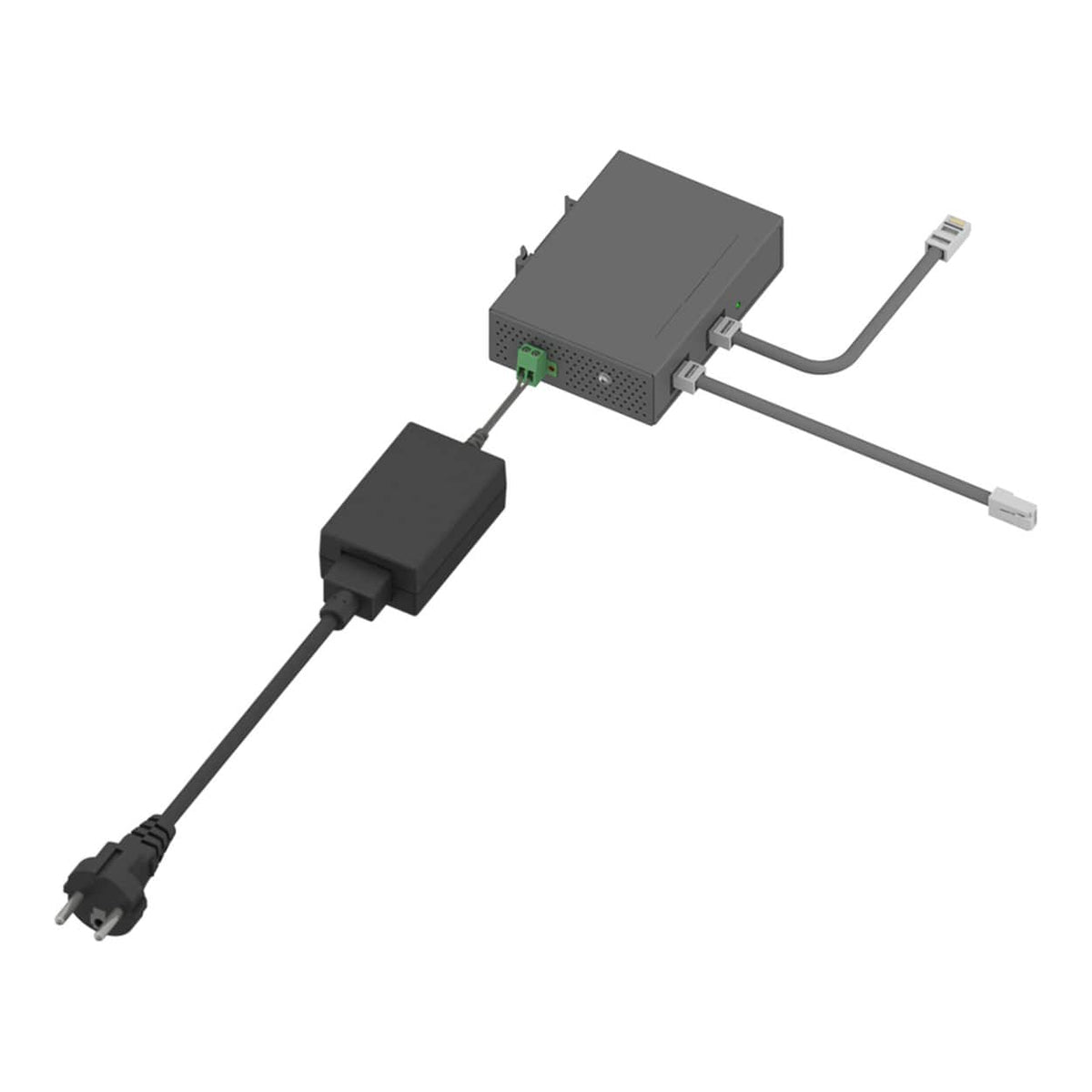

LigoWave PTP RapidFire Powering Kit POE-MPPTP-RF

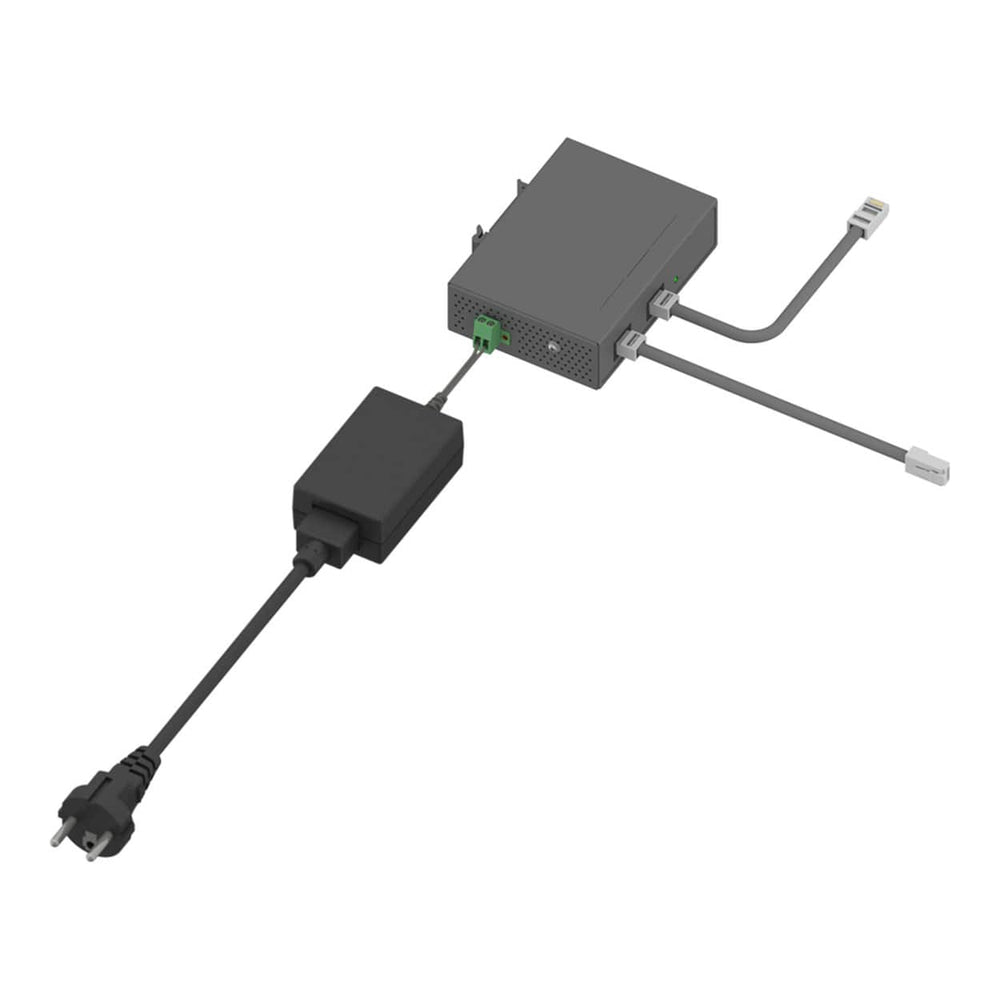

The LigoWave LigoPTP RapidFire Powering Kit provides a practical power solution for compatible LigoPTP RapidFire outdoor devices. It combines a 48V DC PoE inserter with an AC-to-48V DC adapter, allowing a RapidFire device to receive passive PoE power from a standard AC power source while maintaining Gigabit Ethernet data connectivity.
Designed for LigoPTP RapidFire Installations
The kit is designed specifically for the LigoPTP RapidFire outdoor series. Its PoE inserter accepts a 44–57V DC input and delivers data and power through an RJ45 output, helping simplify cabling between the network connection and the outdoor radio.
Gigabit Data Connectivity
Support for 10/100/1000Mbps Ethernet allows the inserter to carry Gigabit network traffic. A total UTP or FTP cable run of up to 100 metres is supported between the network switch and the connected device.
Integrated Electrical Protection
The PoE inserter provides surge protection rated at 2kV line-to-line and 6kV line-to-ground on the output port. The included AC adapter also incorporates short-circuit, overvoltage and overcurrent protection.
Key Features:
- Designed for use with the LigoPTP RapidFire outdoor series.
- Includes a 48V DC PoE inserter and an AC-to-48V DC adapter.
- Supports 10/100/1000Mbps Ethernet data rates.
- Provides an IEEE 802.3af/at-compliant PoE output.
- Supports a total UTP or FTP cable length of up to 100 metres.
- PoE inserter operates in temperatures from −40°C to +65°C.
- Electrical protection helps safeguard the installation against surges and power faults.
Kit Components

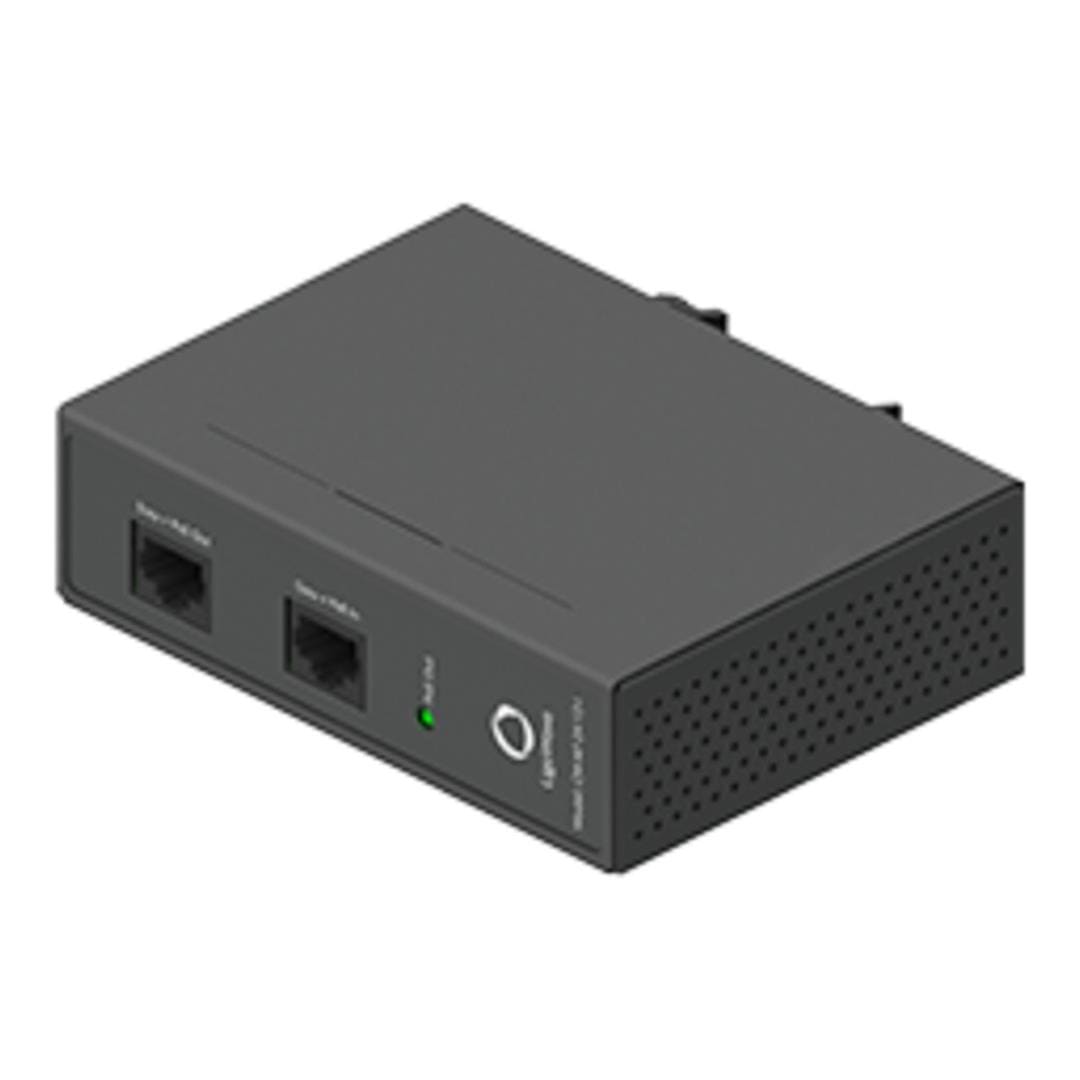

LigoPoE 802.3af/at Inserter
The inserter combines Ethernet data with 48V DC power for delivery to a compatible RapidFire outdoor device. It supports Gigabit Ethernet and provides surge protection on the PoE output.
LigoPTP AC-to-48V DC Adapter
The adapter converts a standard 100–240V AC input to a 48V DC output for powering the PoE inserter. It uses an IEC320 C6 input and a terminal block output connector.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LigoWave |
| Product | LigoPTP RapidFire Powering Kit |
| SKU / MPN | POE-MPPTP-RF |
| Product Type | PoE powering kit |
| Compatibility | LigoPTP RapidFire outdoor series |
| Kit Components | LigoPoE 802.3af/at inserter and LigoPTP AC-to-48V DC adapter |
PoE Inserter Specifications:
| Specification | Details |
|---|---|
| DC Input Voltage | 44–57V DC |
| PoE Output | IEEE 802.3af/at compliant |
| Maximum Output Power | Up to 28W |
| Power Output Pin Assignment | RJ45 pins 1, 2, 4 and 5 (+); pins 3, 6, 7 and 8 (−) |
| Data Rate | 10/100/1000Mbps |
| Data Input | RJ45 |
| Data and Power Output | RJ45 |
| Surge Protection | 2kV line-to-line; 6kV line-to-ground on the output port |
| Maximum Cable Length | 100m total from the switch to the device using UTP or FTP cable |
| Operating Temperature | −40°C to +65°C |
| Dimensions | 117 × 87 × 34mm |
| Weight | 270g |
AC-to-48V DC Adapter Specifications:
| Specification | Details |
|---|---|
| Input Voltage | 100–240V AC, 50/60Hz |
| Output Voltage | 48V DC ±5% |
| Output Power | 24W |
| Protection | Short-circuit, overvoltage and overcurrent protection |
| Input Connector | IEC320 C6 |
| Output Connector | Terminal block connector |
| Operating Temperature | 0°C to +40°C |
| Dimensions | 107 × 47 × 33mm |
| Weight | 207g |
Power your compatible LigoPTP RapidFire installation with this purpose-designed LigoWave kit and add it to your cart today.
