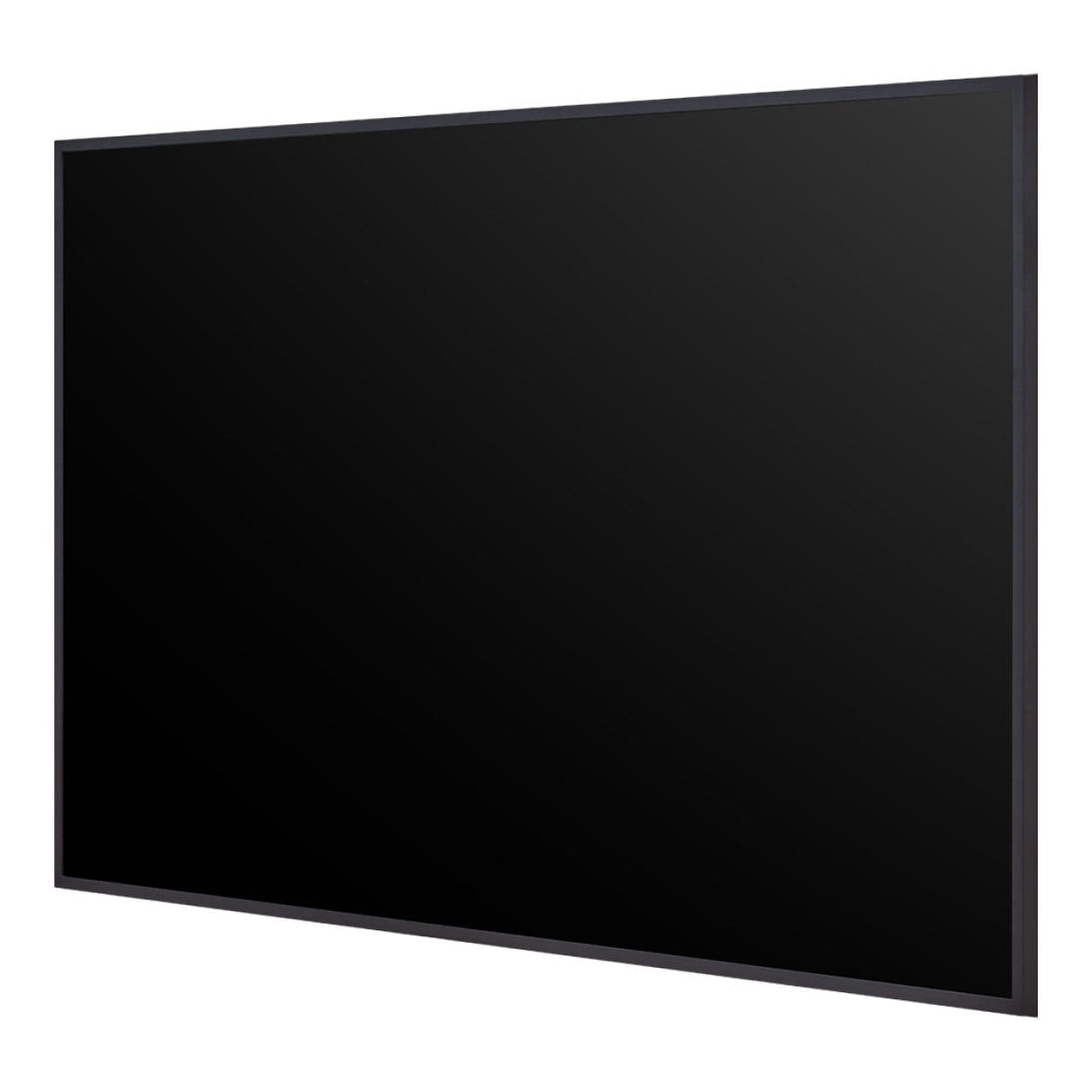

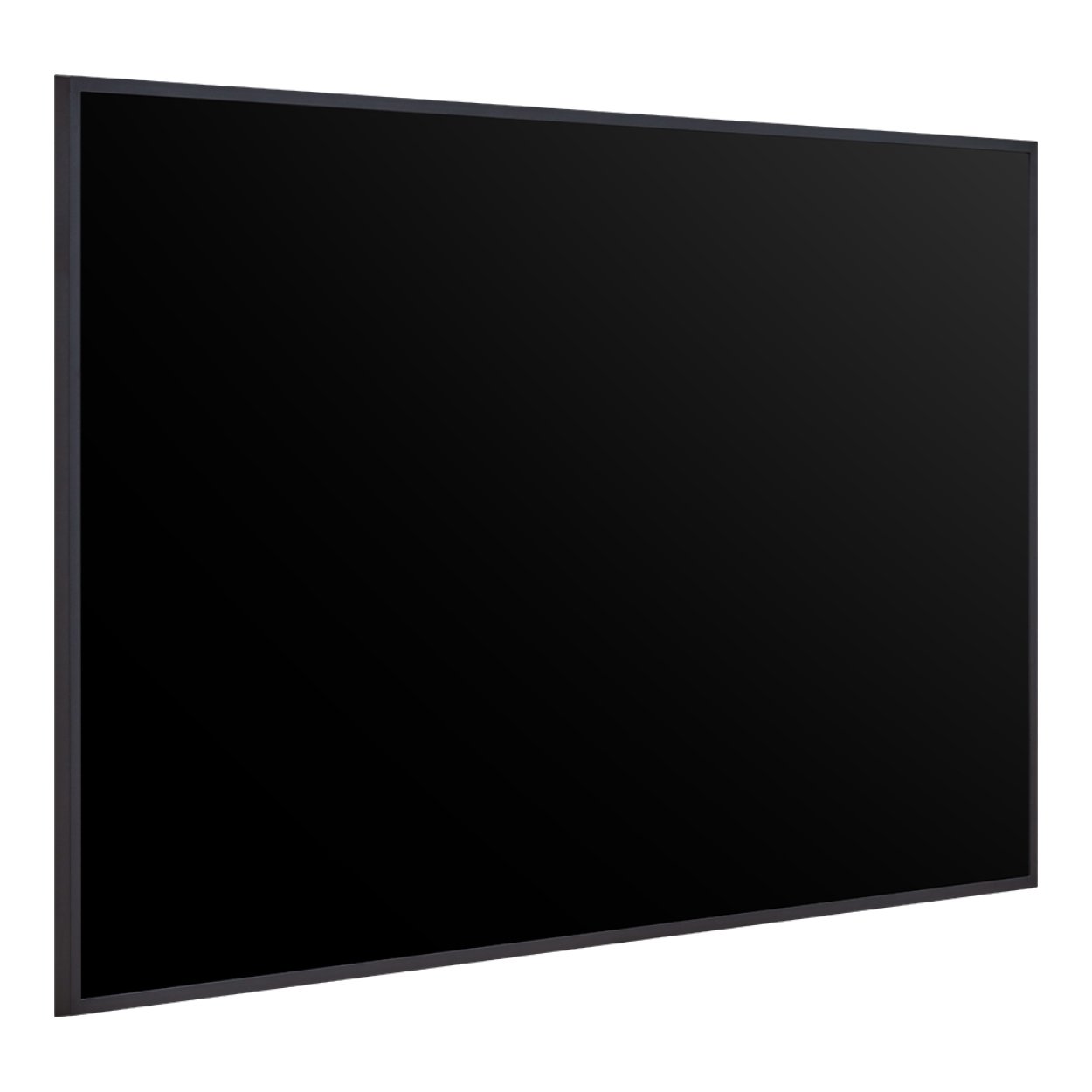

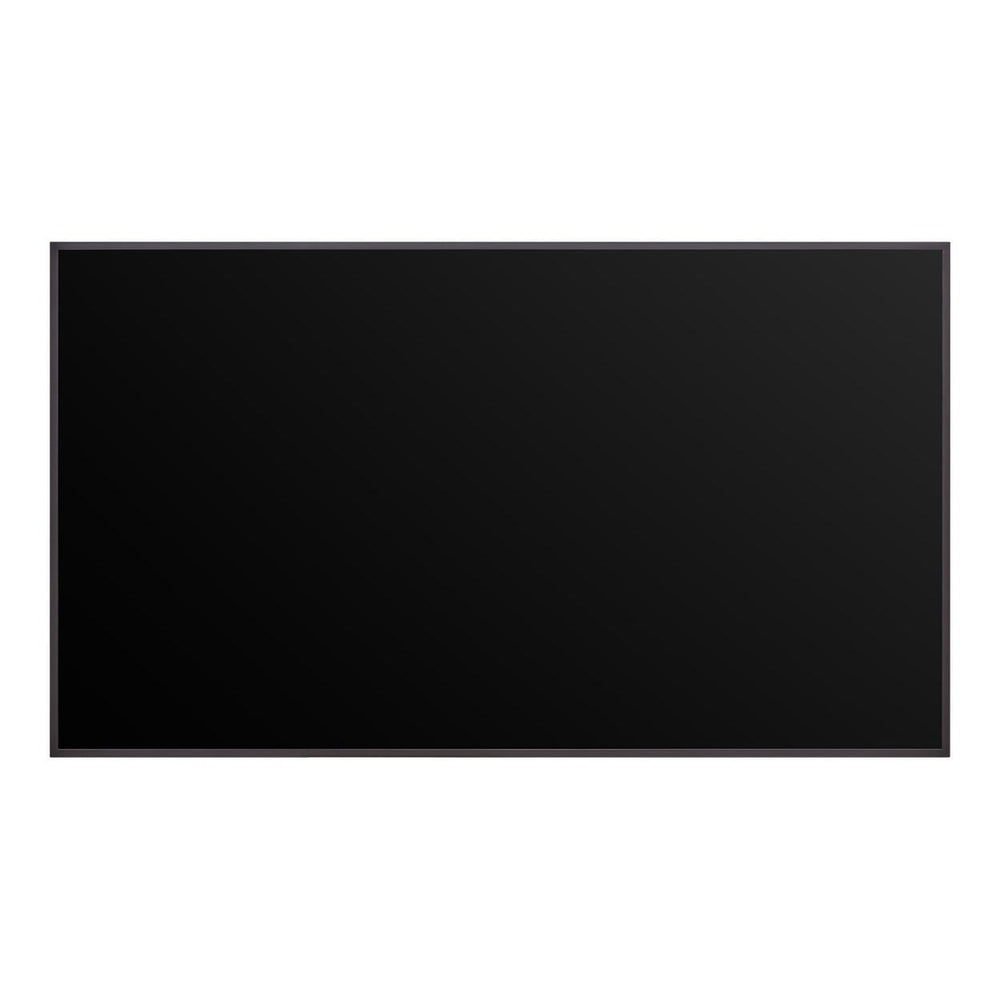

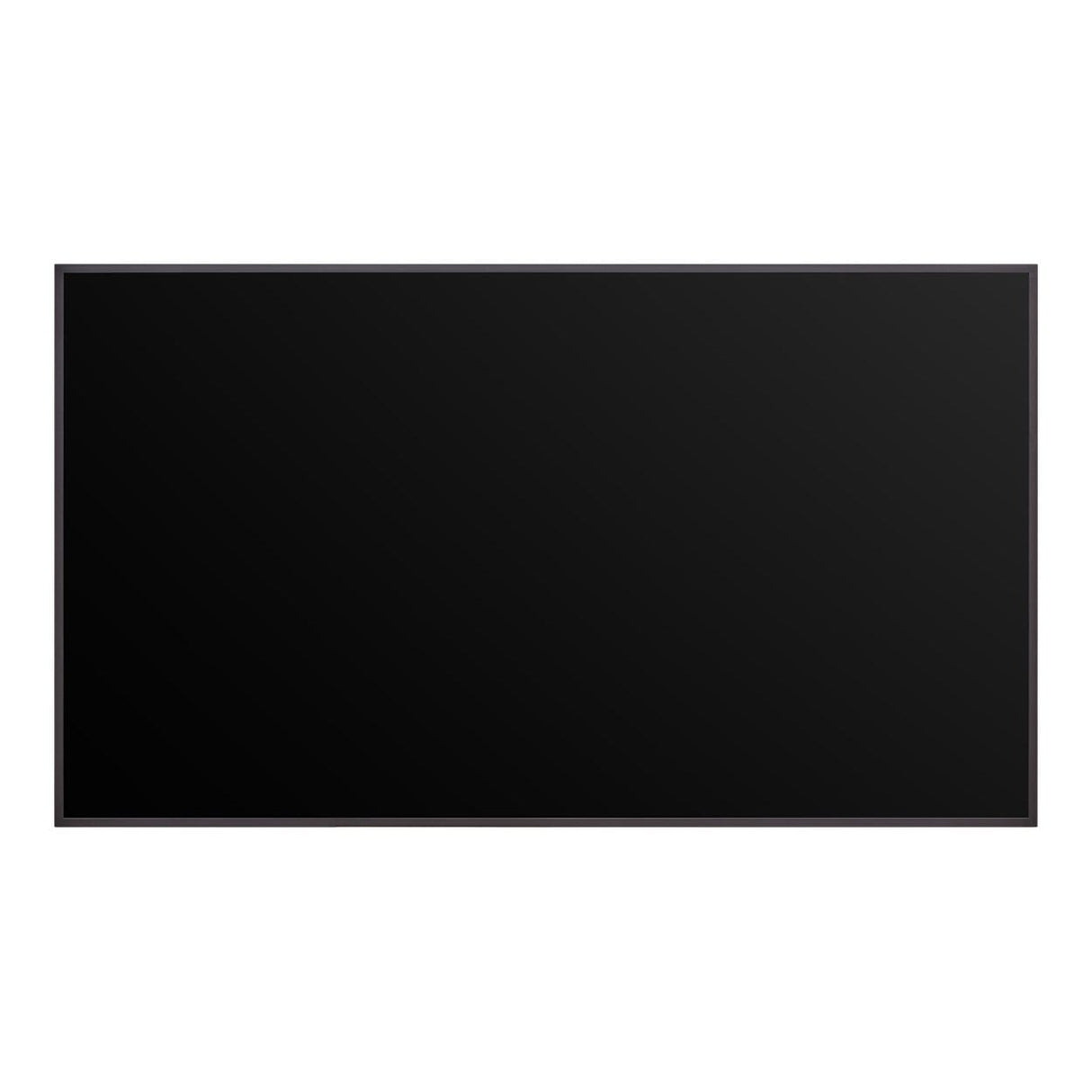

LG 65UH5Q-E 65-inch 4K UHD Signage Display

LG 65UH5Q-E 65-inch 4K UHD Signage Display

UHD Signage Display with LG webOS Platform and Advanced Security

Features:

• Resolution : 3,840 × 2,160 (UHD)
• Brightness : 500 nits (Typ.)
• Bezel Width : 11.4 mm (Even Bezel)
• webOS Smart Platform
• LG Shield

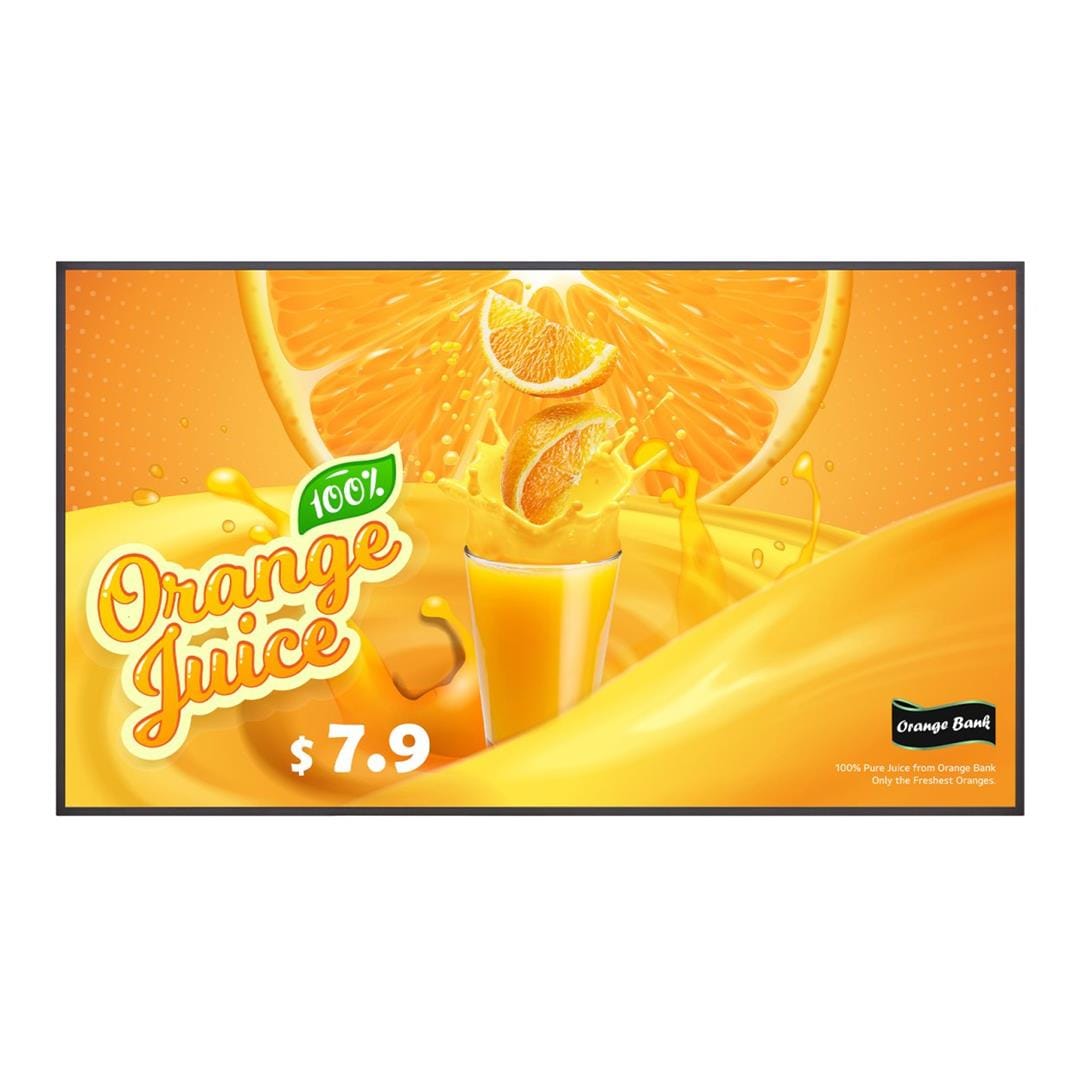

Superb Picture Quality with Ultra HD Resolution

With the resolution of LG UHD Signage, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

Even & Slim Bezel Design

The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

Convenient webOS Platform

The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

Design for Space Utilization

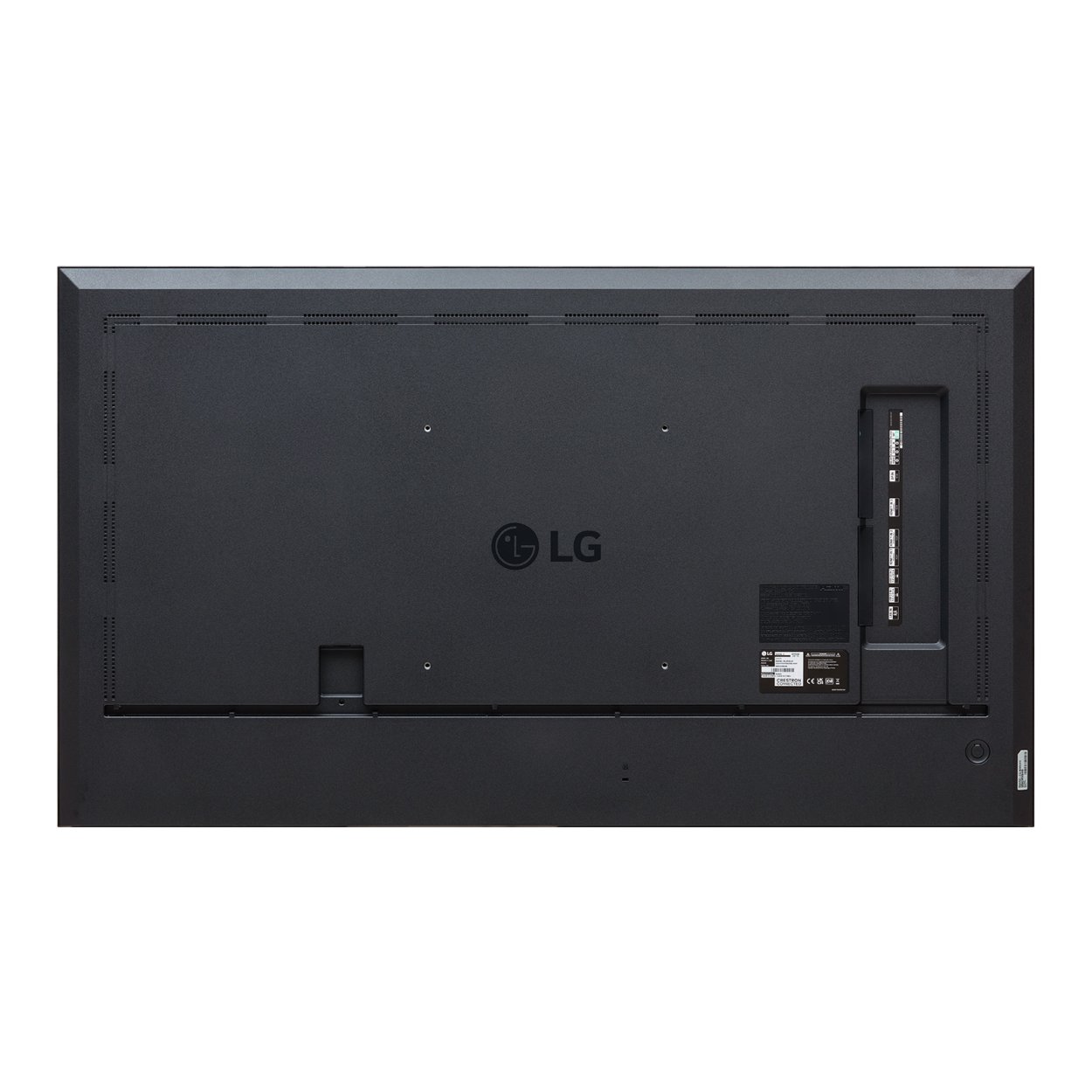

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

Durability that Provides Reliability for LG UHD Signage Optimized for business environments

Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction, ensuring the durability of LG UHD signage.

Comprehensive Security

webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.

SuperSign Solutions

LG SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Technical Specifications:

Panel
Screen Size
65"
Panel Technology
ADS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3,840 x 2,160 (4K UHD)
Refresh Rate
60 Hz
Brightness (Typ.)
500 nit
Contrast Ratio
1,200:1
Dynamic CR
1,000,000 : 1
Color gamut
BT709 95%
Viewing Angle (H x V)
178 × 178
Color Depth
1.07 Billion Colors (10 bit (D))
Response Time
8m (G to G)
Surface Treatment (Haze)
25% (Typ.)
Life Time (Min.)
50,000 Hrs
Operation Hours (Hours / Days)
24 / 7
Portrait / Landscape
Yes / Yes

Mechanical
Specification
Bezel Color
Black
Bezel Width
11.4 mm (Even)
Weight (Head)
21.1 kg
Packed Weight
27.0 kg
Monitor Dimensions (W × H × D)
1,459 × 835 × 29.7 mm
Carton Dimensions (W × H × D)
1,580 × 950 × 172 mm
Handle
No
VESA™ Standard Mount Interface
300 × 300 mm

Key Features
Internal Memory 16 GB, Wi-Fi & Bluetooth (Built-in), Temperature Sensor, Auto Brightness Sensor (Built-in for Europe only, sold separately in other regions), Acceleration (Gyro) Sensor, Local Key Operation, webOS 8.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Booting Logo Image, No Signal Image, RS-232C Sync, Local Network Sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Cisco Certification (TBD), Crestron Connected, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

Environment Conditions
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

Power
Power Supply
AC 100-240 V ~, 50/60 Hz
Power Type
Built-In Power

Power Consumption
Typ./Max.
130 W (TBD) / 184 W (TBD)
Smart Energy Saving (70%)
91 W (TBD)
DPM
0.5 W
Power off
0.5 W
BTU (British Thermal Unit)
444 BTU/Hr (Typ.), 699 BTU/Hr (Max.) (TBD)

Standard (Certification)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
Yes (Carbon "Reducing CO2") (TBD)
ErP / Energy Star
Yes (NewErP) / Yes

OPS Compatibility
OPS Type Compatible
No
OPS Power Built In
No

Software Compatibility
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare

Connectivity
Input
HDMI (3, HDCP 2.2/1.4), DP (HDCP 2.2/1.3), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), IR, USB 2.0 Type A (2)
Output
Audio, RS-232C (4 Pin Phone-Jack), IR (No / Yes (Support IR Daisy Chain via RS232C In/Out))

Sound
Speaker
10 W × 2

Language
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

Accessory
Basic
Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (For Power Cord), IR/Light Sensor Receiver (EU/EK Only), Magnetic Sheet (2, EU/EK Only)
Optional
Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light Sensor Receiver (ACC-L)

Special Feature
Tilt (Facedown)
Yes (Max. 15° Degree, 40°C Temperature) (TBD)
IP Rating
IP5X
Conformal Coating (Power Board)
Yes (Partial Space Coating)
