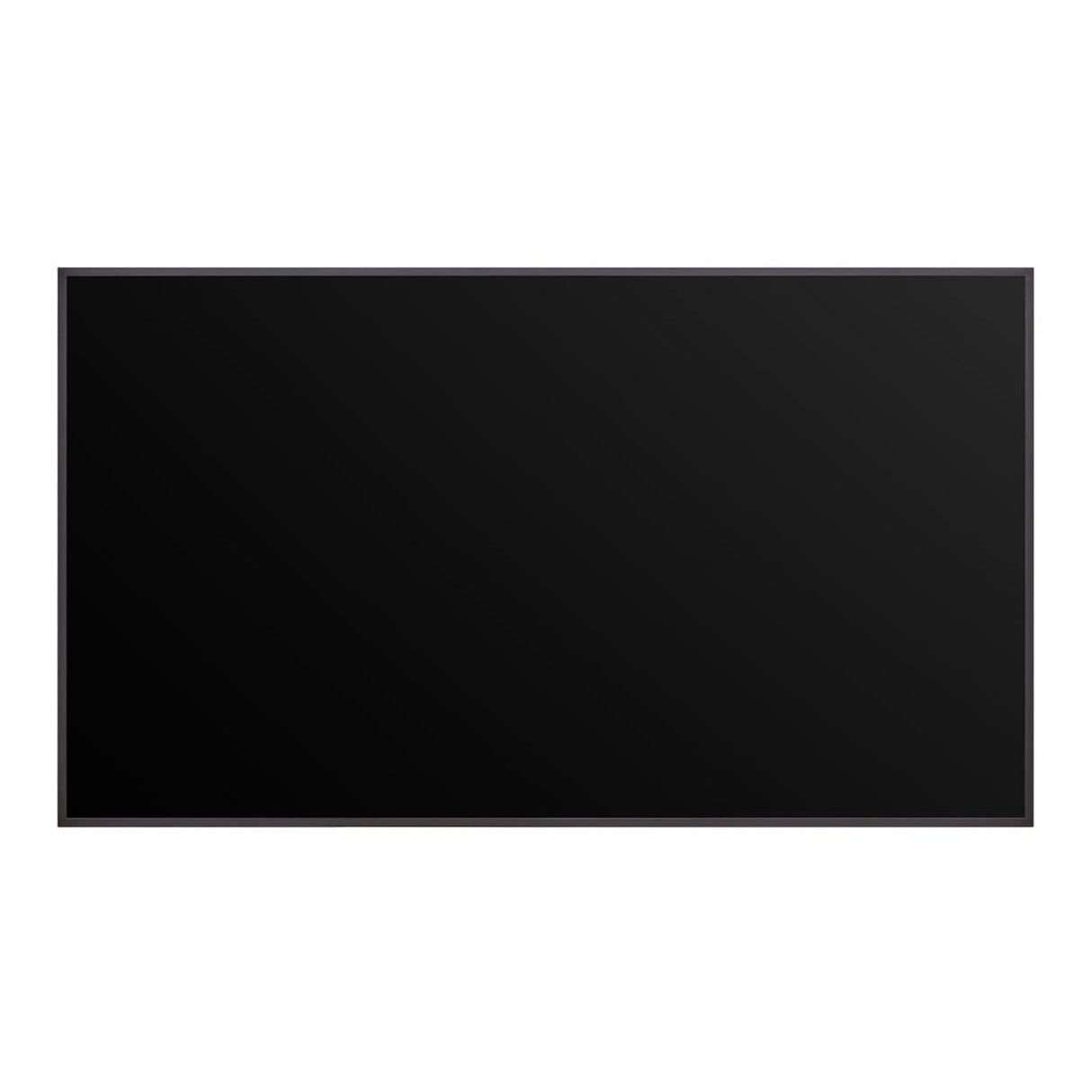

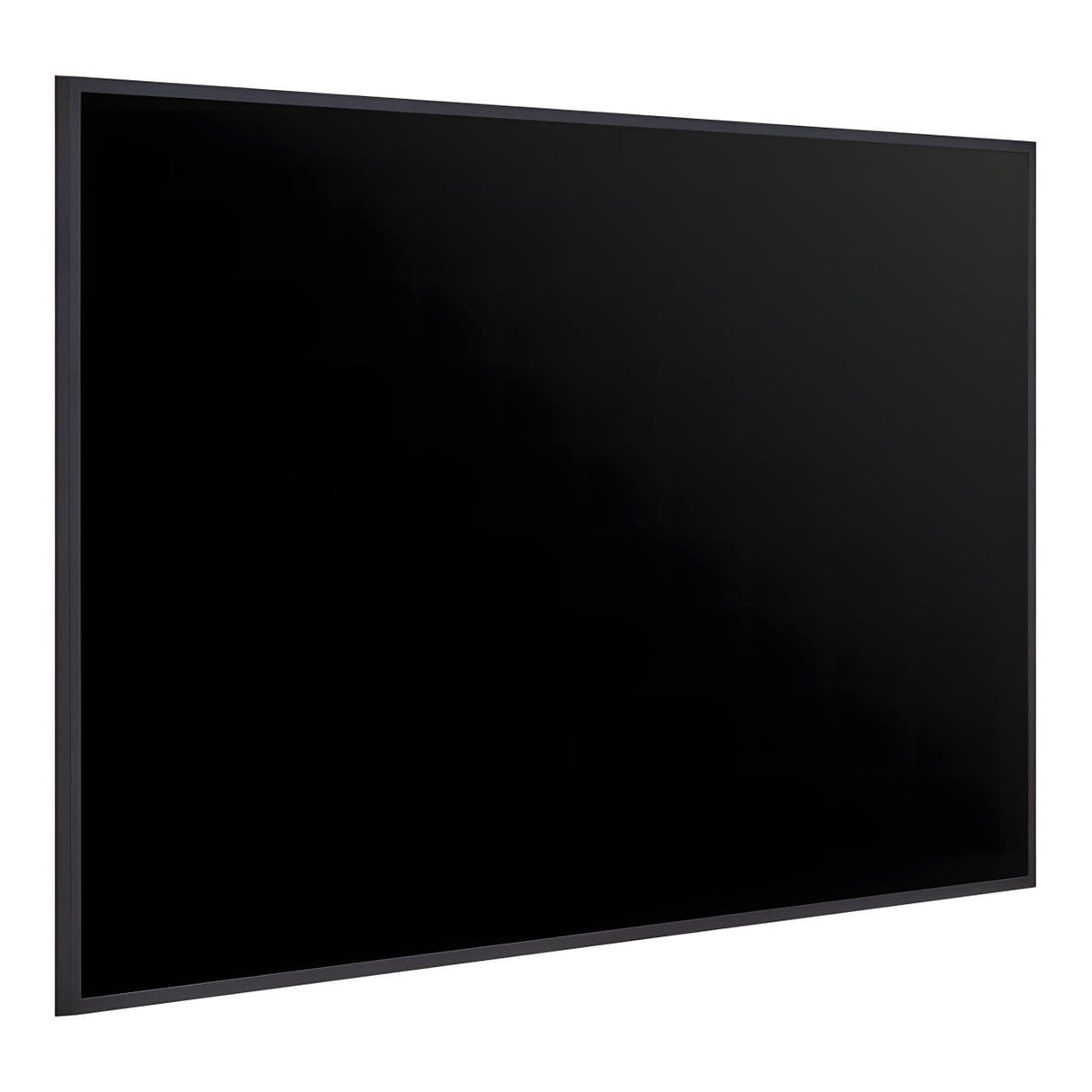

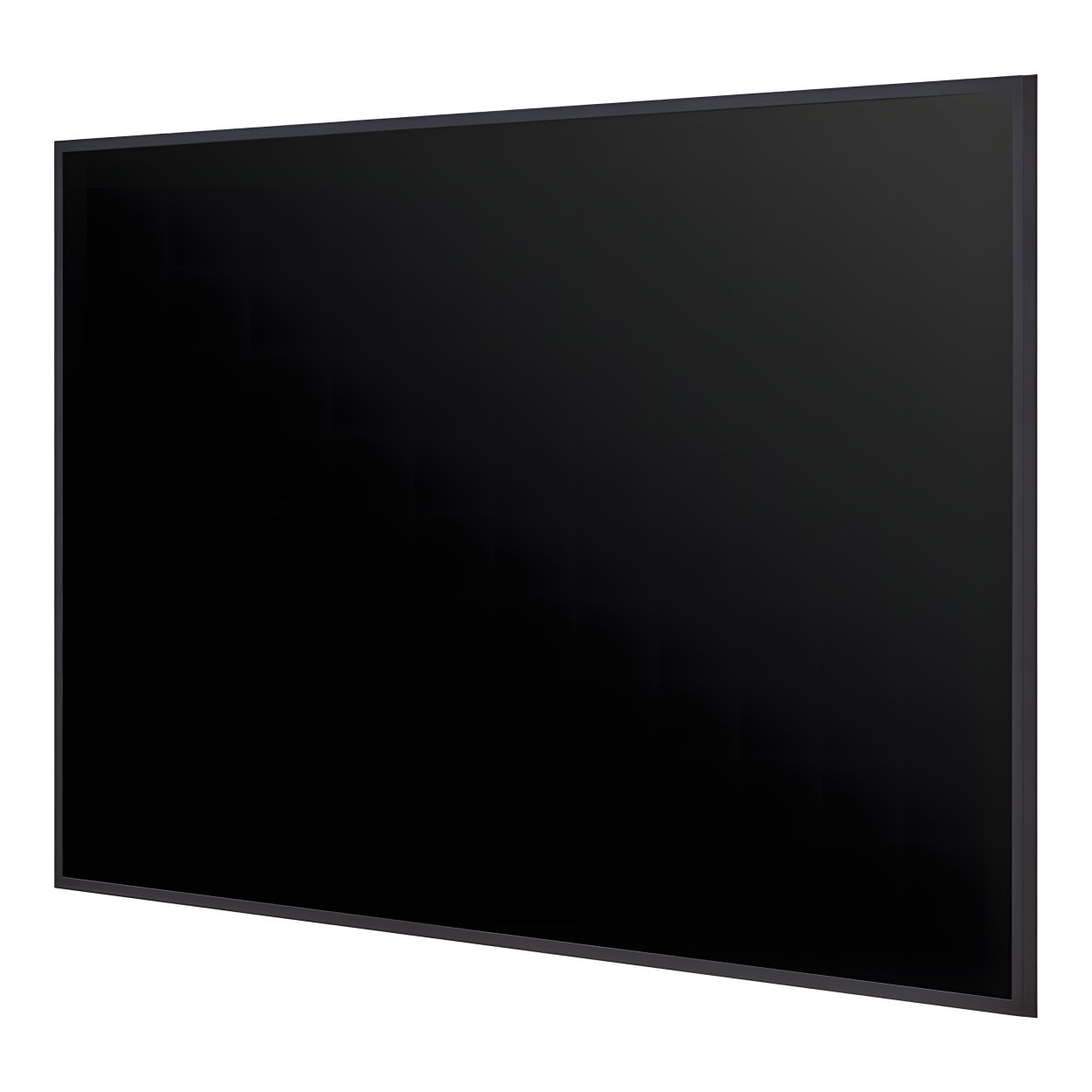

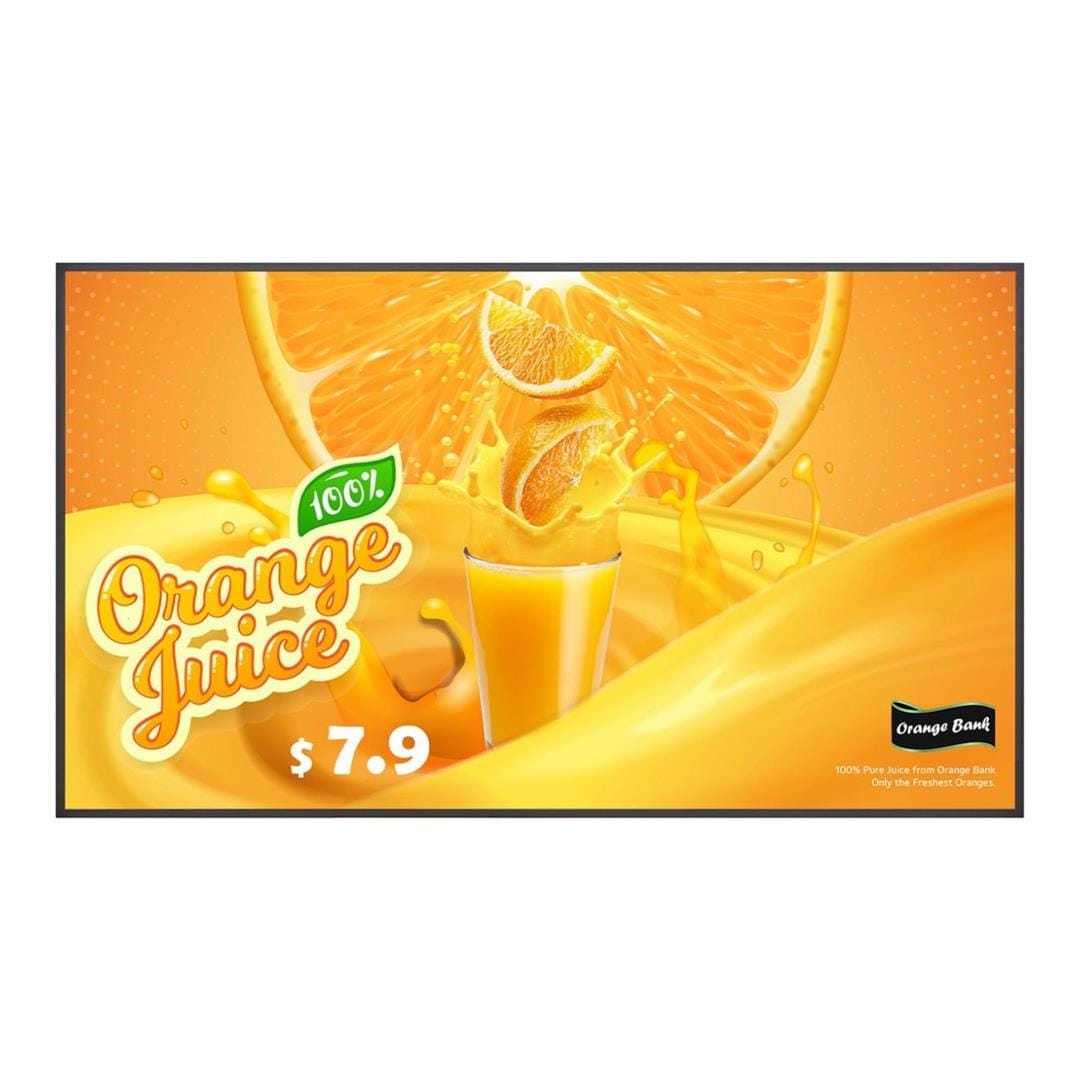

LG 43UH5Q 43-inch 4K UHD Digital Signage Panel

LG 43UH5Q 43-inch 4K UHD Digital Signage Panel

UHD Signage Display with LG webOS Platform and Advanced Security

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Features:

• Resolution : 3,840 × 2,160 (UHD)
• Brightness : 500 nits (Typ.)
• Bezel Width : 11.4 mm (Even Bezel)
• webOS Smart Platform
• LG Shield

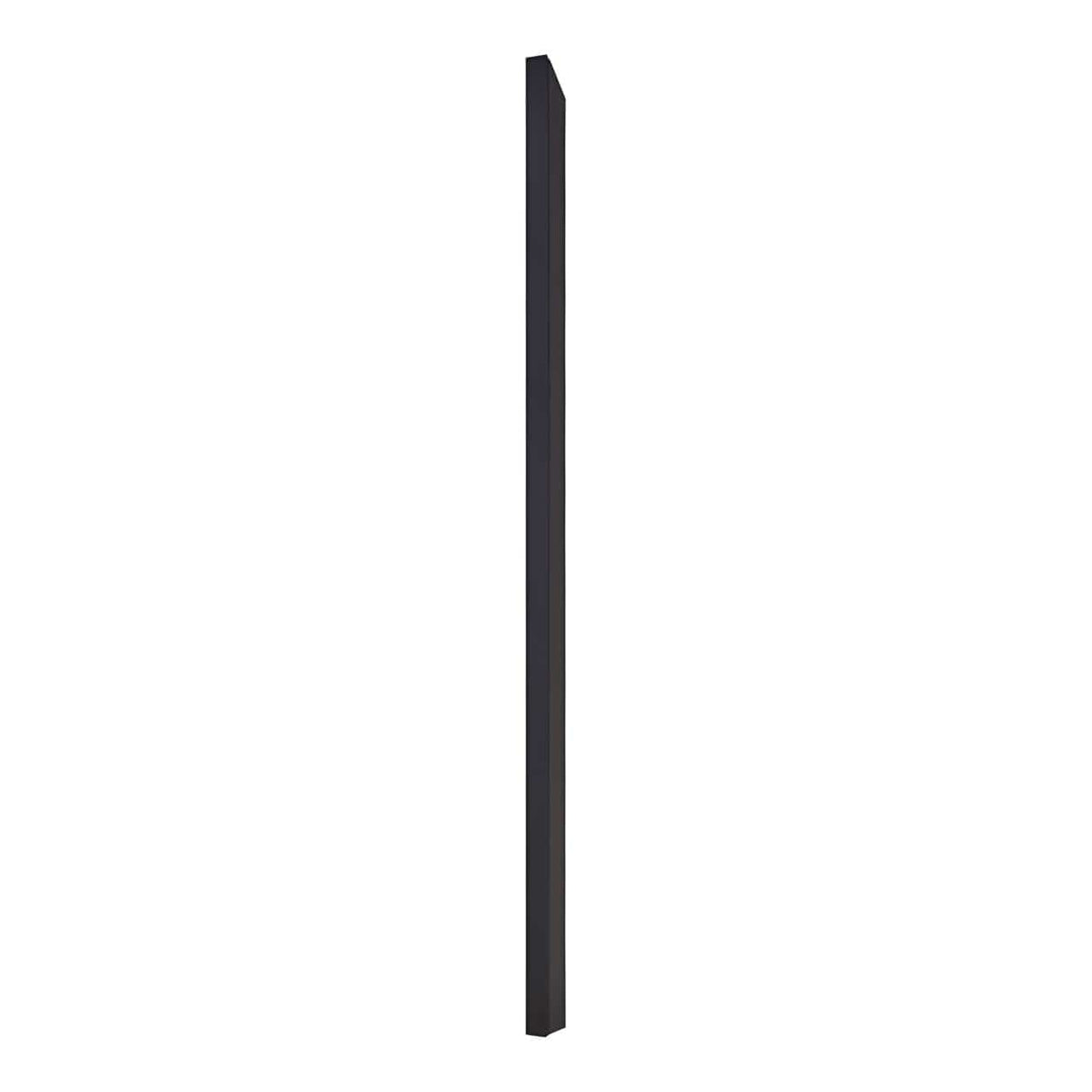

Even & Slim Bezel Design

The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

Convenient webOS Platform

The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

* SoC : System On Chip

** SI : System Integrator

Design for Space Utilization

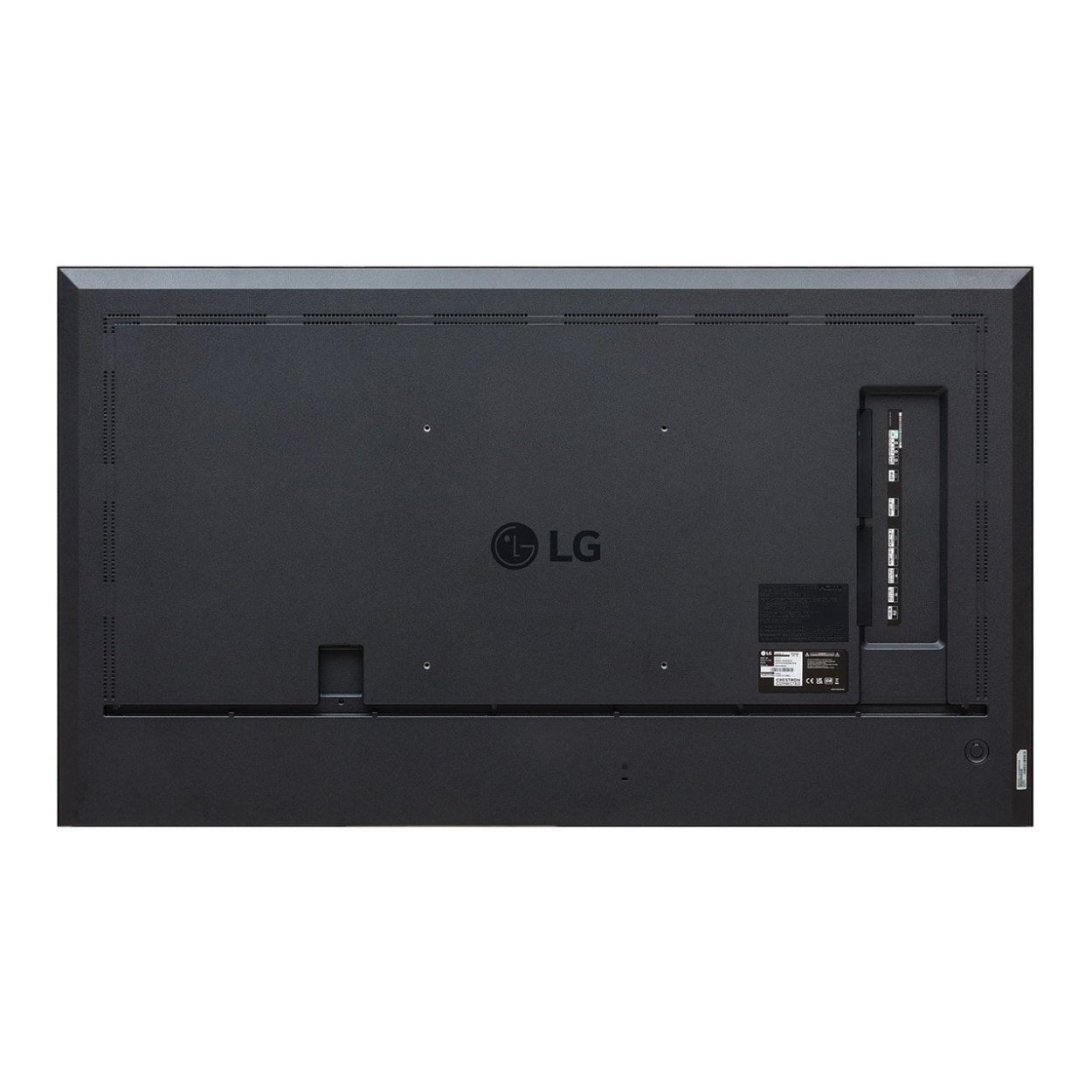

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability

Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.

Comprehensive Security

webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

* SuperSign must be purchased separately.

Technical Specifications:

Panel
Screen Size: 43 Inch
Panel Technology: ADS
Backlight Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 × 2160 (UHD)
Refresh Rate: 60 Hz
Brightness: 500 Nits (Typical)
Contrast Ratio: 1200:1 (Typical)
Dynamic Contrast Ratio: 1,000,000:1
Color Gamut: BT.709 95%
Viewing Angle (H × V): 178° × 178°
Color Depth: 10-Bit (D), 1.07 Billion Colors
Response Time: 8 Ms (G To G) (Typical)
Surface Treatment (Haze): 25% (Typical)
Panel Lifespan: 50,000 Hours (Minimum)
Operation Hours: 24/7
Orientation Support: Portrait And Landscape

Connectivity
HDMI Input:

• 3 × HDMI, 3840 × 2160 @ 60 Hz, HDCP 2.2/1.4
• 1 × HDMI, 3840 × 2160 @ 60 Hz, HDCP 2.2/1.3

RS232C Input: 1 × 4-Pin Phone Jack
RJ45 (LAN) Input: 1
IR Input: 1
USB Input: 2 × USB 2.0 Type-A
Audio Output: 1
RS232C Output: 1 × 4-Pin Phone Jack
IR Output: No (Supports IR Daisy Chain Via RS232C In/Out)

Mechanical Specifications
Bezel Color: Black
Bezel Width: 11.4 Mm (Even Bezel)
Monitor Dimensions (W × H × D): 971.7 × 561.0 × 29.7 Mm
Carton Dimensions (W × H × D): 1055.0 × 660.0 × 140.0 Mm
Weight: 9.4 Kg
Packed Weight: 11.3 Kg
VESA Mount Compatibility: 200 × 200 Mm

Hardware Features
Internal Memory: 16 GB eMMC
Wi-Fi/Bluetooth: Built-In
Temperature Sensor: Yes
Auto Brightness Sensor: Yes (Built-In For Europe Only, Sold Separately In Other Regions)
Acceleration (Gyro) Sensor: Yes
Local Key Operation: Yes

Software Features
Operating System: webOS 8.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug And Play: Yes
Failover: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play Via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Maximum 15 × 15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certification: Yes (TBD)
Crestron Connected: Yes
Smart Energy Saving: Yes
PM Mode: Yes
Wake On LAN: Yes
Network Ready: Yes
Beacon: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

Environment Conditions
Operating Temperature: 0 °C To 40 °C
Operating Humidity: 10% To 80%

Power
Power Supply: AC 100–240 V, 50/60 Hz
Power Type: Built-In Power

Power Consumption
Typical Power Consumption: 65 W
Maximum Power Consumption: 124 W (TBD)
BTU Rating:

• 222 BTU/Hr (Typical)
• 423 BTU/Hr (Maximum)

Smart Energy Saving (70%): 46 W (TBD)
DPM: 0.5 W
Power Off: 0.5 W

Sound
Built-In Speakers: 2 × 10 W

Certifications
Safety Certifications: CB, NRTL
EMC Certifications: FCC Class B, CE, KC
ERP Certification: Yes
Energy Star Certified: Yes
ePEAT (US Only): Yes / Carbon Reducing CO2 (TBD)

Software Compatibility

• SuperSign CMS
• SuperSign Control+
• SuperSign WB
• SuperSign Cloud
• Mobile CMS
• Connected Care

Language Support
OSD Languages:

• English
• French
• German
• Spanish
• Italian
• Korean
• Chinese (Simplified)
• Chinese (Traditional)
• Portuguese (Brazil)
• Swedish
• Finnish
• Norwegian
• Danish
• Russian
• Japanese
• Portuguese (Europe)
• Dutch
• Czech
• Greek
• Turkish
• Arabic
• Polish

Special Features
Tilt (Face Down): Yes, Maximum 15° At 40 °C (TBD)
IP Rating: IP5X
Conformal Coating (Power Board): Yes (Partial Space Coating)

What's in the Box:

• Remote Controller (Includes 2 Batteries)
• Power Cord
• Quick Setup Guide
• Regulation Book
• Phone To RS232C Gender Adapter
• Cable Holder For Power Cord
• IR/Light Sensor Receiver (EU/EK Only)
• 2 × Magnetic Sheets (EU/EK Only)
