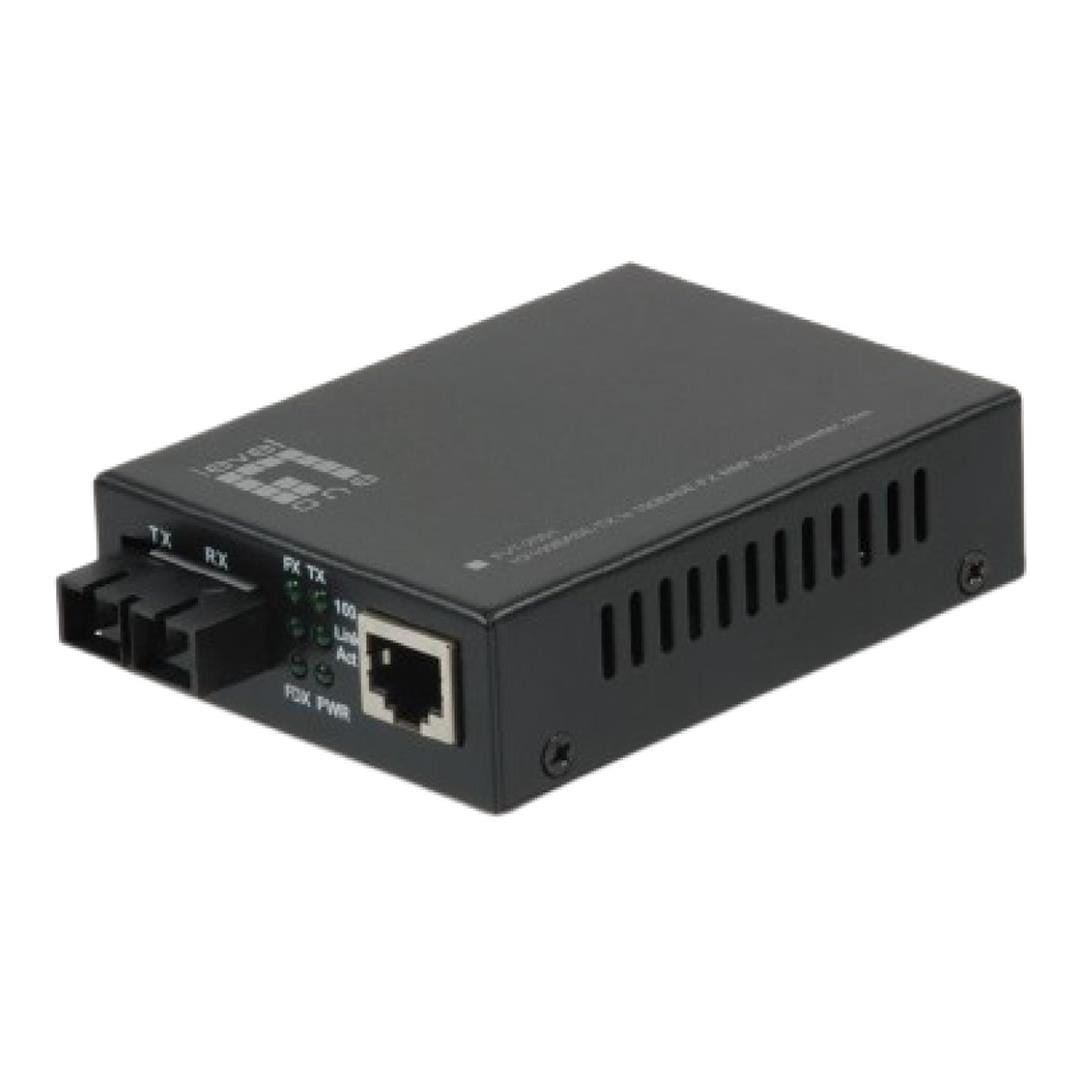

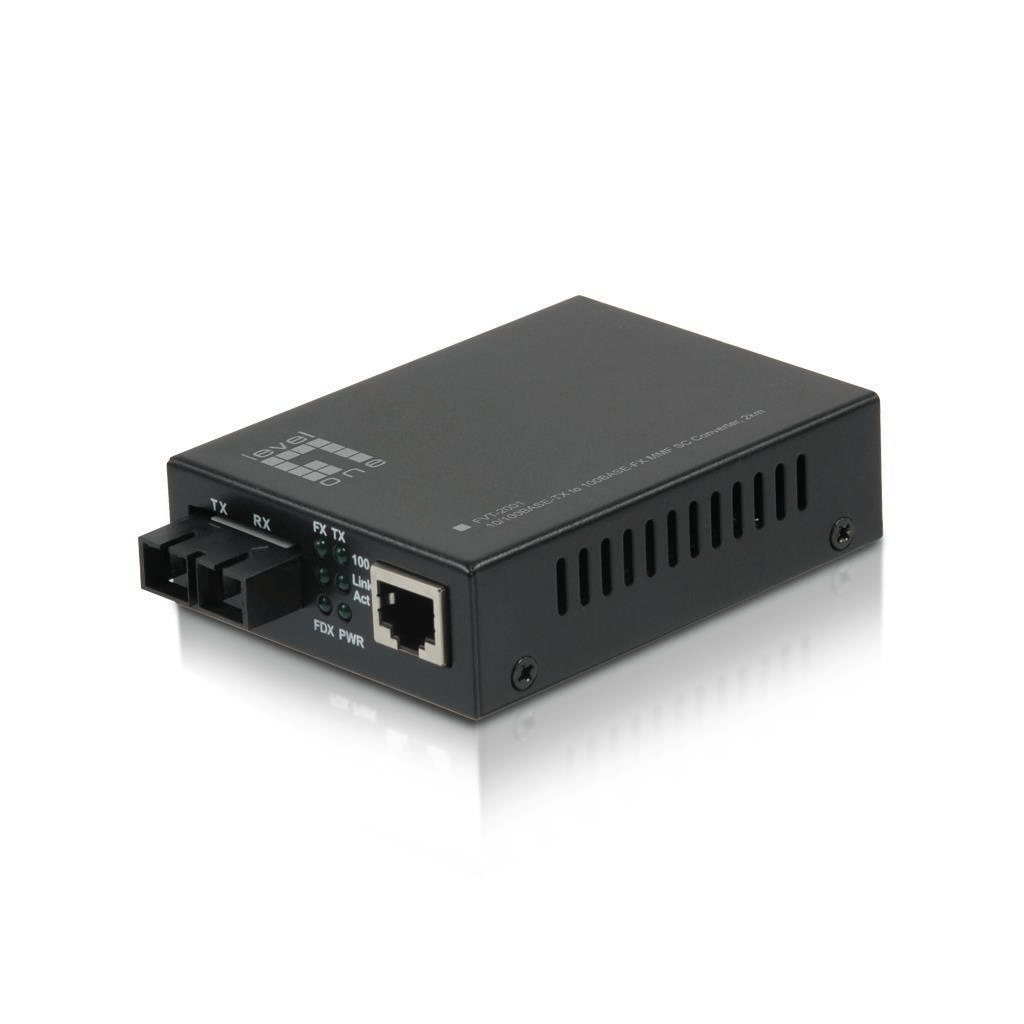

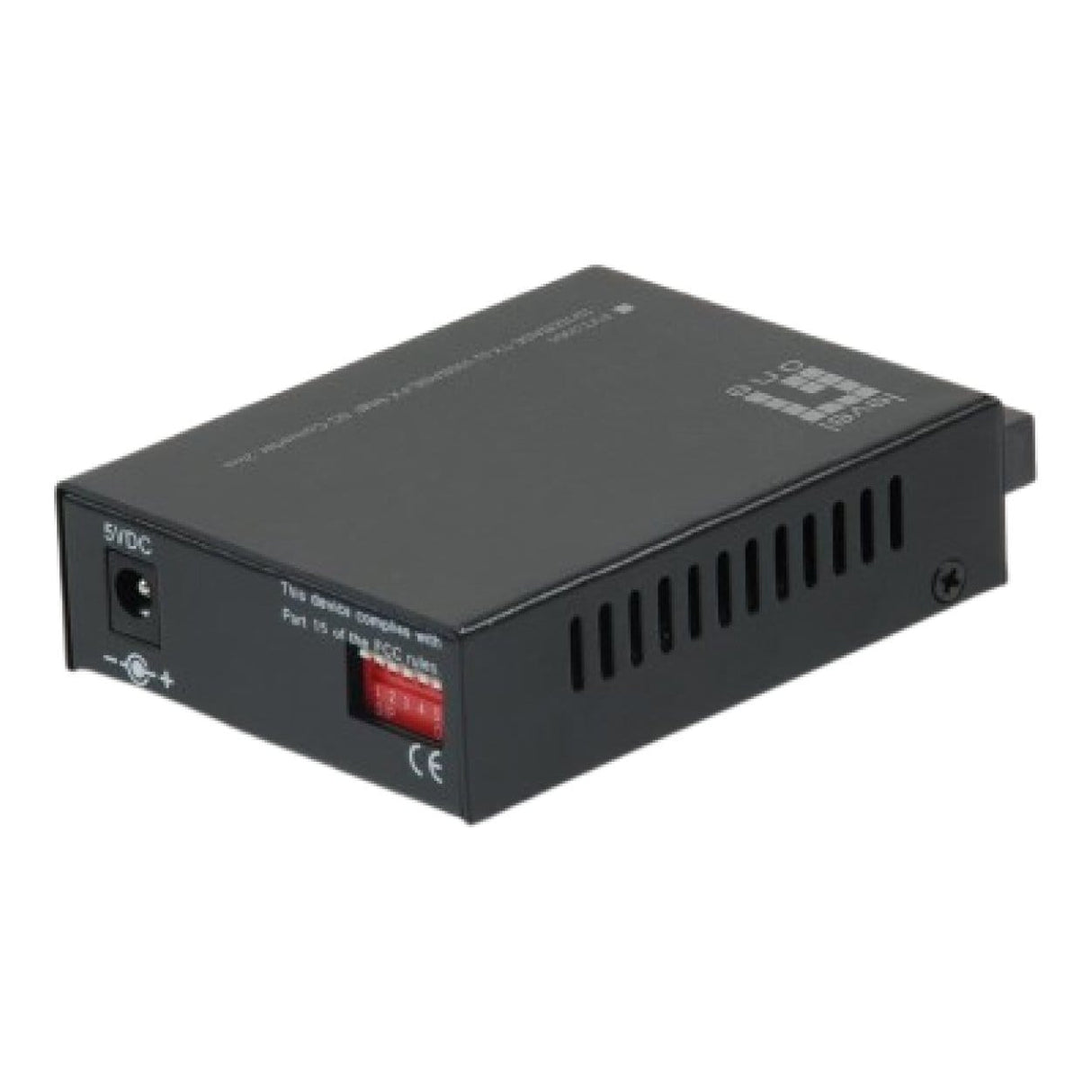

LevelOne FVT-2001 RJ45 to SC Fast Ethernet Media Converter

LevelOne FVT-2001 RJ45 to SC Fast Ethernet Media Converter

The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode. The FVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

Specifications:

Product: LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km

Maximum data transfer rate: 100 Mbit/s

Converter input interface: 10Base-T,100Base-TX

Converter output interface: 100Base-FX

Fiber optic connector: SC

Connectivity technology: Wired

Maximum transfer distance: 2000 m

Wavelength: 1310 nm

Fiber mode structure: Multi-mode

LED indicators: Activity, Link

Product colour: Black

Input voltage: 5 V

Input current: 1 A
