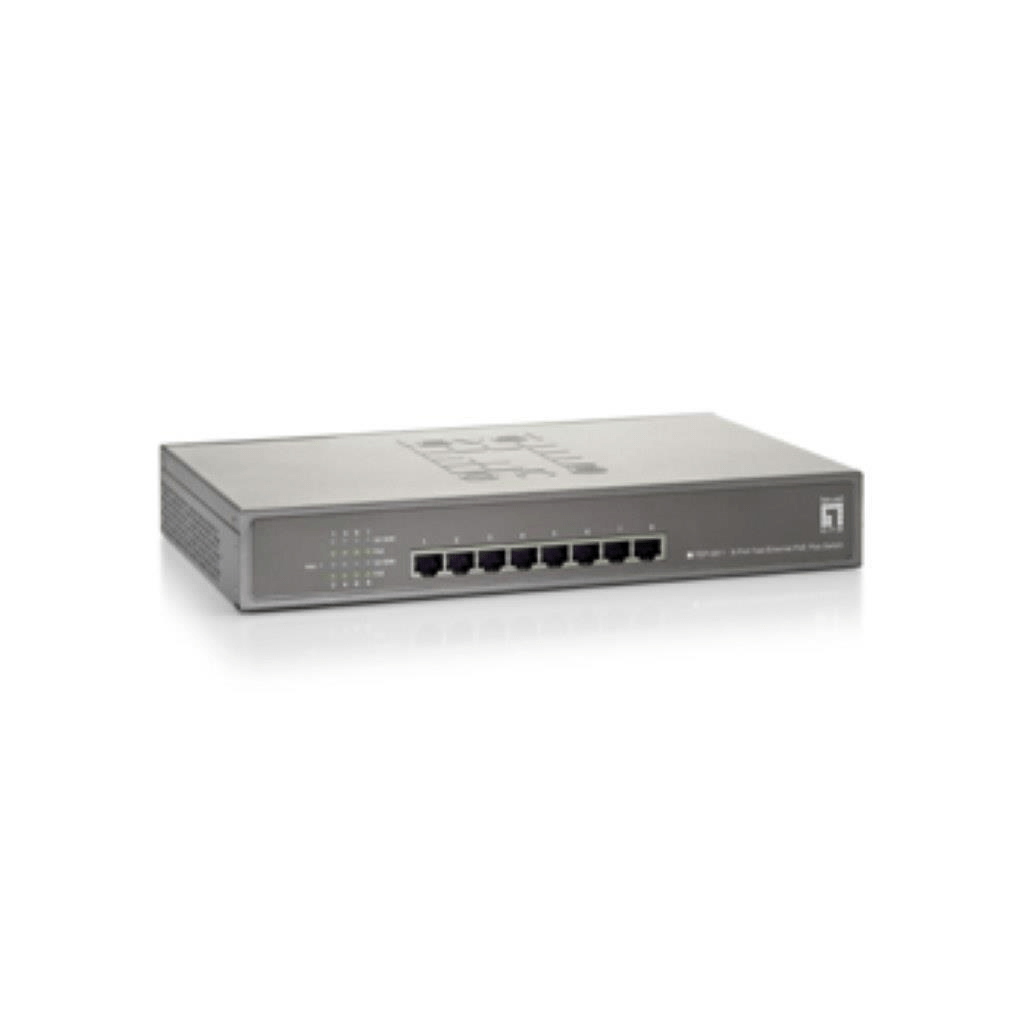

LevelOne 8-Port Fast Ethernet PoE Switch FEP-0811

LevelOne 8-Port Fast Ethernet PoE Switch

Features:

• IEEE 802.3af/at PoE compliant to simplify deployment and installation
• Auto-detection and protection of non-standard PoE devices
• 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
• 11-inch metal housing with 19-inch rackmount kit included
• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
• Total PoE power budget: 123.2W, up to 30W per port

Specifications:

• Power Budget: Max. 123.2W
• PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
• PD classification identity
• PoE over current protection
• PoE circuit sorting protection
• PoE Power Output: Per Port 56V DC, Max. 15.4 watts (802.3af)
• or 30 watts (802.3at)
• Power Pin Assignment: 1/2(+), 3/6(-
• Dimensions (W x D x H mm):185 x 280 x 44 mm
• Weight (g):1600 g

Package Contents:

• FEP-0811
• Power Cord
• 19" Rackmount Kit
• Quick Installation Guide
