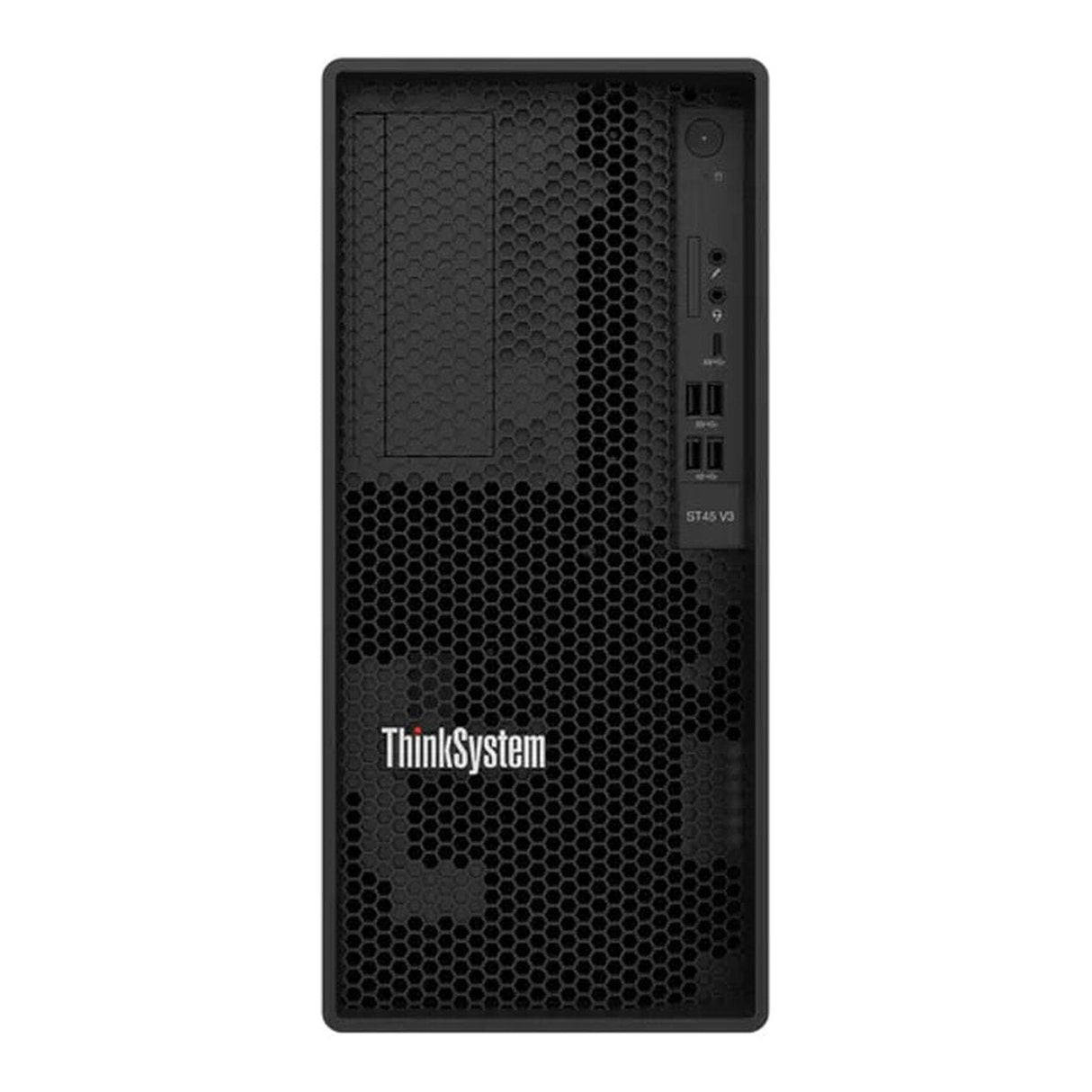

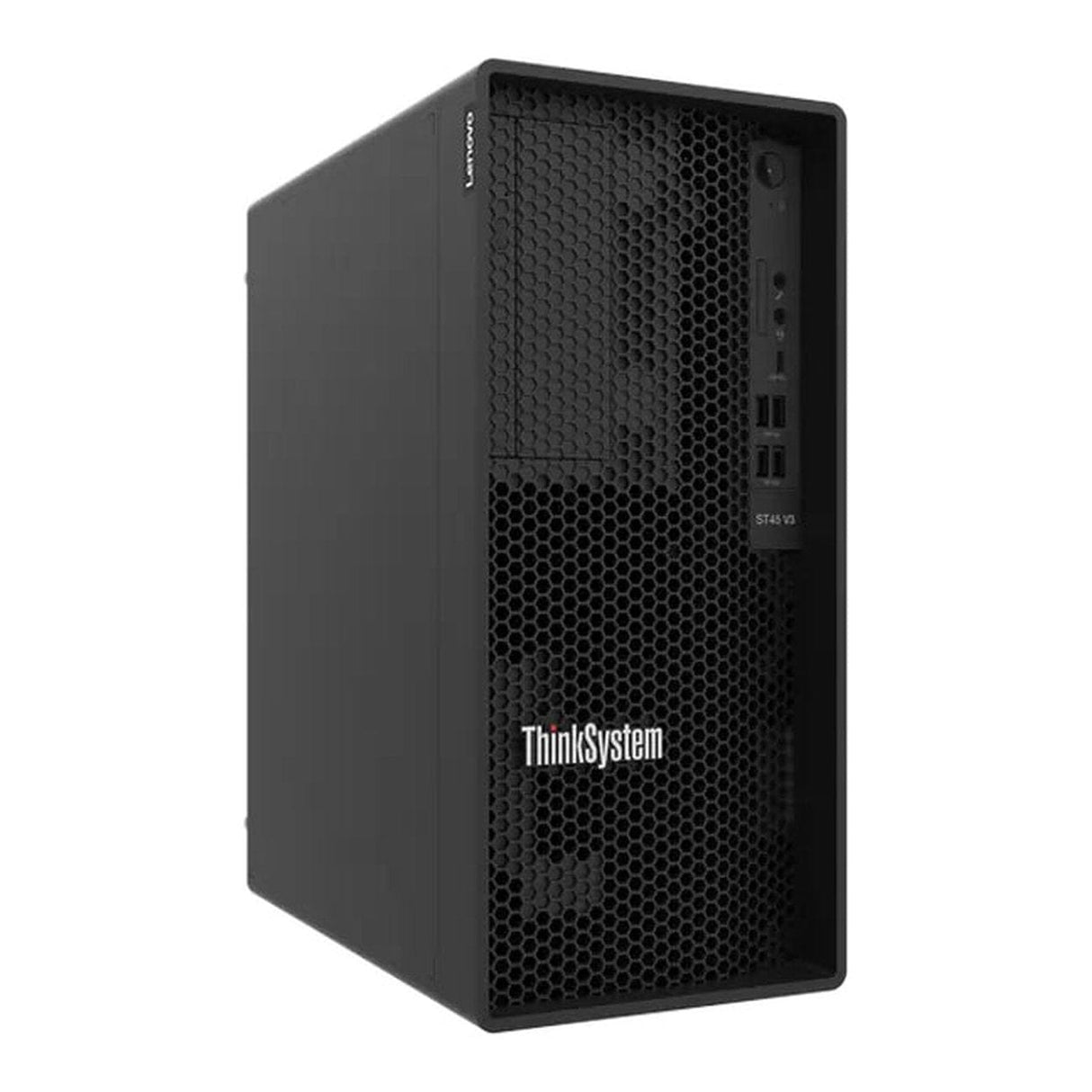

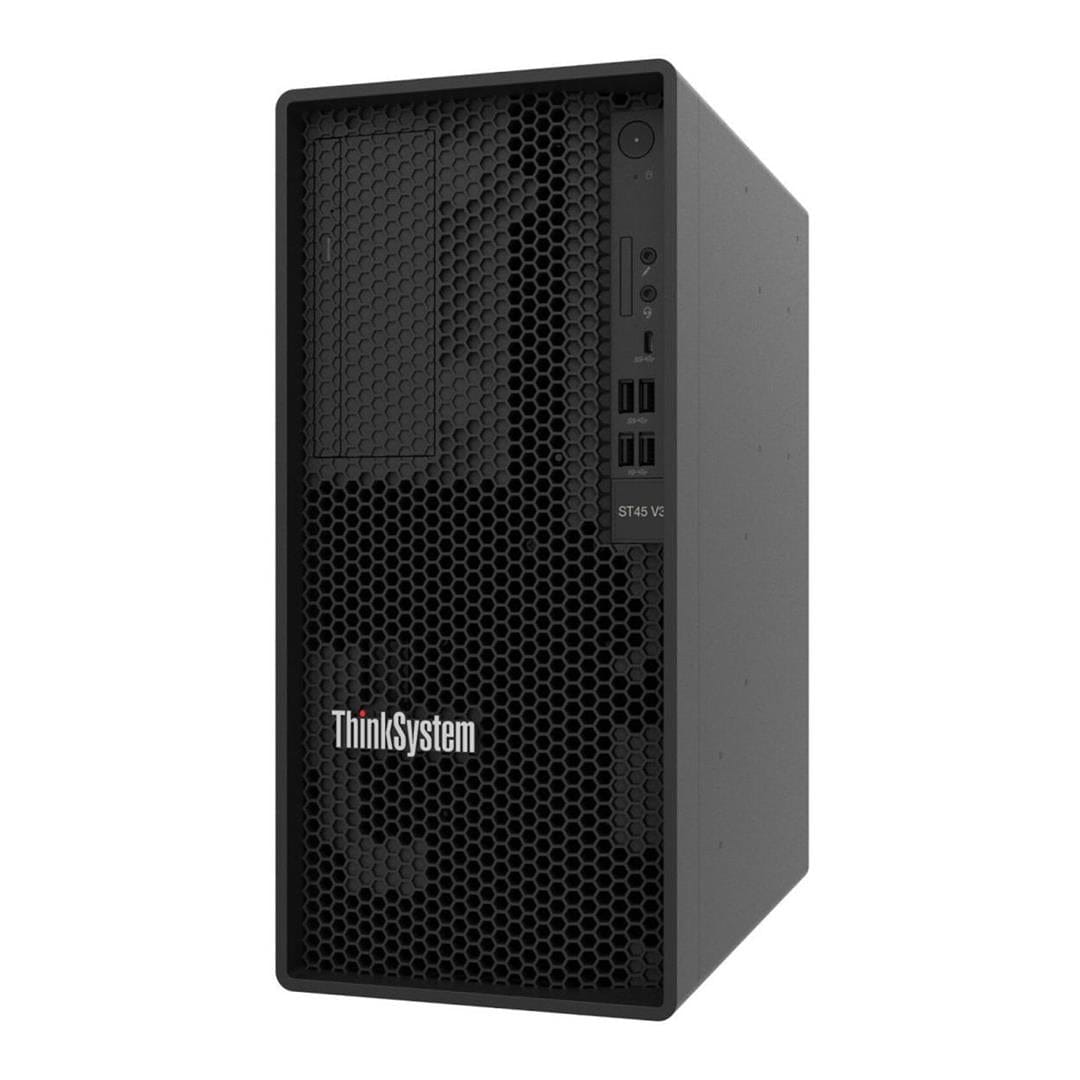

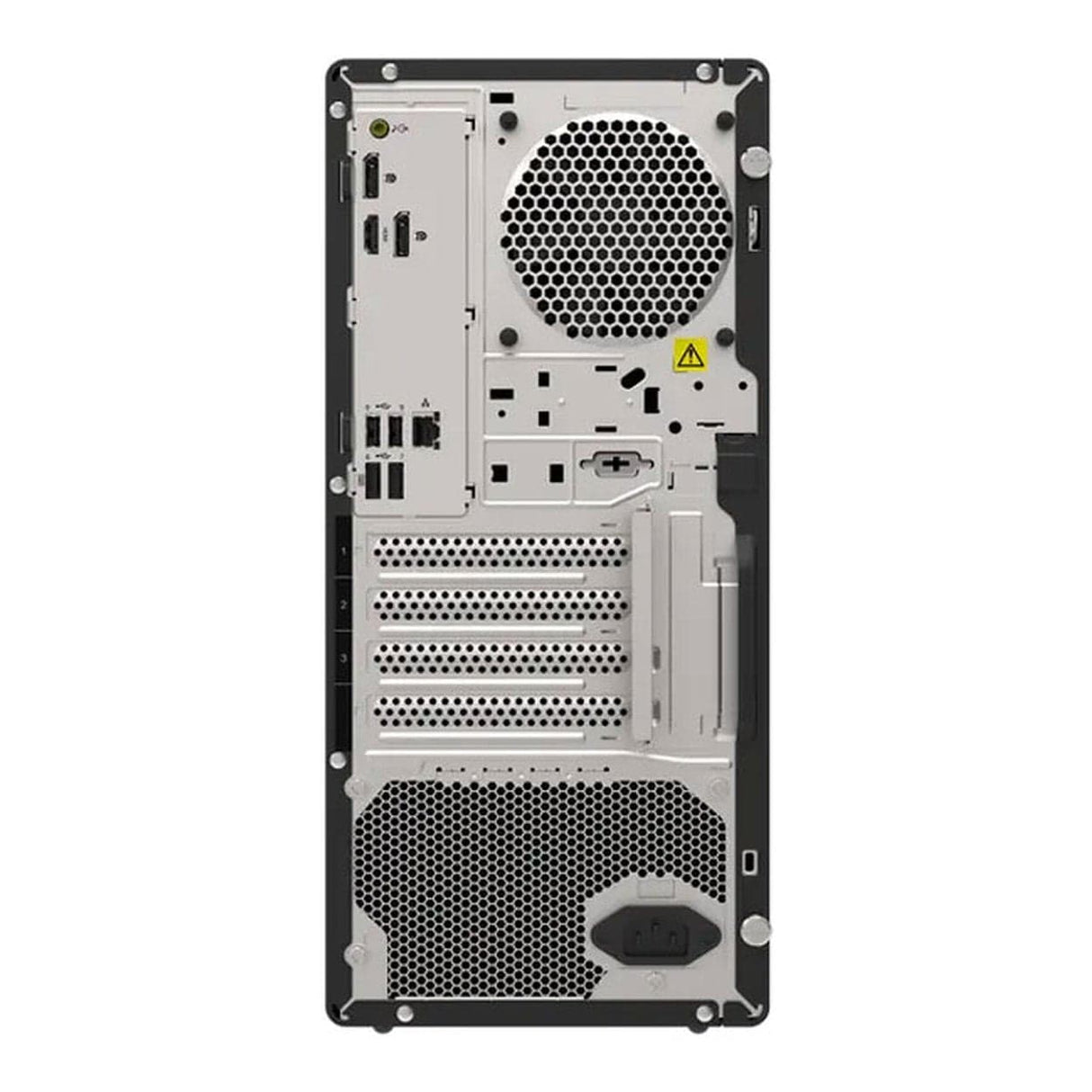

Lenovo ThinkSystem ST45 V3 Server Tower - AMD EPYC 4244P 1.92TB SSD 16GB RAM 500W 7DH5A00GEA

Lenovo ThinkSystem ST45 V3 Server Tower - AMD EPYC 4244P 1.92TB SSD 16GB RAM 500W 7DH5A00GEA

The Lenovo ThinkSystem ST45 V3 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the AMD EPYC 4004 Series processor (formerly codenamed "Raphael").

This product guide provides essential presales information to understand the ThinkSystem ST45 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST45 V3 and consider its use in IT solutions.

The Lenovo ThinkSystem ST45 V3 single-socket tower server is a compact-sized and affordable 1S entry tower design optimized for SOHO (Small Office/Home Office), educational institutions and retail office. The server supports one AMD EPYC 4005 Series processor and up to 64 GB of TruDDR5 5600MHz memory.

Target workloads such as: File server, Mail server, Print server, FTP server, Business Application, Near-side Data Backup

Features:

The ThinkSystem ST45 V3 server is an office-friendly tower server that has been optimized to provide enterprise-class features to small businesses, retail, educational institutions and branch offices.

Scalability and performance

The ST45 V3 offers numerous features to boost performance, improve scalability, and reduce costs:

Improved single-socket processor performance:
AMD EPYC 4005 CPU
Up to 16 cores and core speeds up to 3.9 GHz
Up to two 5600 MHz TruDDR5 UDIMMs provide speed and capacity of up to 64 GB.
Two PCIe slots for I/O expansion, one PCIe x16 and one PCIe x1.
Support for NVMe M.2 drive for OS boot operations.
Support for three 3.5-inch non-hot-swap (NHS) drive bays and one 2.5-inch drive, or,  support for two 3.5-inch non-hot-swap (NHS) drive bays, one 2.5-inch drive and one ODD drive. Providing flexible internal storage capacity.
The use of SSDs instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance.
Availability and serviceability

The ST45 V3 provides many features to simplify serviceability and increase system uptime:

EPYC 4005 RAS features include on-chip ECC/parity, on-package link CRC, PCIe LCRC, PCIe ECRC, and PCIe uncorrected error detection. Correction of single-bit memory errors and PCIe correctable errors support is limited to the hardware layer and offer no support for WHEA (Windows Hardware Error Architecture) or EDAC (Error Detection And Correction).
Designed to run 24 hours a day, 7 days a week.
The server supports UDIMM memory with ECC protection which provides error correction not available in PC-class "servers" that use parity memory. Avoiding system crashes (and data loss) due to soft memory errors means greater system uptime.
Tool-less cover removal provides easy access to upgrades and serviceable parts, such as memory and adapter cards.
A choice of affordable onboard AMD RAIDXpert2 software RAID or hardware RAID redundancy offers data protection and greater system uptime.
The use of SSDs can provide better reliability than the use of traditional HDDs, for greater uptime.
Power-on Self-Test (POST).
The Lenovo XClarity Provisioning Manager Lite tool can be used to install an operating system on the server and perform system diagnostics.
One-year or three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response. Optional service upgrades are available.
Manageability and security

Powerful systems management features simplify local management of the ST45 V3:

An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
Administrator and power-on passwords help protect from unauthorized access to the server.
A padlock loop at the rear to help secure unauthorized physical access to the server.
A slot for a Kensington-style cable lock helps prevent theft.
Energy efficiency

The ST45 V3 offers the following energy saving features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:

80 PLUS Platinum-certified power supply (select models) enables greater energy savings while providing flexibility to meet your business needs.
The ThinkSystem Capacity Planner tool provides information about the power consumption and electric current calculation for the different configurations of servers and other devices, which helps plan deployment of servers and devices in an efficient way.
Energy star certification.

Technical Specifications:

Processor

Processor Manufacturer AMD

Processor Family AMD EPYC

Processor Model 4244P

Processor Frequency 3.8 GHz

Processor Boost Frequency 5.1 GHz

Processor Cores 6

Processor Threads 12

Processor Cache 32 MB

Number of Processors Installed 1

Thermal Design Power (TDP) 65 W

Memory Types Supported by Processor DDR5-SDRAM

Memory

Internal Memory 16 GB

Internal Memory Type DDR5-SDRAM

Memory Slots 2 x DIMM

Memory Clock Speed 5200 MHz

Memory Layout (Slots x Size) 1 x 16 GB

Maximum Internal Memory 64 GB

ECC Supported

Storage

Total Storage Capacity 1.92 TB

Number of SSDs Installed 2

SSD Capacity 960 GB

SSD Interface SATA

SSD Size 3.5"

Internal Drive Bays 2

RAID Support Supported

Network

LAN Controller Realtek RTL8111FP

Ethernet Interface Type Gigabit Ethernet

Ethernet LAN (RJ-45) Ports 1

Ports & Interfaces

USB 2.0 Ports Quantity 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity 1

HDMI Ports Quantity 1

HDMI Version 2.1

DisplayPorts Quantity 2

Power Cables Quantity 1

Expansion Slots

PCI Express x1 (Gen 3.x) Slots 1

PCI Express x16 (Gen 3.x) Slots 1

Design

Chassis Type Tower

Product Colour Black

Performance

Trusted Platform Module (TPM) Supported

TPM Version 2.0

Software

Operating System Installed Not specified

Power

Redundant Power Supply (RPS) Support Not specified

Power Supply 500 W

Power Supply Input Voltage 115 - 230 V
