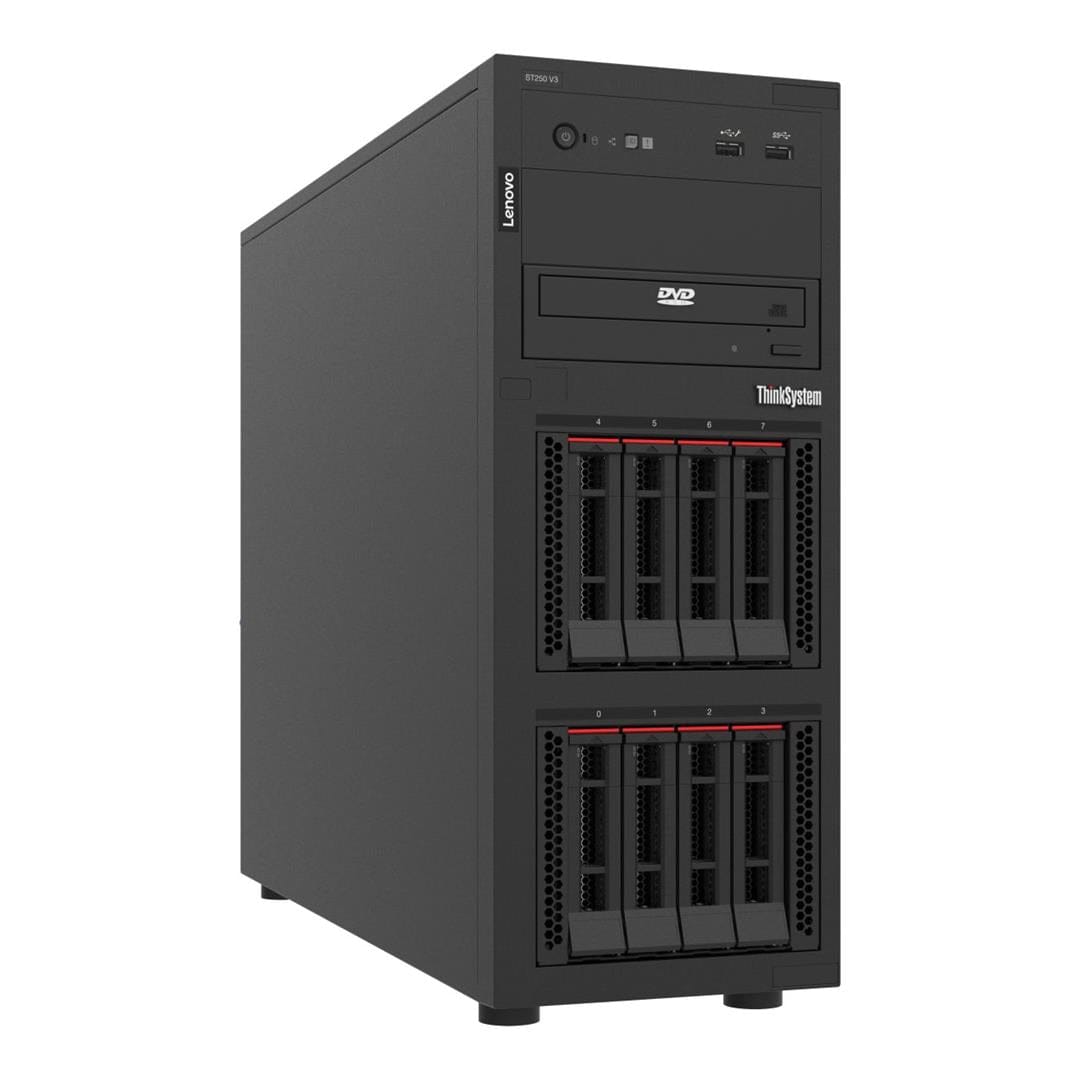

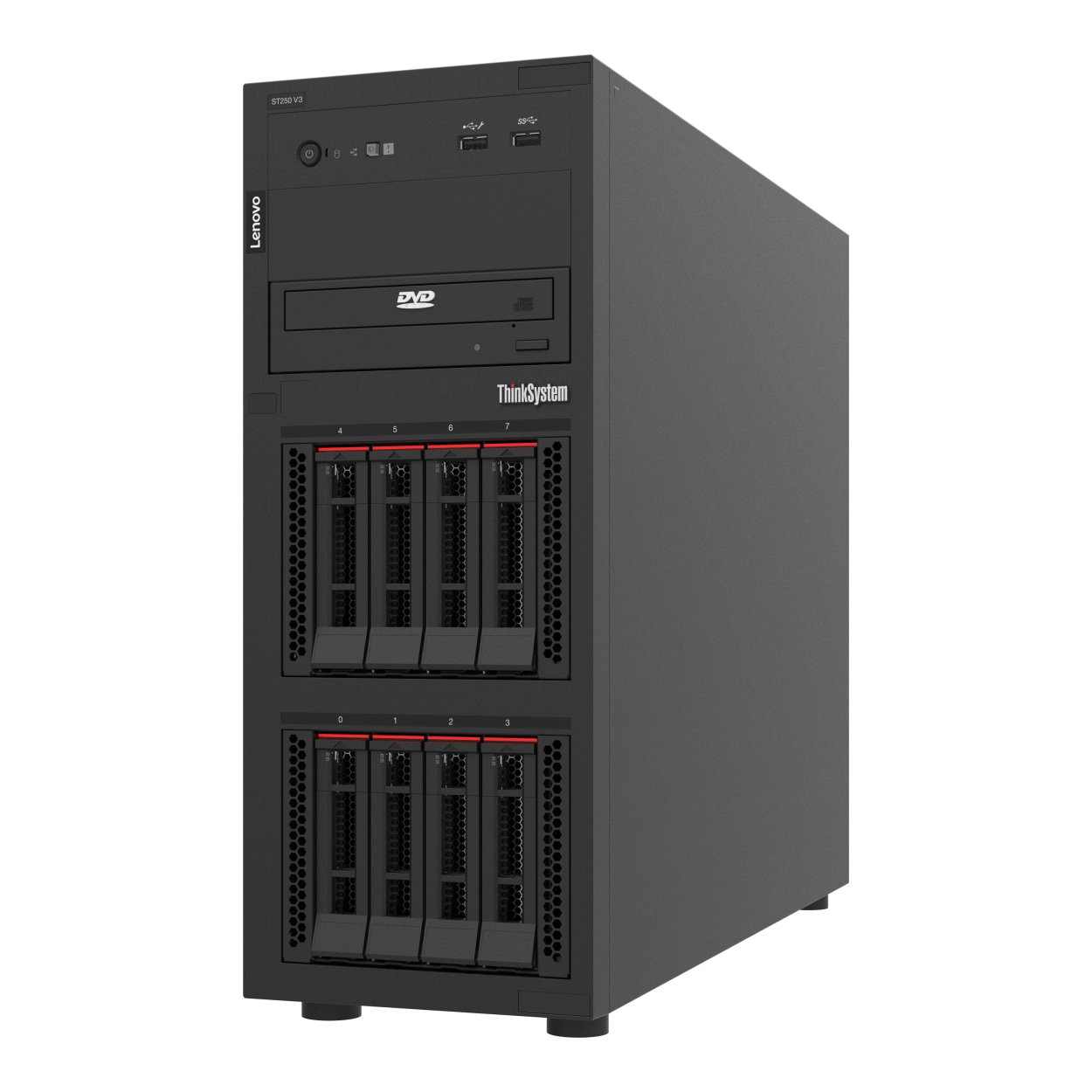

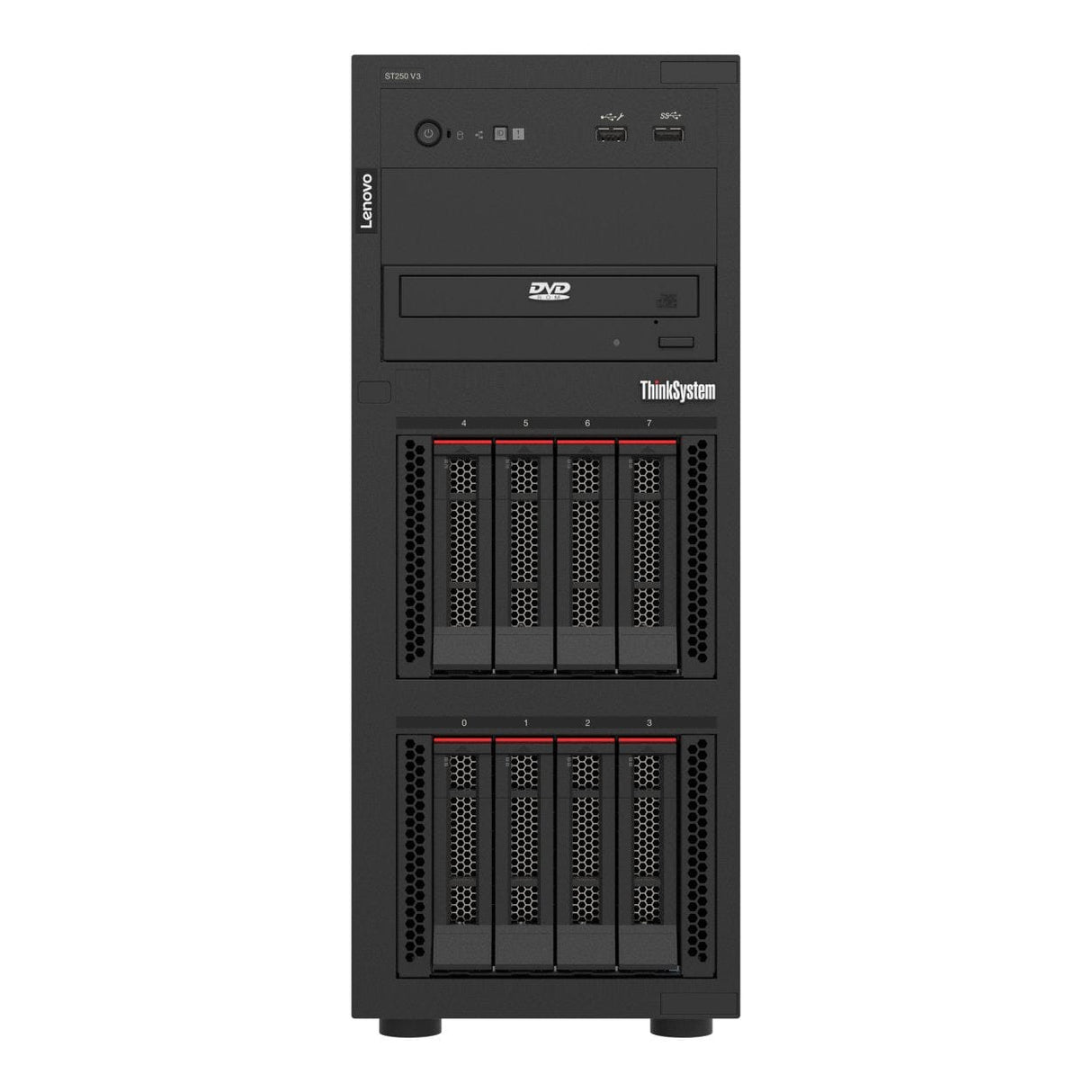

Lenovo ThinkSystem ST250 V3 Tower Server - Intel Xeon 6353P 1.92TB SSD 32GB RAM 800W 7DCE100EEA

Lenovo ThinkSystem ST250 V3 Tower Server - Intel Xeon 6353P 1.92TB SSD 32GB RAM 800W 7DCE100EEA

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".

This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.

Technical Specifications:

Processor
Processor Manufacturer: Intel
Processor Family: Intel® Xeon®
Processor Model: 6353P
Processor Frequency: 2.7 GHz
Processor Boost Frequency: 5.4 GHz
Performance Cores: 8
Processor Cores: 8
Processor Cache: 24 MB
Number of Processors Installed: 1

Memory
Internal Memory: 32 GB
Internal Memory Type: DDR5-SDRAM
Memory Slots: 4x DIMM
ECC: Yes
Memory Clock Speed: 4800 MHz
Memory Layout (Slots x Size): 1 x 32 GB
Maximum Internal Memory: 128 GB

Storage
Total Storage Capacity: 1.92 TB
Number of SSDs Installed: 2
SSD Capacity: 960 GB
RAID Support: Yes
RAID Levels: 0, 1, 5, 10, 50
Supported RAID Controllers: 940-8i 4GB
Hot-Swap: Yes
Internal Drive Bays: 8
Supported Storage Drive Interfaces: SAS, Serial ATA

Graphics
On-Board Graphics Card: Yes
Maximum Graphics Card Memory: 16 MB

Network
LAN Controller: Broadcom 5719
Ethernet LAN: Yes
Cabling Technology: 10/100/1000Base-T(X)
Ethernet Interface Type: Gigabit Ethernet

Ports & Interfaces
Ethernet LAN (RJ-45) Ports: 2
USB 2.0 Ports Quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity: 5
VGA (D-Sub) Ports Quantity: 1
Serial Ports Quantity: 1

Design
Chassis Type: Tower
Product Colour: Black

Performance
Performance Management: XCC Platinum
Trusted Platform Module (TPM) Version: 2.0

Software
Compatible Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Power
Power Supply: 800 W
Number of Main Power Supplies: 1

Operational Conditions
Operating Temperature (T-T): 5 - 45 °C
Storage Temperature (T-T): -40 - 60 °C
Operating Relative Humidity (H-H): 8 - 90%
Storage Relative Humidity (H-H): 8 - 90%
Operating Altitude: 0 - 3050 m

Certificates
80 PLUS Certification: 80 PLUS Platinum

Weight & Dimensions
Width: 176 mm
Depth: 578 mm
Height: 444 mm

Technical Details
Supported Storage Drives Form Factor (Rear): 2.5"
