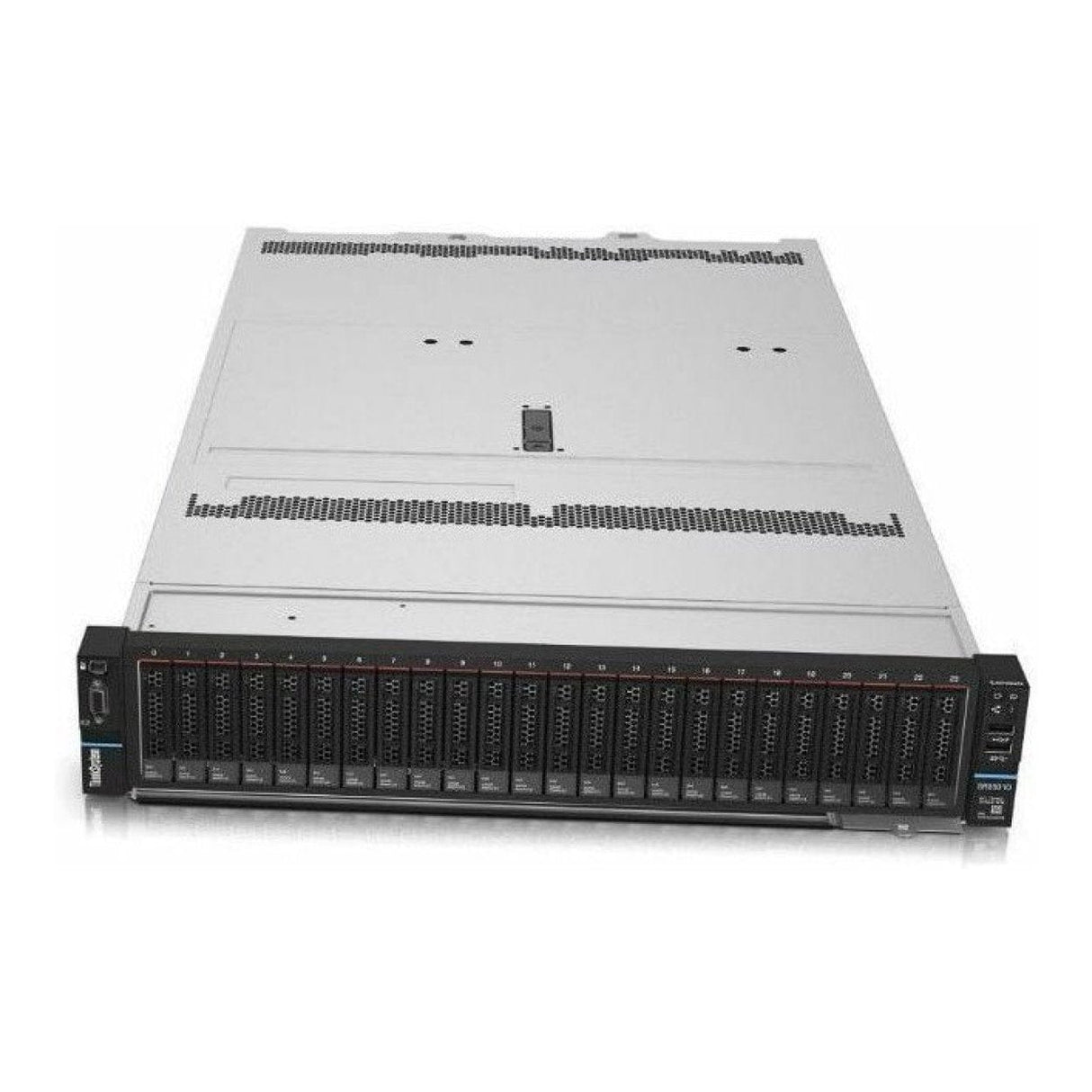

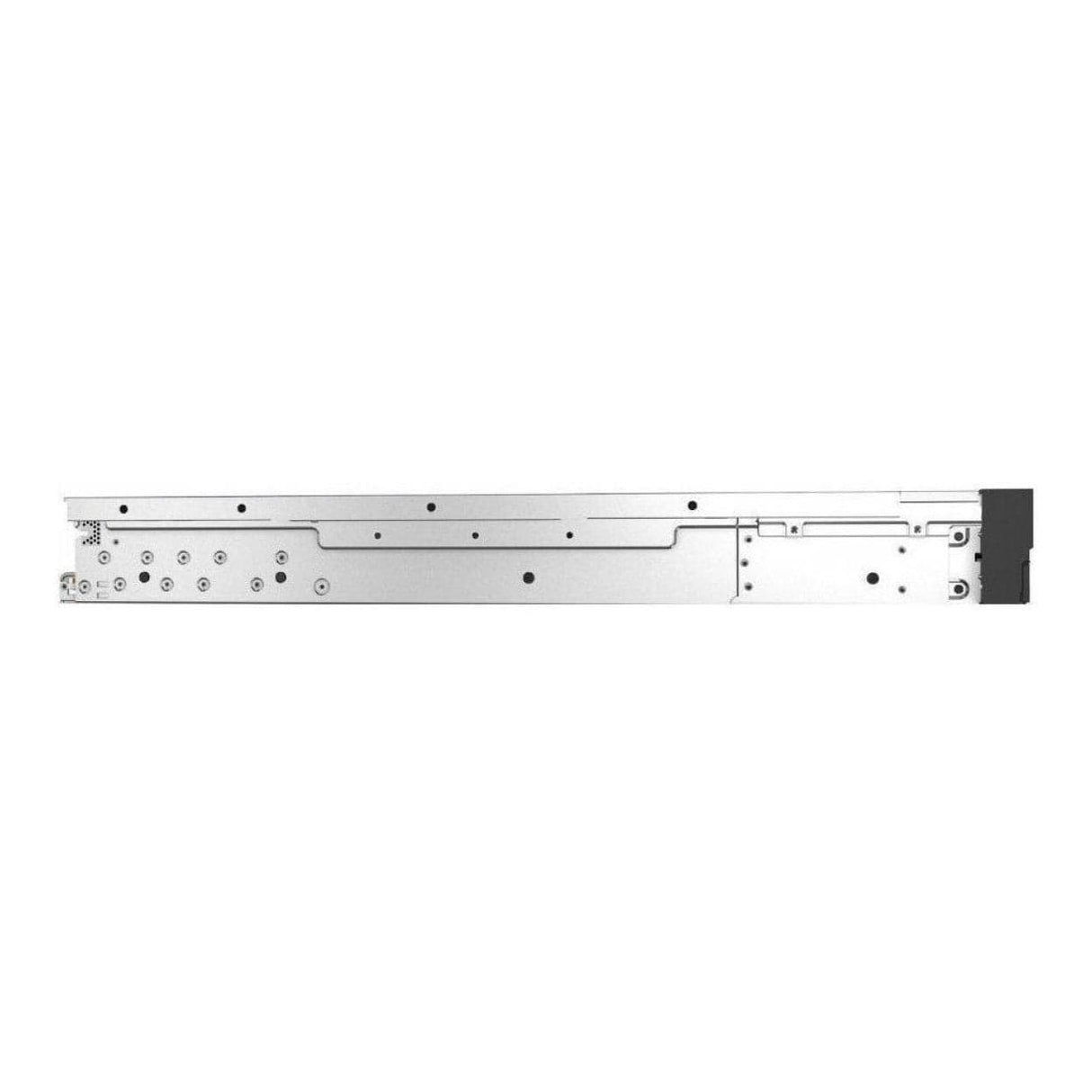

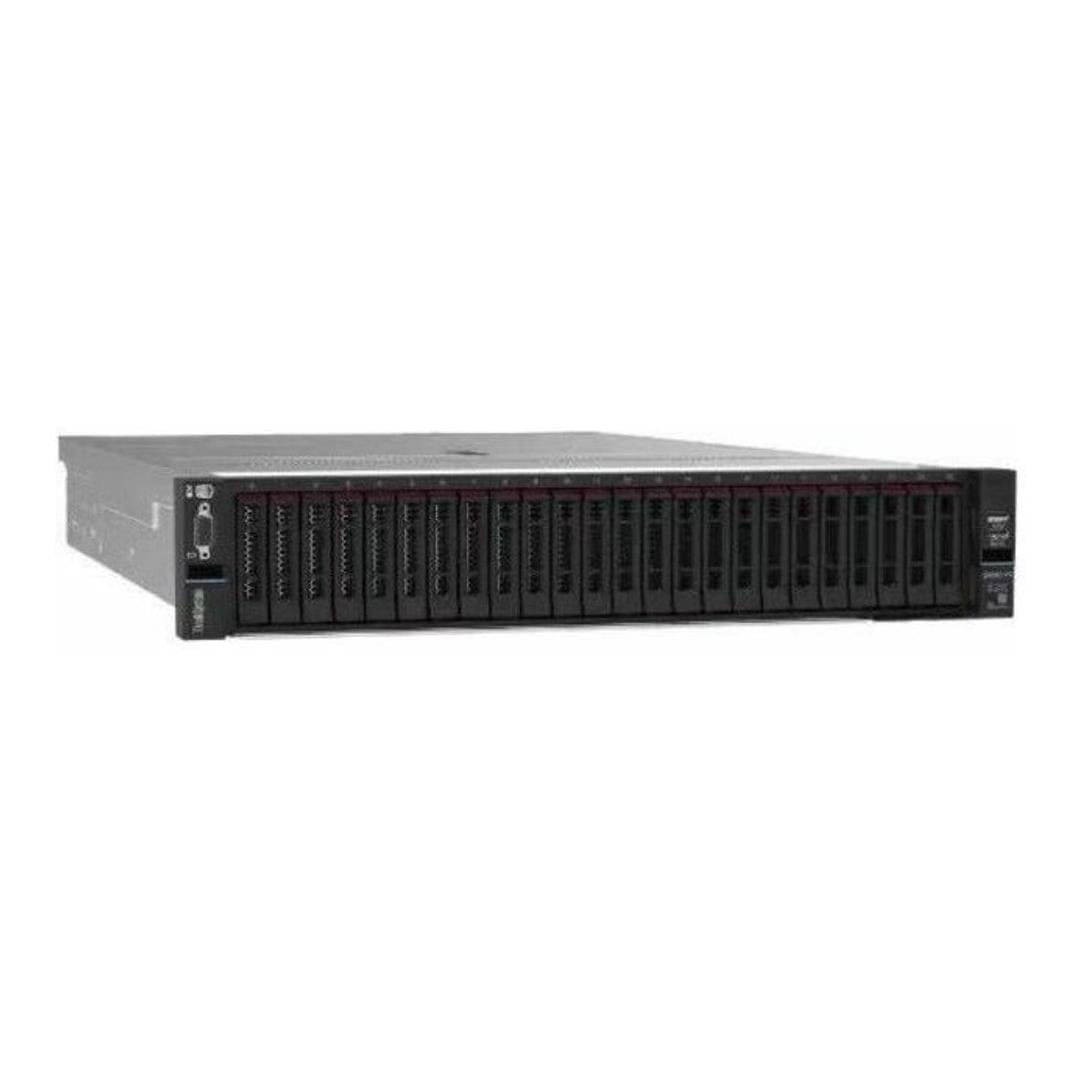

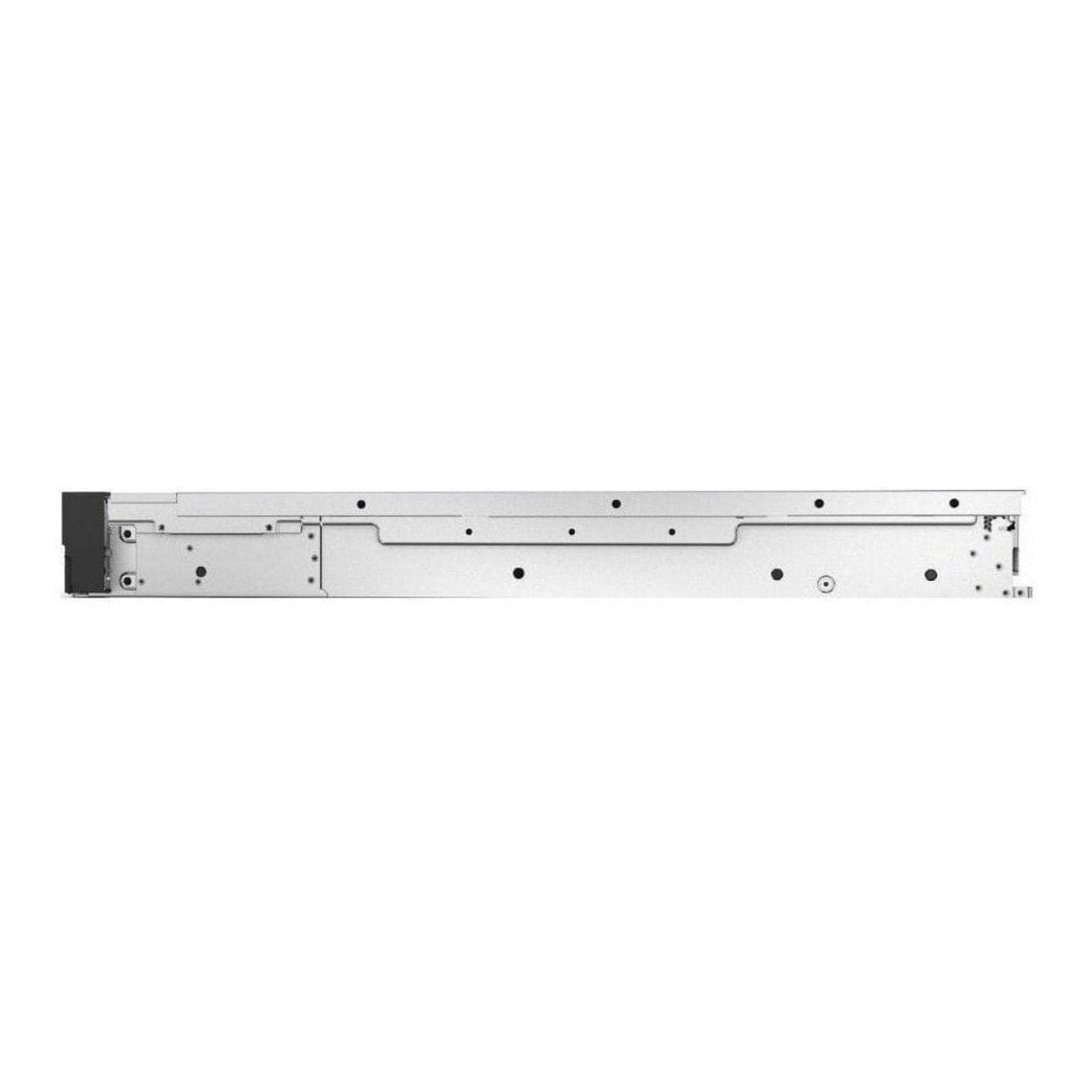

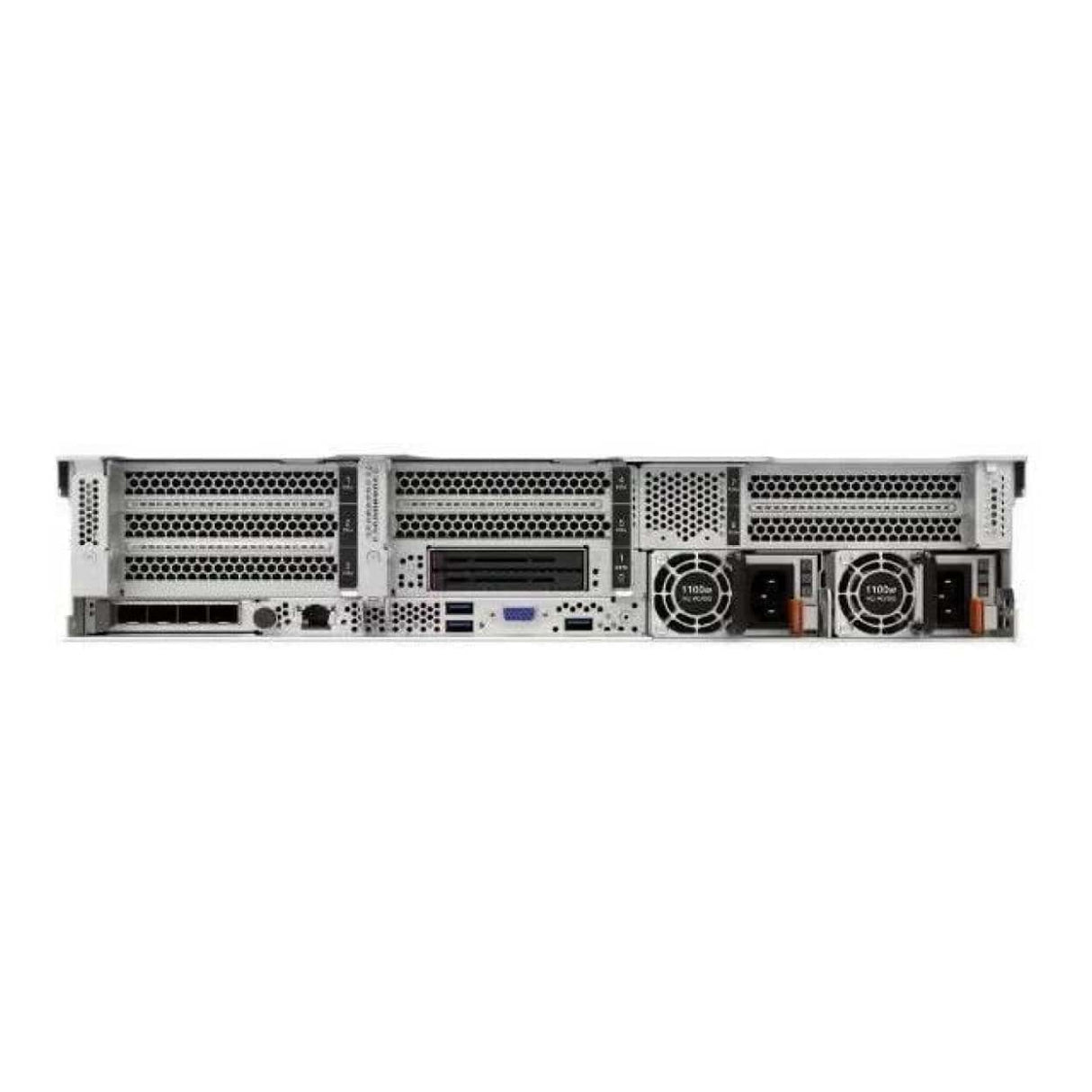

Lenovo ThinkSystem SR650 V3 2U Server Rack - Intel Xeon Silver 4514Y 32GB RAM 1100W 7D76A05MEA

Lenovo ThinkSystem SR650 V3 2U Server Rack - Intel Xeon Silver 4514Y 32GB RAM 1100W 7D76A05MEA

The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.

Technical Specifications:

Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Generation: 5th Gen
Processor Model: 4514Y
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2 GHz
Cache: 30 MB

Chipset
Chipset Manufacturer: Intel
Chipset Model: C741

Memory
Standard Memory: 32 GB
Maximum Memory Supported: 8 TB
Memory Technology: TruDDR5
Memory Clock Speed: 4.40 GHz
Error Checking: ECC
Total Number of Memory Slots: 32
Number of Occupied Memory Slots: 1
Intel Optane Memory Ready: Yes
Signal Processing: Registered (Buffered)

Controllers
Controller Type: 12Gb/s SAS
Controller Model: 940-8i 4GB
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60

I/O Expansions
Number of Total Expansion Bays: 8
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 3
PCI Express Details: 3 (x16, x8, x8) Gen4

Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2600
Graphics Memory Capacity: 16 MB

Network & Communication
Ethernet Technology: Gigabit Ethernet
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Number of VGA Ports: 2
Remote Management: Yes
Remote Management Controller: XClarity Controller 2 (XCC2) Platinum

Operating System
Operating System Supported: Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 9.3, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Server 15 SP5, Ubuntu 22.04 LTS x64, Red Hat Enterprise Linux 9.4, Ubuntu 24.04 LTS x64, SUSE Linux Enterprise Server 15 SP6, Windows Server 2025, Red Hat Enterprise Linux 8.10, Red Hat Enterprise Linux 9.5, Ubuntu 20.04 LTS x64, Windows 10 x64, Windows 11, Windows 11 Pro x64, Windows 10 Pro x64, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 8.6, 8.7, 8.8, 8.9, 9.0, 9.1, 9.5

Power Description
Input Voltage: 120 V AC, 230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 1.10 kW
Hot Swappable Power Supply: Yes
Power Source: Power Supply

Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 86.4 mm
Width: 444.5 mm
Depth: 764.5 mm
Weight (Approximate): 38.80 kg

Miscellaneous
Package Contents: ThinkSystem SR650 V3 7D76A05MEA Server, Toolless Slide Rail Kit
Security Features: Power-on Password, Administrator's Password, Root of Trust Module Supporting TPM 2.0, Platform Firmware Resiliency (PFR)
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: China Environmental Labeling Program (CELP), Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze), GREENGUARD
Energy Efficiency Certification: China Energy Conservation Program (CECP), ENERGY STAR 4.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
