Lenovo ThinkSystem SR250 V3 Rack Server - Intel Xeon E-2468 32GB RAM 800W 7DCLCTO1WW

Lenovo ThinkSystem SR250 V3 Rack Server - Intel Xeon E-2468 32GB RAM 800W 7DCLCTO1WW

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon 6300 Series processor or one Intel Xeon E2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB memory.

Features

• Intel Xeon E-2468 (24MB Cache, 2.6GHz)
• 32GB (4800MHz) DDR5-SDRAM (1 x 32)

Warranty: 3yr Base

Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.

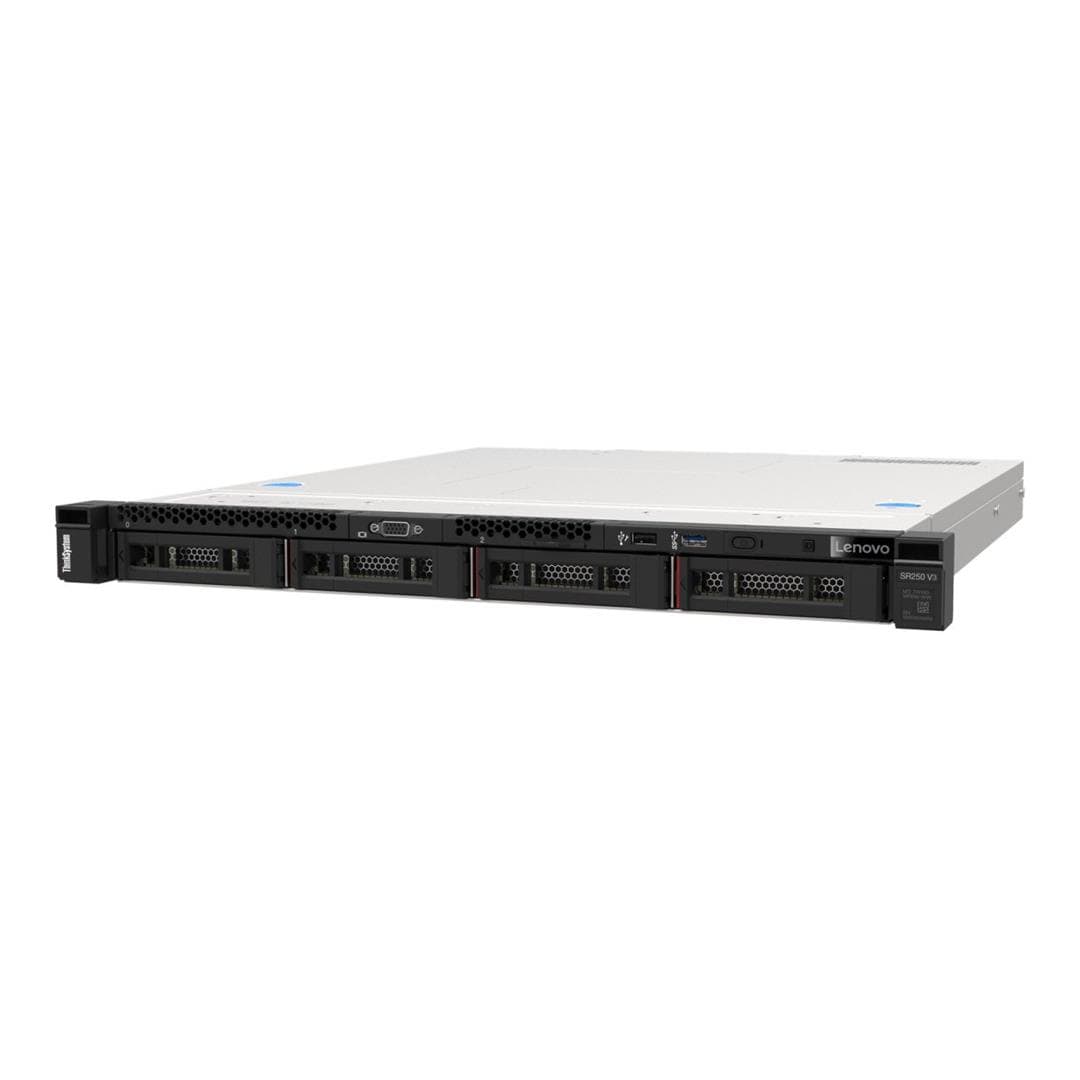

The next-generation Lenovo XClarity Controller 2 (XCC2), which is built into the SR250 V3 server, provides advanced service processor control, monitoring, and alerting functions. Target workloads are: Database, Entry Cloud, IT Infrastructure, Virtualization, Web The following figure shows the Lenovo ThinkSystem SR250 V3 with four 3.5-inch hot-swap drives.

The ThinkSystem SR250 V3 is an entry-level server with enterprise-grade management features and support for hot-swap power supplies and drives. It offers full support of Lenovo XClarity Administrator for comprehensive systems management and includes the next generation UEFI-based Lenovo XClarity Provisioning Manager for system setup and diagnosis, and the Lenovo XClarity Controller 2 (XCC2) management processor for ongoing systems management and alerting. These tools make the SR250 V3 easy to deploy, integrate, service, and manage.

Features

The SR250 V3 server is a compact, cost-effective, single-processor 1U rack server that has been optimized to provide enterprise-class features to small-to-medium-sized businesses, retail stores, or distributed enterprises.

Scalability and performance

The SR250 V3 offers the following features to boost performance, improve scalability, and reduce costs:

• Improved single-socket processor performance:
• Intel Xeon E-2400 Series processors ("Raptor Lake") up to to 8 cores and core speeds up to 3.5
• GHz
• Intel Pentium G7400 and G7400T processors ("Alder Lake") with 2 cores and core speeds up to
• 3.7 GHz
• Up to four 4800 MHz DDR5 ECC UDIMMs provide speed and capacity of up to 128 GB
• Offers flexible and scalable internal storage in a 1U rack form factor with up to 4x 3.5-inch drives for
• capacity-optimized configurations
• Up to three PCle slots for I/O expansion, riser dependent, one of which has the new PCle Gen5
• interface to maximize VO performance
• The use of solid-state drives (SSDs) instead of, or along with, traditional hard disk drives (HDDs) can
• significantly improve I/O performance. An SSD can support up to 100 times more /O operations per
• second (IOPS) than a typical HDD.
• New high-speed RAID controllers from Lenovo and Broadcom provide Gb SAS connectivity to the
• drive backplanes
• Supports two M.2 drives for OS boot support with VROC RAID or hardware RAID redundancy
• The server has two integrated Gigabit Ethernet ports
• Support for a NVIDIA GPU for enhanced workload performance

Availability and serviceability

The SR250 V3 server provides many features to simplify serviceability and increase system uptime:

• Designed to run 24 hours a day, 7 days a week
• The SR250 V3 supports UDIMMmemory with ECCprotection which provides error correction not
• available in PC-class "servers" that use parity memory. Avoiding system crashes (and data loss) due
• to soft memory errors means greater system uptime.
• Provides easy access to upgrades and serviceable parts (such as memory DIMMs and adapter cards)
• with tool-less cover removal.
• Much like hot-swap drives, simple-swap drives are mounted on an easy-to-remove tray and work with
• the same RAID options. Simple-swap require a system power-down before adding or replacing,
• however simple-swap drives are less expensive than hot-swap drives.
• Offers data protection and greater system uptime with a choice of affordable onboard SATA RAID or
• advanced hardware RAID redundancy, along with hot-swap drives (select models).
• The server supports hot-swap power supplies; with two installed, they form a redundant pair to
• provide availability for business-critical applications.
• The built-in Lenovo XClarity Controller (XCC2) continuously monitors system parameters, triggers
• alerts, and performs recovery actions in case of failures to minimize downtime.
• Allows preventive actions in advance of possible failure, thereby increasing server uptime and
• application availability with Proactive Platform Alerts (including PFA and SMART alerts) for memory, internal storage (SAS/SATA HDDs and SSDs, NVMe SSDs, M.2 SSDs), RAID controllers, and server ambient and sub-component temperatures.
• Provides quick access to system status, firmware, network, health, and alerts information via Virtual
• Operator Panel from the Clarity Mobile App running on the Android or iOS mobile device that is
• connected to the front USB port with XCC2 access.
• Built-in diagnostics in UEFI, using Lenovo XClarity Provisioning Manager, speed up troubleshooting
• tasks to reduce service time.
• Lenovo Clarity Provisioning Manager supports diagnostics and can save service data to a USB key
• drive or remote CIFS share folder for troubleshooting and reduce service time.
• Support for the Clarity Administrator Mobile app running on a supported smartphone and connected
• to the server through the service-enabled USB port, enables additional local systems management
• functions.
• Auto restart in the event of a momentary loss of AC power (based on power policy setting in the
• XClarity Controller service processor) (hot-swap power supplies only)
• One-year or three-year customer-replaceable unit (CRU) and onsite limited warranty with next
• business day response. Optional service upgrades are available.

Technical Specifications:

Processor
Processor Manufacturer: Intel
Processor Family: Intel Xeon E
Processor Model: E-2468
Processor Frequency: 2.6 GHz
Processor Boost Frequency: 5.2 GHz
Performance Cores: 8
Processor Cores: 8
Processor Cache: 24 MB
Number of Processors Installed: 1

Motherboard
Motherboard Chipset: Intel C266

Memory
Internal Memory: 32 GB
Internal Memory Type: DDR5-SDRAM
Memory Slots: 4 x DIMM
ECC: Yes
Memory Clock Speed: 4800 MHz
Maximum Internal Memory: 128 GB

Storage
Total Storage Capacity: 1.92 TB
Number of SSDs Installed: 2
SSD Capacity: 960 GB
RAID Support: Yes
Supported RAID Controller: 940-8i 4 GB
Internal Drive Bays: 8
Supported Storage Drive Interfaces: SAS, SATA
Supported Storage Drive Form Factor (Rear): 2.5"

Graphics
On-Board Graphics Card: Yes
On-Board Graphics Card Model: Not Available
Maximum Graphics Card Memory: 16 MB

Network
LAN Controller: Broadcom BCM5720
Ethernet LAN: Yes
Cabling Technology: 10/100/1000Base-T(X)
Ethernet Interface Type: Gigabit Ethernet

Ports & Interfaces

• Ethernet LAN (RJ-45) Ports: 2
• USB 2.0 Ports: 2
• USB 3.2 Gen 1 Type-A Ports: 3
• VGA (D-Sub) Ports: 1
• Serial Ports: 1

Design
Chassis Type: Rack (1U)
Product Colour: Black, Silver

Performance
Performance Management: XClarity Controller Platinum
Trusted Platform Module (TPM): Yes
TPM Version: 2.0

Software
Compatible Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Power
Redundant Power Supply (RPS) Support: Yes
Power Supply: 800 W
Number of Main Power Supplies: 2
Power Supply Input Voltage: 100 - 240 V
Power Supply Input Frequency: 50/60 Hz

Environmental Conditions
Storage Temperature: -40 °C to 60 °C
Storage Relative Humidity: 8% to 90%
Operating Altitude: 0 to 3050 m

Physical Specifications
Width: 434.4 mm
Depth: 561 mm
Height: 43 mm
