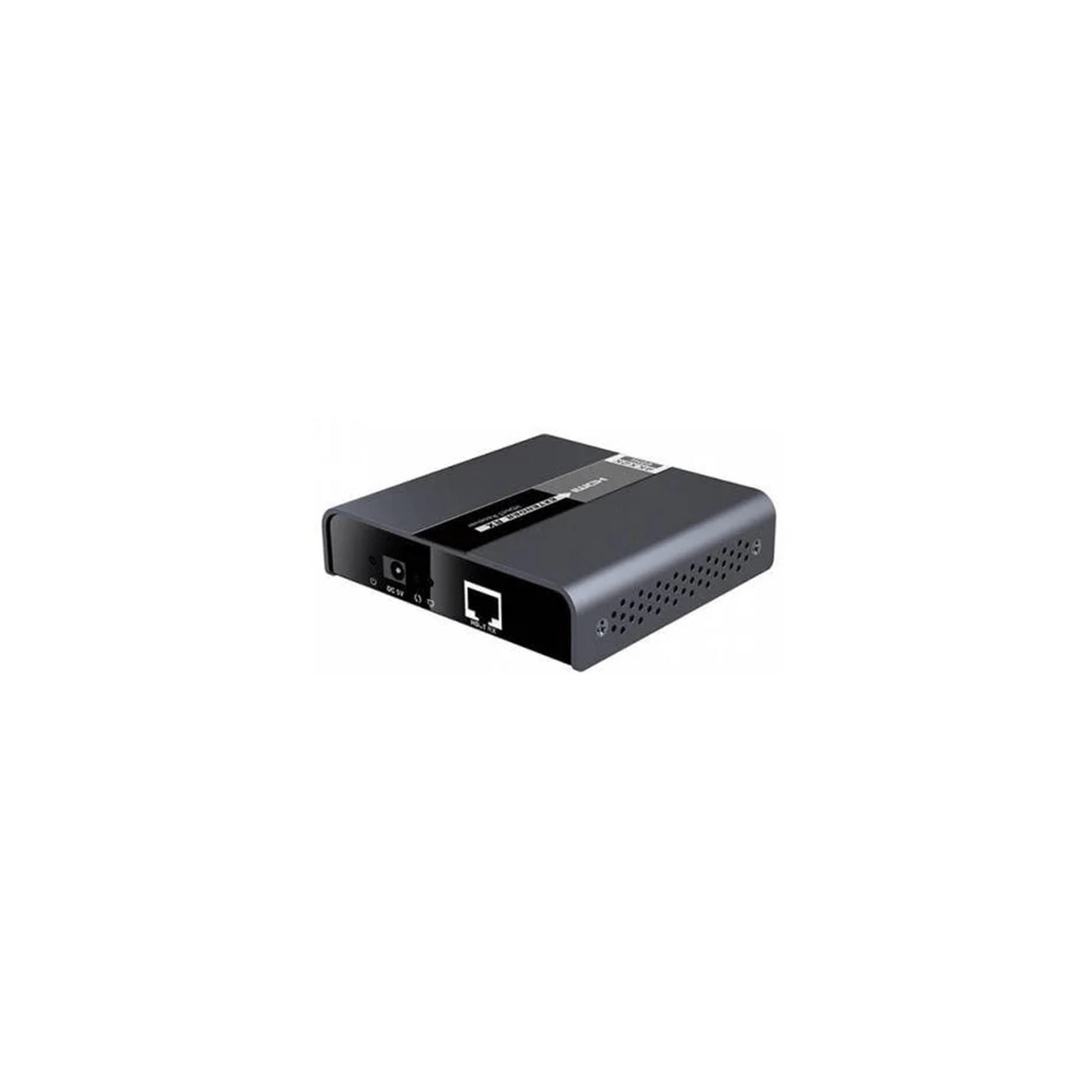

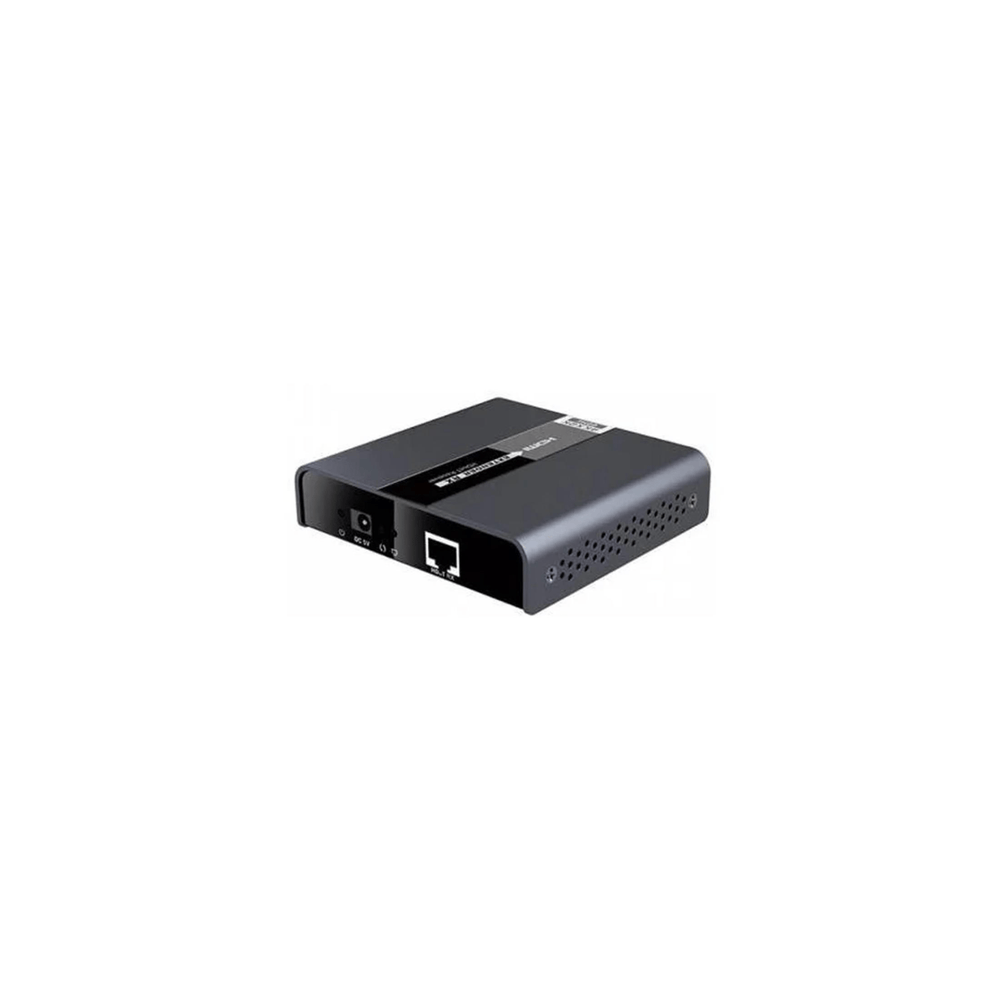

Lenkeng LKV393-RX HDbitT HDMI Extender Receiver

Lenkeng LKV393-RX HDbitT HDMI Extender Receiver

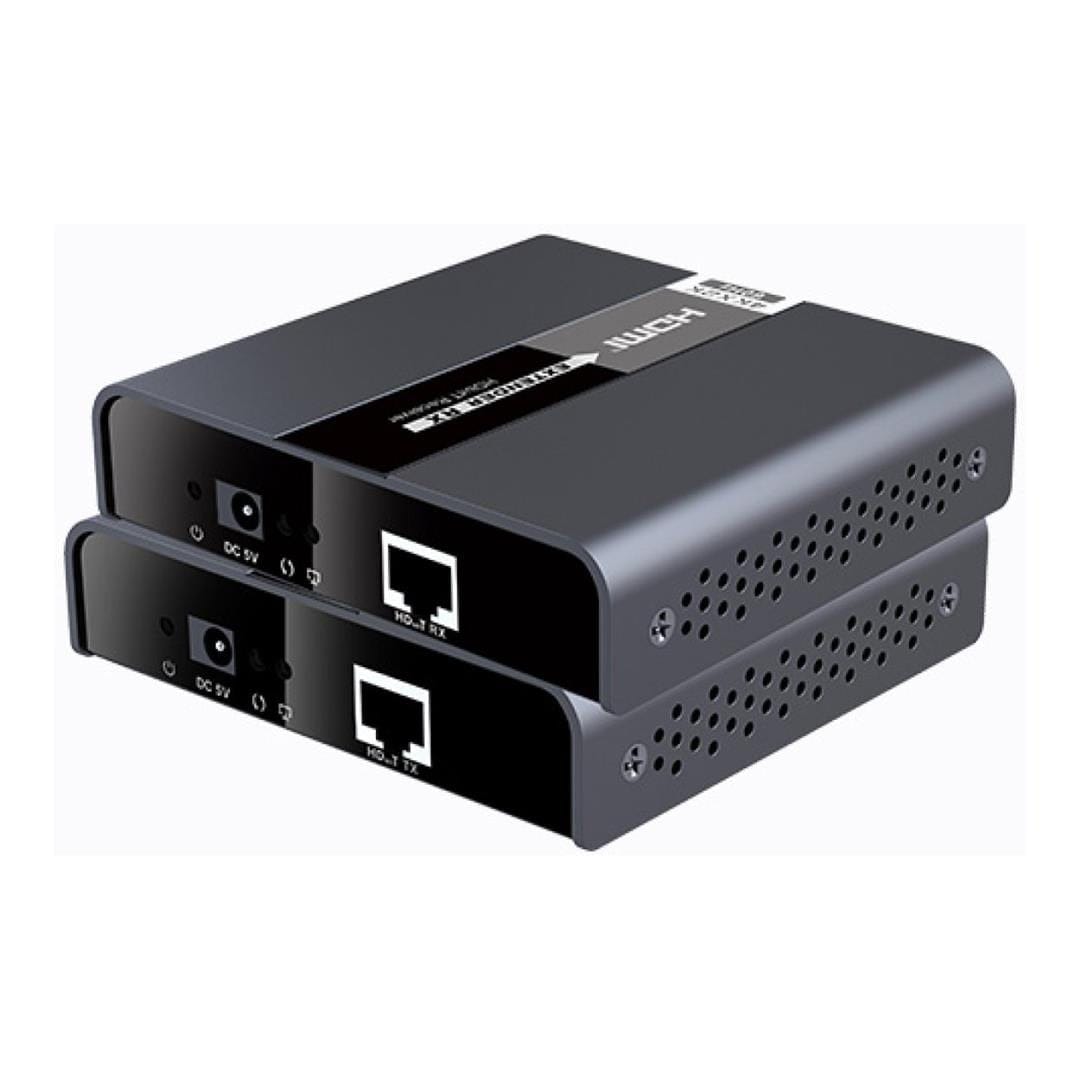

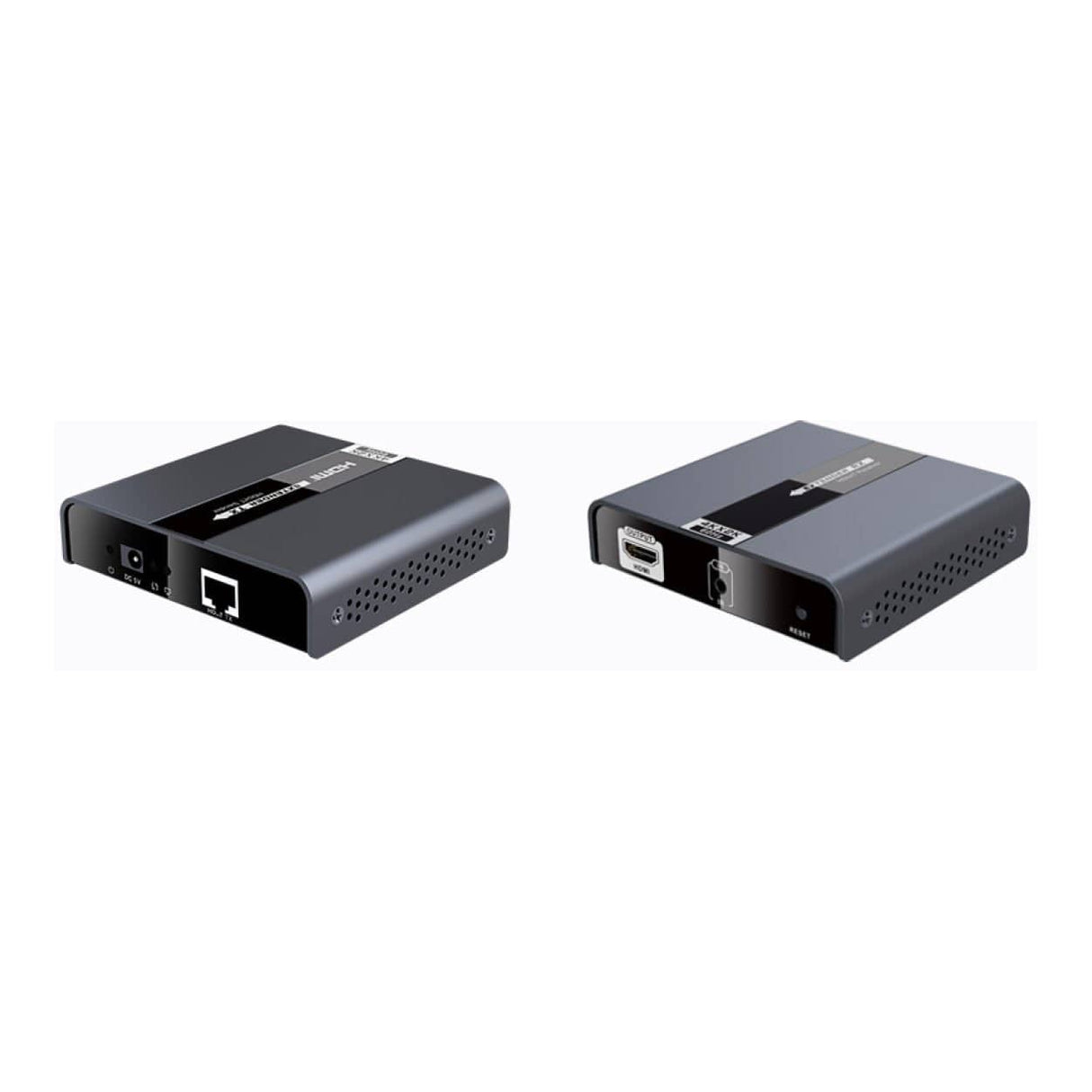

HDbitT HDMI extender includes a transmitter unit(TX) and a receiver unit(RX). It applied advanced HDbitT technology, the resolution supported is up to 4Kx2K 60Hz ultra HD. It supports one to one and one to many connections, the transmission distance is up to 120 meters. With IR passback function, it is very easy to control media playback of the signal source device at the display location.

• HDMI 2.0 and HDCP2.2 compliant
• Extend HDMI signal over a single CAT5/6
• Resolution supported is up to 4Kx2K 60Hz ultra HD
• Support one to one and one to many configuration
• Long transmission distance up to 120 meters (high quality CAT6 can up to 150m)
• IR passback with 20-60KHz wide frequency to control source device from receiver side easily.

Specifications

Brand: Lenkeng

Item model number: CNV-LKV393-RX

Product Type: HDMI Extender

Voltage /Current: DC5V/3A

HDMI compliance: HDMI2.0

Maximum transfer rate: 18Gbps

Transmission Length: 120m

Connector: RJ45

Dimension: 103 x 97.5 x 24.8mm

Material: Iron alloy material + crystal panel

Colour: Black
