Lenkeng LKV401MV-V2.0 HDMI 4x1 Quad Multiviewer Switcher
The LENKENG LKV401MV-V2.0 is an HDMI multiview switcher designed to display and manage video from up to four HDMI sources on a single screen. Its quad, dual and full-screen viewing modes make it a practical choice for monitoring rooms, control environments, presentations and other multi-source display applications.
Users can change the viewing mode using the supplied IR control system or the buttons on the front panel. The plug-and-play unit is housed in a durable metal enclosure and features a wall-mountable design for convenient installation.
View Four HDMI Sources on One Display
Four HDMI inputs allow compatible computers, media players, cameras and other HDMI source devices to be connected to one HDMI display. Quad mode presents all four sources together, while dual and full-screen modes provide flexible alternatives for different monitoring requirements.

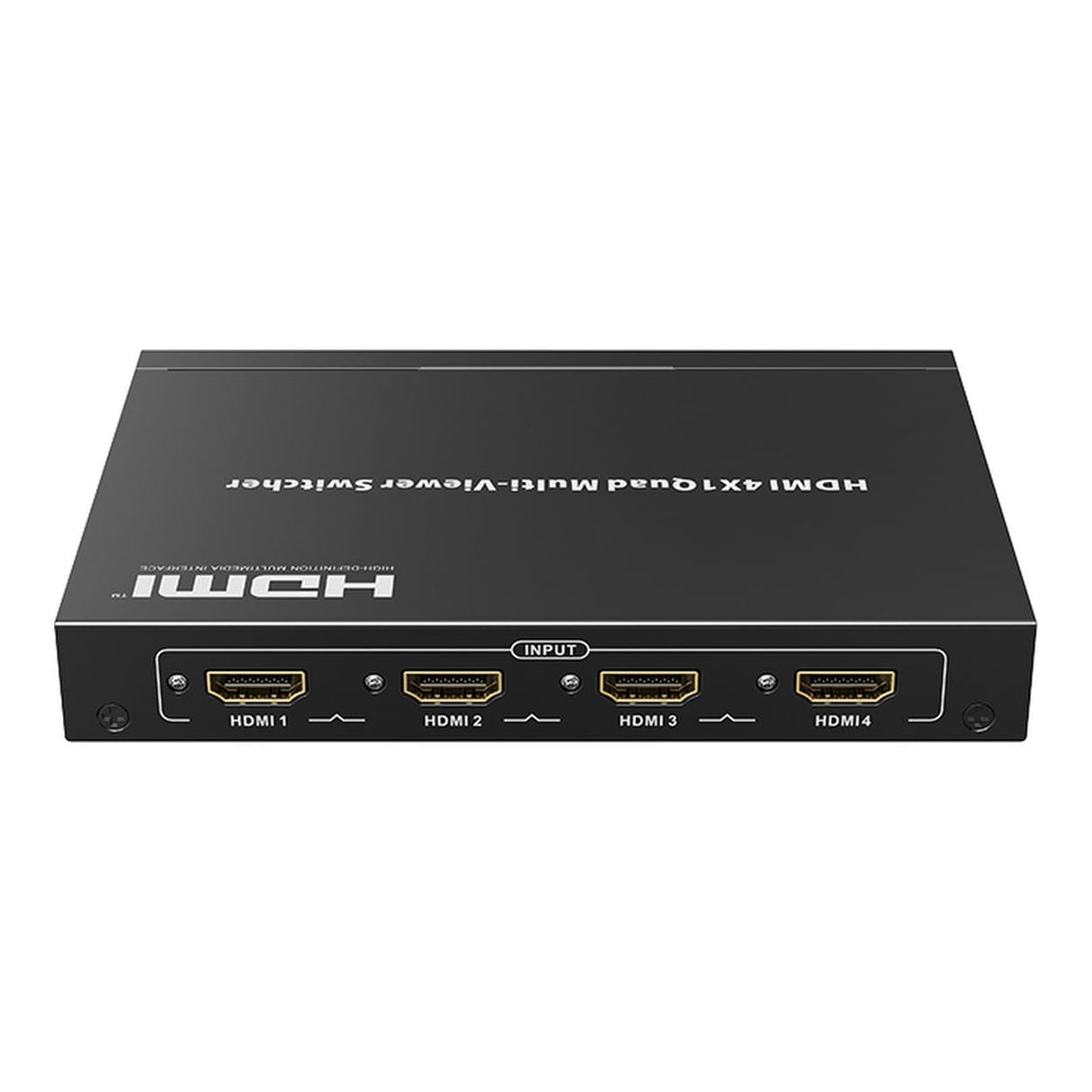

- Four HDMI inputs: Connect and manage video from up to four compatible HDMI source devices.

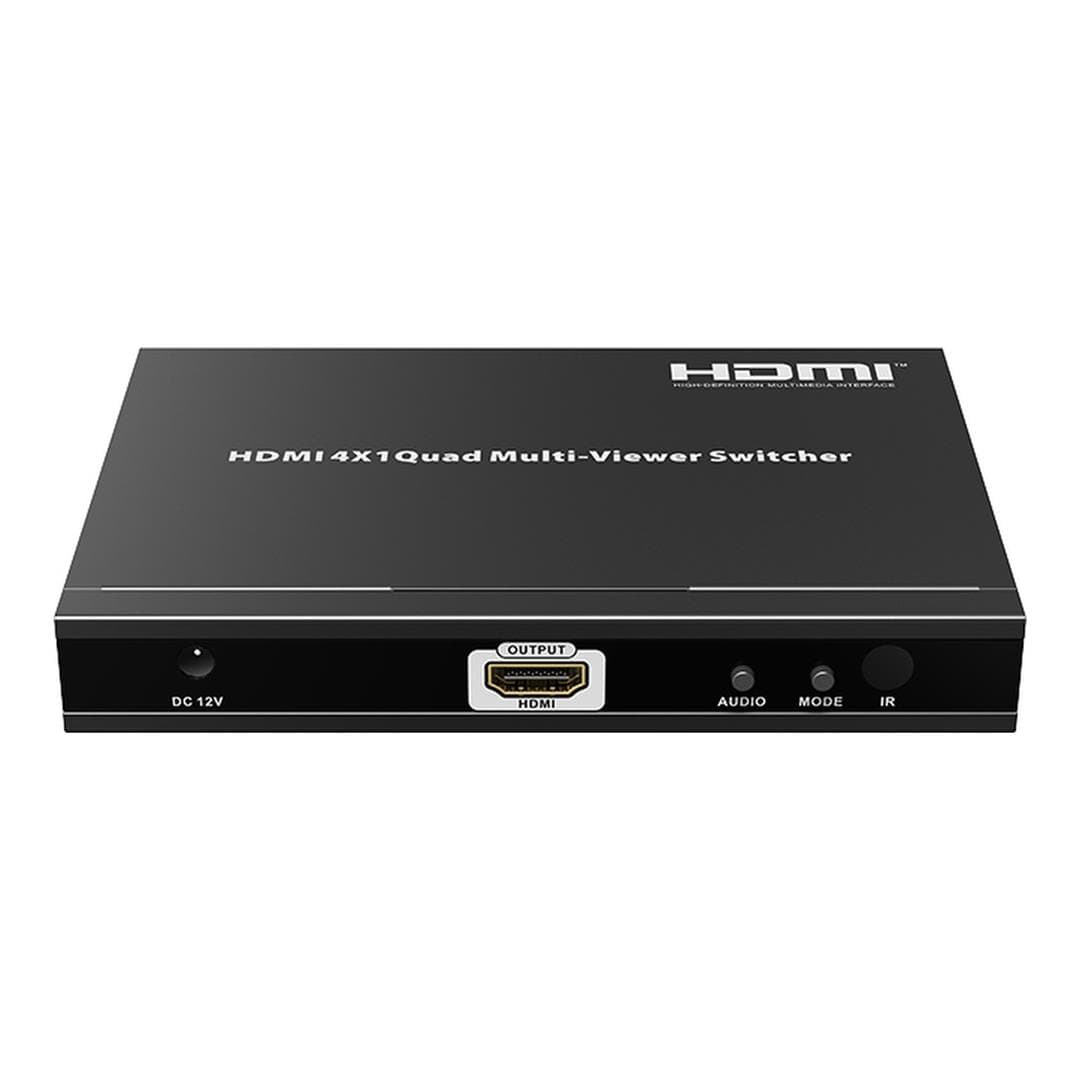

- Single HDMI output: Present the selected multiview layout on one connected display.
- Multiple viewing modes: Choose between quad, dual and full-screen display modes.
- Flexible control: Change modes using IR remote control or the front-panel buttons.
- Up to 1920 × 1200 input: Supports a broad selection of video and computer input resolutions.
- 1080p output: Outputs video at either 720p at 60 Hz or 1080p at 60 Hz.
- Installation-ready design: The metal enclosure is wall-mountable and designed to support stable 24/7 operation.
Practical Control and Installation
The switcher operates without additional software, helping simplify deployment in fixed or temporary AV installations. Its compact black metal housing measures 178.50 × 104.74 × 21.20 mm and weighs 340 g, making it suitable for desks, equipment areas and wall-mounted installations.
Supported Viewing Modes
- Quad mode: View all four connected HDMI sources together.
- Dual mode: Present two sources in a dual-view layout.
- Full-screen mode: Display one selected HDMI source across the screen.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LENKENG |
| Model | LKV401MV-V2.0 |
| Product Type | HDMI 4x1 quad multiviewer switcher |
| HDMI Inputs | 4 × HDMI |
| HDMI Outputs | 1 × HDMI |
| Viewing Modes | Quad, dual and full-screen modes |
| HDMI Compatibility | HDMI 1.3 |
| HDCP Compatibility | HDCP 1.4 |
| Maximum Input Resolution | 1920 × 1200 at 60 Hz |
| Supported Video Inputs | 1080p at 24/25/30/50/60 Hz; 720p at 50/60 Hz; 576p at 50 Hz; 480p at 60 Hz |
| Supported Computer Inputs | 1920 × 1200, 1680 × 1050, 1600 × 1200, 1600 × 900, 1440 × 900, 1400 × 1050, 1366 × 768, 1360 × 768, 1280 × 1024, 1280 × 960, 1280 × 800, 1280 × 768, 1024 × 768, 800 × 600 and 640 × 480 at 60 Hz |
| Supported Output Resolutions | 720p at 60 Hz and 1080p at 60 Hz |
| Audio Support | LPCM 2.0 |
| Control | IR remote control and front-panel buttons |
| Specified HDMI Cable Length | Up to 5 m |
| Power Supply | 12 V DC, 1 A |
| Power Consumption | Less than 7 W |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Operating Humidity | 0–90% RH, non-condensing |
| Housing | Metal |
| Colour | Black |
| Dimensions | 178.50 × 104.74 × 21.20 mm |
| Weight | 340 g |
| Installation | Desktop or wall-mounted |
| Operation | Plug and play; supports stable 24/7 operation |
| ESD Protection | Contact discharge level 2 (±4 kV) and air discharge level 3 (±8 kV), tested to IEC 61000-4-2 |
| Additional Protection | Lightning and surge protection |
Bring multiple HDMI sources together on one display with flexible viewing modes, and add the LENKENG LKV401MV-V2.0 to your cart today.
