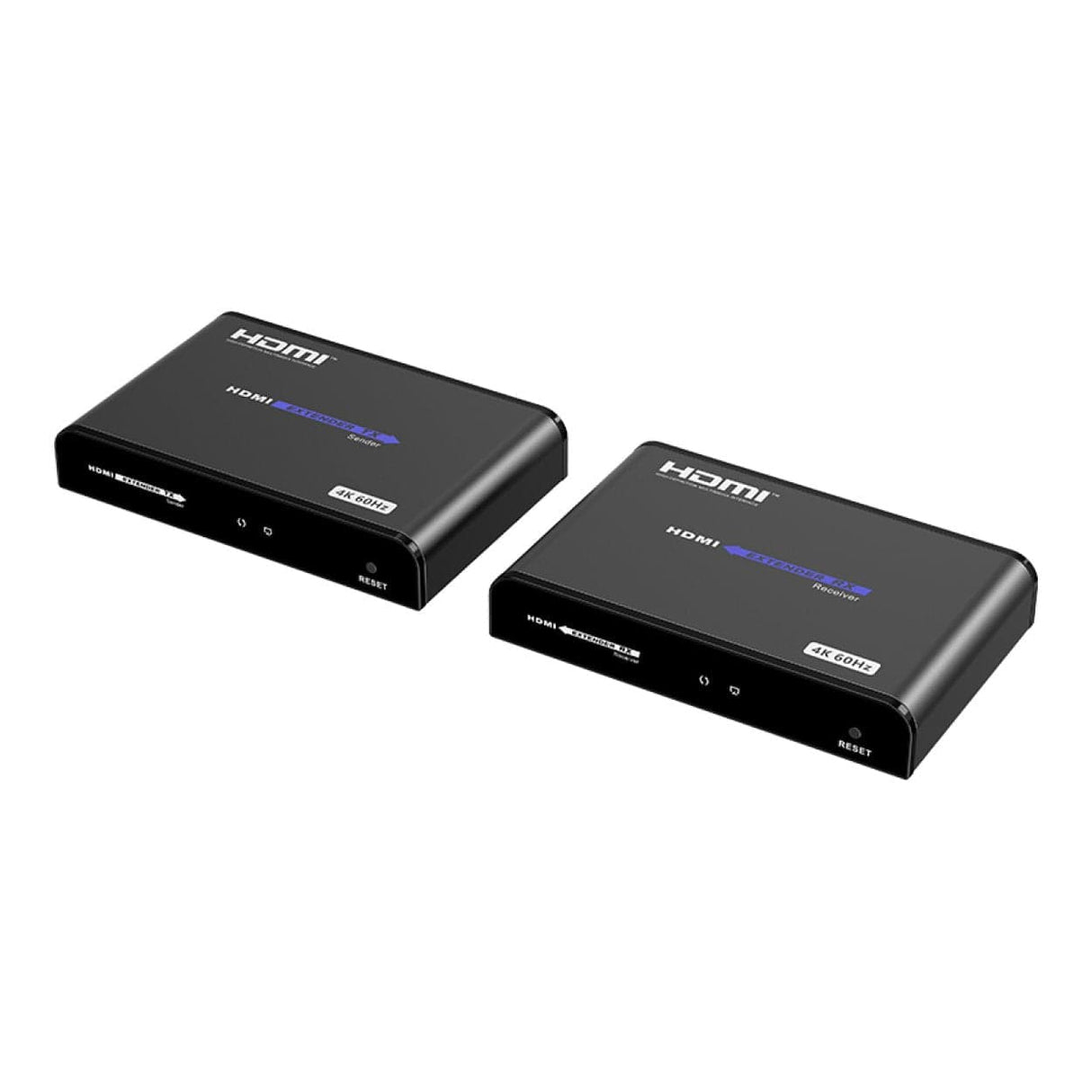

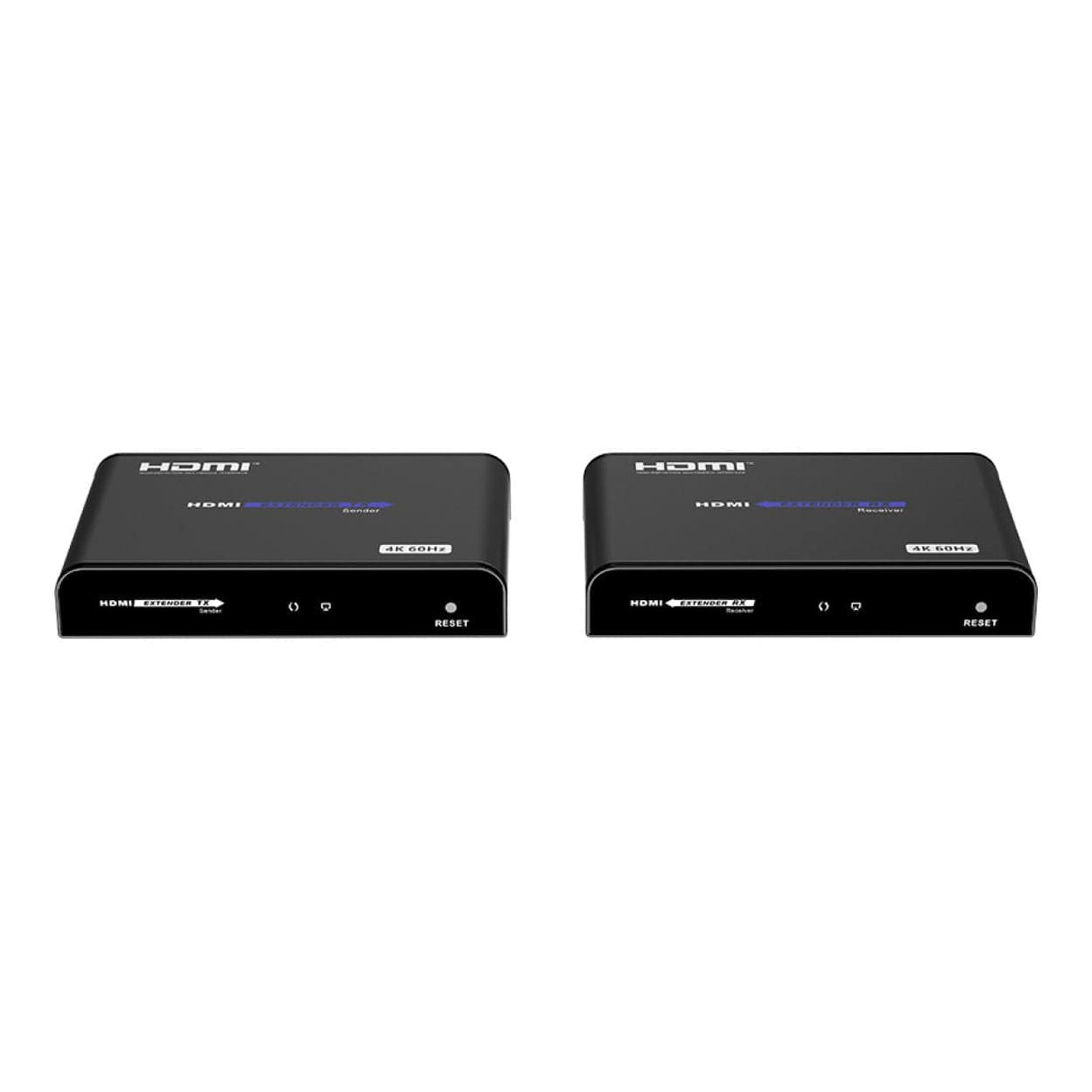

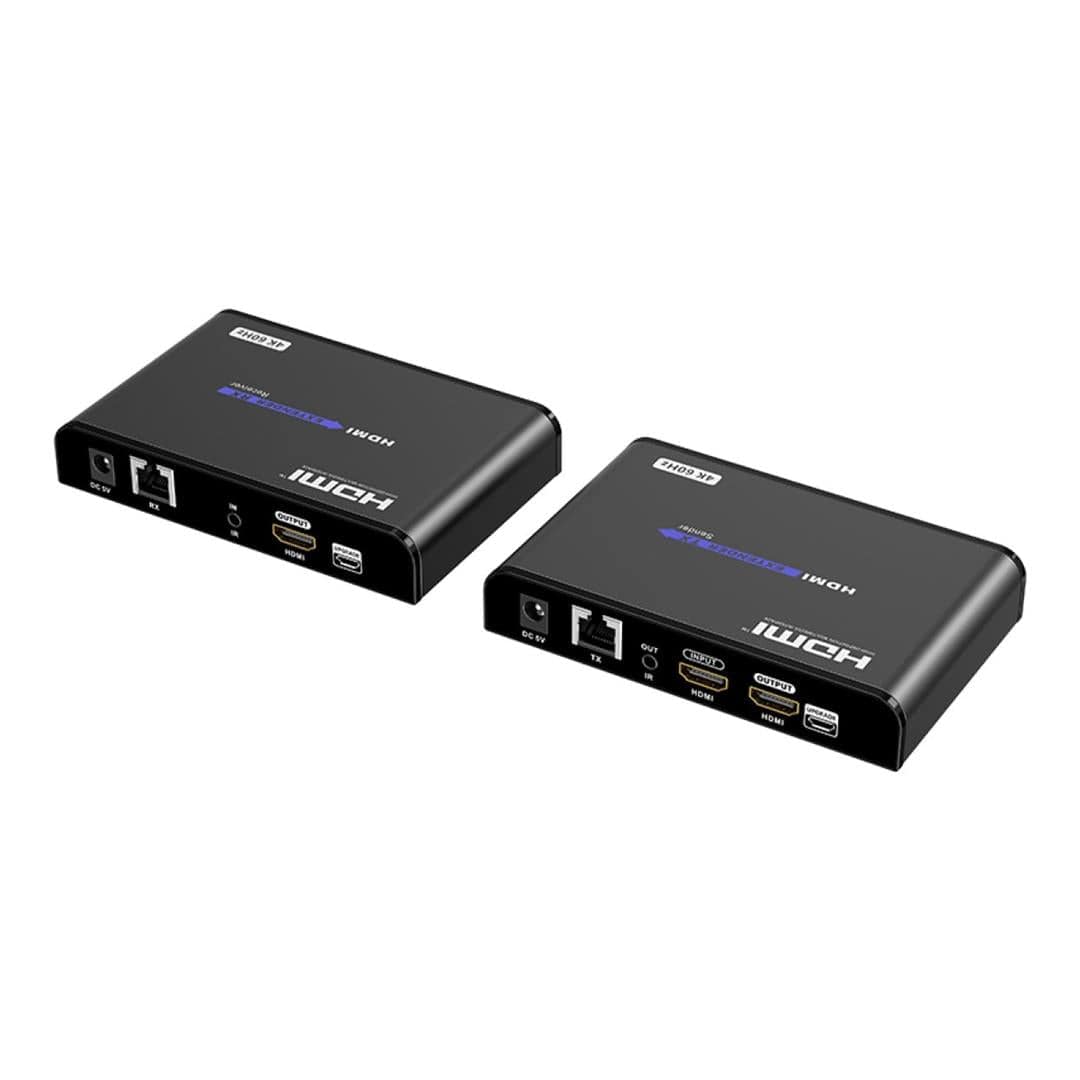

Lenkeng 4K@60Hz HDMI Extender LKV483PRO

Lenkeng 4K@60Hz HDMI Extender LKV483PRO

The Lenkeng LKV483PRO HDMI Extender is designed to deliver high-quality 4K@60Hz video over long distances, making it ideal for professional AV installations, home theaters, or conference rooms. It ensures crystal-clear video and audio transmission without lag, interference, or signal degradation, allowing you to extend HDMI signals up to 60 meters using a single Cat6 cable. Compact and easy to install, this extender provides a reliable solution for seamless high-definition connectivity.

• High-definition and low-latency transmission.
• Support up to 4096x2160@60Hz resolution, backward compatible.
• Compatible with Cat5/5e/6 or above network cables, transmission distance of Cat6 cable is 120 meters.
• Support one-to-one or one-to-many connections through the gigabit switch.
• The transmitter supports HDMI loop out.
• Support IR passback (20~60kHz).
• Firmware can be upgraded through Micro USB.
• Lightning protection, surge protection, ESD protection.
• Supports stable 24/7 operation.

HDMI Length: ≤ 5m
Maximum Transfer Rate: 18Gbps
Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
Resolutions: 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600
Connection Types: One-to-one connection, One-to-many connection
Transmission Distance: CAT5 80m / CAT5E 100m / CAT6 120m
Transmission Latency: 1080P: 80~130ms, 4K@60Hz: 150~220ms
HDMI Output: LPCM 2.0
IR Receiving Range: ≤ 5m
IR Frequency: 20kHz~60kHz
Power Supply: DC 5V / 1A
Power Consumption: TX ≤ 3W, RX ≤ 3W
Working Temperature: -20°C to 60°C
Storage Temperature: -30°C 70°C
Humidity: 0~90%RH (no condensation)
Housing: Aluminium
Weight: TX: 200g, RX: 196g
Colour: Black
Dimensions: 130.0(L) x 84.0(W) x 23.2(H)mm
Protection: ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of standard IEC61000-4-2, Lightning protection, Surge protection

What's in the box

• TX unit x 1
• RX unit x 1
• Power adapters x 2
• IR cables x 2
• User manual x 1
