Lenkeng 4K 60Hz 1x4 HDMI IPColour Splitter CNV-LKV824P-N

Lenkeng 4K 60Hz 1x4 HDMI IPColour Splitter CNV-LKV824P-N

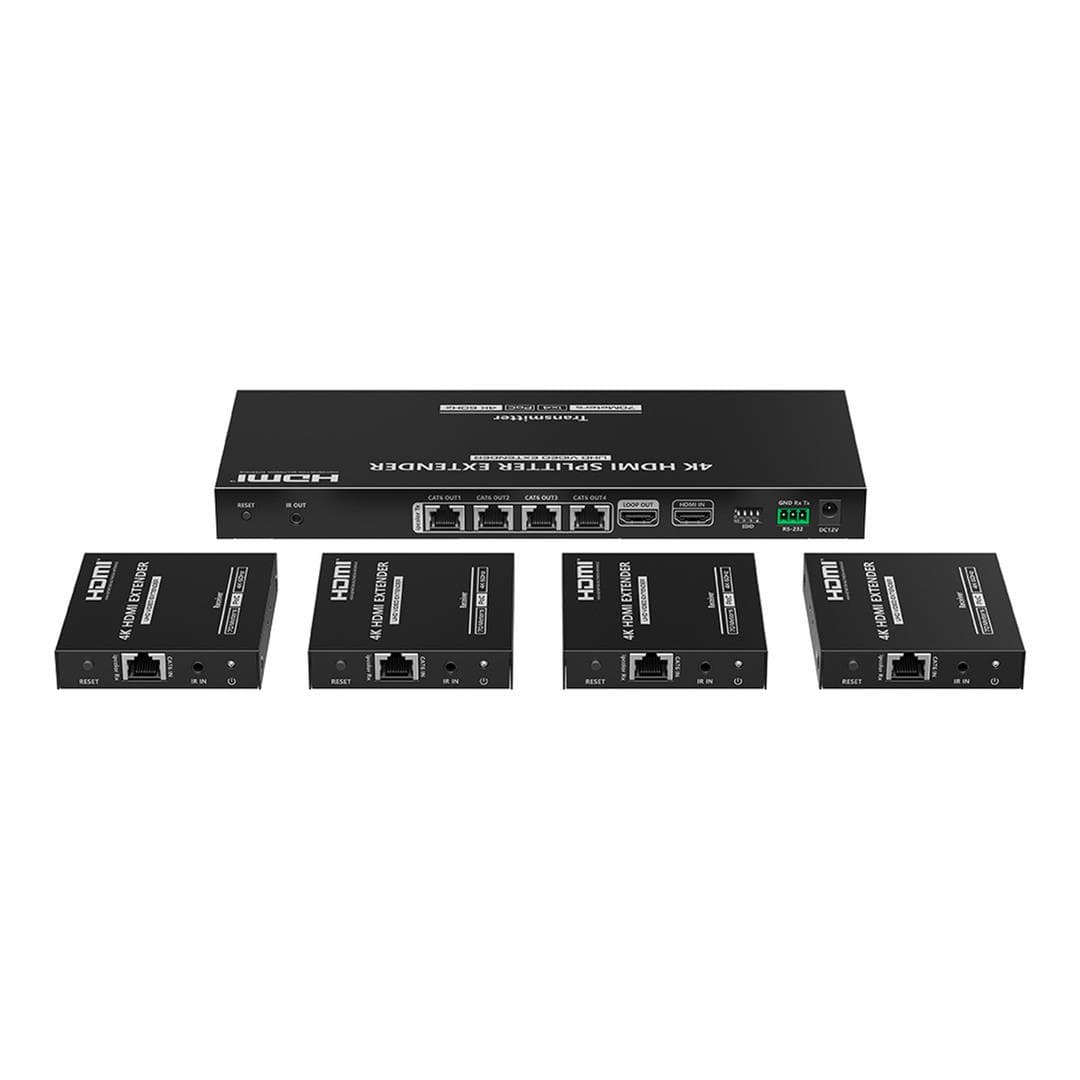

The Lenkeng LKV824P-N is a 1x4 HDMI splitter extender designed to distribute one HDMI source to four remote displays over standard network cabling. It supports resolutions up to 4K at 60 Hz and extends signals over distances of up to 70 metres using Cat6, Cat6A or Cat7 cable, making it suitable for digital signage, control rooms, education spaces and other multi-display installations.

Distribute 4K Video to Four Locations

The system splits a single HDMI input into four identical remote network outputs while supporting HDMI 2.0, HDCP 2.2 and video resolutions up to 3840 x 2160 at 60 Hz. The transmitter also provides an HDMI loop output for connecting an additional display at the source location.

Long-Distance Transmission with PoC

HDMI signals can be extended by up to 70 metres over Cat6, Cat6A or Cat7 cable. Power over Cable technology allows the connected receivers to receive power from the transmitter, so only the transmitter requires a power supply and fewer power sockets are needed around the displays.

Practical AV Control and Audio Support

IR passback allows compatible source equipment to be controlled from the display locations, while RS-232 support provides an additional option for integration with professional control systems. Each receiver also includes a 3.5 mm stereo output for connecting compatible external audio equipment.

Designed for Professional Installations

EDID switching helps installers configure display compatibility, while the supplied rack-mount ears support organised installation in an AV rack. The iron housings incorporate ESD, lightning and surge protection, and the system is designed to support stable 24/7 operation.

Key Features:

• Splits and extends one HDMI input to four identical remote display outputs.
• Supports resolutions up to 4K at 60 Hz for detailed, high-resolution video.
• Extends HDMI signals up to 70 metres using Cat6, Cat6A or Cat7 cable.
• Zero-latency transmission supports responsive viewing and control applications.
• PoC powers the receivers from the transmitter, helping to simplify installation.
• Supports IR passback, RS-232 control, EDID switching and HDMI loop output.
• Receiver-side 3.5 mm stereo outputs provide a convenient external audio connection.

Technical Specifications:

Distribute a 4K HDMI source across multiple locations with practical long-distance transmission and control features, and add the Lenkeng LKV824P-N to your cart today.
