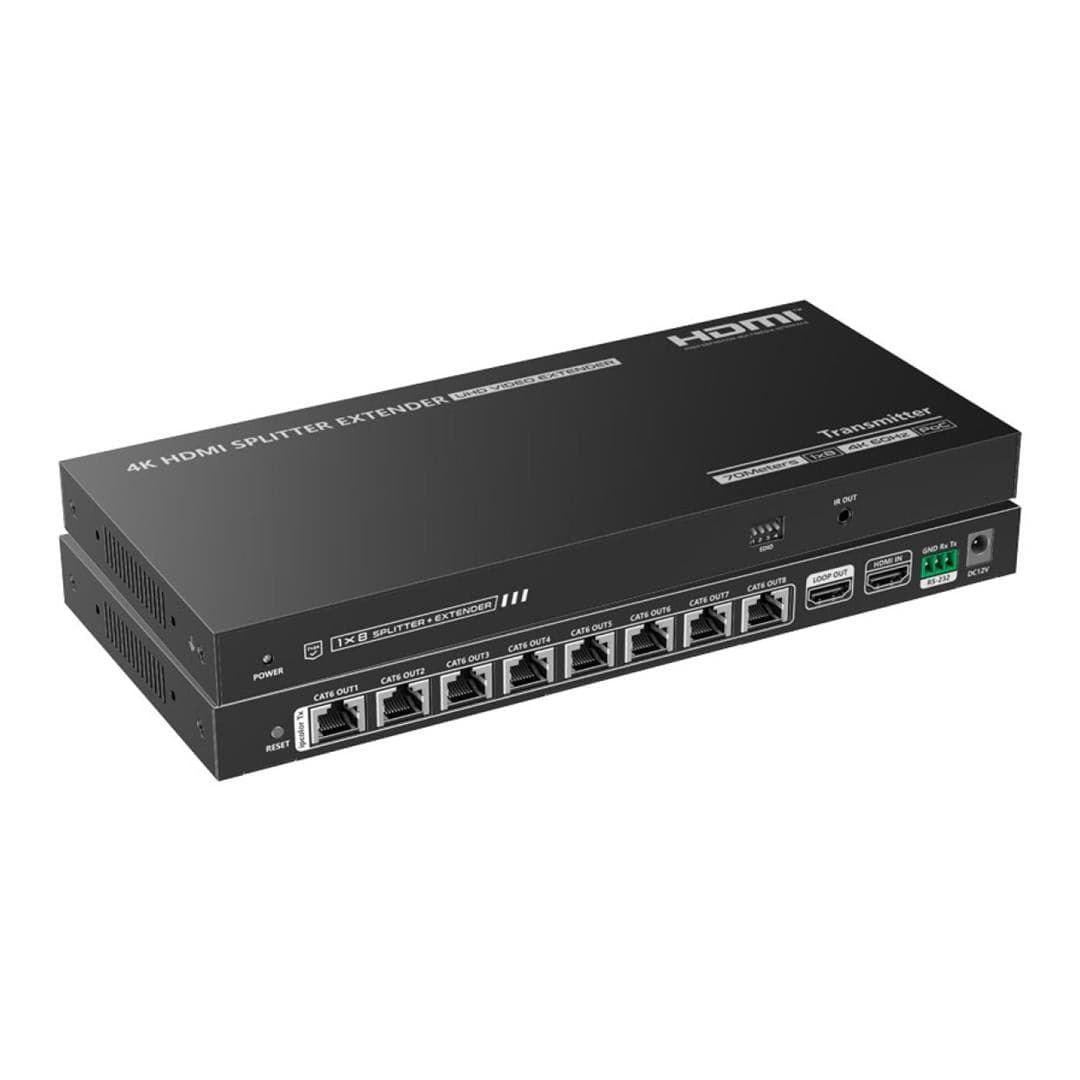

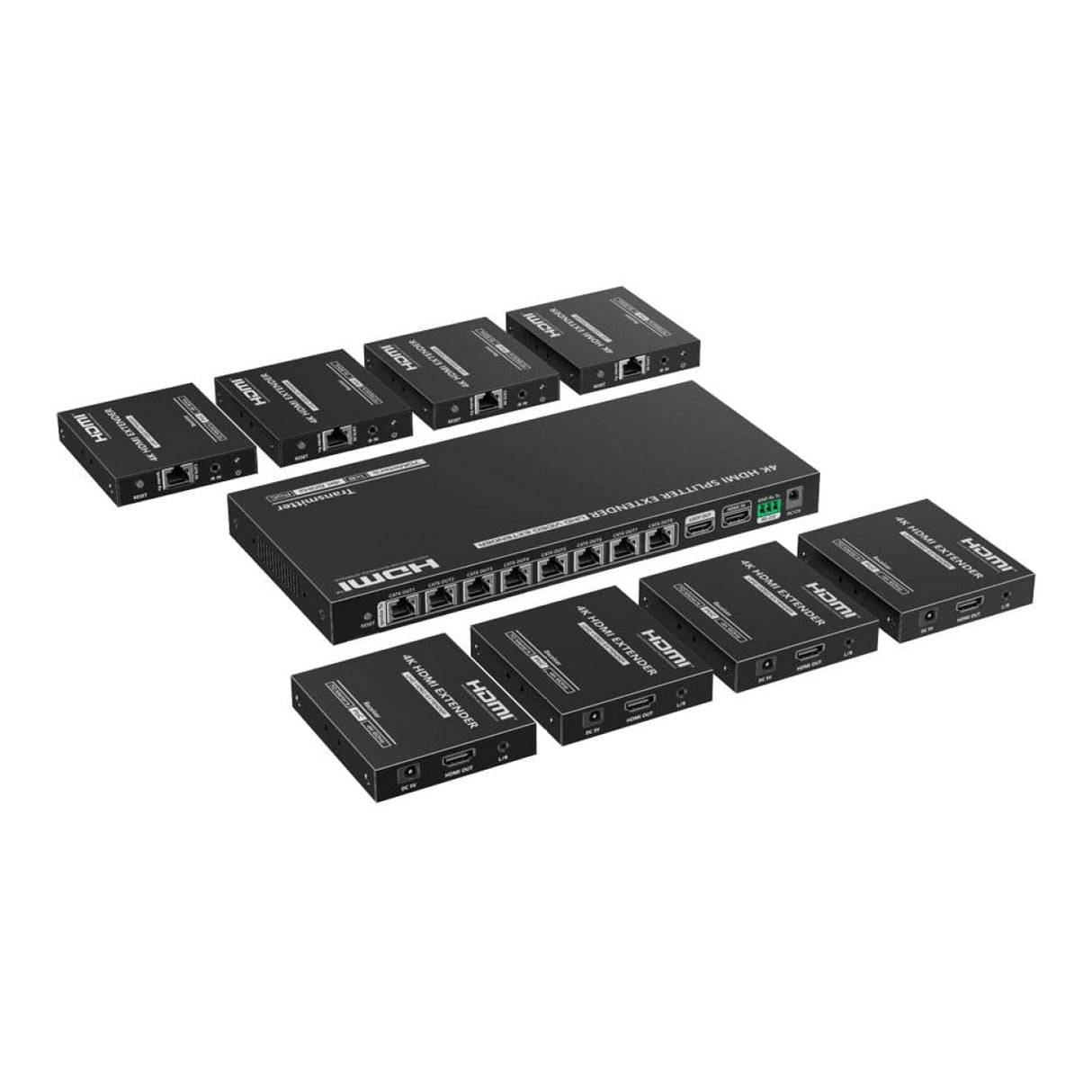

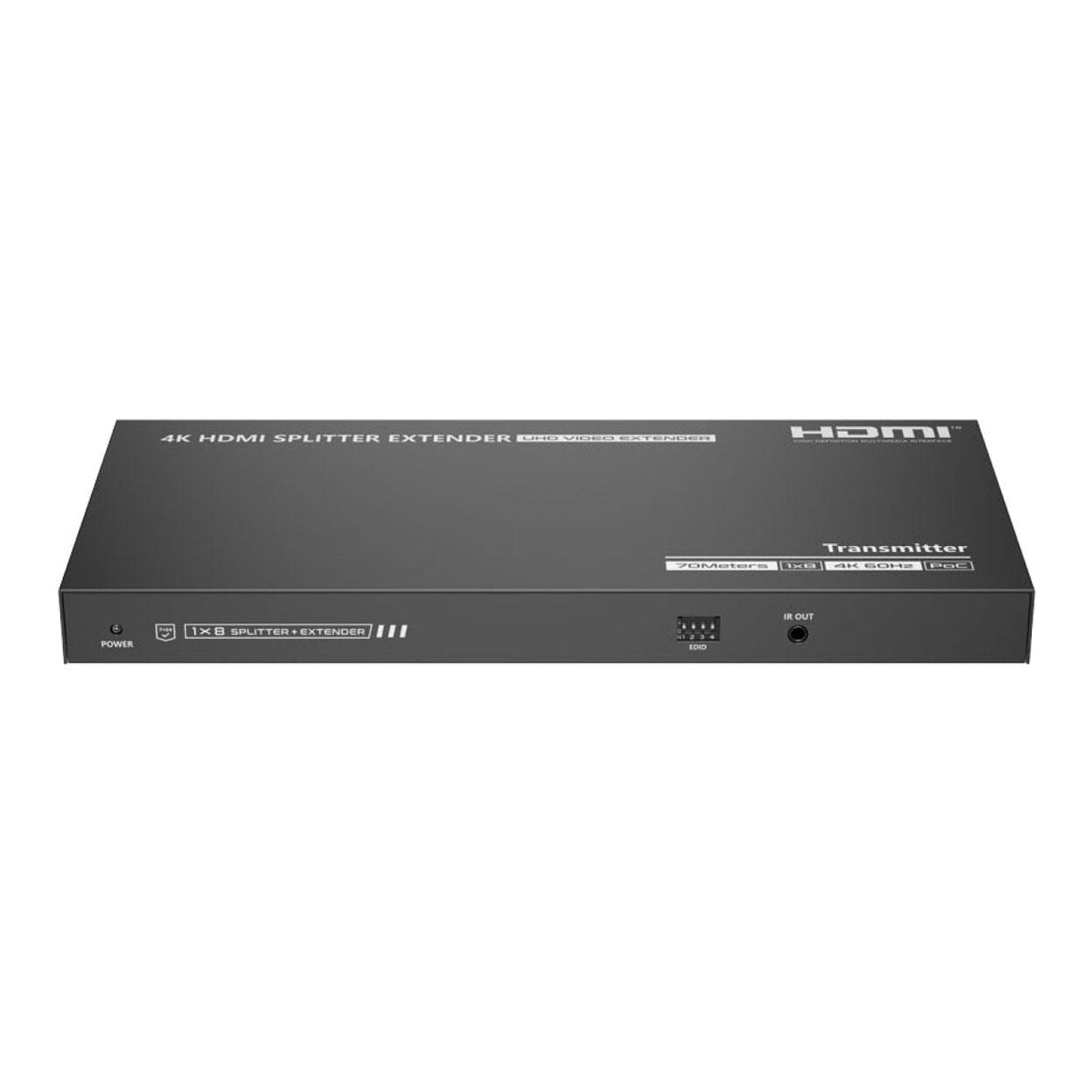

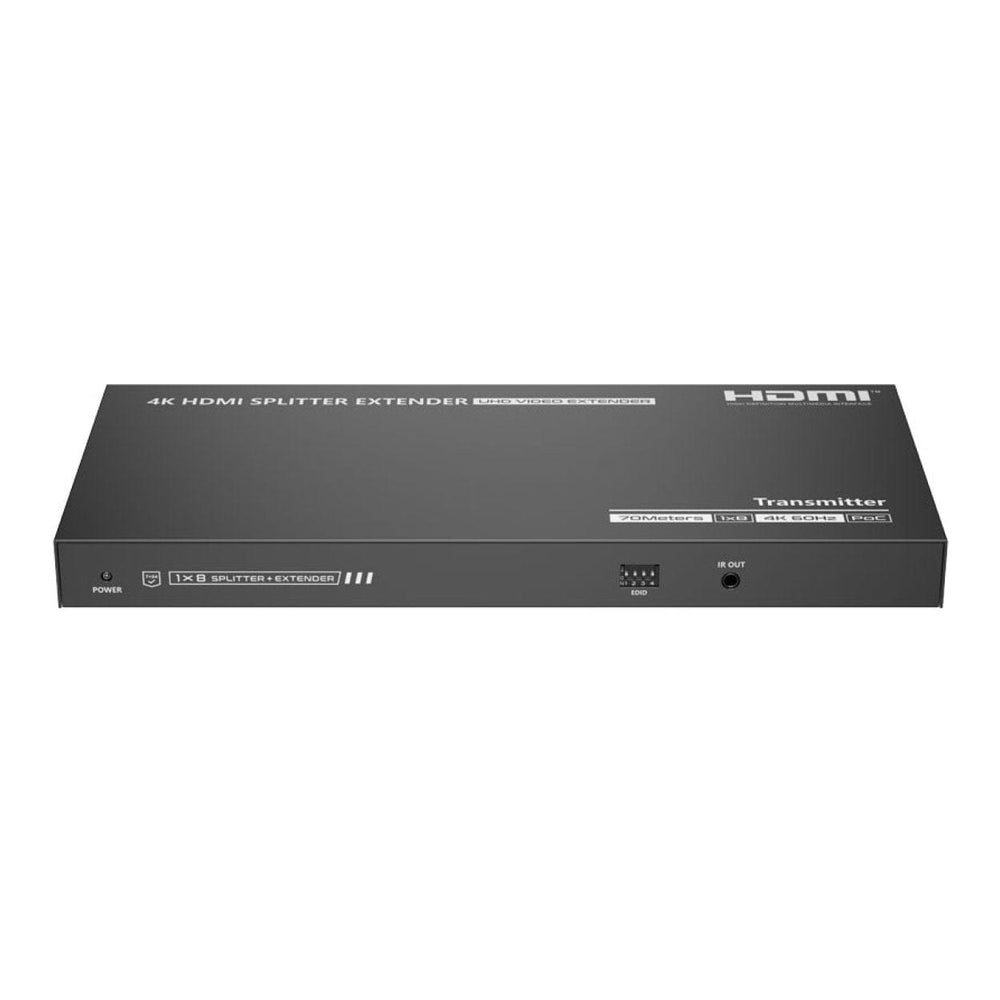

Lenkeng 4K 1x8 HDMI Splitter Extender LKV828P-N

Lenkeng 4K 1x8 HDMI Splitter Extender LKV828P-N

Features:

• Zero latency transmission

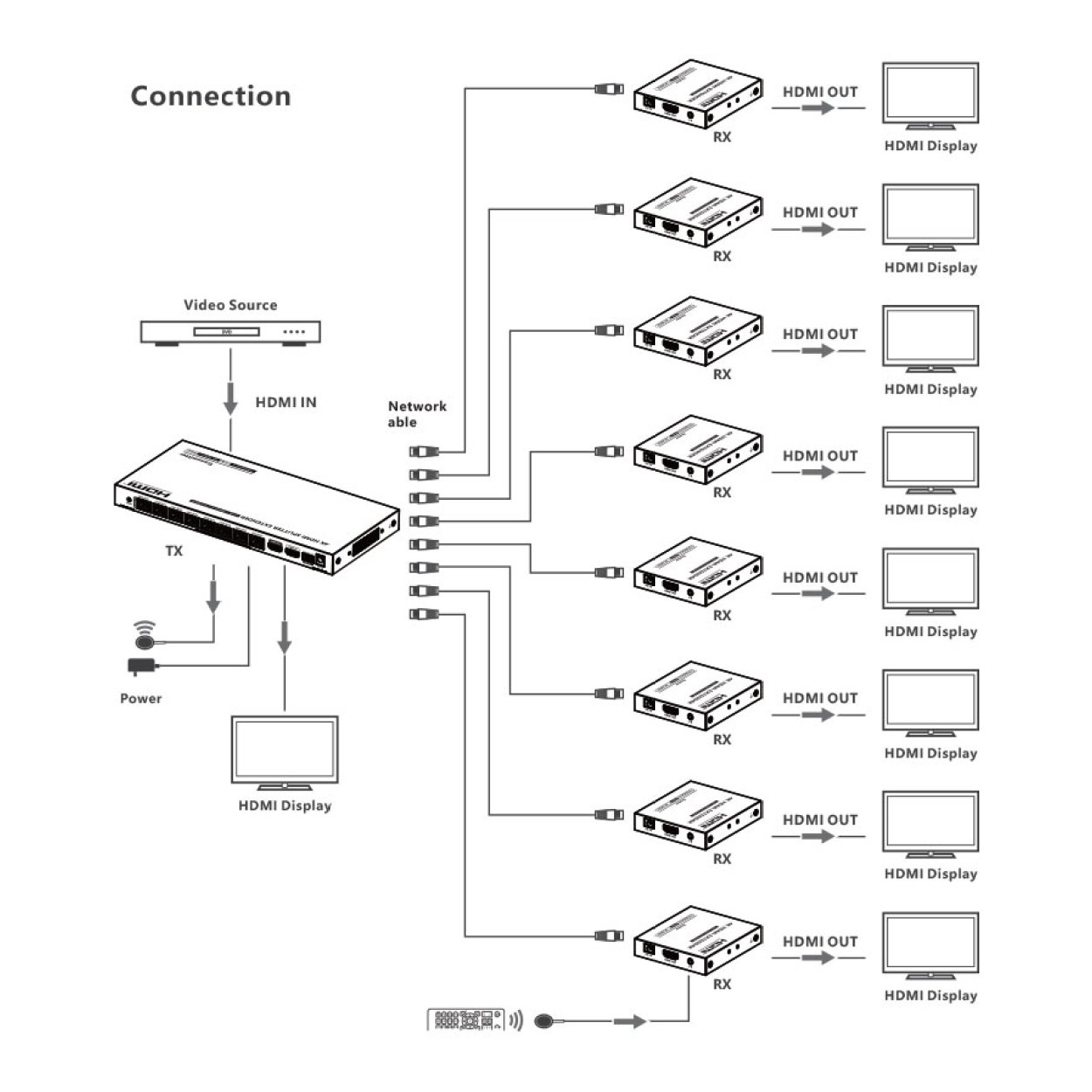

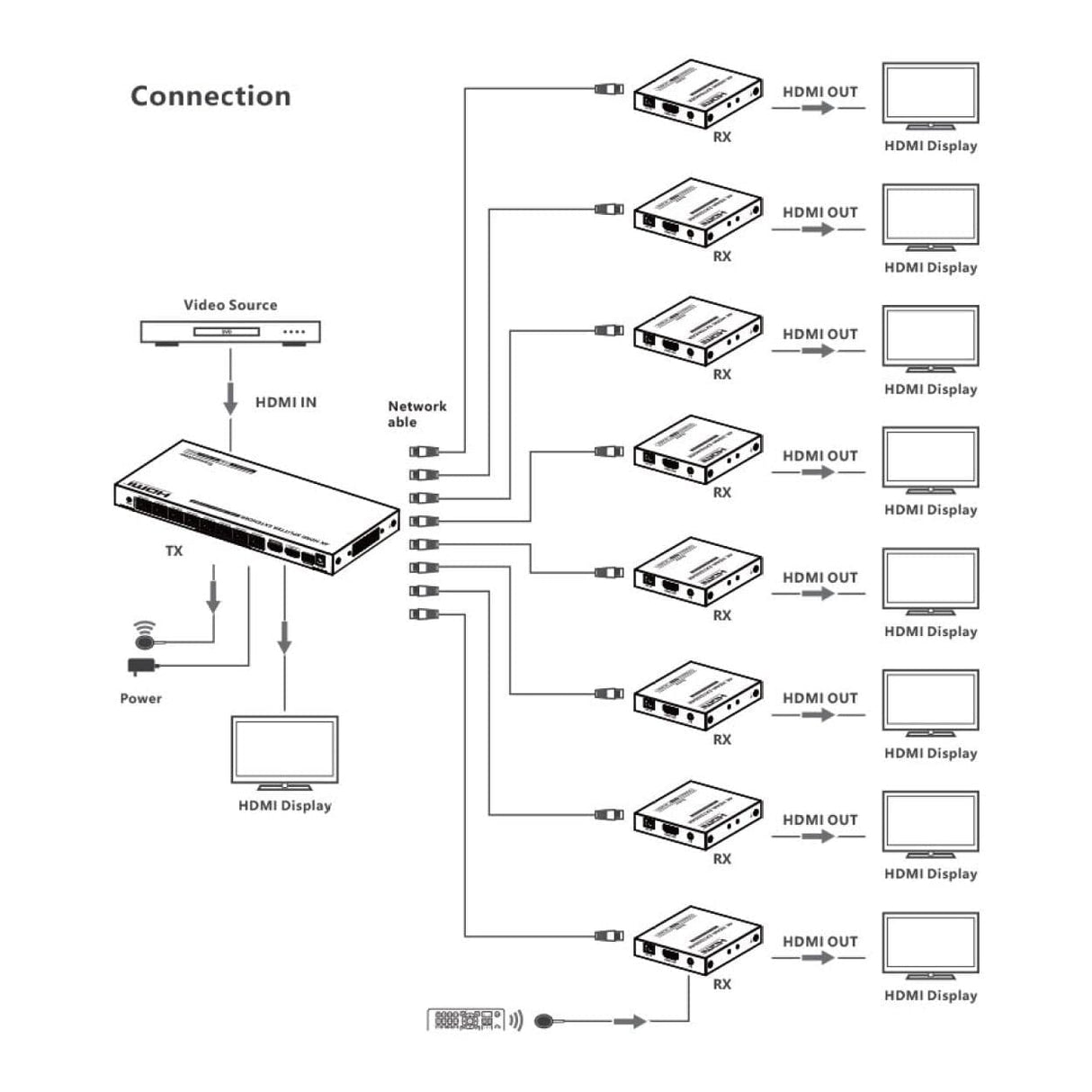

• Split and extend one HDMI input signal to eight identical network output signals
• Supports up to 4K @60Hz resolution
• Transmission distance up to 70m by over CAT6/6A/7 cables
• Supports IR passback (20KHz~60KHz)

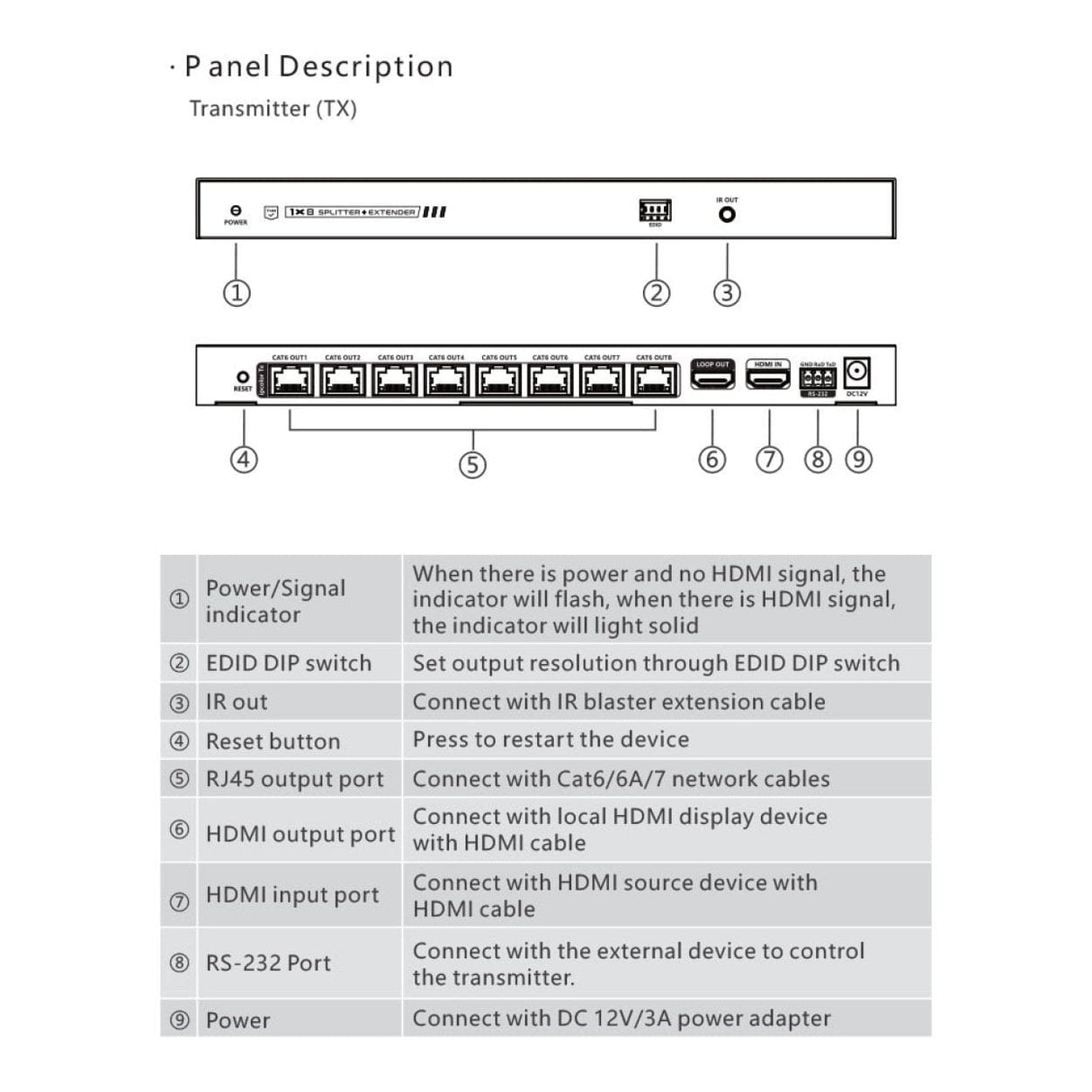

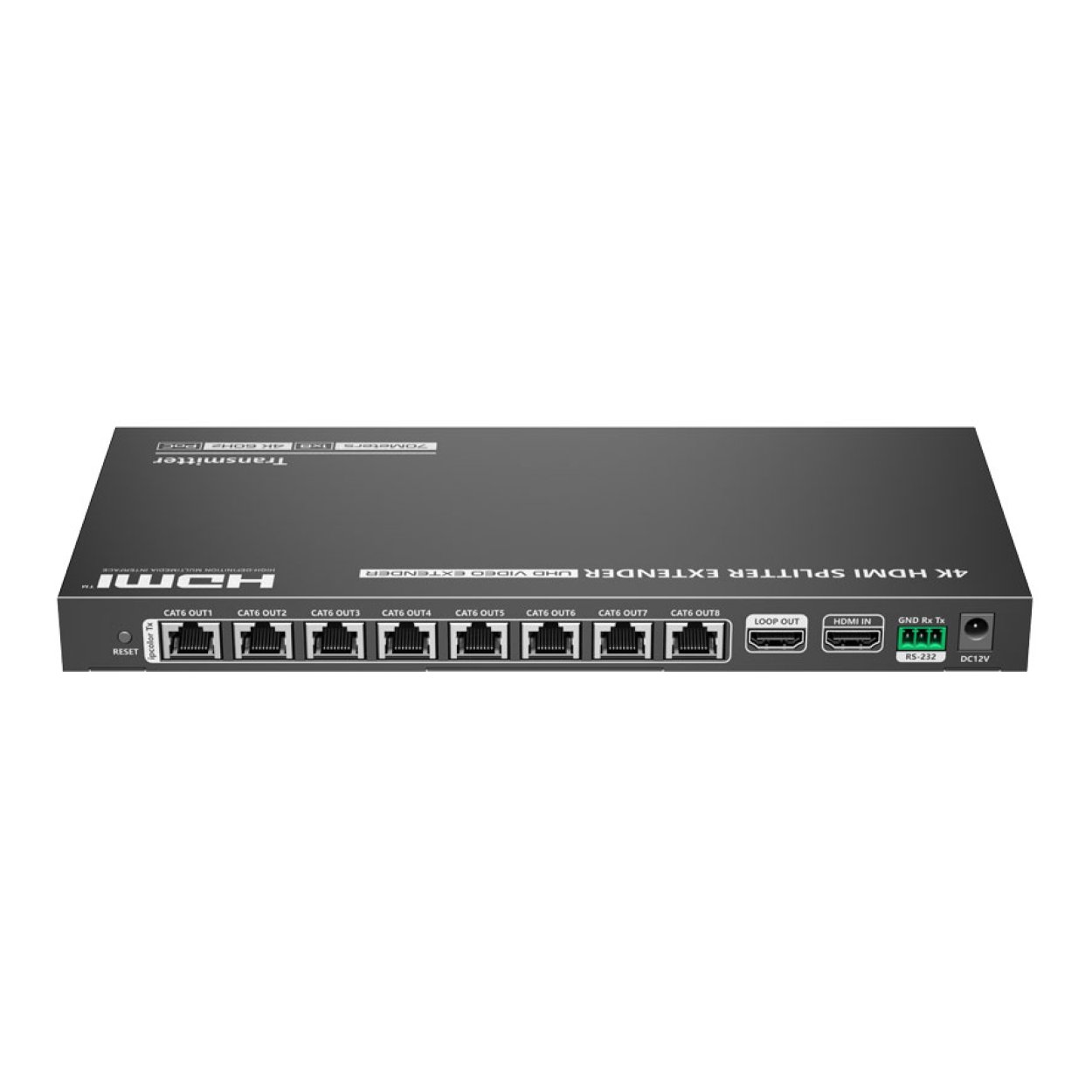

• The transmitter supports HDMI loop out

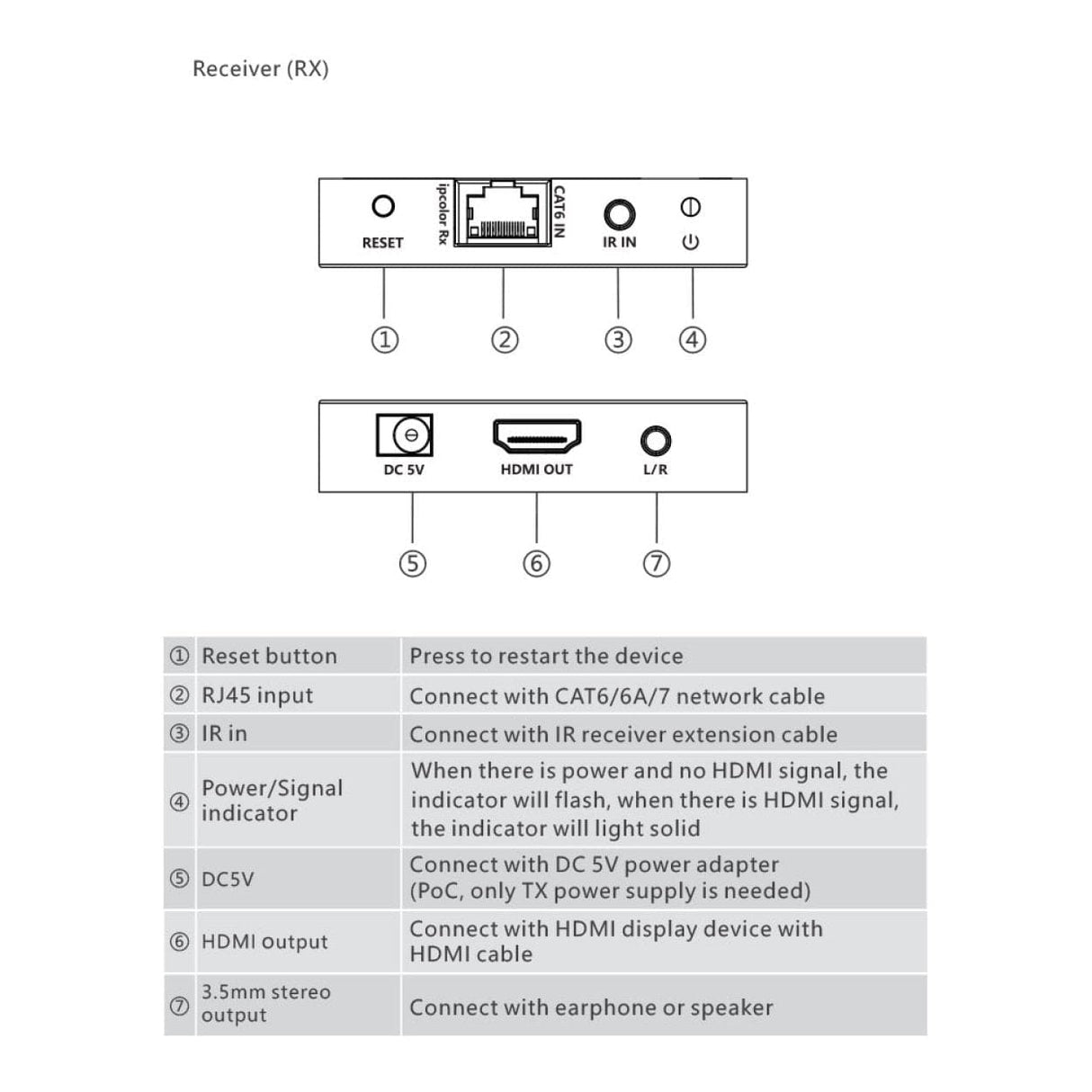

• The receiver supports 3.5mm stereo output
• EDID switch for setting
• RS232 command control
• Surge, Lightning and ESD Protection

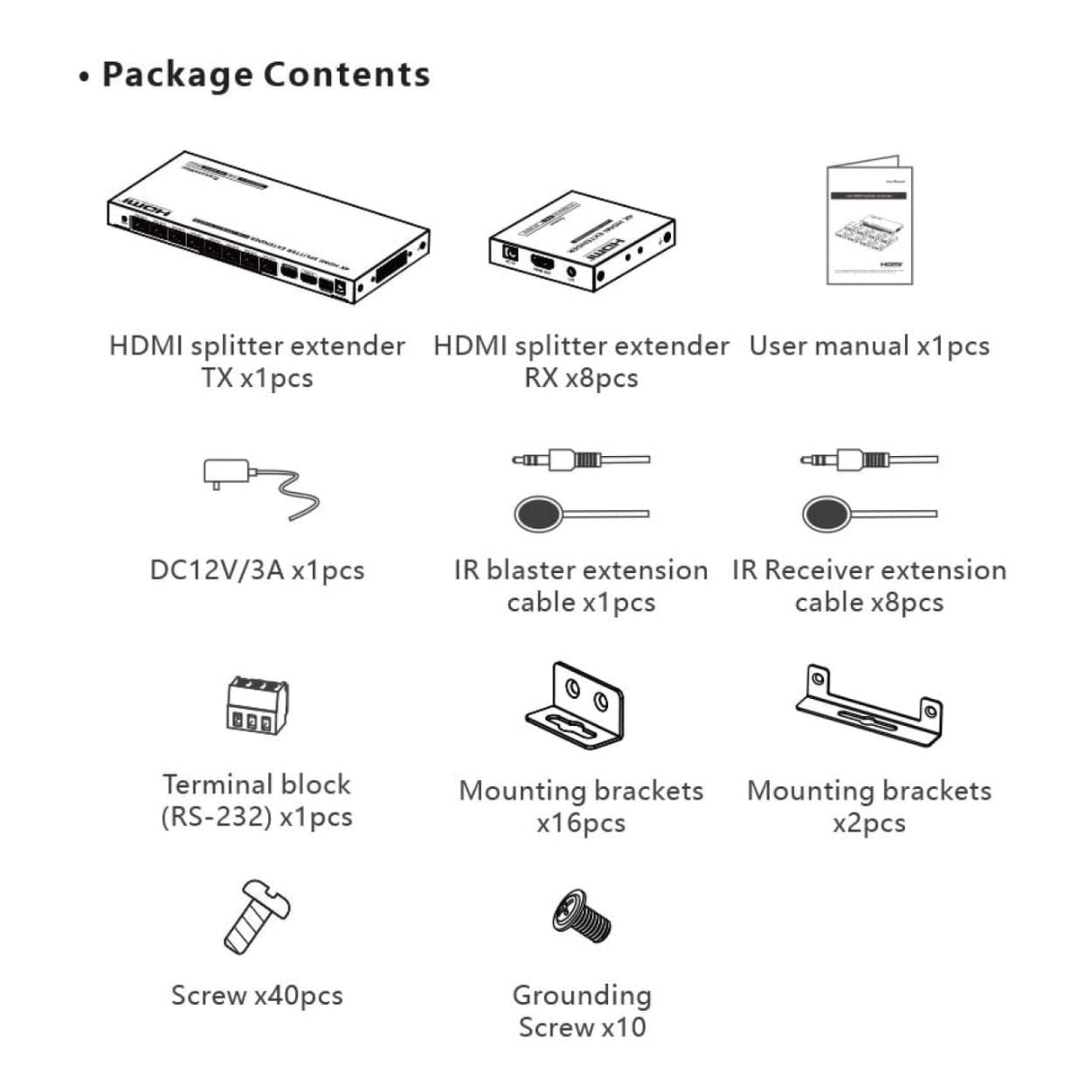

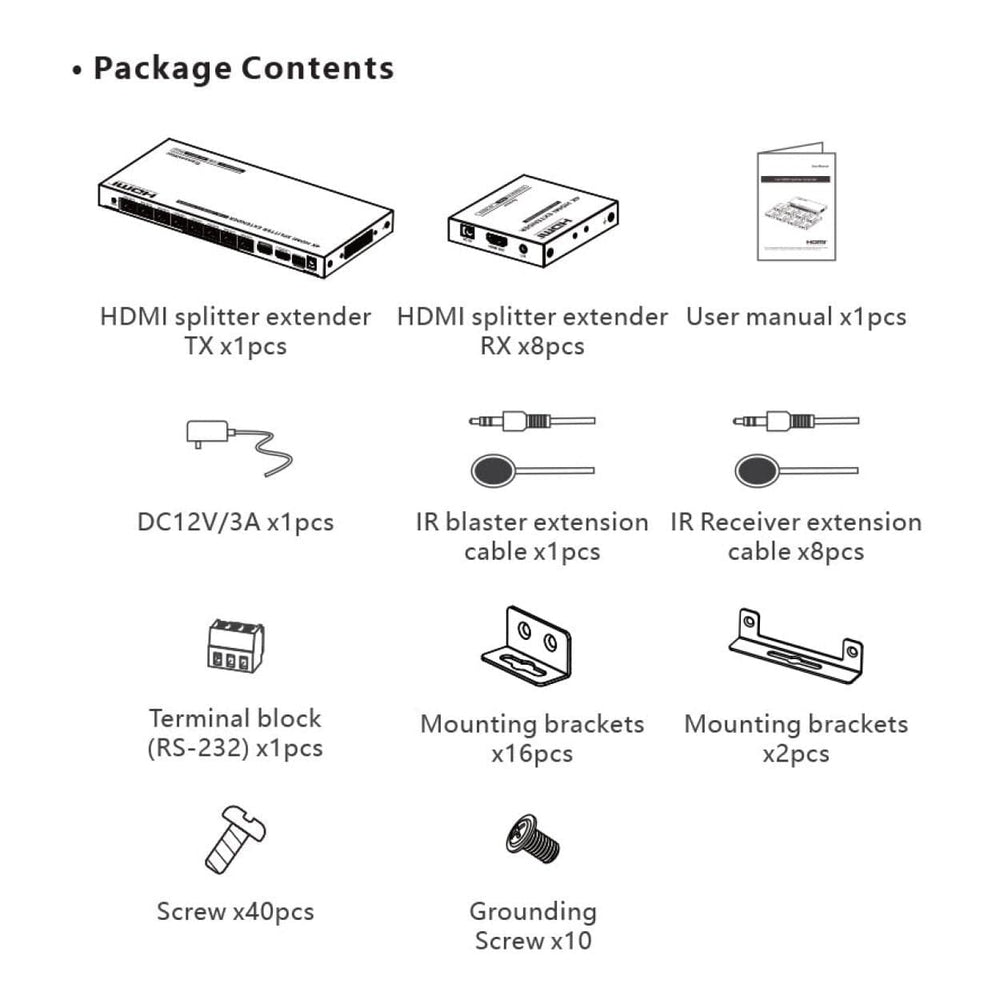

• Equipped with rack mount ears
• Supports PoC, only the transmitter is required to supply power

Technical Specifications:

Transmission Protocol
Transmission Protocol: ipcolor
Distribution Mode: 1 IN 8 OUT
Transmission Distance: CAT6/6A/7 ≤ 70 m

HDMI Signal
HDMI Standard: HDMI 2.0, HDCP 2.2

HDMI Resolution Support
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
1280×960, 1280×800, 1280×1024, 1680×1050, 1600×1200, 1600×900, 1024×768, 800×600
1920×1200, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25/30Hz

Audio Formats
4K: LPCM, DTS, Dolby Digital 5.1
1080P: LPCM, DTS, Dolby Digital 5.1, Dolby Digital Plus 7.1

IR Support
IR Passback Function: 20 kHz – 60 kHz

RS-232 Interface
3-pin interface (TxD, RxD, GND), RS-232 level compliant

Environmental Conditions
Operating Temperature: −20°C to 60°C
Storage Temperature: −30°C to 70°C
Humidity: 0–90% RH (non-condensing)

Protection Features
ESD Protection:

• Contact discharge level 2
• Air discharge level 3
• (Standard: IEC 61000-4-2)

Lightning Protection: Surge protection supported

Power Supply
TX Unit: DC 12V / 3A
Power Consumption: TX + RX < 24W

Physical Specifications
Material: Iron
Color: Black

Weight:

• TX: 778 g
• RX: 145 g

Dimensions:

• TX: 265.0 × 120.0 × 23.0 mm (L × W × H)
• RX: 85.0 × 75.5 × 16.5 mm (L × W × H)
