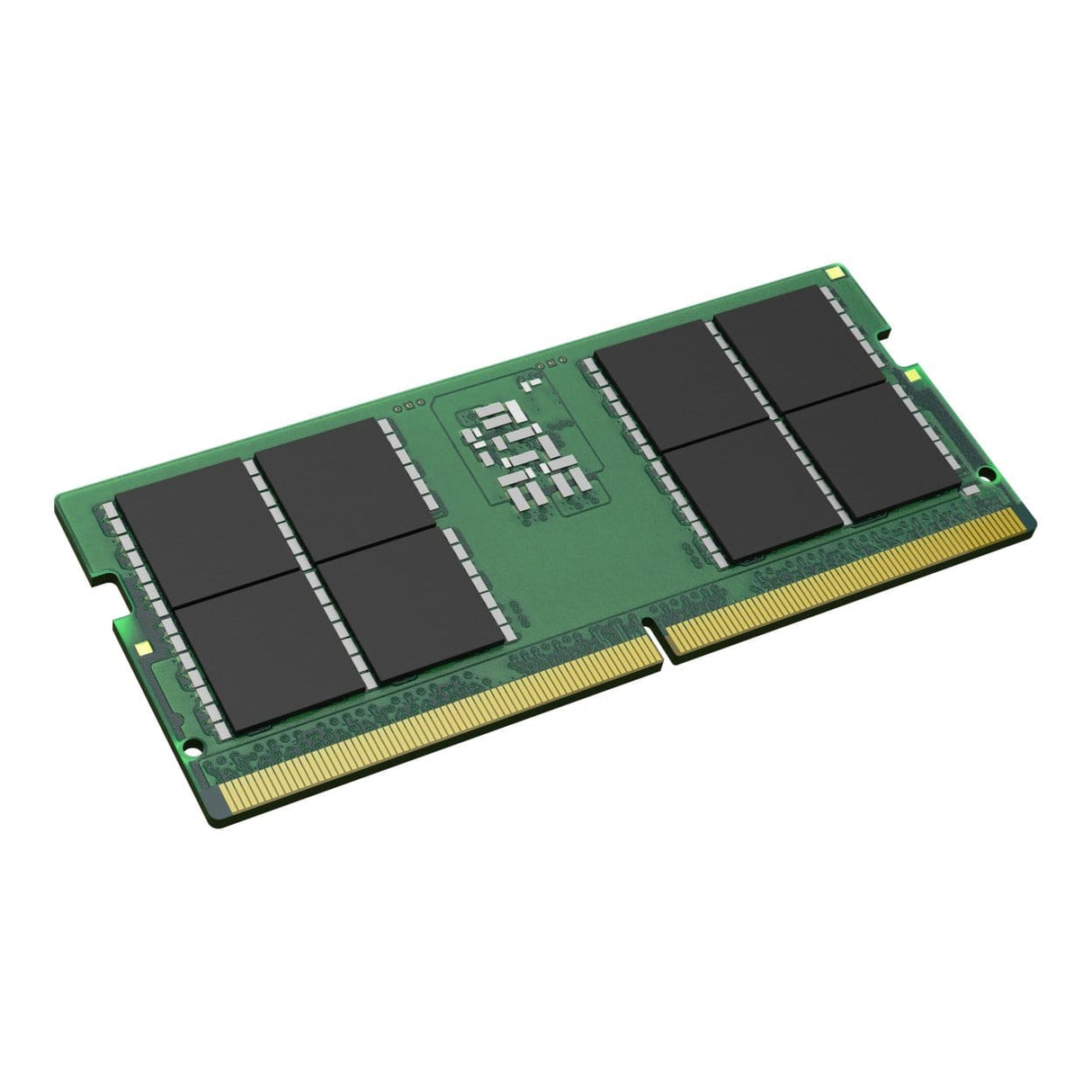

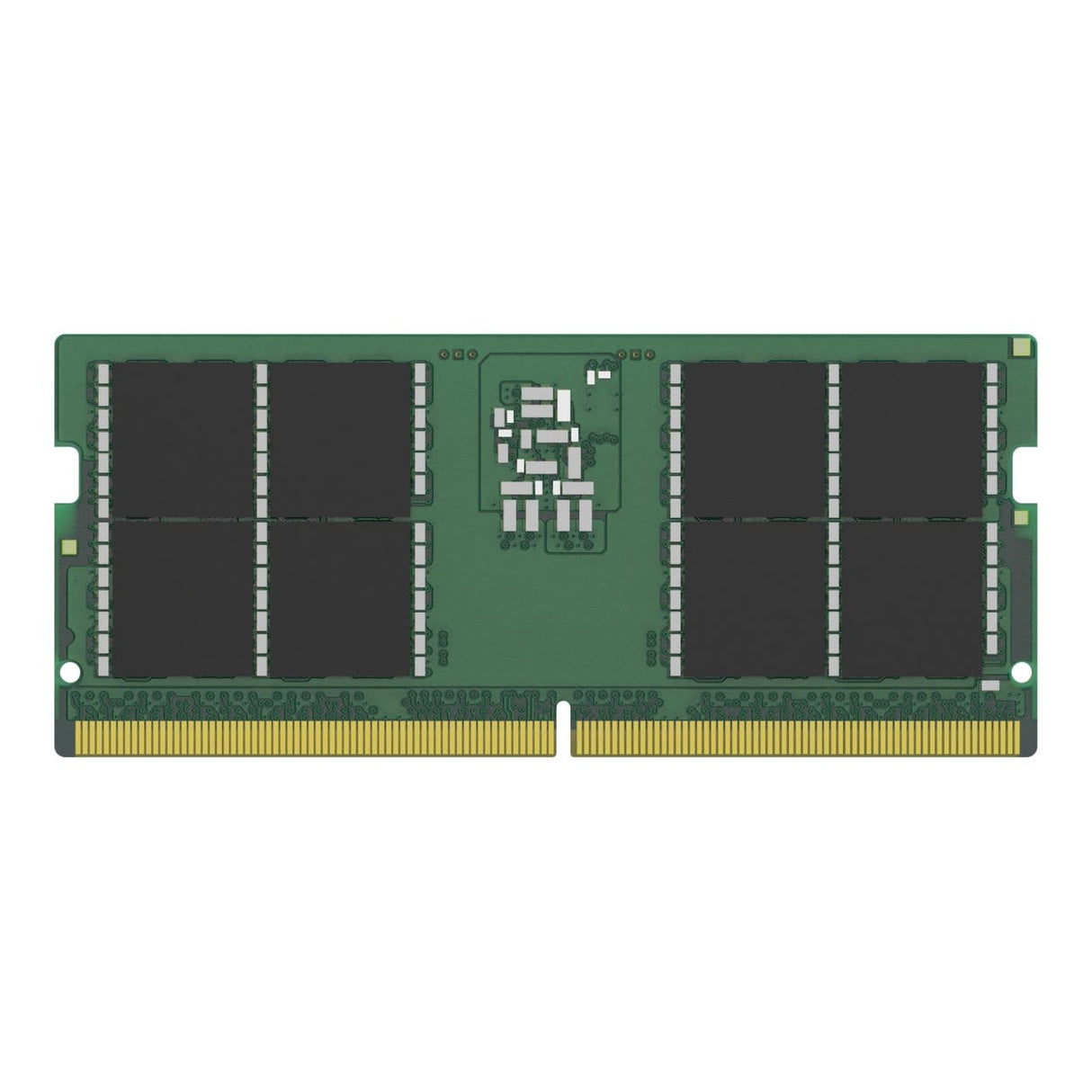

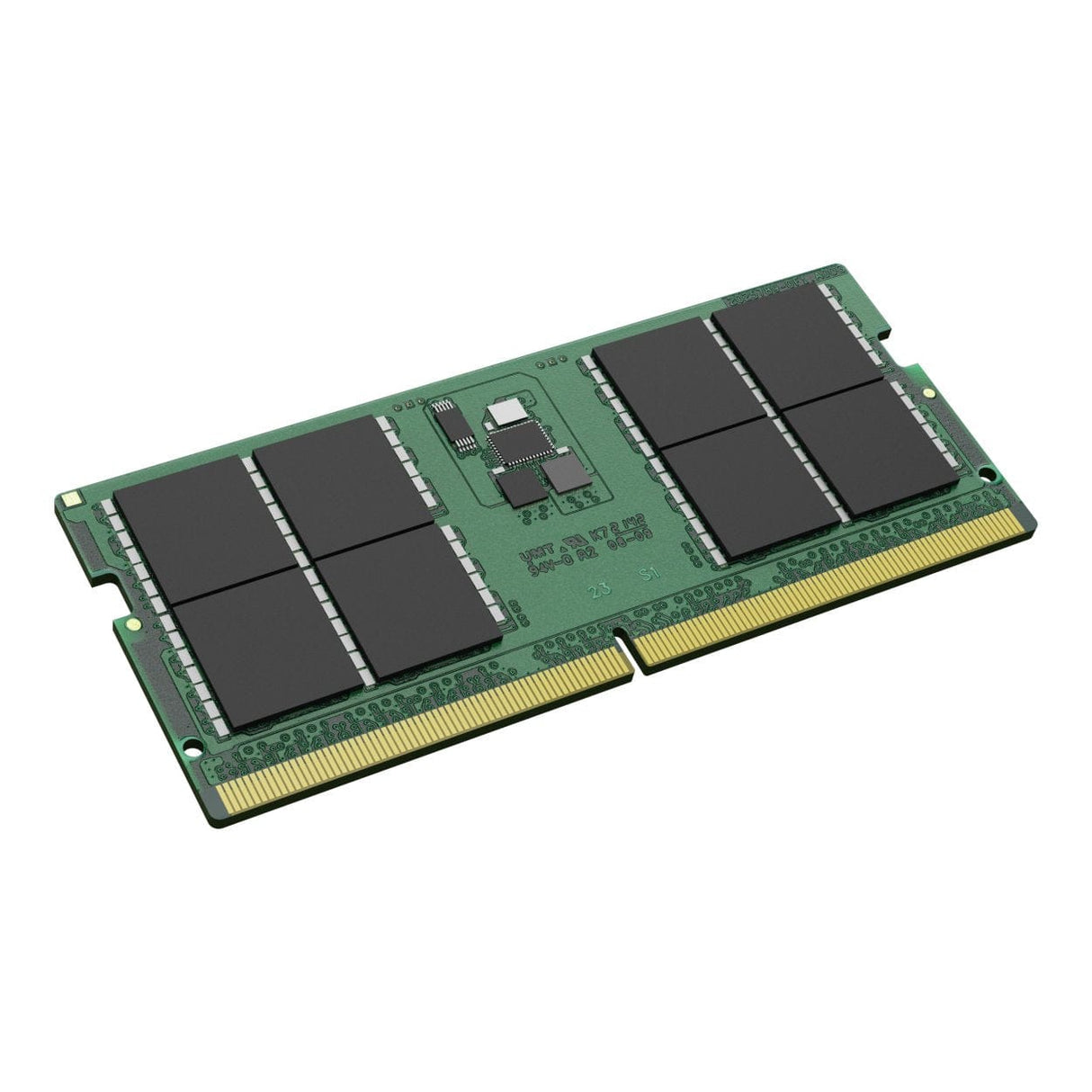

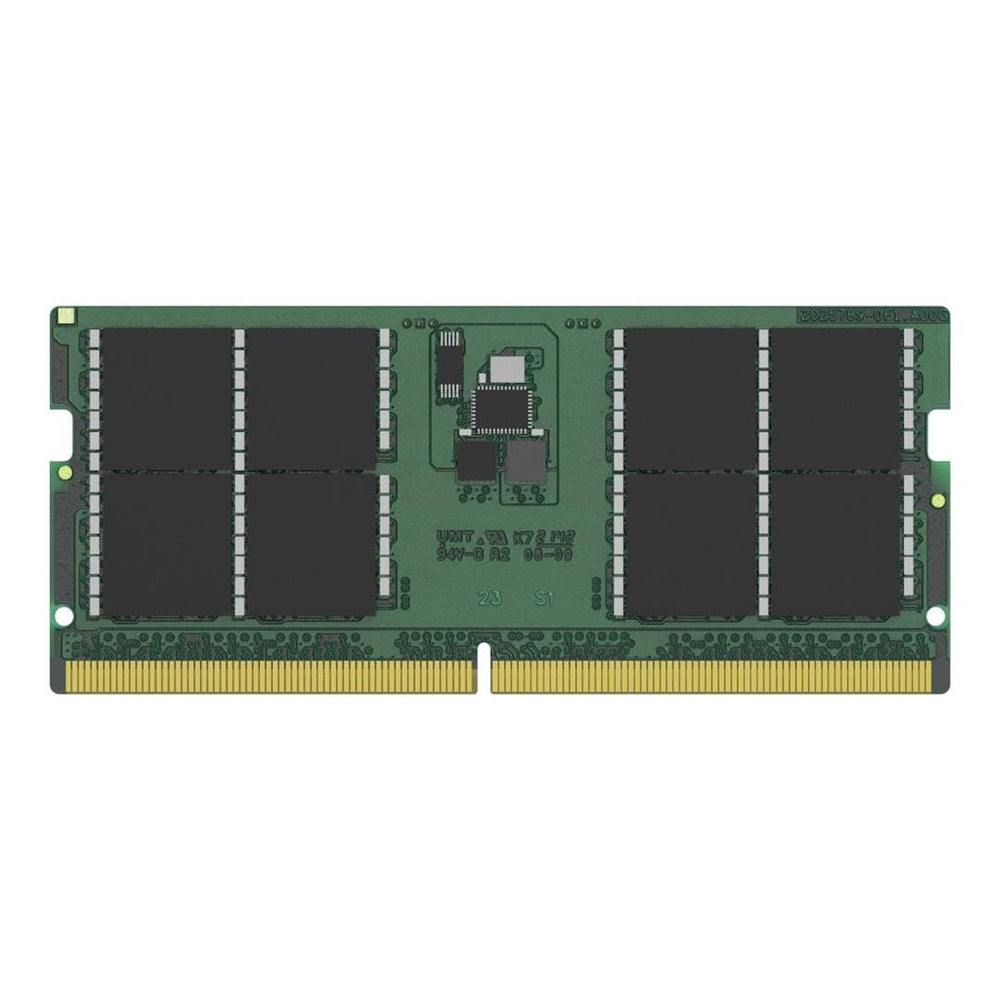

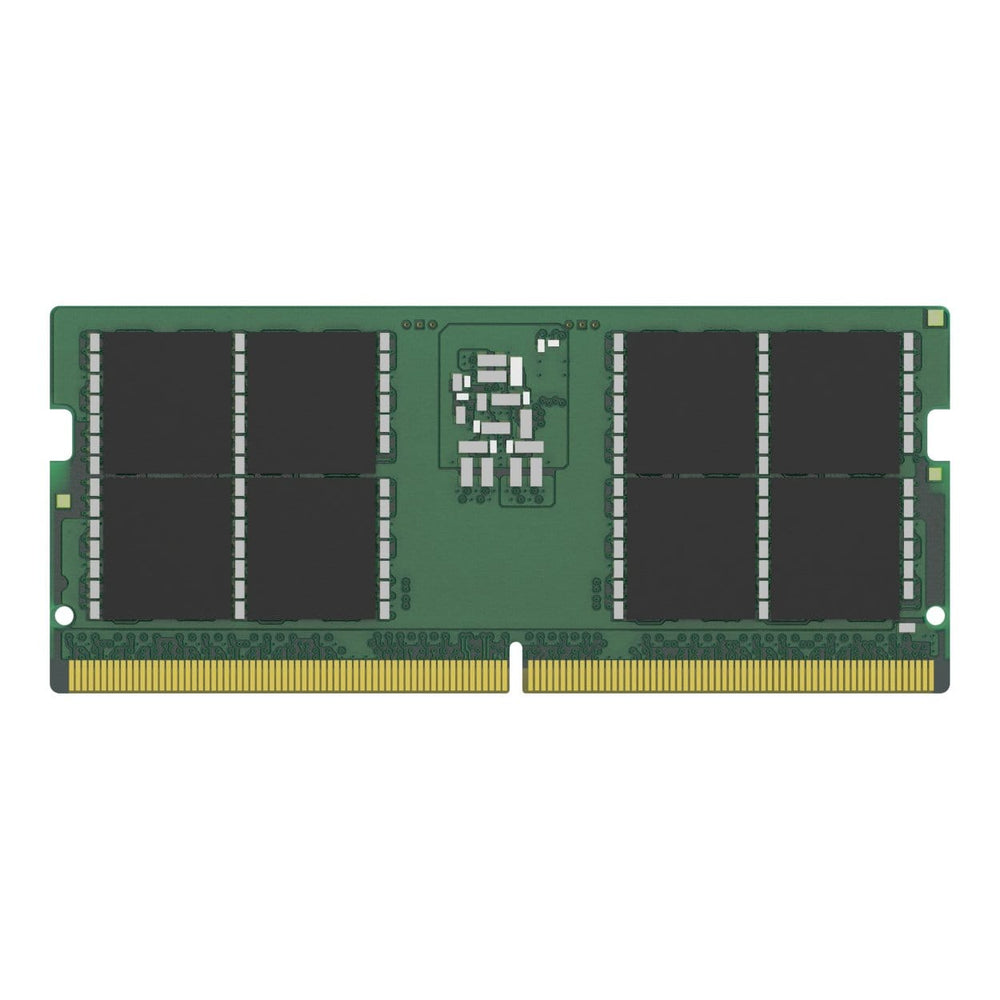

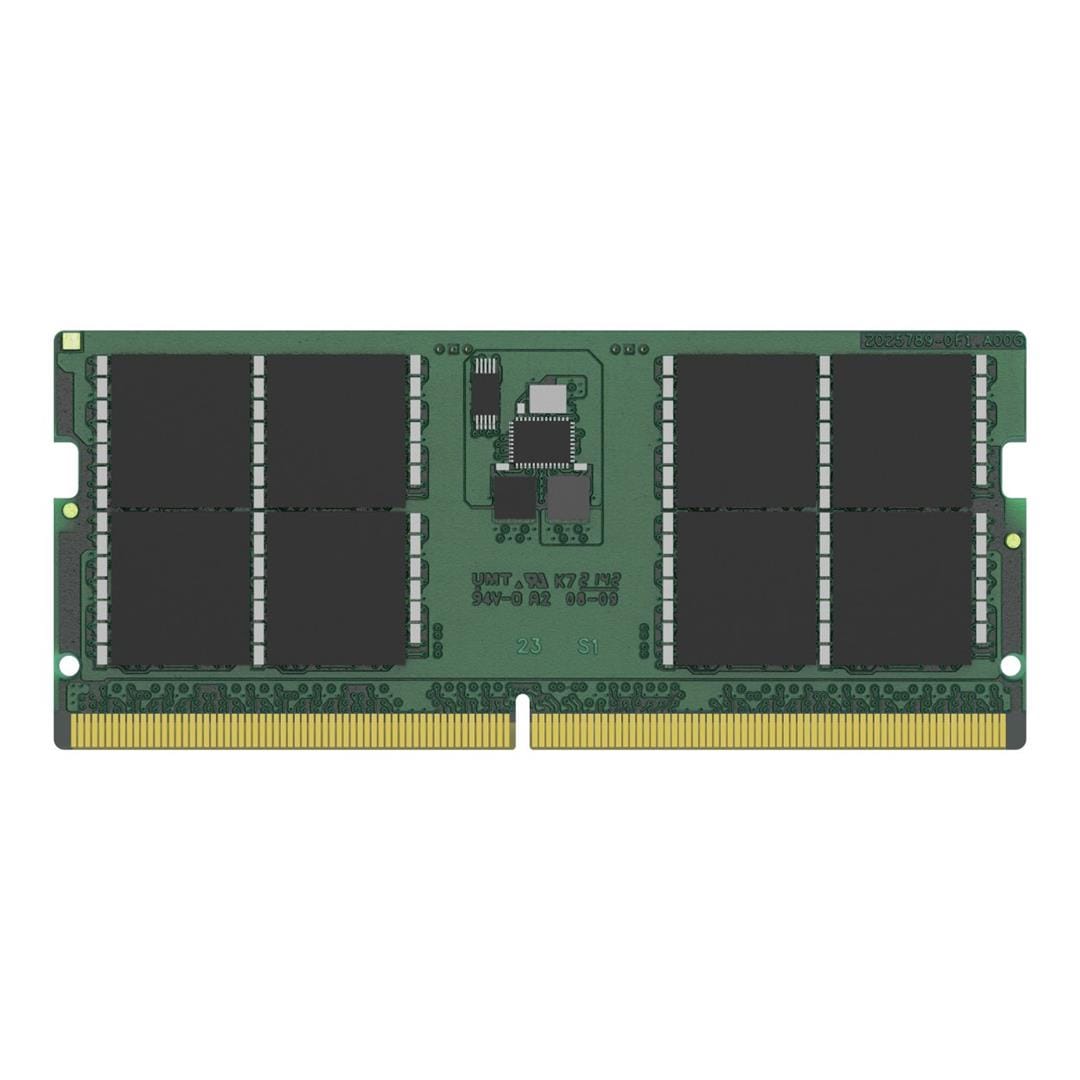

Kingston ValueRAM KVR56S46BD8-48 Memory Module 48GB 1 x 48GB DDR5 5600 MT/s

Kingston ValueRAM KVR56S46BD8-48 Memory Module 48GB 1 x 48GB DDR5 5600 MT/s

This document describes ValueRAM's KVR56S46BD8-48 is a 6G x 64-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Features:

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

Technical Specifications:

Component for: Laptop, Internal memory: 48 GB

Memory layout (modules x size): 1 x 48 GB

Internal memory type: DDR5

Memory form factor: 262-pin SO-DIMM

CAS latency: 46
