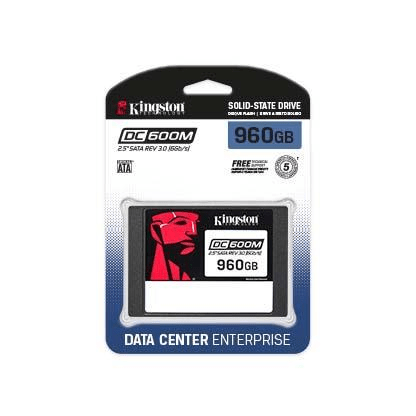

Kingston DC600M 2.5-inch 960GB SATA 6Gb/s Enterprise Internal SSD SEDC600M/960G

Kingston DC600M 2.5-inch 960GB SATA 6Gb/s Enterprise Internal SSD SEDC600M/960G

Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed-use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.

Designed for data center environments

Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP

Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)

Optimised performance predictability to meet service-level agreements (SLAs).

• Designed for data center environments
• On-board Power Loss Protection (PLP)
• Consistent latency and IOPS, reliable QoS
• Includes Acronis cloning software
• Up to 560MB/s read, 530MB/s write

• Form factor: 2.5 inch
• Interface: SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
• Capacity: 960GB
• NAND: 3D TLC
• DRAM Cache: Yes
• Sequential Read/Write: 960GB – 560MBs/530MBs
• Steady-state 4k random read/write: 960GB – 94,000/65,000 IOPS
• Quality of service (latency)(99.999) - Read/Write 960GB – 3840GB – 200/300 uSec
• Typical latency - read/write: <200 µs / <30 us
• Hot-plug capable: Static and dynamic wear levelling
• Enterprise SMART tools: Reliability tracking, usage statistics, life remaining, wear levelling, temperature
• Hardware-based power loss protection Endurance: 960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• Power consumption: Idle: 1.30W; Average: 1.45W; Max read: 1.6W; Max write: 3.6W
• Storage temperature: -40℃ ~ 85℃
• Operating temperature: 0℃ ~ 70℃
• Dimensions: 69.9mm x 100mm x 7mm
• Weight: 92.34g
• Vibration operating: 2.17G Peak (7–800Hz)
• Vibration non-operating: 20G peak (10–2000Hz)
• MTBF: 2 million hours
• UBER: ≤10 -17
