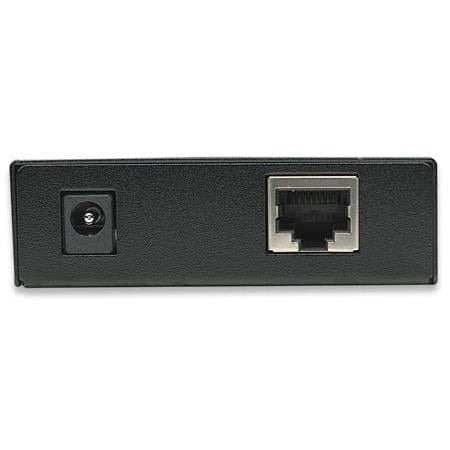

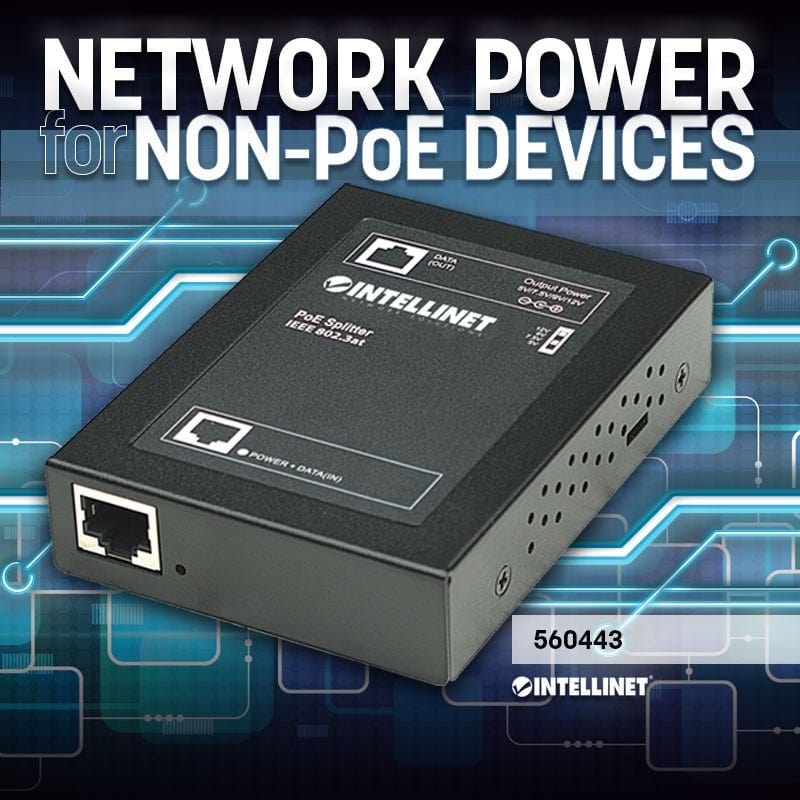

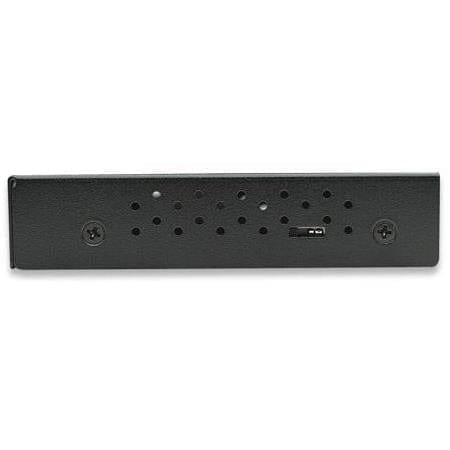

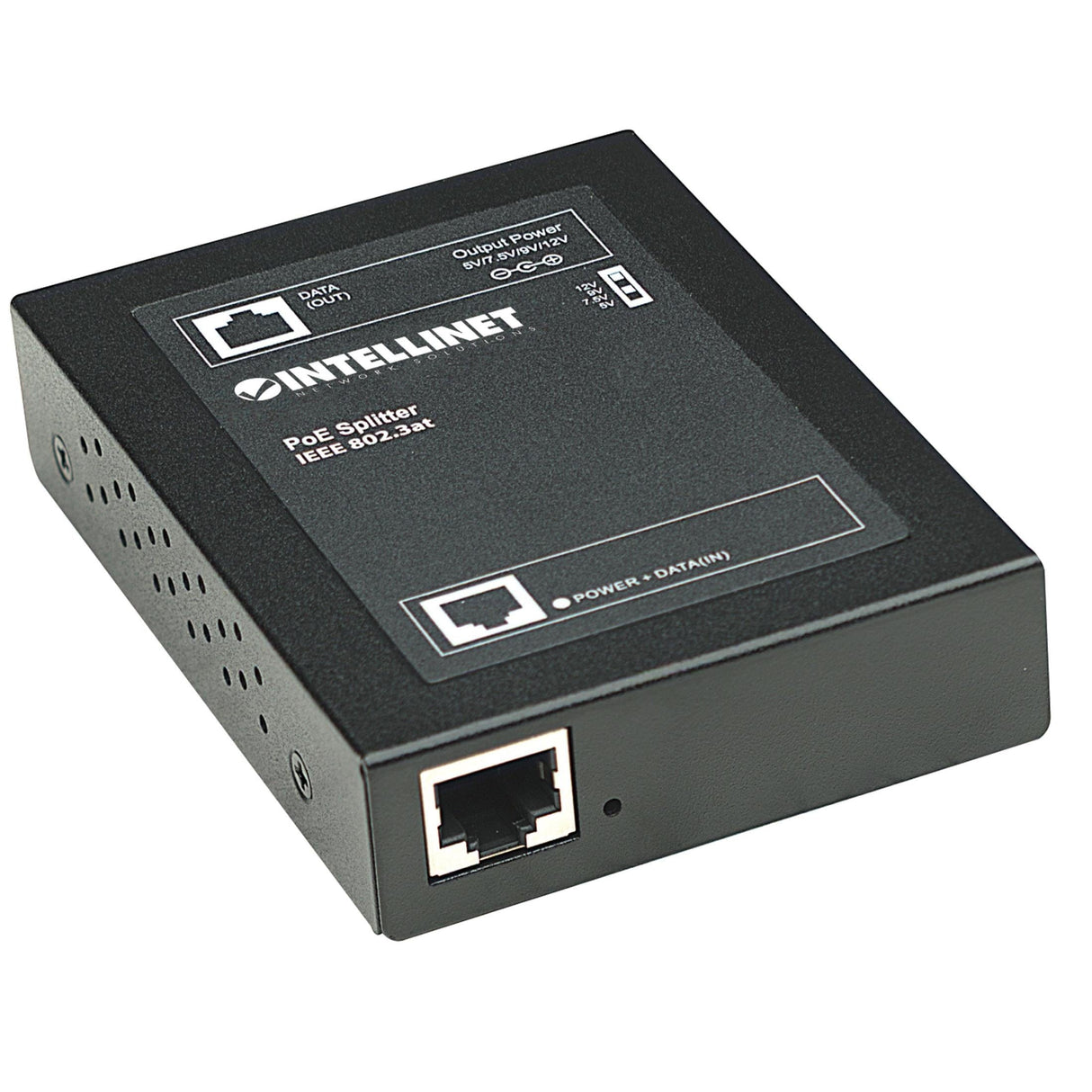

Intellinet 560443 Power over Ethernet Splitter
Networking standards: IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u, Cabling technology: 10Base-T, 100Base-TX, Cable standard: Cat5. Product colour: Black, Housing material: Metal, Certification: FCC Class A, CE. Connector gender: Female. Output voltage: 12 V, Output power: 25.4 W. Width: 74 mm, Depth: 102 mm, Height: 22 mm
Deliver Power over Ethernet to remote devices. _x000D_ _x000D_ The INTELLINET NETWORK SOLUTIONS PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available. _x000D_ _x000D_ Simplify Installation for an Ethernet-based Device _x000D_ Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software. _x000D_ _x000D_ 802.3af Compliant Power over Ethernet _x000D_ The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches. _x000D_ _x000D_ Adjustable Power Output _x000D_ During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side. _x000D_ _x000D_ * Contact your INTELLINET NETWORK SOLUTIONS reseller for ordering information. _x000D_ ** Maximum distance per 802.3u specifications.
