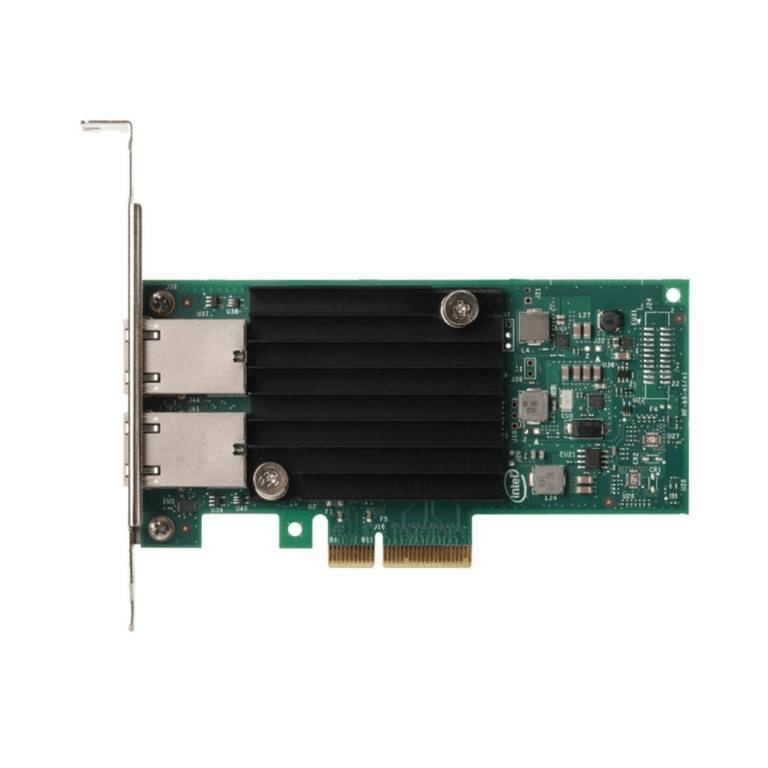

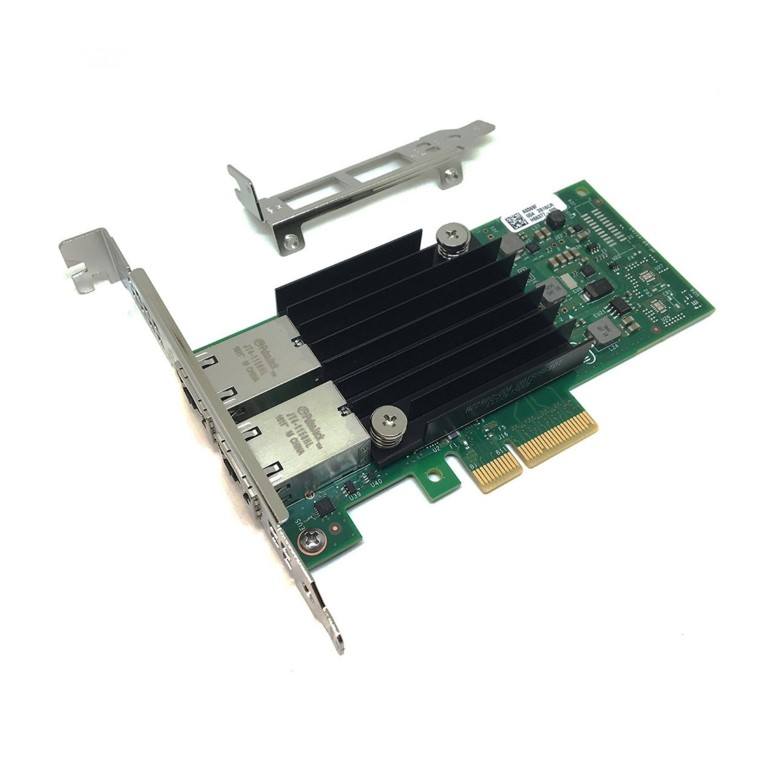

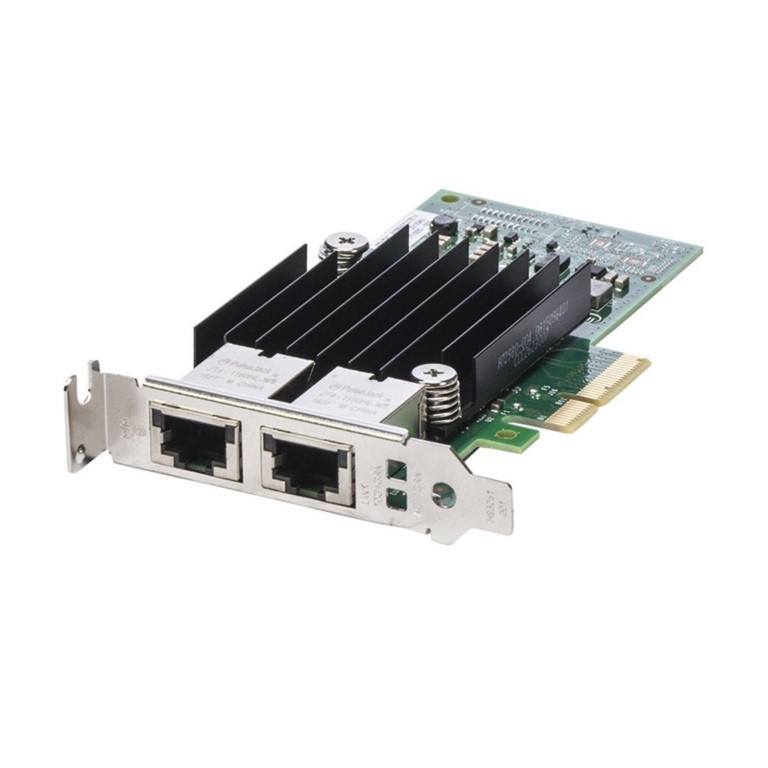

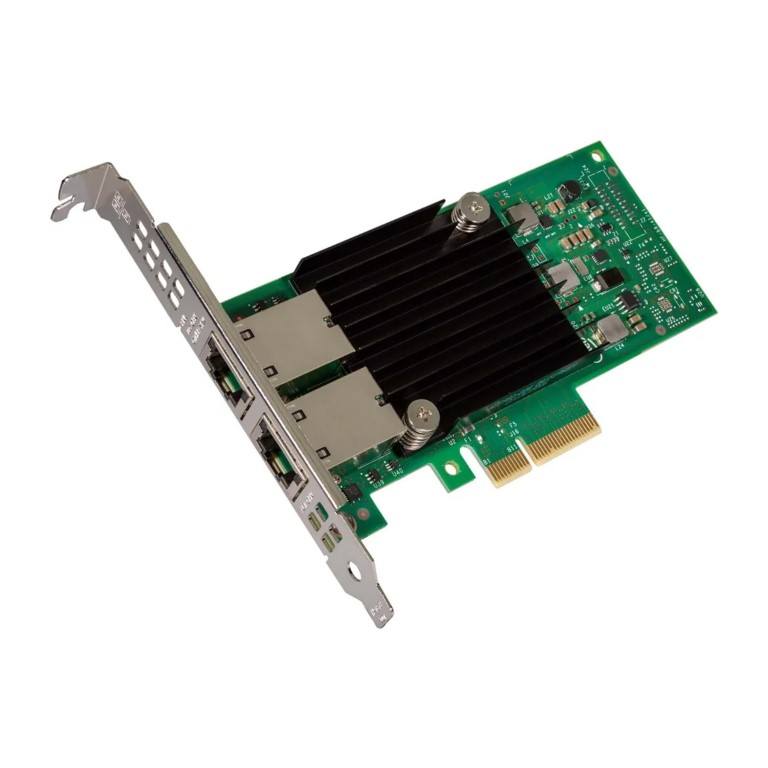

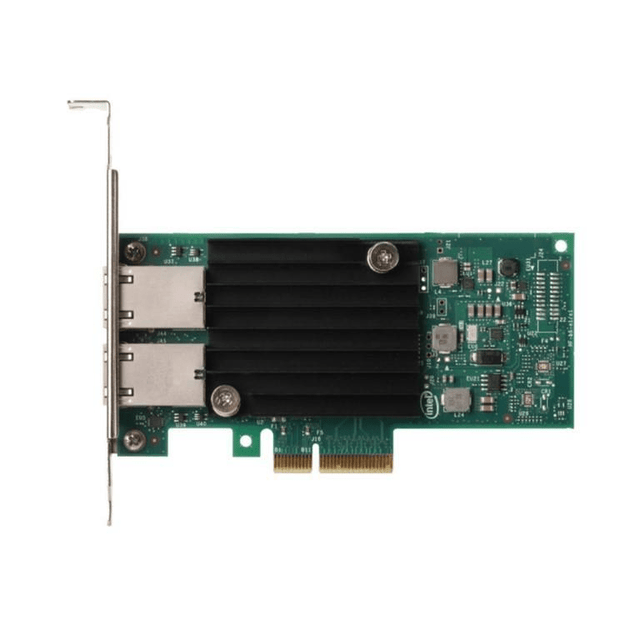

Intel X550 2-port Ethernet Converged Network Adapter Card X550T2

Intel X550 2-port Ethernet Converged Network Adapter Card X550T2

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Technical Specification

Product: Intel X550-T2

Vertical Segment: Server

Product family: Intel 10 Gigabit server adapter

Product series: 500 Series Network Adapters (up to 10GbE)

Connectivity technology: Wired

Port Configuration: 2-ports

Host interface: PCI Express

Speed & Slot Width: 8.0 GT/s, x 4 Lane

System Interface Type: PCIe 3.0 (8.0 GT/s)

Interface: Ethernet

Cable Medium: Copper

Cabling Type: RJ45 Category 6 up to 55m; Category 6A up to 100m

Ethernet LAN data rates: 10GbE, 5GbE, 2.5GbE, 1GbE, 100Mb

Maximum data transfer rate: 10GbE

Compatible with

• Intel® Server System M20MYP Family
• Intel® Server System R1000SPO Family
• Intel® Server System R1000WFR Family
• Intel® Server System R2000WFR Family
• Intel® Server D50TNP Family
• Intel® Server D40AMP Family
• Intel® Compute Module HNS7200AP Family
• Intel® Compute Module HNS2600TP Family
• Intel® Compute Module HNS2600KP Family
• Intel® Server System S9200WK Family
• Intel® Server System S2600BPR Family
• Intel® Server Board D40AMP
• Intel® Server Board S1200SP Family
• Intel® Server Board S7200AP Family
• Intel® Server Board S2600BPR
• Intel® Server Board S2600CW Family
• Intel® Server Board S2600KP Family
• Intel® Server Board S2600ST
• Intel® Server Board S2600TP Family
• Intel® Data Center Blocks for Business (Intel® DCB for Business)
