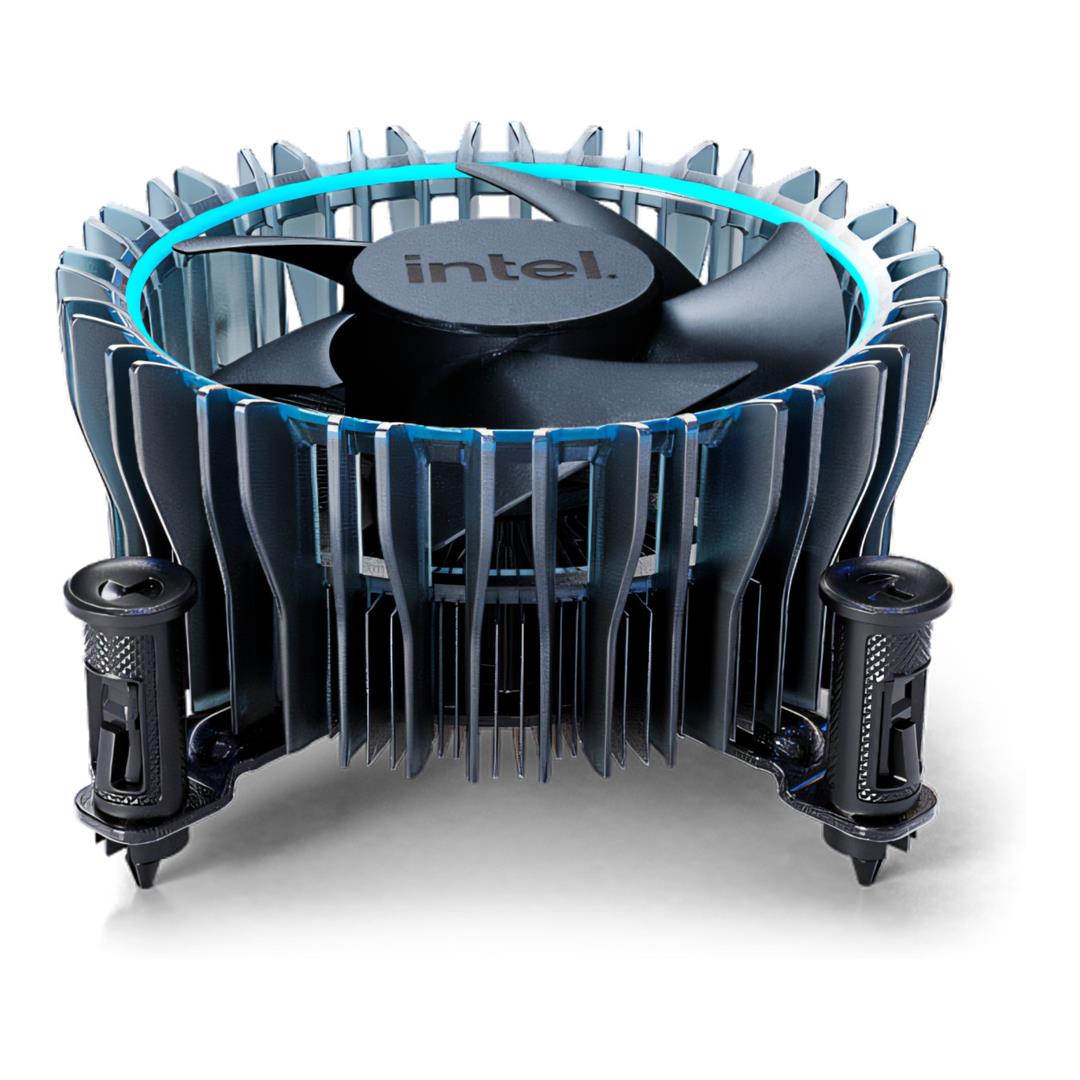

Intel Laminar RM1 65w LGA1700 CPU Heatsink Cooler BXTSRM1
The Intel Laminar RM1 is an Intel-validated CPU air cooler designed for compatible Intel desktop processors. Its compact thermal solution combines aluminium heatsink fins with a copper base/core and a PWM-controlled fan that automatically varies its speed according to cooling requirements. With support for thermal loads up to 65W on specified Intel processors, a 4-pin PWM connection and a compact 100 × 100mm footprint, the Laminar RM1 provides a practical Intel cooling solution for compatible LGA1700 systems.
Key Features
- Intel Laminar RM1 processor air cooling solution.
- Designed for compatible LGA1700 Intel desktop processors.
- Aluminium heatsink fins with a copper base/core.
- PWM-controlled variable-speed fan operating from approximately 600 to 3150 RPM.
- Supports thermal loads up to 65W on specified Intel processors.
- Standard 4-pin fan connector with 12V rated operating voltage.
- Compact design measuring up to 100 × 100 × 47mm.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Intel |
| Product | Intel Laminar RM1 Cooler |
| Manufacturer Part Number | BXTSRM1 |
| Product Type | Processor Air Cooler |
| CPU Socket | LGA1700 |
| Cooling Method | Air Cooling |
| Heatsink Fin Material | Aluminium |
| Heatsink Base / Core Material | Copper |
| Fan Type | PWM-Controlled Variable-Speed Fan |
| Minimum Fan Speed | 600 RPM ±20% |
| Maximum Fan Speed | Up to 3150 RPM ±5% |
| Fan Connector | 4-Pin |
| TDP Support | Up to 65W for Specified 12th Gen Intel Core Desktop Processors |
| Sound Pressure Level | 29dBA at 2400 RPM, 40°C Inlet and 65W |
| Sound Power Level | 3.9BA at 2400 RPM / 4.6BA at Maximum RPM |
| Rated Voltage | 12V |
| Operating Voltage | 10.8–13.2V |
| Peak Current | Up to 400mA |
| PWM Frequency | 25kHz ±5kHz |
| PWM Duty Cycle Range | 0–100% |
| Fan Protection | Locked-Rotor and Polarity Protection |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 85% Relative Humidity at 55°C |
| Overall Size | Up to 100 × 100mm |
| Overall Height | Up to 47mm |
| Weight | Up to 350g |
| Warranty | 3-Year Limited Warranty |
Keep compatible Intel desktop processors efficiently cooled with the compact, Intel-validated Laminar RM1 thermal solution.
