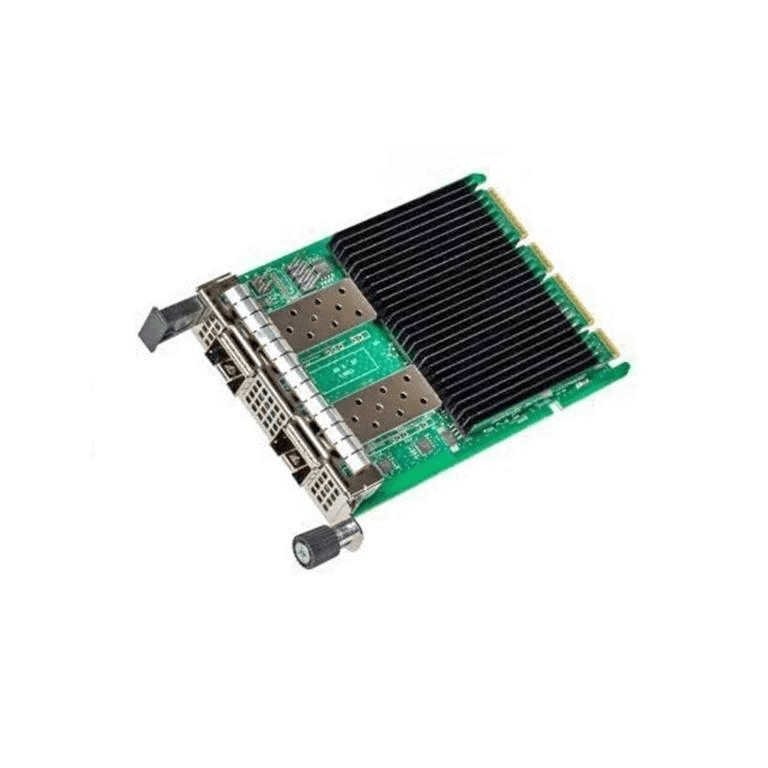

Intel E810 2-port Ethernet Network Adapter Card for OCP 3.0 E810XXVDA2OCPV3

Intel E810 2-port Ethernet Network Adapter Card for OCP 3.0 E810XXVDA2OCPV3

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Technical Specification

Product: Intel E810XXVDA2OCPV3

Vertical Segment: Server

Product series: 800 Series Network Adapters (up to 100GbE)

Connectivity technology: Wired

Port Configuration: 2-ports

Host interface: PCI Express

Speed & Slot Width: 16 GT/s x8 lanes

System Interface Type: PCIe 4.0 (16 GT/s)

Interface: Fiber

Cable Medium: Copper, Fiber

Cabling Type: SFP28 ports - DAC, Optics, And AOC's

Ethernet LAN data rates: 25GbE, 10GbE, 1GbE

Maximum data transfer rate: 25GbE

Compatible with

• Intel® Server System M70KLP Family

• Intel® Server M50FCP Family

• Intel® Server M50CYP Family

• Intel® Server Board M50FCP

• Intel® Server Board M50CYP
