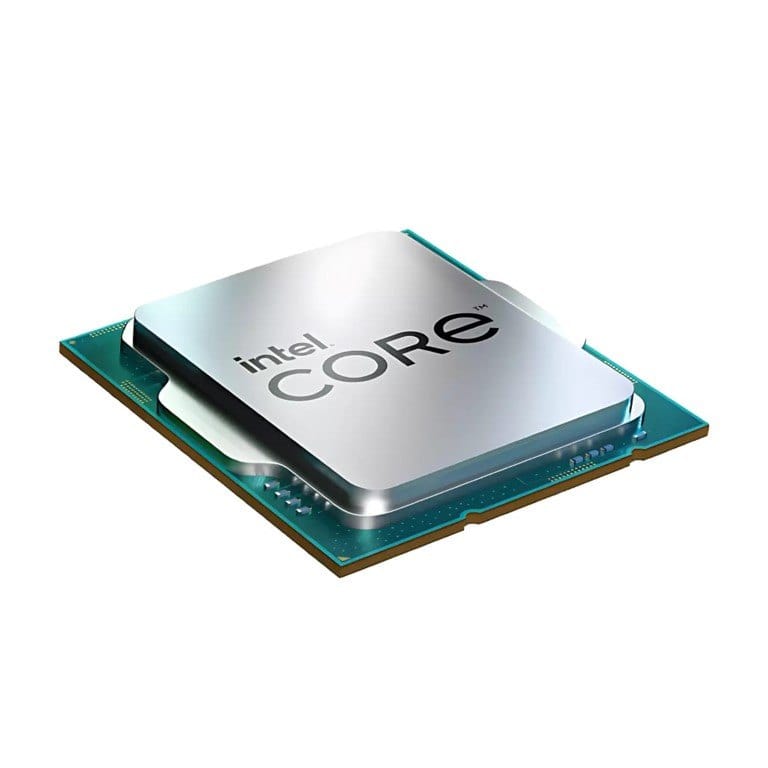

Intel Core i9-13900 CPU - 13th Gen 5.60 GHz 36 MB Processor BX8071513900

Intel Core i9-13900 CPU - 13th Gen 5.60 GHz 36 MB Processor BX8071513900

Features

Intel Gaussian & Neural Accelerator
Intel Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.

Intel Deep Learning Boost (Intel DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

Intel Speed Shift Technology
Intel Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.

Intel Thermal Velocity Boost
Intel Thermal Velocity Boost (Intel TVB) is a feature that opportunistically and automatically increases clock frequency above single-core and multi-core Intel Turbo Boost Technology frequencies based on how much the processor is operating below its maximum temperature and whether turbo power budget is available. The frequency gain and duration is dependent on the workload, capabilities of the processor and the processor cooling solution.

Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 identifies the best performing core(s) on a processor and provides increased performance on those cores through increasing frequency as needed by taking advantage of power and thermal headroom.

Intel Hyper-Threading Technology
Intel Hyper-Threading Technology (Intel HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep Technology
Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Technical Specification

Product: Intel Core i9-13900

Processor Family: 13th Generation Intel Core i9

Processor Frequency: 1.50 / 5.60 GHz

Total Cores: 24

Total Threads: 32

Cache: 36 MB Intel Smart Cache

Processor Socket: LGA 1700

Processor Manufacturer: Intel

Memory Channels: Dual-channel

Maximum internal memory supported by processor: 128 GB

Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM

On-board graphics card model: Intel UHD Graphics 770

Thermal Solution Specification: PCG 2020C

Market segment: Desktop
